Technical datasheet
GN 911Manettes indexables
Manettes indexables
pour connecteurs à collier de serrage / connecteurs d'actionneur linéaire
GN 911
|

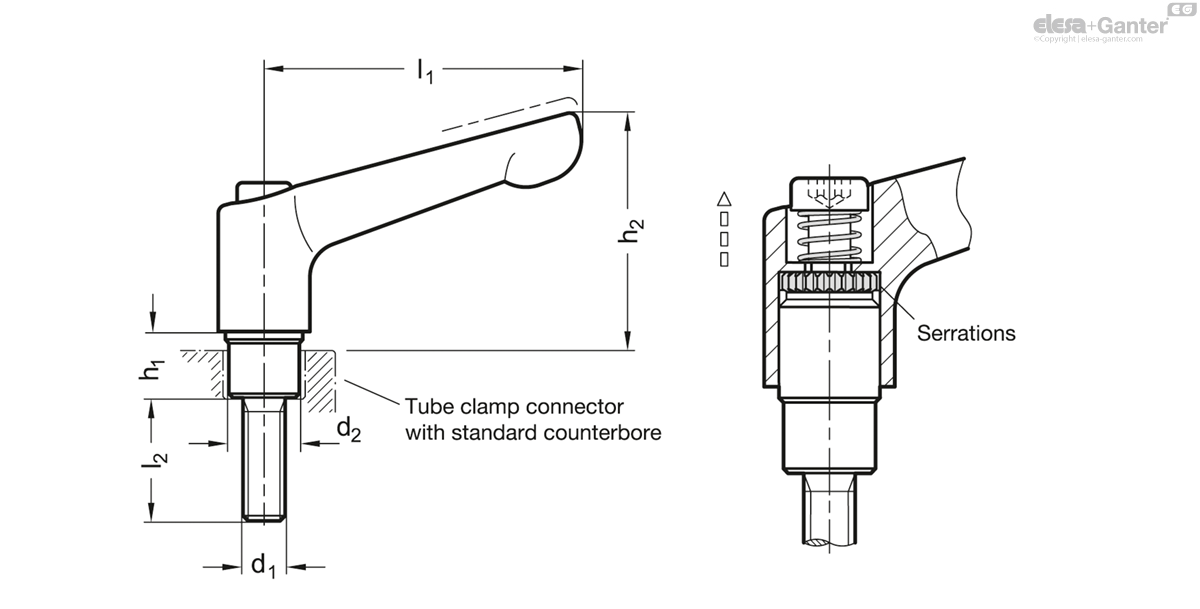

Code
|
l1
|
d1
|
l2
|
d2
|
h1
|
h2 ≈
|
|
|
|---|---|---|---|---|---|---|---|---|
|
45
|
M 6
|
20
|
10
|
9
|
34
|
41
| ||
|
63
|
M 6
|
20
|
10
|
12
|
44
|
84
| ||
|
63
|
M 8
|
25
|
13
|
12.5
|
42
|
93
| ||
|
63
|
M 8
|
30
|
13
|
12.5
|
42
|
96
| ||
|
63
|
M 8
|
35
|
13
|
12.5
|
42
|
97
| ||
|
63
|
M 8
|
40
|
13
|
12.5
|
42
|
102
| ||
|
63
|
M 8
|
50
|
13
|
12.5
|
42
|
103
| ||
|
78
|
M 8
|
25
|
13
|
15
|
52
|
149
| ||
|
78
|
M 8
|
30
|
13
|
15
|
52
|
151
| ||
|
78
|
M 8
|
35
|
13
|
15
|
52
|
147
| ||
|
78
|
M 8
|
40
|
13
|
15
|
52
|
153
| ||
|
78
|
M 8
|
50
|
13
|
15
|
52
|
151
| ||
|
78
|
M 10
|
35
|
16
|
16
|
50
|
166
| ||
|
78
|
M 10
|
50
|
16
|
16
|
50
|
176
| ||
|
78
|
M 10
|
55
|
16
|
16
|
50
|
179
| ||
|
78
|
M 10
|
60
|
16
|
16
|
50
|
182
| ||
|
78
|
M 10
|
65
|
16
|
16
|
50
|
185
| ||
|
92
|
M 10
|
35
|
16
|
16
|
60
|
221
| ||
|
92
|
M 10
|
50
|
16
|
16
|
60
|
230
| ||
|
92
|
M 10
|
55
|
16
|
16
|
60
|
233
| ||
|
92
|
M 10
|
60
|
16
|
16
|
60
|
236
| ||
|
92
|
M 10
|
65
|
16
|
16
|
60
|
236
|
Handle
Zinc die casting
Powder coated
Silver, RAL 9006, textured finish SR

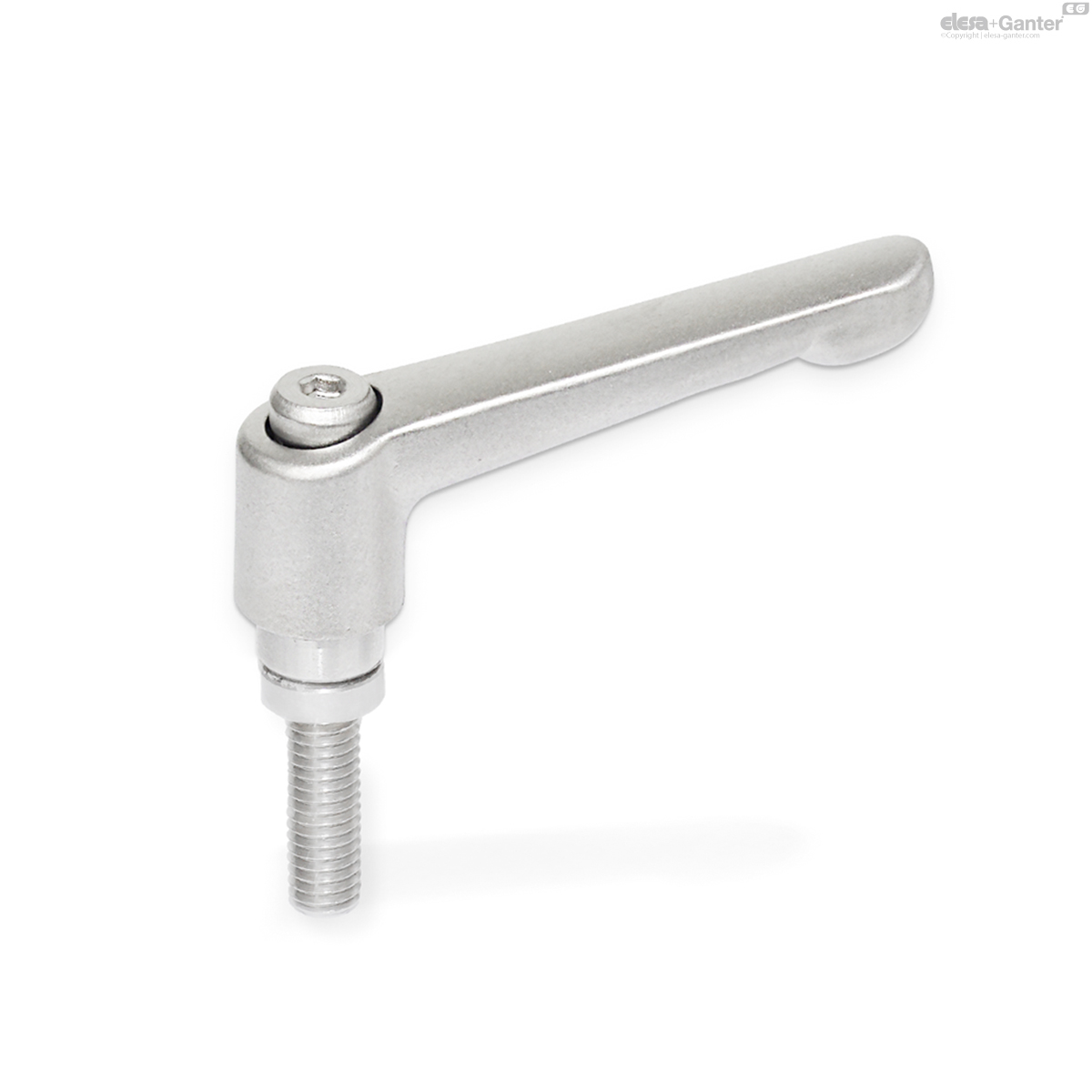

Threaded insert and retaining screw
Stainless steel AISI 303

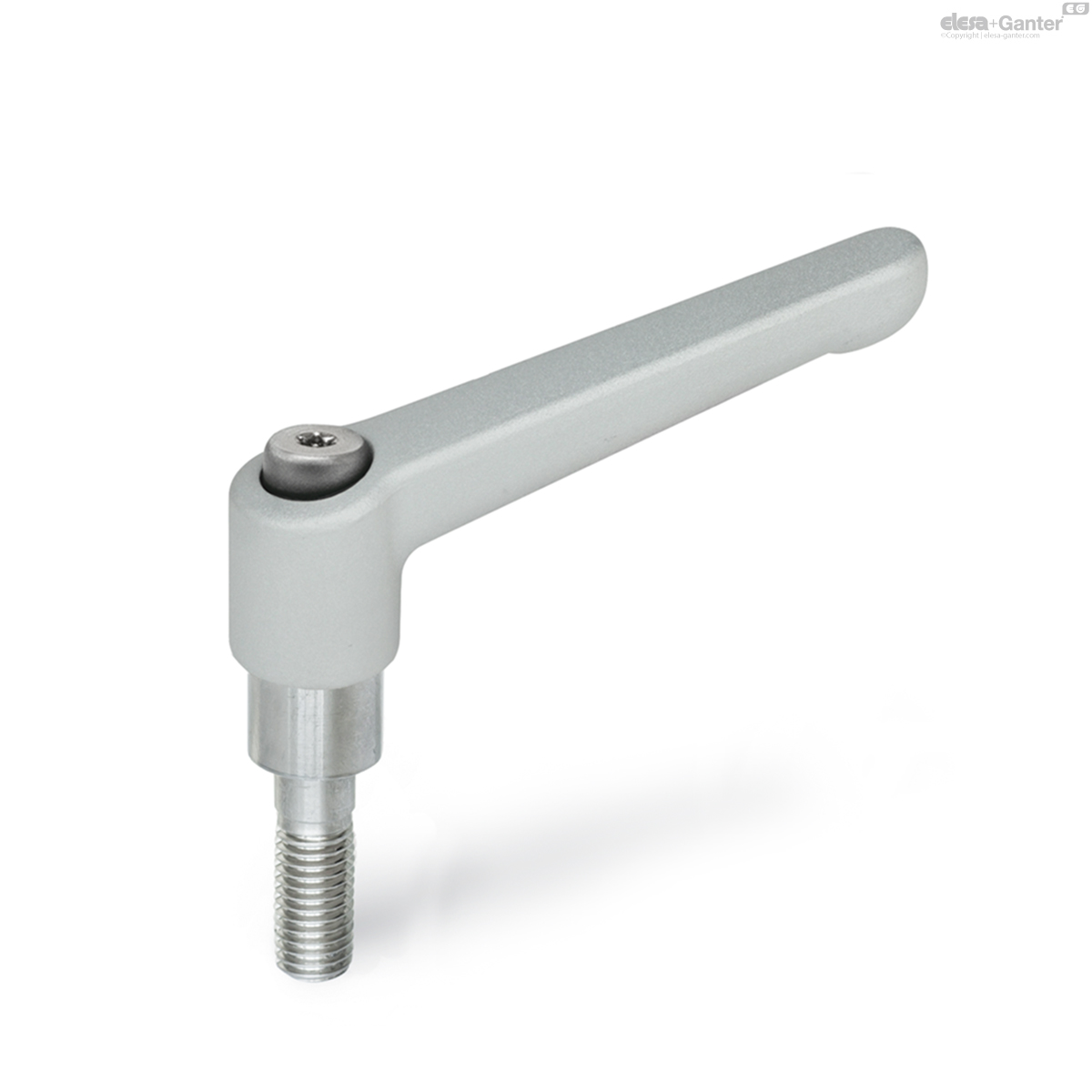

Adjustable hand levers GN 911 replace the socket cap screws DIN 912 of the tube clamp connectors and linear actuator connectors.
The table of dimensions of the tube clamp connectors and linear actuator connectors shows the matching hand lever for each screw location.
