Technical datasheet

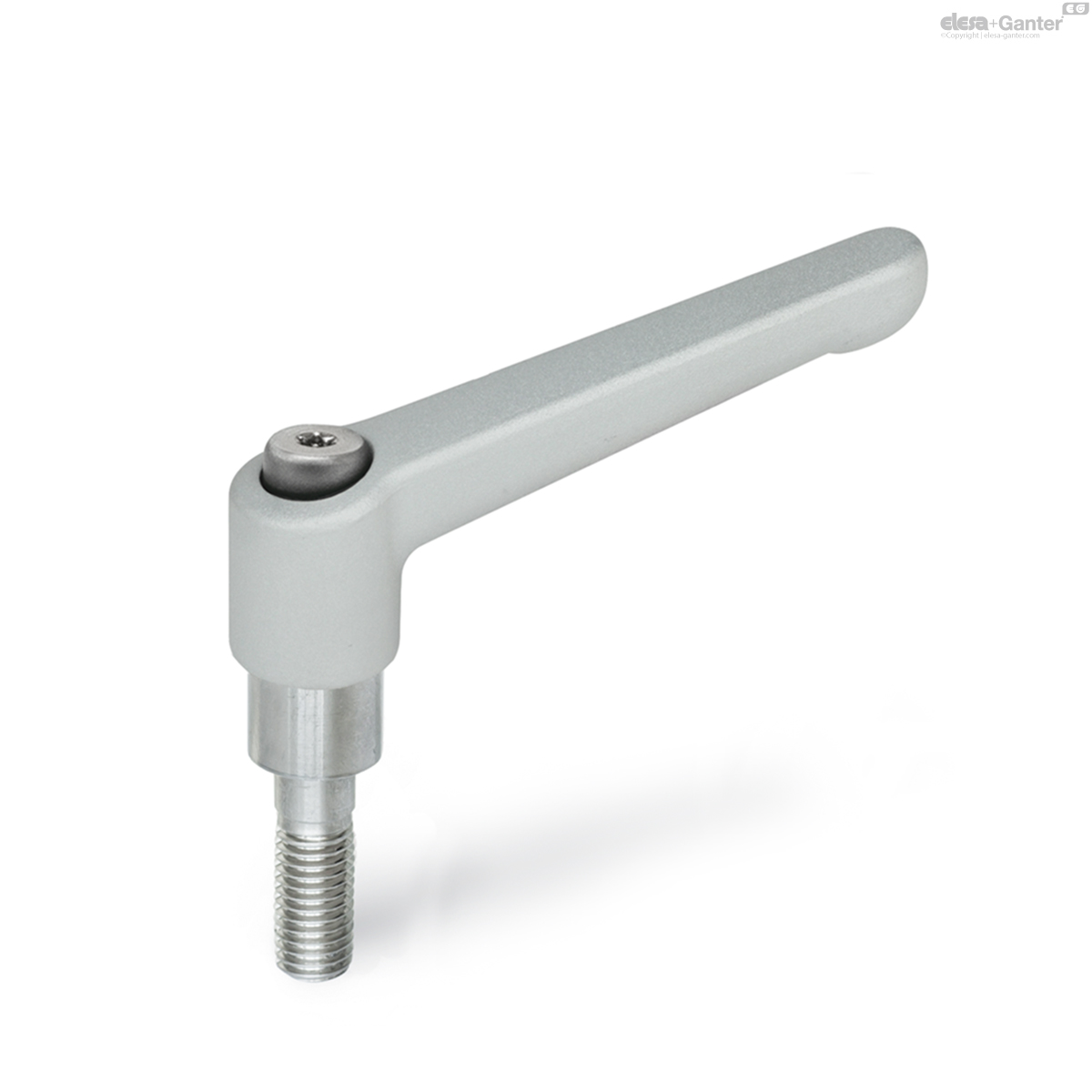

GN 911Adjustable Hand Levers
Adjustable Hand Levers
for Tube Clamp Connectors / Linear Actuator Connectors
GN 911
|
Catalogue
|

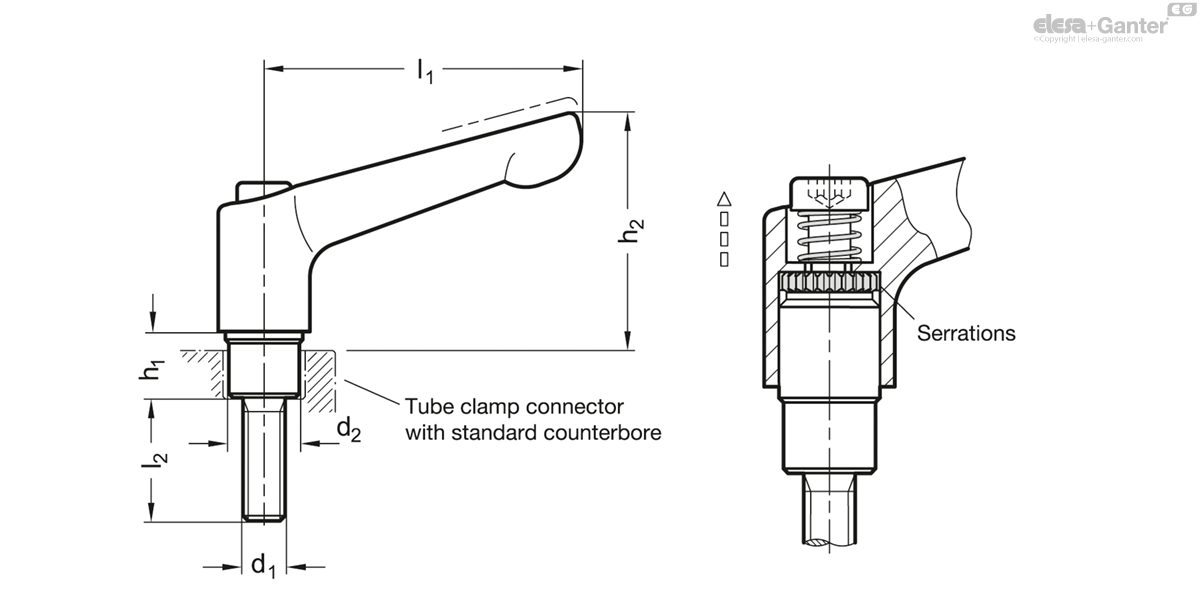

l1
|
d1
|
l2
|
d2
|
h1
|
h2 ≈
|
|
|
|---|---|---|---|---|---|---|---|---|
|
45
|
M 6
|
20
|
10
|
9
|
34
|
41
| ||
|
63
|
M 6
|
20
|
10
|
12
|
44
|
84
| ||
|
63
|
M 8
|
25
|
13
|
12.5
|
42
|
93
| ||
|
63
|
M 8
|
30
|
13
|
12.5
|
42
|
96
| ||
|
63
|
M 8
|
35
|
13
|
12.5
|
42
|
97
| ||
|
63
|
M 8
|
40
|
13
|
12.5
|
42
|
102
| ||
|
63
|
M 8
|
50
|
13
|
12.5
|
42
|
103
| ||
|
78
|
M 8
|
25
|
13
|
15
|
52
|
149
| ||
|
78
|
M 8
|
30
|
13
|
15
|
52
|
151
| ||
|
78
|
M 8
|
35
|
13
|
15
|
52
|
147
| ||
|
78
|
M 8
|
40
|
13
|
15
|
52
|
153
| ||
|
78
|
M 8
|
50
|
13
|
15
|
52
|
151
| ||
|
78
|
M 10
|
35
|
16
|
16
|
50
|
166
| ||
|
78
|
M 10
|
50
|
16
|
16
|
50
|
176
| ||
|
78
|
M 10
|
55
|
16
|
16
|
50
|
179
| ||
|
78
|
M 10
|
60
|
16
|
16
|
50
|
182
| ||
|
78
|
M 10
|
65
|
16
|
16
|
50
|
185
| ||
|
92
|
M 10
|
35
|
16
|
16
|
60
|
221
| ||
|
92
|
M 10
|
50
|
16
|
16
|
60
|
230
| ||
|
92
|
M 10
|
55
|
16
|
16
|
60
|
233
| ||
|
92
|
M 10
|
60
|
16
|
16
|
60
|
236
| ||
|
92
|
M 10
|
65
|
16
|
16
|
60
|
236
|
Handle
Zinc die casting
Powder coated
Silver, RAL 9006, textured finish SR

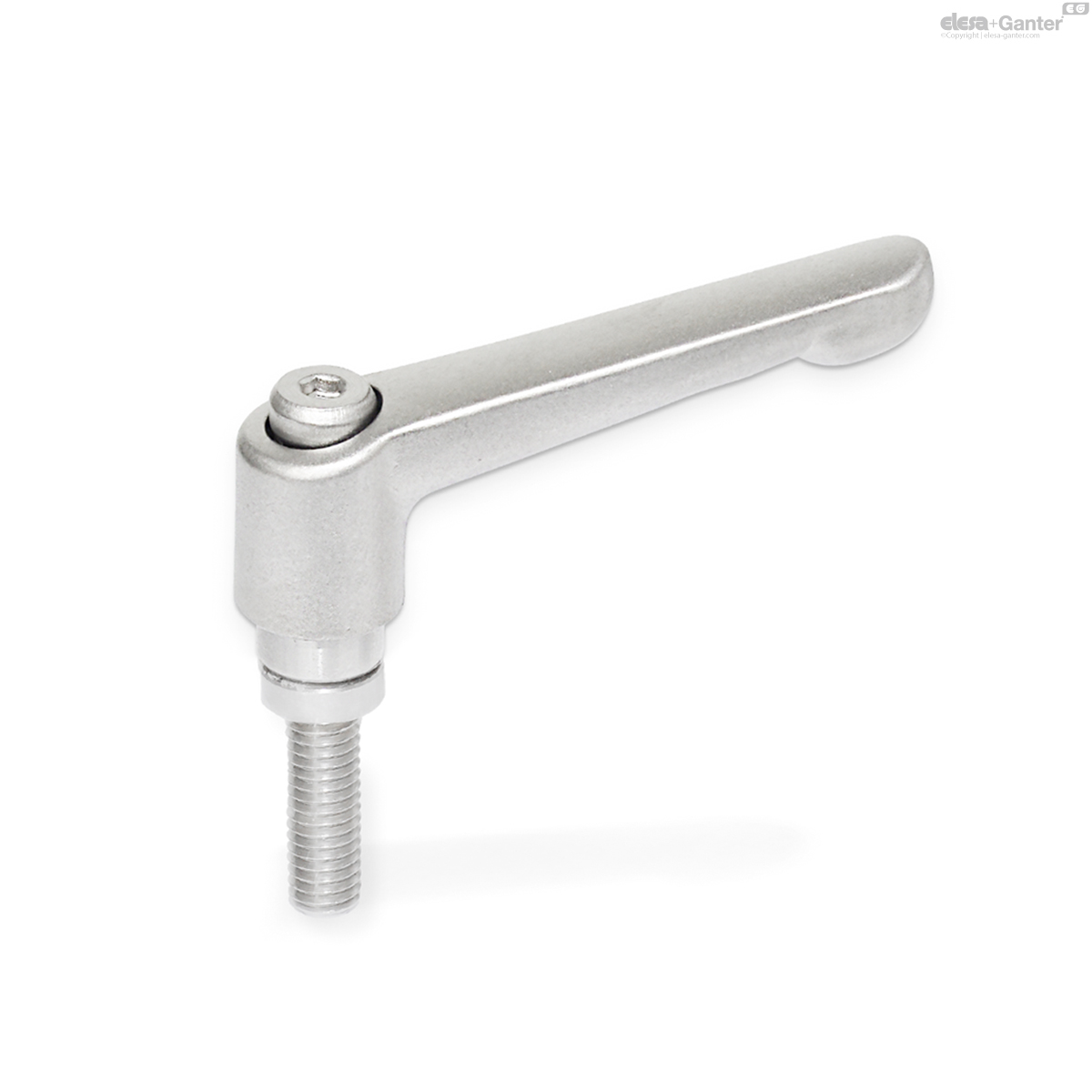

Threaded insert and retaining screw
Stainless steel AISI 303
Adjustable hand levers GN 911 replace the socket cap screws DIN 912 of the tube clamp connectors and linear actuator connectors.
The table of dimensions of the tube clamp connectors and linear actuator connectors shows the matching hand lever for each screw location.
