GN 666-NGPoignées tubulaires

Acier inoxydable

Tube Aluminium / Acier Inox

Technical datasheet

GN 666-NG

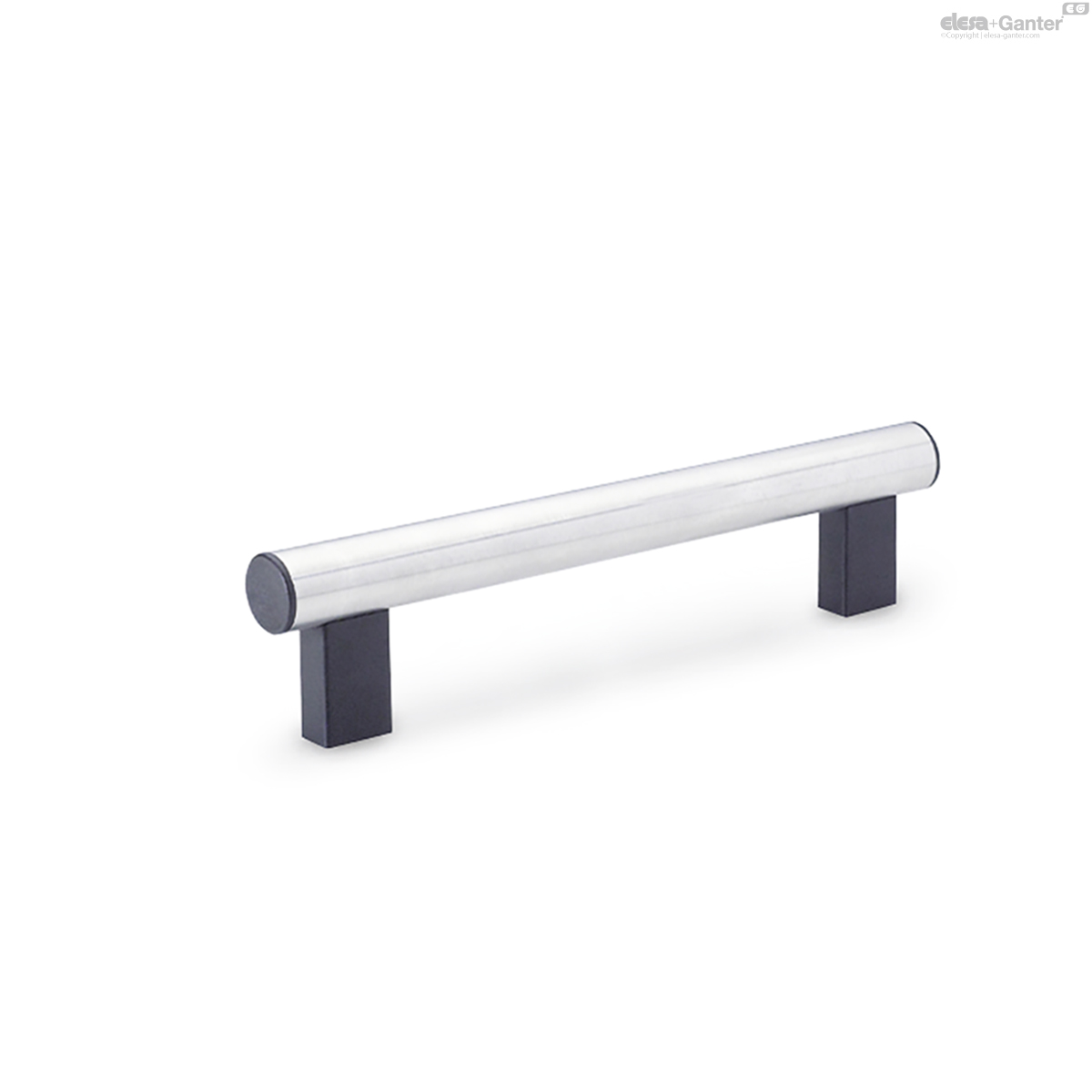

Acier inoxydable

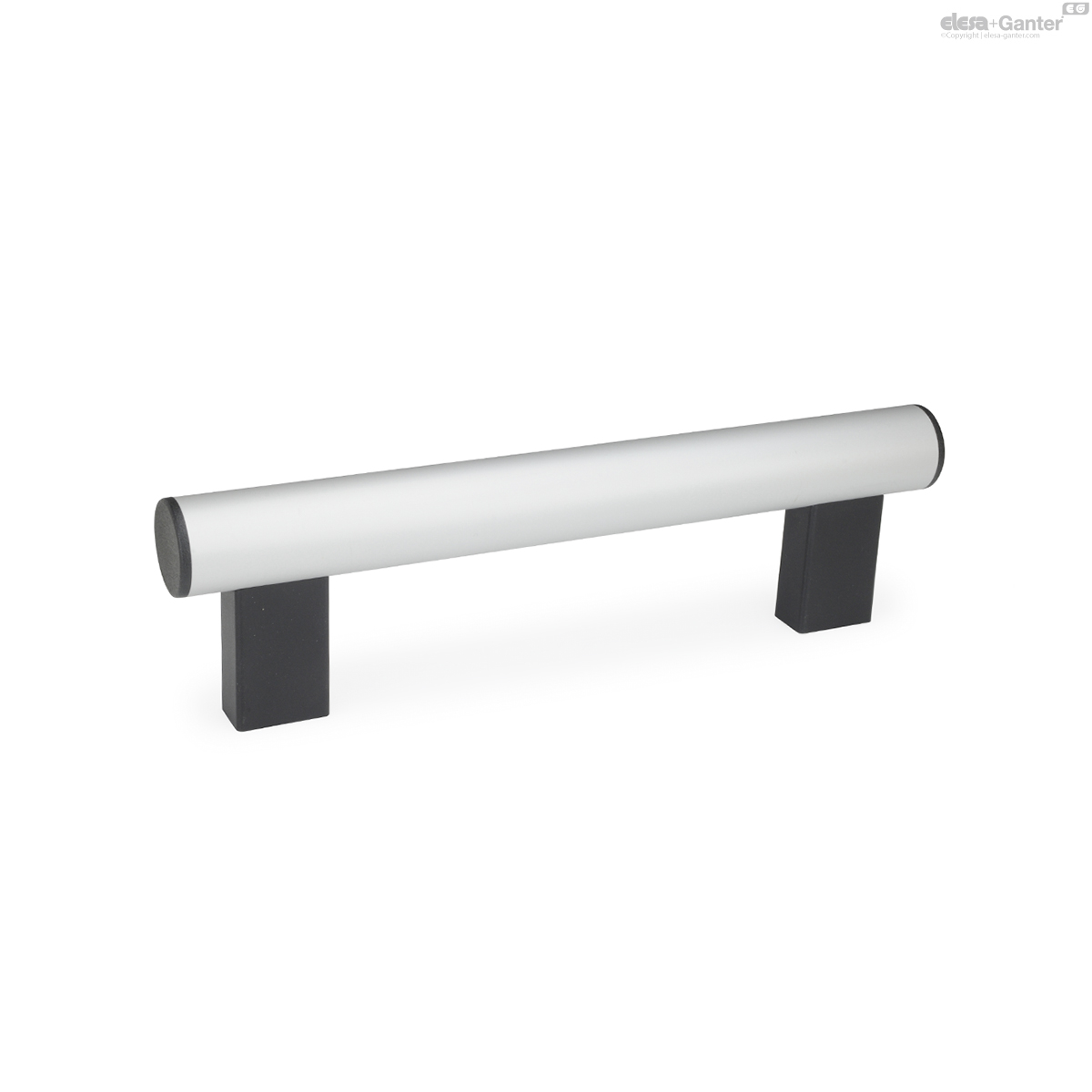

GN 666-EL

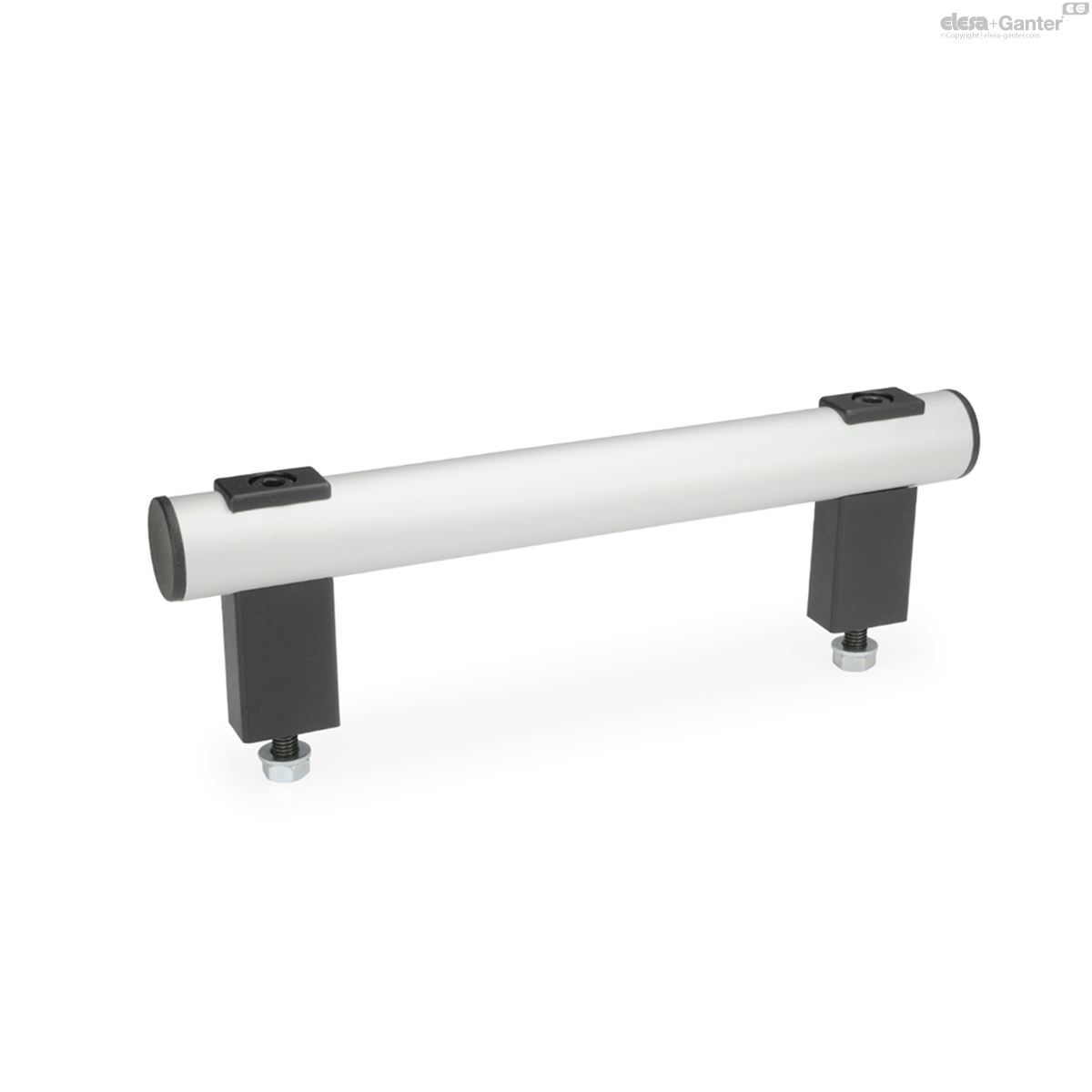

Tube aluminium, couleur naturelle

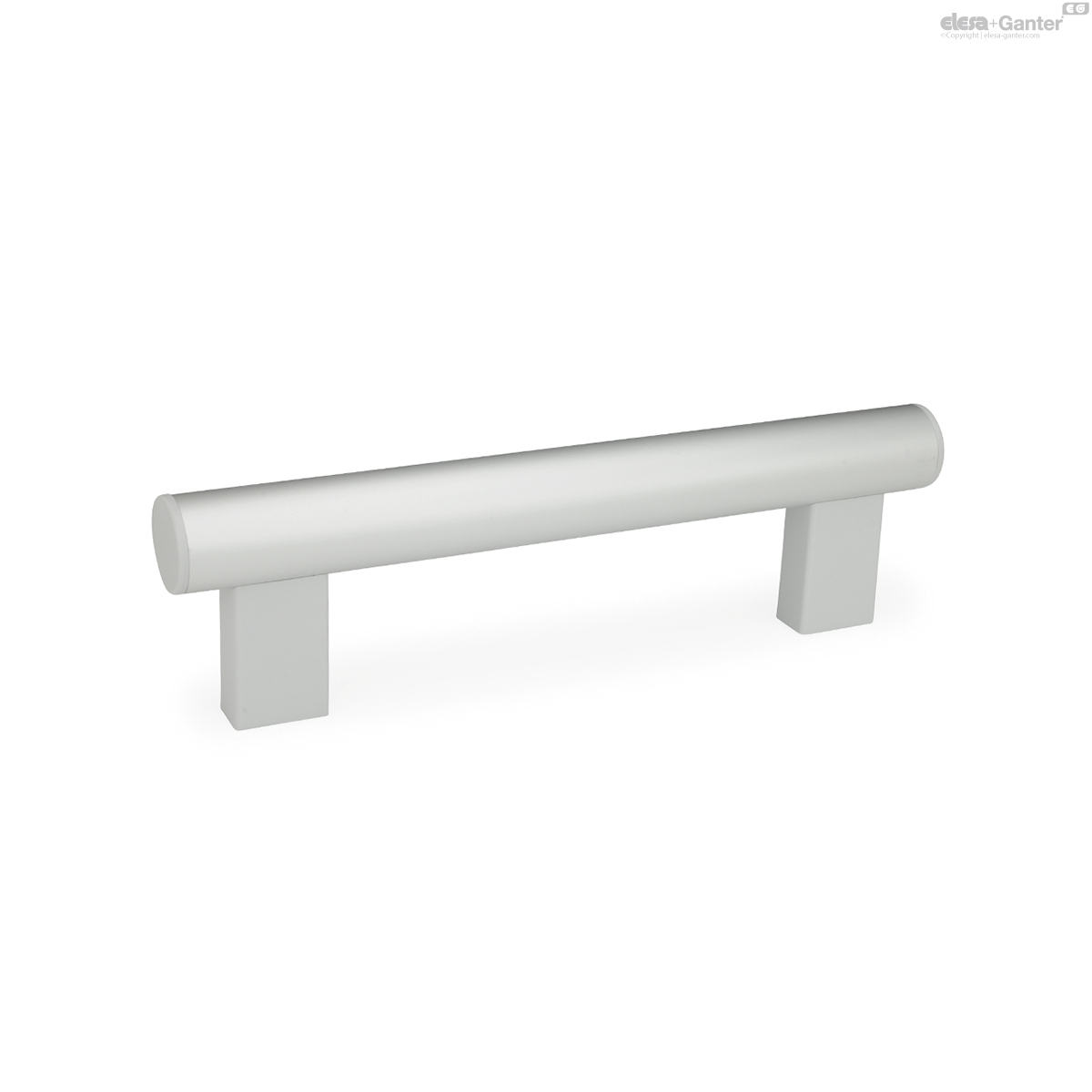

GN 666-ELG

Tube aluminium, couleur naturelle

GN 666-SW

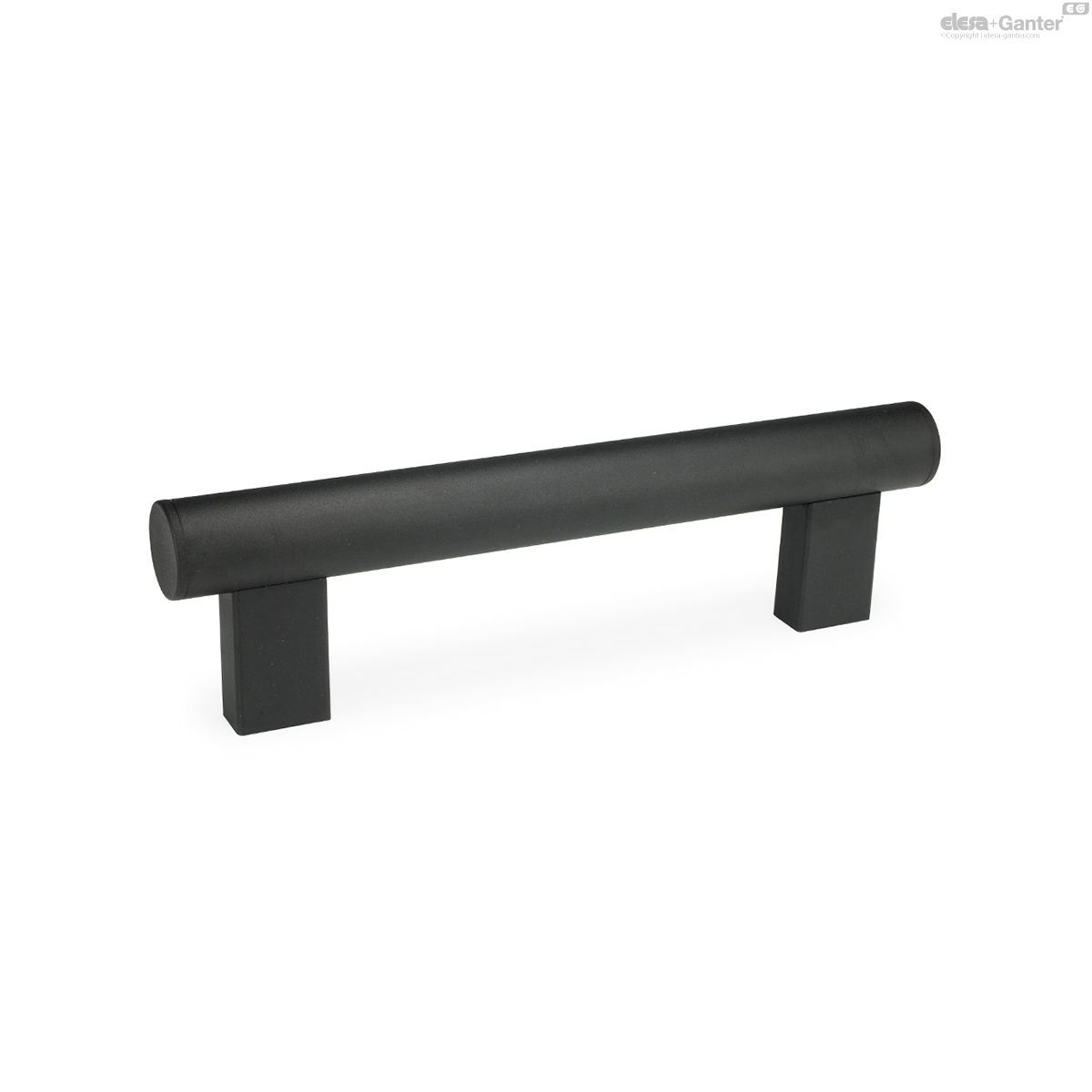

Tube aluminium , peint par poudrage , noir

GN 666-NG

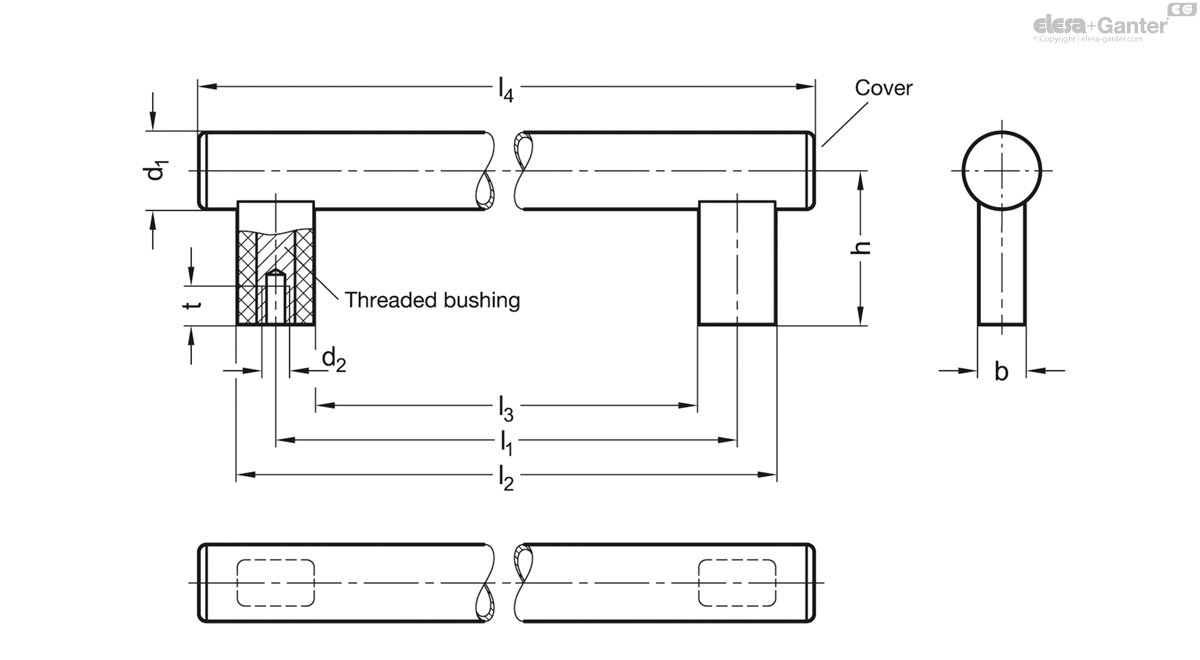

Code	d₁	d₂	l₁ ±0.5	b	h	l₂	l₃	l₄	t min.
GN 666-30-M6-200-NG	30	M 6	200	18	60	230	170	265	12	373
GN 666-30-M6-250-NG	30	M 6	250	18	60	280	220	315	12	437
GN 666-30-M6-300-NG	30	M 6	300	18	60	330	270	365	12	462
GN 666-30-M6-350-NG	30	M 6	350	18	60	380	320	415	12	480
GN 666-30-M6-400-NG	30	M 6	400	18	60	430	370	465	12	650
GN 666-30-M6-500-NG	30	M 6	500	18	60	530	470	565	12	675
GN 666-30-M6-600-NG	30	M 6	600	18	60	630	570	665	12	800
GN 666-30-M8-200-NG	30	M 8	200	18	60	230	170	265	15	378
GN 666-30-M8-250-NG	30	M 8	250	18	60	280	220	315	15	430
GN 666-30-M8-300-NG	30	M 8	300	18	60	330	270	365	15	467
GN 666-30-M8-350-NG	30	M 8	350	18	60	380	320	415	15	534
GN 666-30-M8-400-NG	30	M 8	400	18	60	430	370	465	15	400
GN 666-30-M8-500-NG	30	M 8	500	18	60	530	470	565	15	700
GN 666-30-M8-600-NG	30	M 8	600	18	60	630	570	665	15	820

Handle tube

Wall thickness 1,5 mm

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Handle legs / Covers, black, matte finish

Anodized, natural color EL

Handle legs / Covers, black, matte finish

Anodized, natural color ELG

Handle legs / Covers, light gray, matte finish

Stainless steel AISI 304

Ground, matte shiny finish NG

Handle legs / Covers, black, matte finish

Handle legs

Plastic, Polyamide (PA)

Glass fiber reinforced

Operating temperature up to 100 °C

Threaded bushing steel, zinc plated

Covers

Plastic, thermoplastic elastomer (TPE)

Owing to their large range of variants and their classic design, tubular handles GN 666 are the perfect choice for many applications.

With the modular structure, special lengths are avaiable even in comparatively small unit quantities. Large handle lengths can be supported by additional handle legs.
