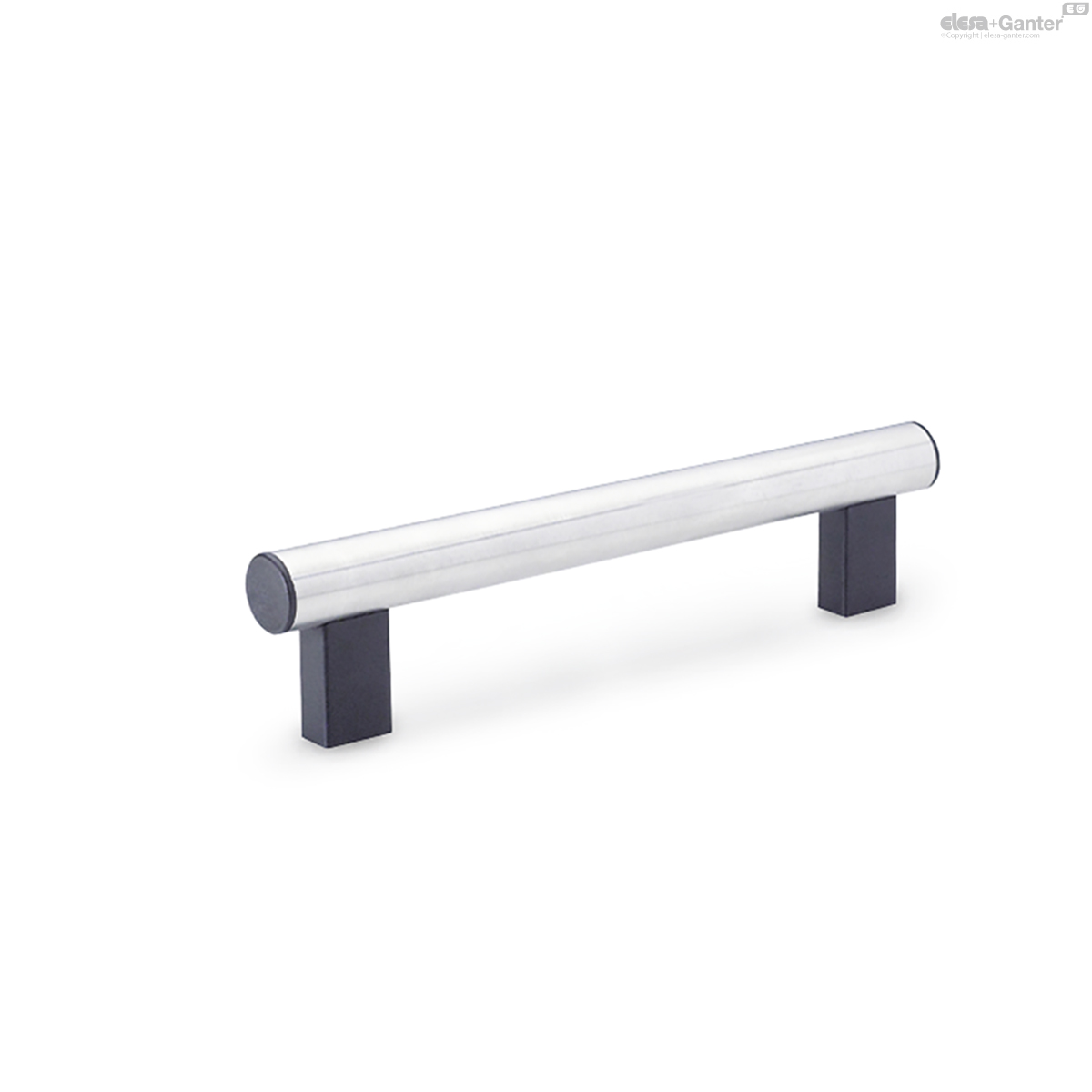

666-30-M6-350-NG GN 666-NG Acier inoxydable

666-30-M6-350-NG

GN 666-NG Acier inoxydable

Tube Aluminium / Acier Inox
  • INOX
  • RoHS

Délai: 1-2 semaines Toutes les tailles et variantes de GN 666

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 666-30-M6-350-NG
d1
30
d2
M 6
l1 ±0.5
350
b
18
h
60
l2
380
l3
320
l4
415
t min.
12
480
666-30-M6-350-NG drawing

Handle tube

Wall thickness 1,5 mm

  • Aluminum
  • Powder coated
  • Black, RAL 9005, textured finish SW
  • Handle legs / Covers, black, matte finish
  • Anodized, natural color EL
  • Handle legs / Covers, black, matte finish
  • Anodized, natural color ELG
  • Handle legs / Covers, light gray, matte finish
  • Stainless steel AISI 304
  • Ground, matte shiny finish NG
  • Handle legs / Covers, black, matte finish

Handle legs

Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Operating temperature up to 100 °C
  • Threaded bushing steel, zinc plated

Covers

Plastic, thermoplastic elastomer (TPE)

Owing to their large range of variants and their classic design, tubular handles GN 666 are the perfect choice for many applications.

With the modular structure, special lengths are avaiable even in comparatively small unit quantities. Large handle lengths can be supported by additional handle legs.
