GN 666.1-ELPoignées tubulaires

Aluminium , couleur naturelle

Tube Aluminium ou Inox

Technical datasheet

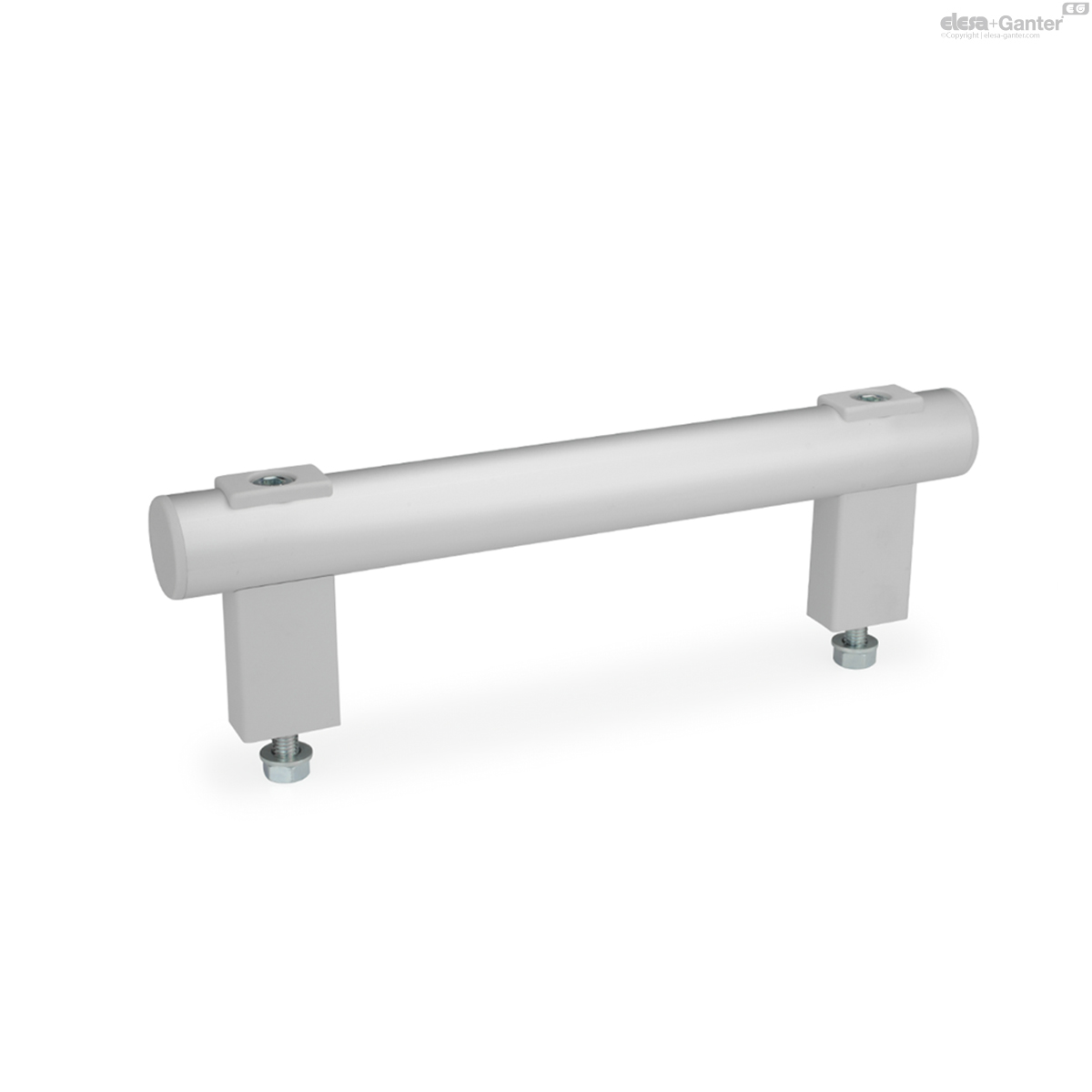

GN 666.1-EL

Aluminium , couleur naturelle

GN 666.1-SW

Revêtement en aluminium et plastique

GN 666.1-NG

Acier inoxydable

GN 666.1-ELG

Aluminium , couleur naturelle

GN 666.1-EL

Réinitialiser

Code	d₁	l₁ ±0.5	b	d₂	h	l₂	l₃	l₄	l₅	l₆	l₇ max.

GN 666.1-30-200-EL	30	200	18	M 8	60	230	170	265	85	17	8.5	250
GN 666.1-30-250-EL	30	250	18	M 8	60	280	220	315	85	17	8.5	280
GN 666.1-30-300-EL	30	300	18	M 8	60	330	270	365	85	17	8.5	284
GN 666.1-30-400-EL	30	400	18	M 8	60	430	370	465	85	17	8.5	360
GN 666.1-30-500-EL	30	500	18	M 8	60	530	470	565	85	17	8.5	370
GN 666.1-30-600-EL	30	600	18	M 8	60	630	570	665	85	17	8.5	394

Handle tube

Wall thickness 1,5 mm

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Handle legs / Covers, black, matte finish

Anodized, natural color EL

Handle legs / Covers, black, matte finish

Anodized, natural color ELG

Handle legs / Covers, light gray, matte finish

Stainless steel AISI 304

Ground, matte shiny finish NG

Handle legs / Covers, black, matte finish

Handle legs

Plastic, Polyamide (PA)

Glass fiber reinforced

Operating temperature up to 100 °C

Threaded bushing steel, zinc plated

Covers

Plastic, thermoplastic elastomer (TPE)

Fastening set

Socket cap screws ISO 4762

Steel, zinc plated

Black passivated for SW / EL / NG

Blue passivated for ELG

Hex nuts ISO 4032-M8

Steel, zinc plated, blue passivated

Washers DIN 125

Steel, zinc plated, blue passivated

Owing to their large range of variants and their classic design, tubular handles GN 666.1 are the perfect choice for many applications.

The mounting screws included, allow the installation from the back or the operator‘s side. Tubular handles GN 666.1 and GN 666 of identical length are also suitable for double mounting, e.g. for sliding doors.
