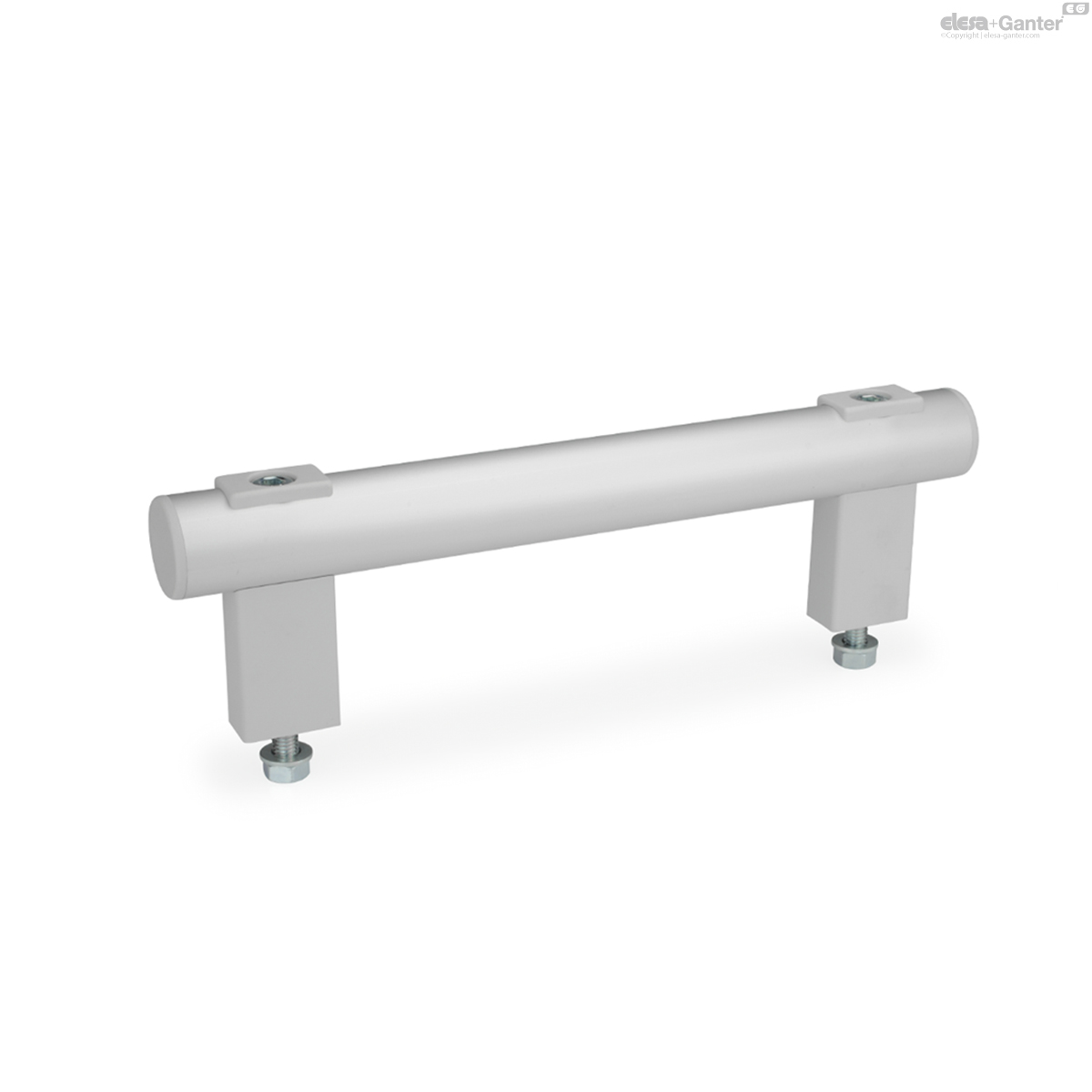

GN 666.1-ELTubular Handles

Handle tube aluminum, anodized, natural color

Tube Aluminum / Stainless Steel, Handle Legs Plastic

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents
Handle tube aluminum, anodized, natural color
Handle tube aluminum, anodized, natural color
Handle tube aluminum, anodized, natural color
GN 666.1-EL
Handle tube aluminum, anodized, natural color
Handle tube, aluminum, powder coated, black
GN 666.1-SW
Handle tube, aluminum, powder coated, black
Stainless steel
GN 666.1-NG
Stainless steel
Handle tube aluminum, anodized, natural color
GN 666.1-ELG
Handle tube aluminum, anodized, natural color

GN 666.1-EL

Reset
Catalogue
d1
l1 ±0.5
b
d2
h
l2
l3
l4
l5
l6
l7 max.
GN 666.1-30-200-EL
30
200
18
M 8
60
230
170
265
85
17
8.5
250
GN 666.1-30-250-EL
30
250
18
M 8
60
280
220
315
85
17
8.5
280
GN 666.1-30-300-EL
30
300
18
M 8
60
330
270
365
85
17
8.5
284
GN 666.1-30-400-EL
30
400
18
M 8
60
430
370
465
85
17
8.5
360
GN 666.1-30-500-EL
30
500
18
M 8
60
530
470
565
85
17
8.5
370
GN 666.1-30-600-EL
30
600
18
M 8
60
630
570
665
85
17
8.5
394

Handle tube

Wall thickness 1,5 mm

  • Aluminum
  • Powder coated
  • Black, RAL 9005, textured finish SW
  • Handle legs / Covers, black, matte finish
  • Anodized, natural color EL
  • Handle legs / Covers, black, matte finish
  • Anodized, natural color ELG
  • Handle legs / Covers, light gray, matte finish
  • Stainless steel AISI 304
  • Ground, matte shiny finish NG
  • Handle legs / Covers, black, matte finish

Handle legs

Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Operating temperature up to 100 °C
  • Threaded bushing steel, zinc plated

Covers

Plastic, thermoplastic elastomer (TPE)

Fastening set

  • Socket cap screws ISO 4762
  • Steel, zinc plated
  • Black passivated for SW / EL / NG
  • Blue passivated for ELG
  • Hex nuts ISO 4032-M8
  • Steel, zinc plated, blue passivated
  • Washers DIN 125
  • Steel, zinc plated, blue passivated

Owing to their large range of variants and their classic design, tubular handles GN 666.1 are the perfect choice for many applications.

The mounting screws included, allow the installation from the back or the operator‘s side. Tubular handles GN 666.1 and GN 666 of identical length are also suitable for double mounting, e.g. for sliding doors.
