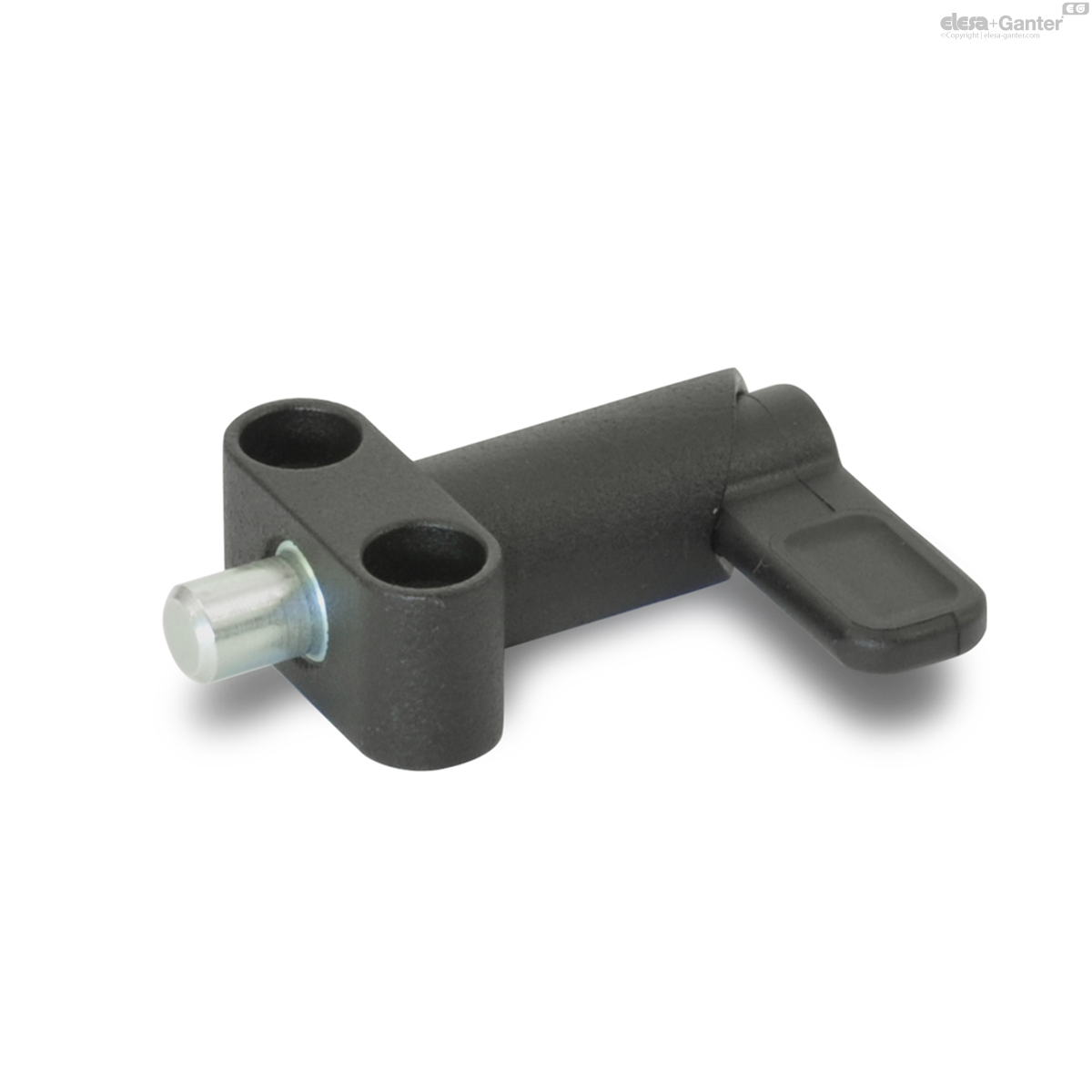

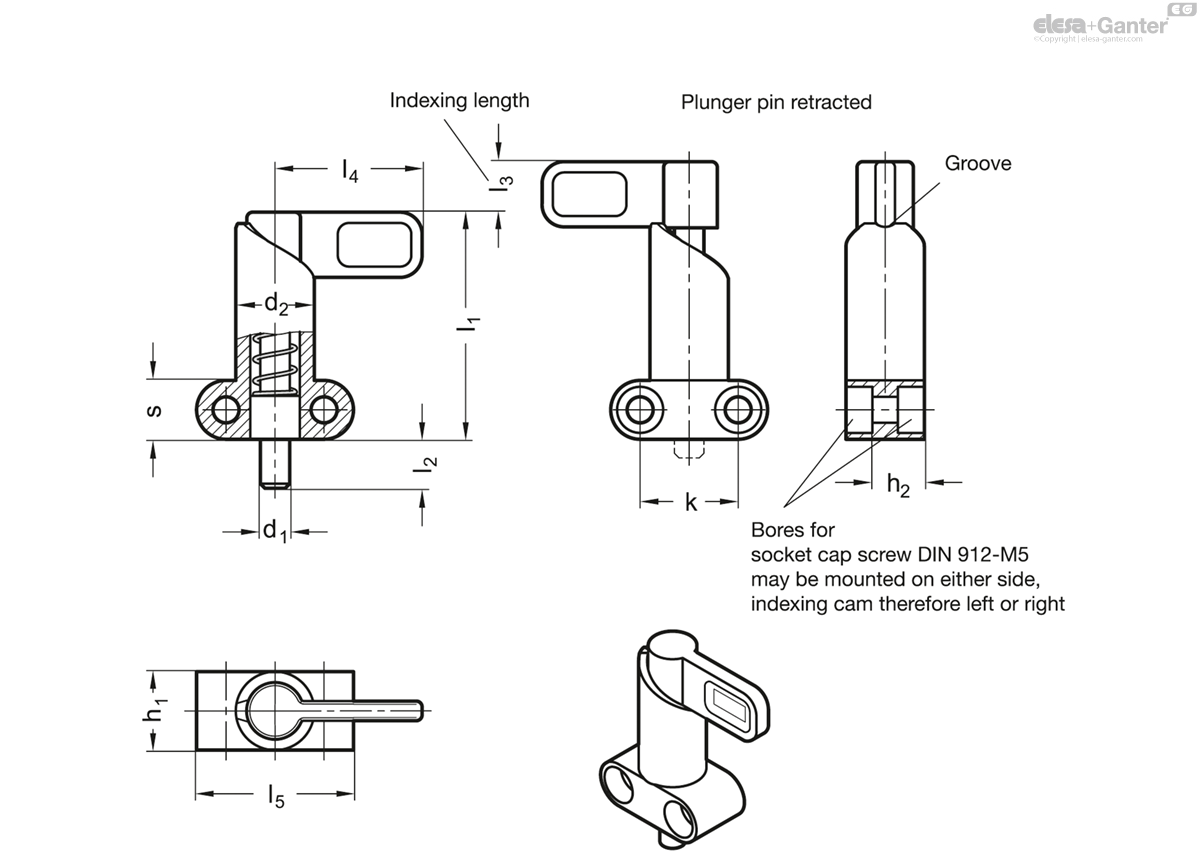

GN 612.9Doigts d'indexage à came
Doigts d'indexage à came
avec bride / Guide en zinc moulé sous pression
GN 612.9
|
Code
|
d1 Pin-0.05
Bore +0.1/+0.05 |
l2
|
d2
|
h1
|
h2
|
k
|
l1 ≈
|
l3
|
l4
|
l5
|
s
|
Spring load
in N ≈ initial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 612.9-6-10-16-SW
|
6
|
10
|
16
|
16
|
10.5
|
20
|
46
|
10
|
30
|
32
|
12
|
12
|
|
GN 612.9-6-16-16-SW
|
6
|
16
|
16
|
16
|
10.5
|
20
|
46
|
10
|
30
|
32
|
12
|
12
|
|
GN 612.9-8-10-16-SW
|
8
|
10
|
16
|
16
|
10.5
|
20
|
46
|
10
|
30
|
32
|
12
|
12
|
|
GN 612.9-8-16-16-SW
|
8
|
16
|
16
|
16
|
10.5
|
20
|
46
|
10
|
30
|
32
|
12
|
12
|
|
GN 612.9-8-12-20-SW
|
8
|
12
|
20
|
20
|
14.5
|
22
|
57
|
12
|
37
|
37
|
15
|
21
|
|
GN 612.9-8-18-20-SW
|
8
|
18
|
20
|
20
|
14.5
|
22
|
57
|
12
|
37
|
37
|
15
|
21
|
|
GN 612.9-10-10-16-SW
|
10
|
10
|
16
|
16
|
10.5
|
20
|
46
|
10
|
30
|
32
|
12
|
12
|
|
GN 612.9-10-16-16-SW
|
10
|
16
|
16
|
16
|
10.5
|
20
|
46
|
10
|
30
|
32
|
12
|
12
|
|
GN 612.9-10-12-20-SW
|
10
|
12
|
20
|
20
|
14.5
|
22
|
57
|
12
|
37
|
37
|
15
|
21
|
|
GN 612.9-10-18-20-SW
|
10
|
18
|
20
|
20
|
14.5
|
22
|
57
|
12
|
37
|
37
|
15
|
21
|
|
GN 612.9-12-12-20-SW
|
12
|
12
|
20
|
20
|
14.5
|
22
|
57
|
12
|
37
|
37
|
15
|
21
|
|
GN 612.9-12-18-20-SW
|
12
|
18
|
20
|
20
|
14.5
|
22
|
57
|
12
|
37
|
37
|
15
|
21
|
Guide
Zinc die casting
plastic coated
black, RAL 9005, textured finish SW
Plunger pin
Steel
zinc plated, blue passivated
Lever
Plastic (Polyamide PA)
- black, matt
- not removable
Cam action indexing plungers GN 612.9 are used in cases where the plunger must not protrude all the time. By rotating the lever through 180° the plunger withdraws itself. The groove allows safe positioning.
