Technical datasheet
GN 564Poignées étriers
Poignées étriers
avec caoutchouc mousse polyuréthane
|

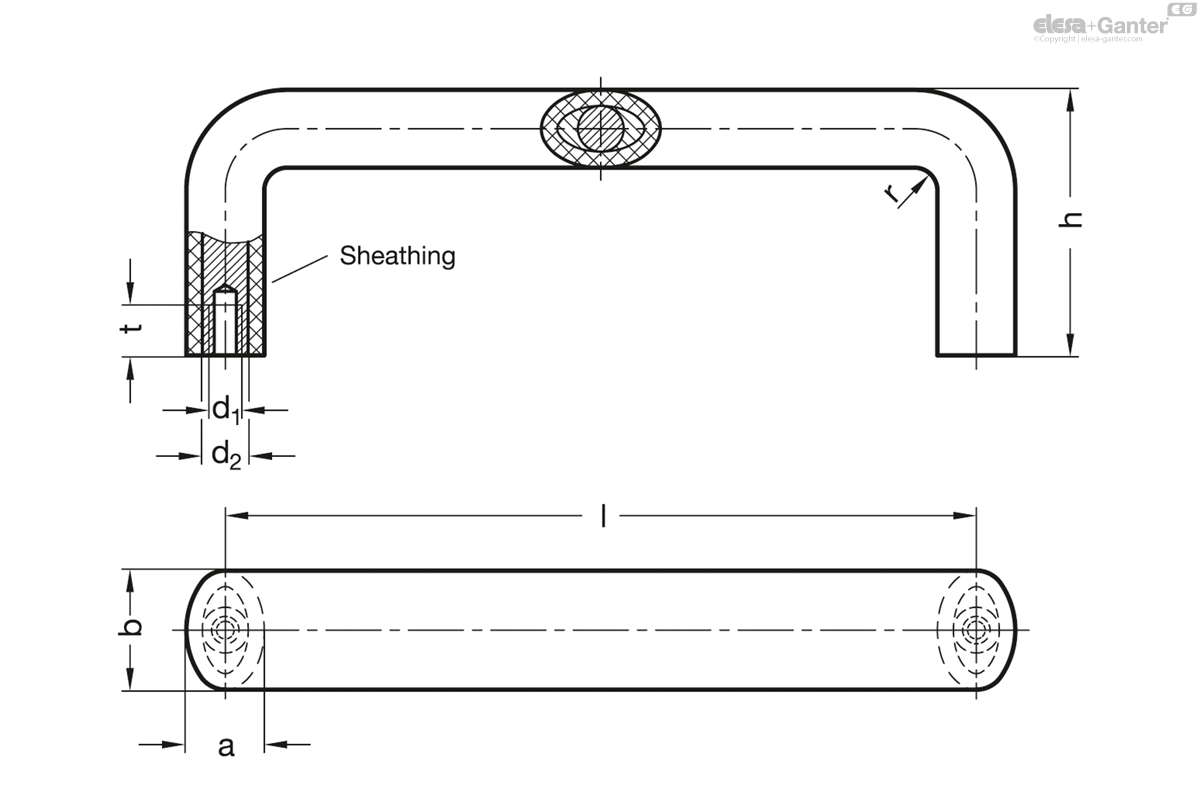

Code
|
b
|
Length l ±0.25
|
a
|
d1
|
d2
|
h
|
r
|
t min.
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
GN 564-25-112
|
25
|
112
|
16
|
M 6
|
10
|
50
|
5
|
10
|
154
|
|
GN 564-25-128
|
25
|
128
|
16
|
M 6
|
10
|
54
|
7
|
10
|
172
|
|
GN 564-25-160
|
25
|
160
|
16
|
M 6
|
10
|
54
|
9
|
10
|
199
|
|
GN 564-25-192
|
25
|
192
|
16
|
M 6
|
10
|
54
|
9
|
10
|
227
|
|
GN 564-35-160
|
35
|
160
|
25
|
M 8
|
17
|
68
|
12.5
|
12
|
328
|
|
GN 564-35-192
|
35
|
192
|
25
|
M 8
|
17
|
68
|
12.5
|
12
|
370
|
|
GN 564-35-300
|
35
|
300
|
25
|
M 8
|
17
|
68
|
12.5
|
12
|
513
|
Sheathing
Sheathing
Thermoplastic polyurethane (TPU)
- Black, textured matte finish
- Elastic, 65±5 Shore A
- Operating temperature up to 70 °C
- Abrasion-resistant
- Insulating
- Weather-proof
Handle core
Handle core
- Stainless steel AISI 303
- Round (for size b = 25)
- Aluminum
- Elliptical (for size b = 35)
The shock absorbing casing of the GN 564 cabinet U-handles made of thermoplastic polyurethane (TPU) offers protection from injuries, while its elliptical shape gives it a nice hold.
The stainless steel core and the aluminum core guarantee a high basic durability of the handle.
- Other colors
