GN 564Cabinet U-Handles

Cabinet U-Handles

with Elastic TPU Sheating, Handle Core Stainless Steel or Aluminum

  • Icons/__logo__RoHS__.png
  • Icons/__logo__SOFT__.png
pdf Other documents
Cabinet U-Handles
Cabinet U-Handles

GN 564

Reset
Catalogue

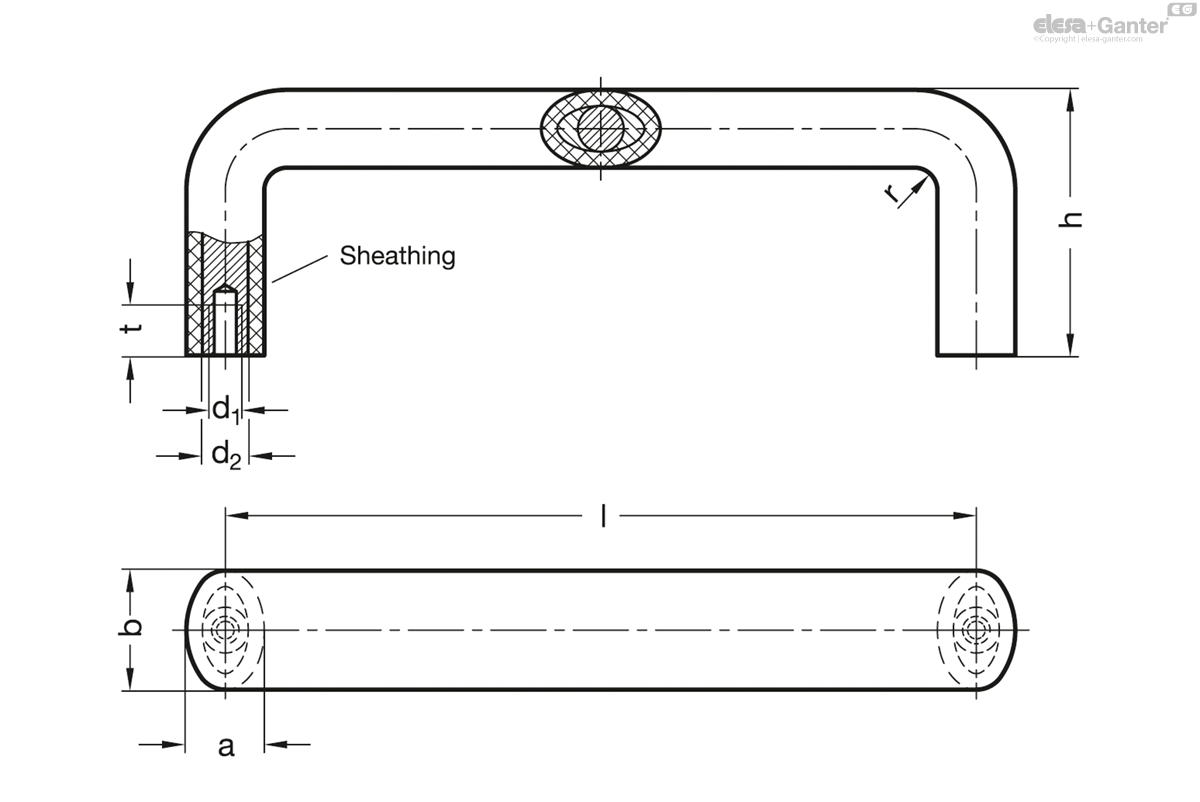

b
Length l ±0.25
a
d1
d2
h
r
t min.
GN 564-25-112
25
112
16
M 6
10
50
5
10
154
GN 564-25-128
25
128
16
M 6
10
54
7
10
172
GN 564-25-160
25
160
16
M 6
10
54
9
10
199
GN 564-25-192
25
192
16
M 6
10
54
9
10
227
GN 564-35-160
35
160
25
M 8
17
68
12.5
12
328
GN 564-35-192
35
192
25
M 8
17
68
12.5
12
370
GN 564-35-300
35
300
25
M 8
17
68
12.5
12
513

Sheathing

Thermoplastic polyurethane (TPU)

  • Black, textured matte finish
  • Elastic, 65±5 Shore A
  • Operating temperature up to 70 °C
  • Abrasion-resistant
  • Insulating
  • Weather-proof

Handle core

  • Stainless steel AISI 303
  • Round (for size b = 25)
  • Aluminum
  • Elliptical (for size b = 35)

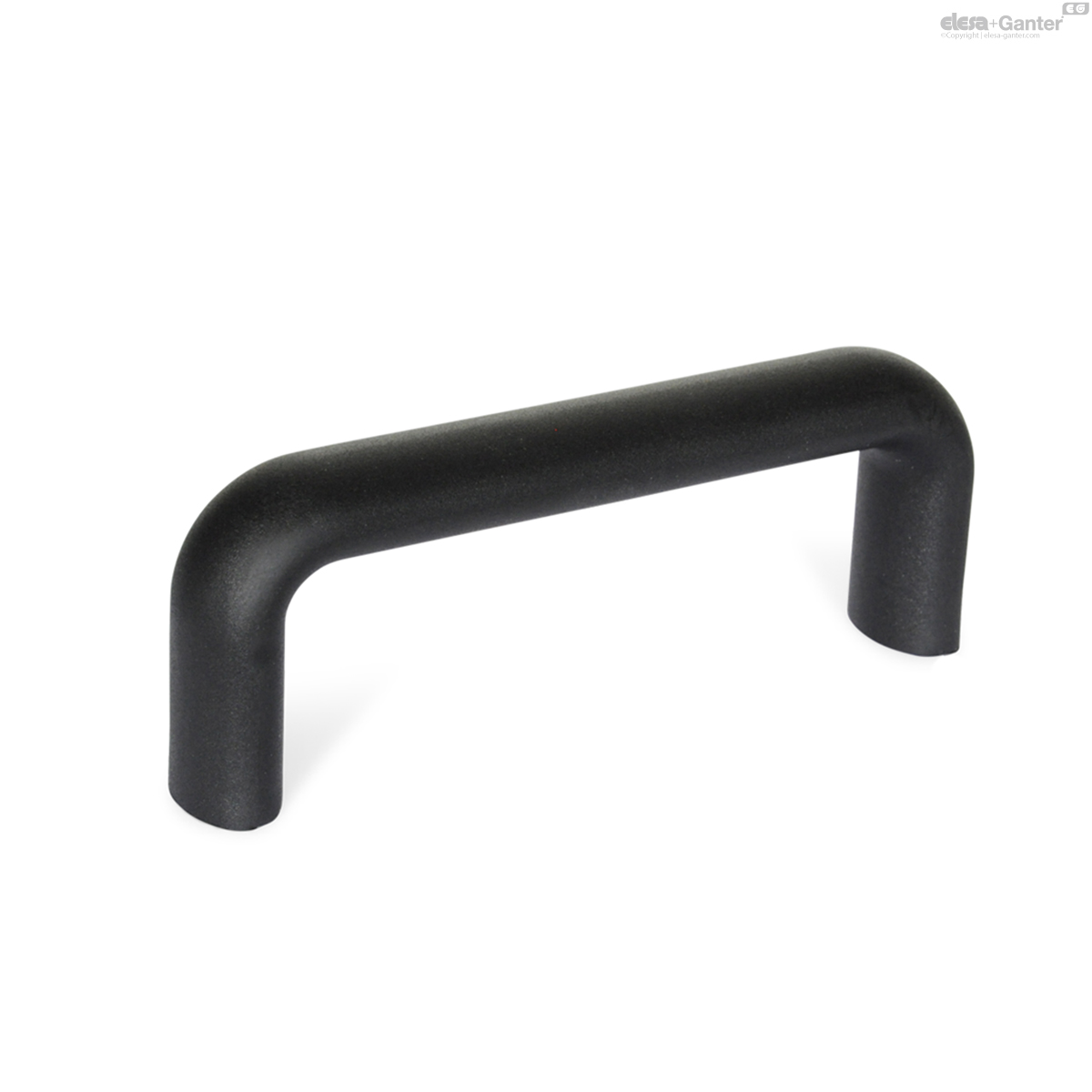

The shock absorbing casing of the GN 564 cabinet U-handles made of thermoplastic polyurethane (TPU) offers protection from injuries, while its elliptical shape gives it a nice hold.

The stainless steel core and the aluminum core guarantee a high basic durability of the handle.

  • Other colors
