Technical datasheet
MF-NPoignées à levier
Trou cylindrique ou carré
Technopolymère
|
Code
|
Description
|

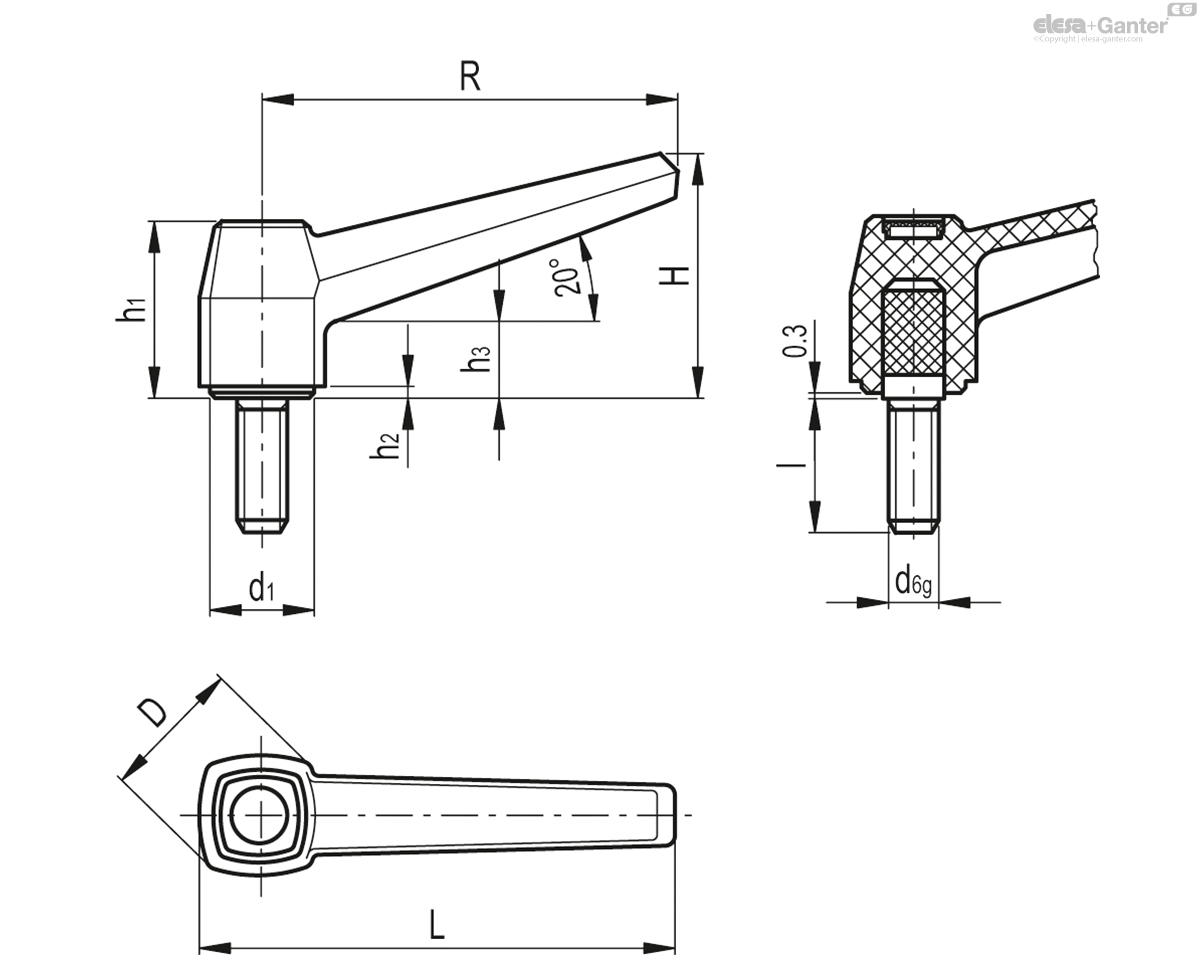

R
|
dH9
|
sH9
|
L
|
D
|
H
|
h
|
h1
|
h2
|
h3
|
h4
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
39011-R-C3
|
MF.40 N-5x5-C3
|
42
|
-
|
5
|
50
|
18
|
27
|
15
|
22
|
1.8
|
9
|
7
|
|
39021-R-C3
|
MF.40 N-6-C3
|
42
|
6
|
-
|
50
|
18
|
27
|
15
|
22
|
1.8
|
9
|
7
|
|
39121-R-C3
|
MF.63 N-6x6-C3
|
63
|
-
|
6
|
73
|
23
|
37
|
20
|
27
|
2
|
11
|
8
|
|
39131-R-C3
|
MF.63 N-8-C3
|
63
|
8
|
-
|
73
|
23
|
37
|
20
|
27
|
2
|
11
|
8
|
|
39221-R-C3
|
MF.80 N-8x8-C3
|
80
|
-
|
8
|
92
|
28
|
47
|
25
|
34
|
2.2
|
14
|
9
|
|
39231-R-C3
|
MF.80 N-10-C3
|
80
|
10
|
-
|
92
|
28
|
47
|
25
|
34
|
2.2
|
14
|
9
|
|
39316-R-C3
|
MF.100 N-8x8-C3
|
100
|
-
|
8
|
115
|
35
|
57
|
30
|
40
|
2.4
|
16
|
10
|
|
39321-R-C3
|
MF.100 N-10x10-C3
|
100
|
-
|
10
|
115
|
35
|
57
|
30
|
40
|
2.4
|
16
|
10
|
|
39331-R-C3
|
MF.100 N-12-C3
|
100
|
12
|
-
|
115
|
35
|
57
|
30
|
40
|
2.4
|
16
|
10
|
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Cap
Polypropylene based (PP) technopolymer, RAL 7035 grey colour, matte finish.
Standard executions
- MF-B: brass boss, threaded blind hole.
- MF-N:
- cylindrical blind hole, brass reinforcement and transversal semi-machined hole for pinning to shaft.
- square blind hole, brass reinforcement with transversal set screw UNI 5929-85 (grub screws with hexagon socket and cup end).

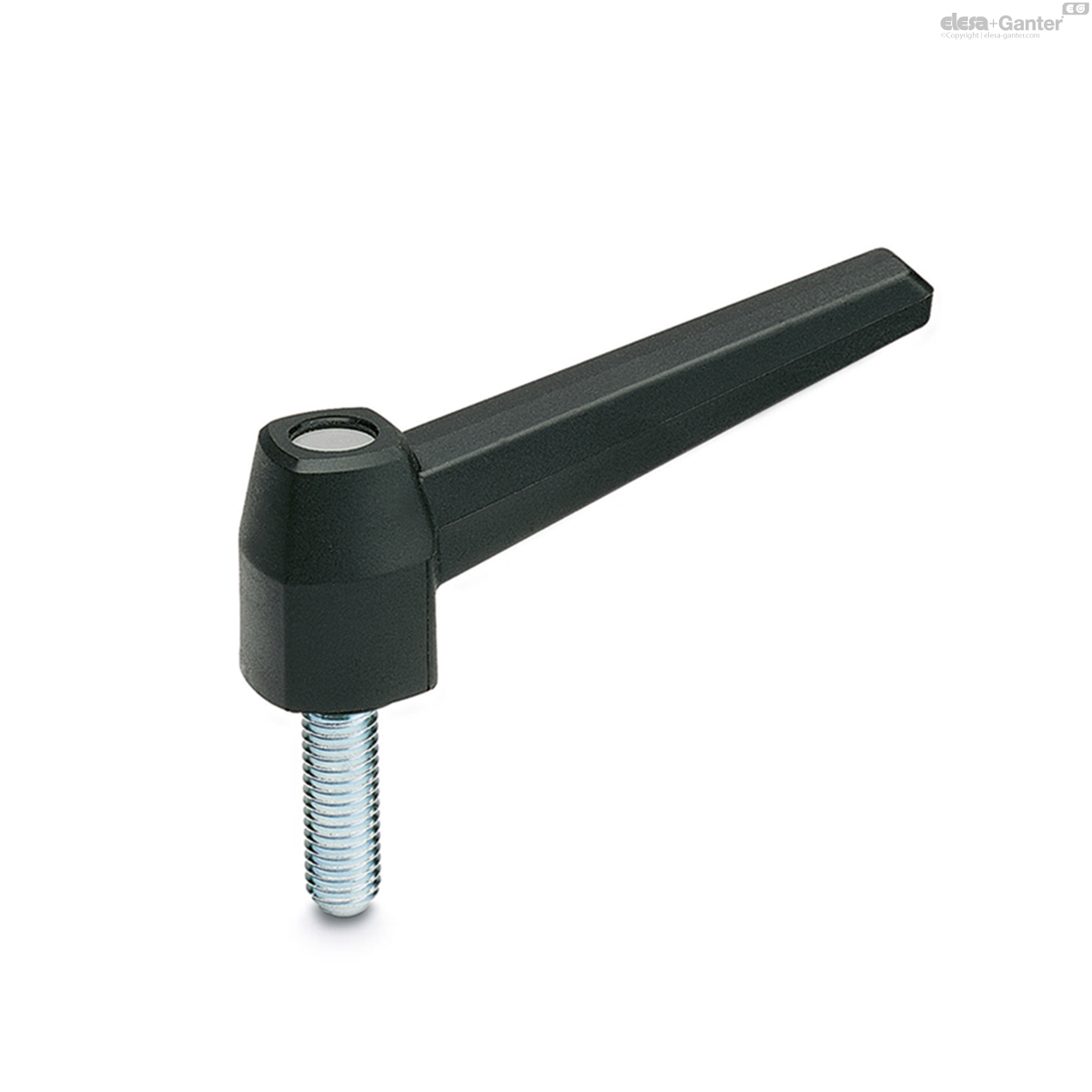

- MF-p: zinc-plated steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data).
