Technical datasheet
MF-pLever handles

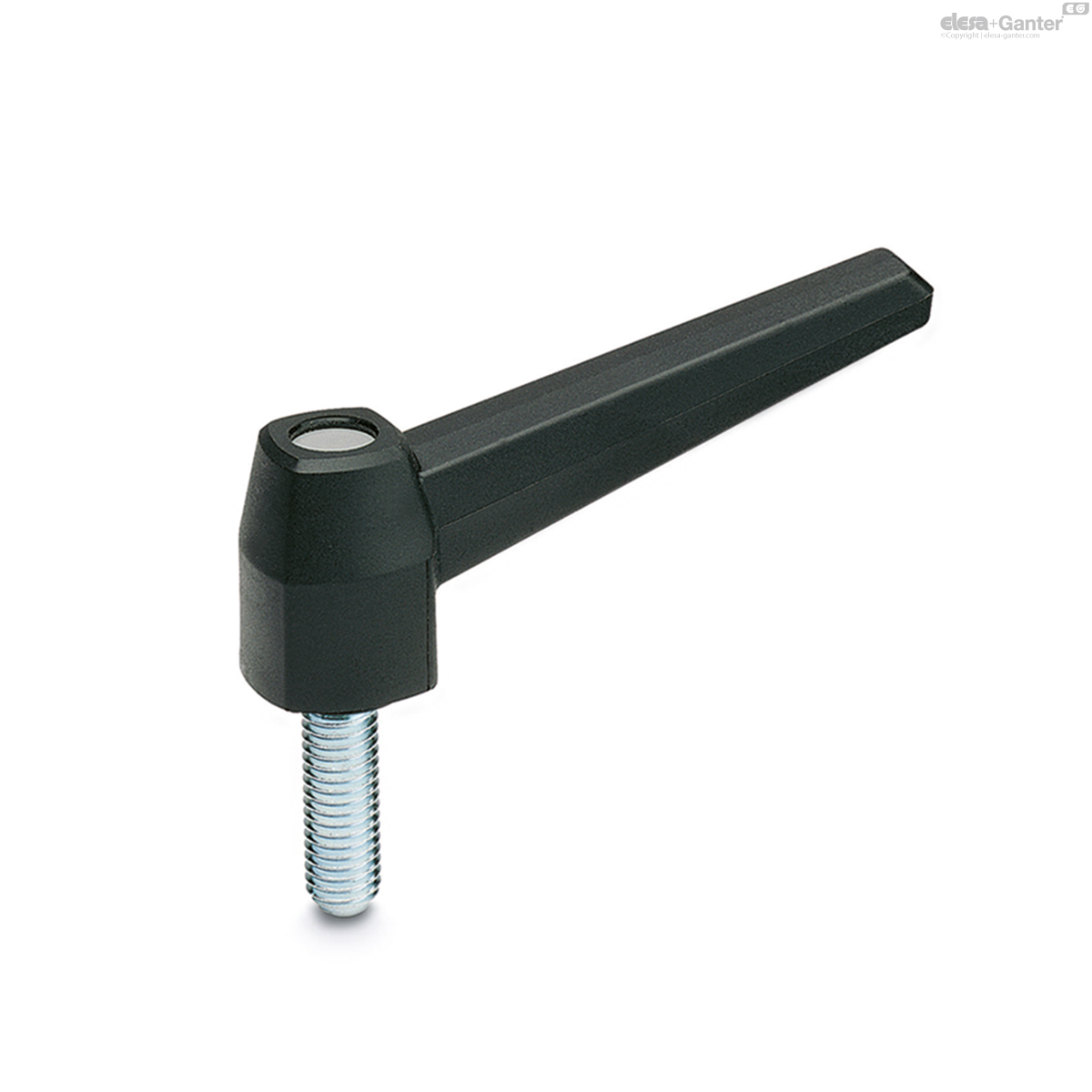

Zinc-plated steel threaded stud
Technopolymer
MF-p
|
Catalogue
|

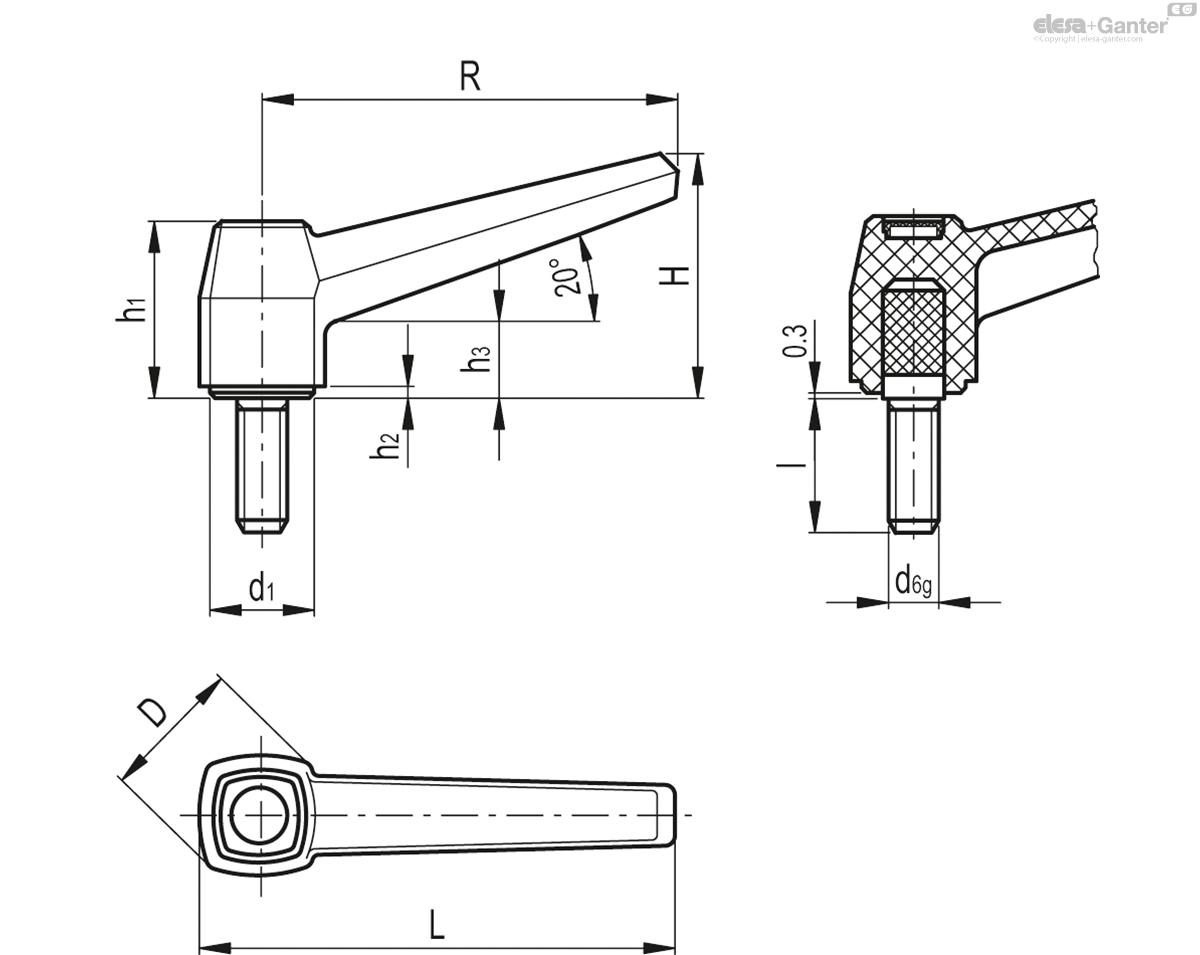

Description
|
R
|
d6g
|
L
|
D
|
H
|
h1
|
h2
|
h3
|
d1
|
l
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
39031-R-C3
|
MF.40 p-M6x16-C3
|
42
|
M6
|
50
|
18
|
27
|
22
|
1.8
|
9
|
11.5
|
16
|
14
|
|
39141-R-C3
|
MF.63 p-M8x25-C3
|
63
|
M8
|
73
|
23
|
37
|
27
|
2
|
11
|
14.5
|
25
|
30
|
|
39241-R-C3
|
MF.80 p-M10x30-C3
|
80
|
M10
|
92
|
28
|
47
|
34
|
2.2
|
14
|
18.5
|
30
|
54
|
|
39341-R-C3
|
MF.100 p-M12x50-C3
|
100
|
M12
|
115
|
35
|
57
|
40
|
2.4
|
16
|
23.5
|
50
|
104
|
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Cap
Polypropylene based (PP) technopolymer, RAL 7035 grey colour, matte finish.
Standard executions
- MF-B: brass boss, threaded blind hole.
- MF-N:
- cylindrical blind hole, brass reinforcement and transversal semi-machined hole for pinning to shaft.
- square blind hole, brass reinforcement with transversal set screw UNI 5929-85 (grub screws with hexagon socket and cup end).
- MF-p: zinc-plated steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data).
