DCE-NTG-S-M6-ZN+CG DCE-NTG-S Pour les colliers de tubes de la série standard DIN 3015-1

DCE-NTG-S-M6-ZN+CG

DCE-NTG-S Pour les colliers de tubes de la série standard DIN 3015-1

pour colliers de serrage DCE, acier
Toutes les tailles et variantes
  • RoHS

Délai: 1-2 semaines

Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
570531
b
10.4
d
M 6
d1
11.8
l
25.5
h
14.5
h1
5.5
For tube clamp
DCE-S / DCE-D
weight
12

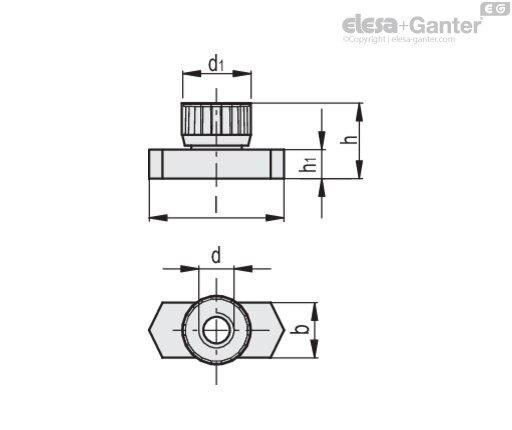

DCE-NTG-S-M6-ZN+CG drawing
Video: DCE-NTG

Material

Zinc-plated steel

Standard executions

  • DCE-NTG-S: with black NBR rubber cap, for use with DCE-S standard series tube clamps (DIN 3015-1).
  • DCE-NTG-H: for use with DCE-H heavy-duty series tube clamps (DIN 3015-2).
  • DCE-NTG-D: with black NBR rubber ring, for use with DCE-D double series tube clamps (DIN 3015-3).

Features and applications

Designed to be paired with DIN 3015 clamps, they are the solution to securing tube clamps to the mounting guide.

They allow the clamps to slide along the rail to create modular fastening structures.

With standard metric threading that facilitates pairing with DCE-SRE and DCE-SRC assembly screws.

Accessories

For the assembly kit DCK-S, DCK-H and DCK-D.

  • DCE-S: standard series tube clamps.
  • DCE-H: heavy-duty series tube clamps.
  • DCE-D: double series tube clamps.
