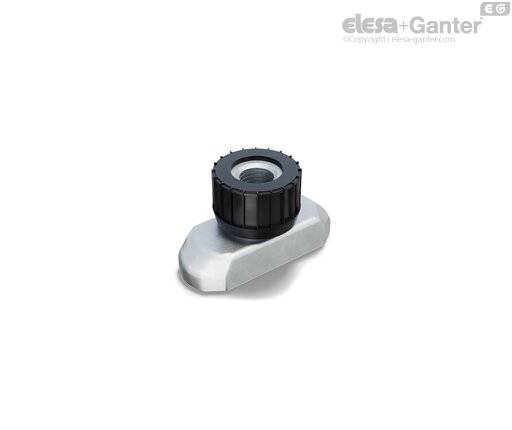

DCE-NTG-S-M6-ZN+CG
DCE-NTG-S For DIN 3015-1 standard series tube clamps
for DCE tube clamps, steel
In stock at the manufacturer (indicative)
Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

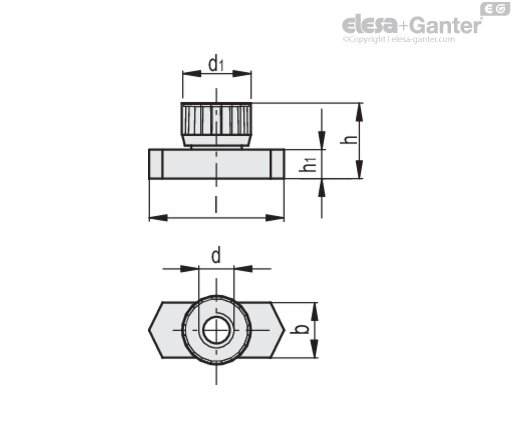

Technical data
- Catalogue
- 570531
- b
- 10.4
- d
- M 6
- d1
- 11.8
- l
- 25.5
- h
- 14.5
- h1
- 5.5
- For tube clamp
- DCE-S / DCE-D
- 12
Material
Zinc-plated steel
Standard executions
- DCE-NTG-S: with black NBR rubber cap, for use with DCE-S standard series tube clamps (DIN 3015-1).
- DCE-NTG-H: for use with DCE-H heavy-duty series tube clamps (DIN 3015-2).
- DCE-NTG-D: with black NBR rubber ring, for use with DCE-D double series tube clamps (DIN 3015-3).
Features and applications
Designed to be paired with DIN 3015 clamps, they are the solution to securing tube clamps to the mounting guide.
They allow the clamps to slide along the rail to create modular fastening structures.
With standard metric threading that facilitates pairing with DCE-SRE and DCE-SRC assembly screws.
