GN 917 Leviers à excentrique
Délai: 1-2 semaines Toutes les tailles et variantes de GN 917
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 917-12-20
- d
- 12
- b1
- 20
- b2
- 14
- h1
- 31.81
- h2
- 21
- h3
- 18
- l
- 157
- r1
- 28
- r2
- 34.29
- s
- 6.29
- r2-h3
- 16.29
- 250
Steel
- ST 52-3 / German Material No. 1.0570
- blackened
King pin
Stainless Steel AISI 420
tempered
Circlip
Stainless Steel AISI 301
Plastic cover
- red, oil resistant
- temperature resistant up to 60 °C

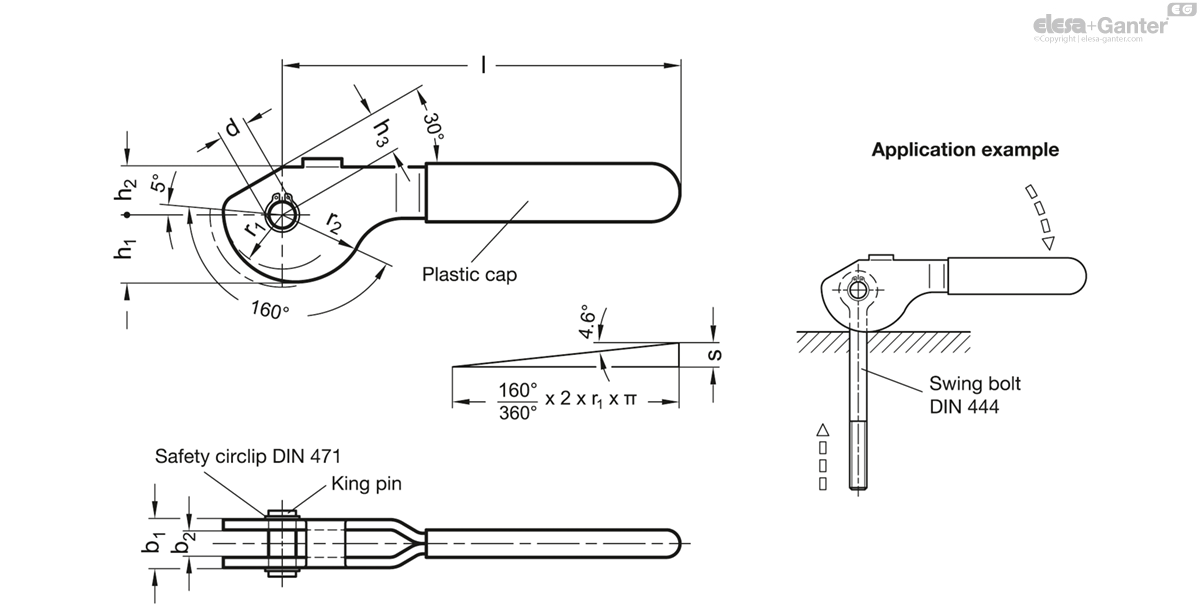

Double cam levers GN 917 are used for repositioning and clamping. The eccentrical cam has the advantage that the clamping force remains constant in every position of its travel and in addition is self arresting.
The dimension b2 is made to match the head size of swing bolts DIN 444 and swing nuts GN 444.2 respectively.
