917-12-20 GN 917 Double cam levers

917-12-20

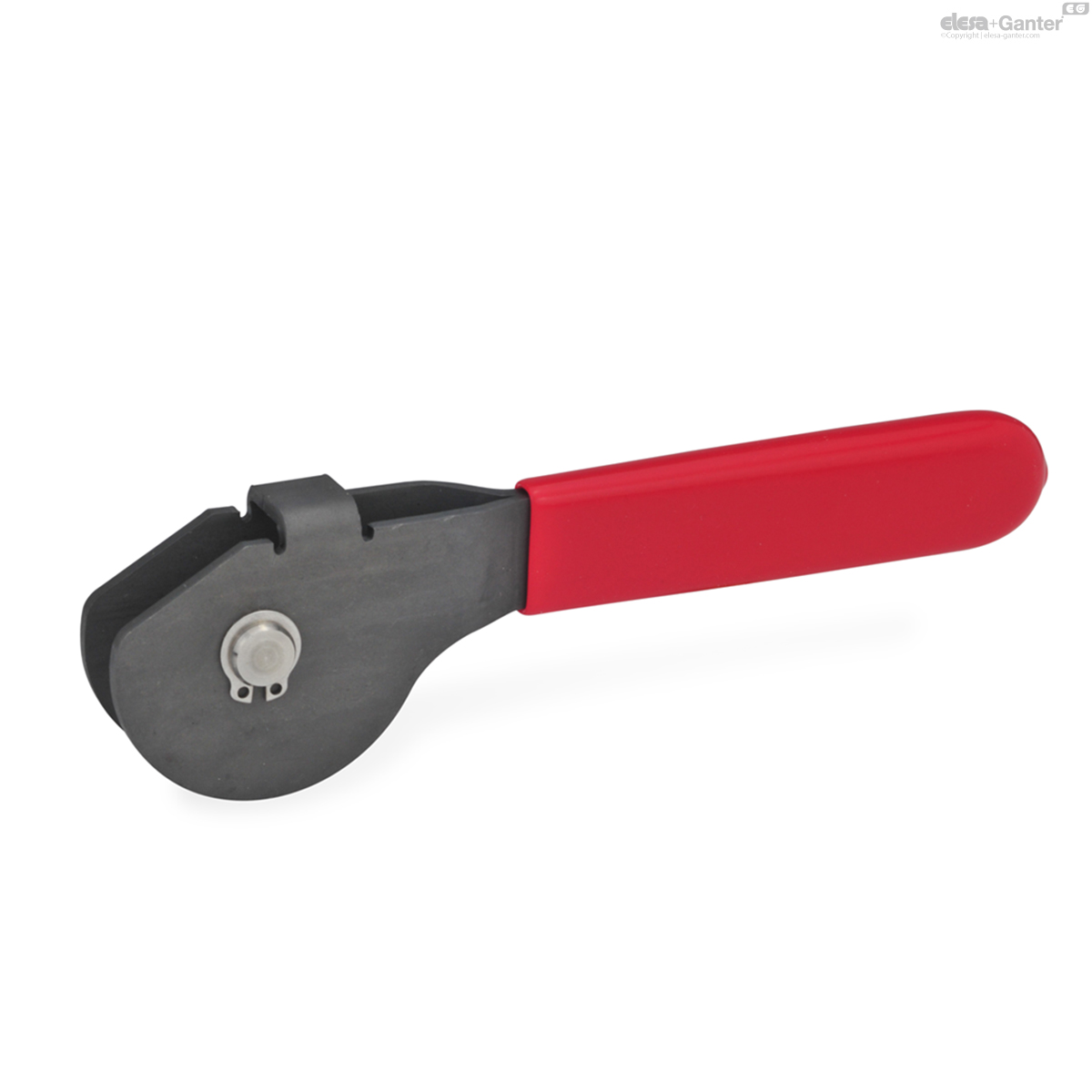

GN 917 Double cam levers

  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 917

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 917-12-20
d
12
b1
20
b2
14
h1
31.81
h2
21
h3
18
l
157
r1
28
r2
34.29
s
6.29
r2-h3
16.29
250

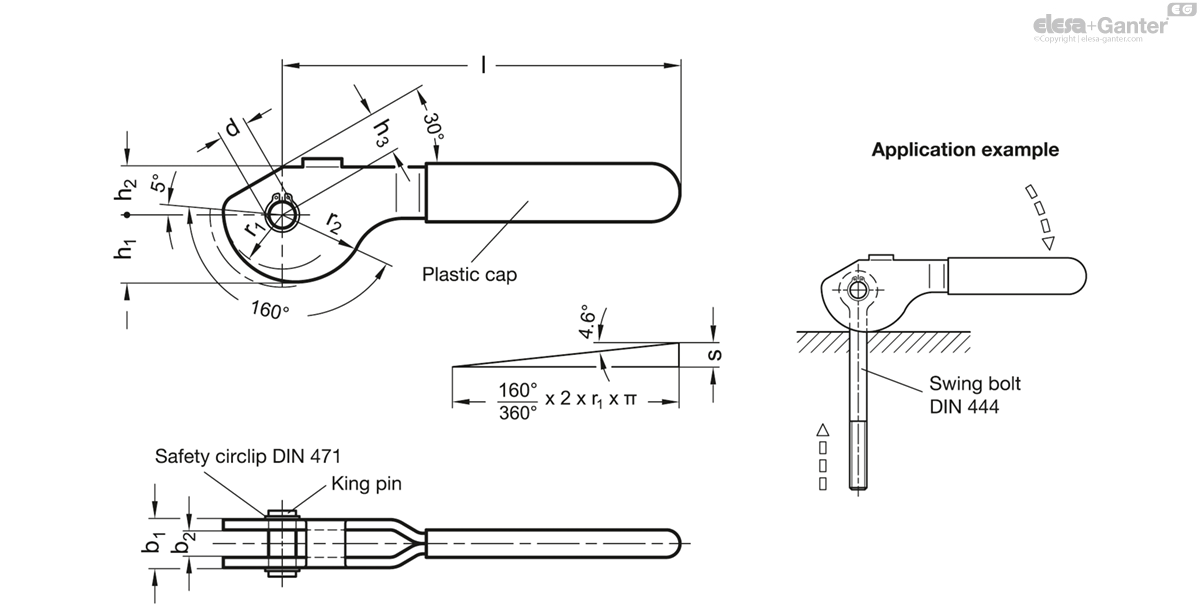

917-12-20 drawing

Steel

  • ST 52-3 / German Material No. 1.0570
  • blackened

King pin

Stainless Steel AISI 420

tempered

Circlip

Stainless Steel AISI 301

Plastic cover

  • red, oil resistant
  • temperature resistant up to 60 °C

Double cam levers GN 917 are used for repositioning and clamping. The eccentrical cam has the advantage that the clamping force remains constant in every position of its travel and in addition is self arresting.

The dimension b2 is made to match the head size of swing bolts DIN 444  and swing nuts GN 444.2  respectively.
