Technical datasheet
GN 920.2Pull-Down Plates
Pull-Down Plates
for Wedge Clamps GN 920.1, Steel
GN 920.2
|
Catalogue
|

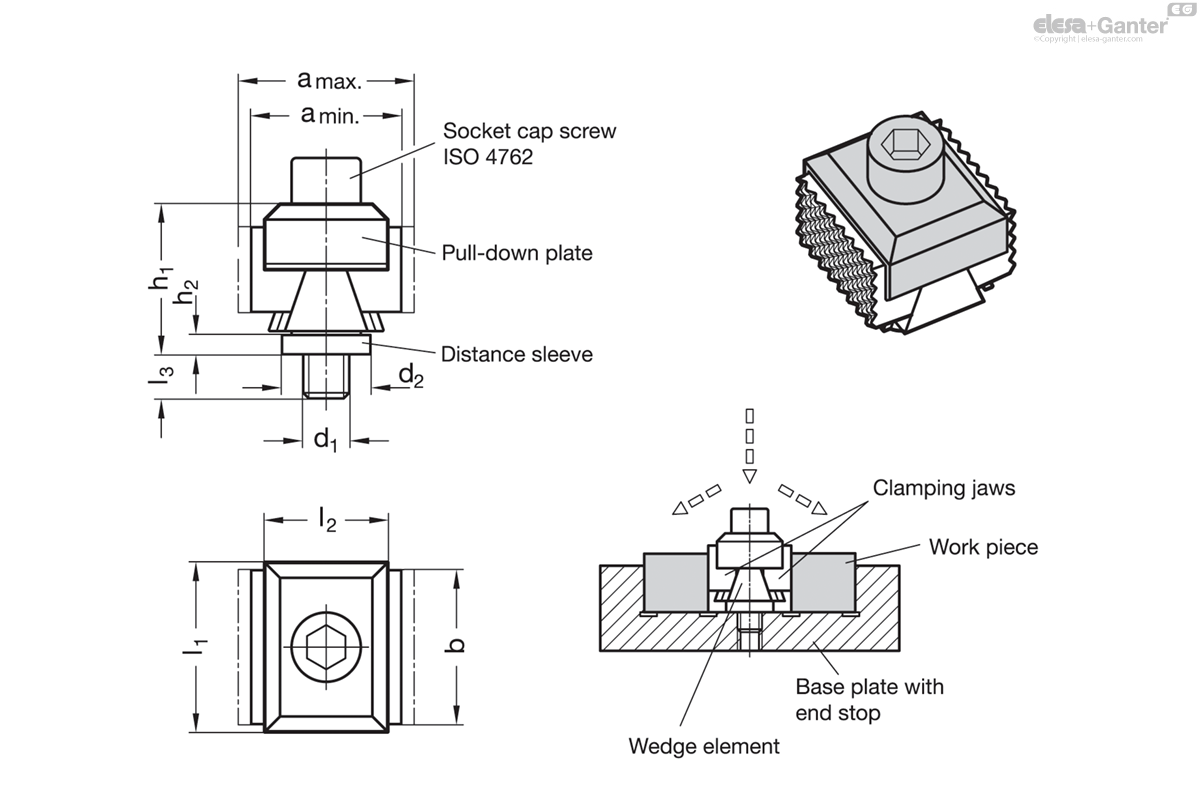

l1
|
l2
|
d1
|
a max.
Type GA Type GL |
a min.
Type GA Type GL |
a max. Type RF
|
a min.
Type RF |
b
|
d2 Ø
|
h1 ≈
|
h2
|
l3 max.
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25
|
32
|
M 8
|
44.5
|
39.5
|
39.5
|
34.5
|
21
|
18
|
27.5
|
4
|
7.5
| ||
|
29
|
32
|
M 8
|
44.5
|
39.5
|
39.5
|
34.5
|
25
|
18
|
27.5
|
4
|
7.5
| ||
|
36
|
32
|
M 8
|
44.5
|
39.5
|
39.5
|
34.5
|
32
|
18
|
27.5
|
4
|
7.5
| ||
|
44
|
32
|
M 8
|
44.5
|
39.5
|
39.5
|
34.5
|
40
|
18
|
27.5
|
4
|
7.5
| ||
|
44
|
32
|
M 12
|
45.5
|
40
|
45.5
|
40
|
40
|
23
|
38
|
5
|
11.5
| ||
|
54
|
32
|
M 8
|
44.5
|
39.5
|
39.5
|
34.5
|
50
|
18
|
27.5
|
4
|
7.5
| ||
|
54
|
32
|
M 12
|
45.5
|
40
|
45.5
|
40
|
50
|
23
|
38
|
5
|
11.5
|
Plate
Plate
Steel
Blackened
Socket cap screw ISO 4762
Socket cap screw ISO 4762
Steel
Distance sleeve
Distance sleeve
Steel

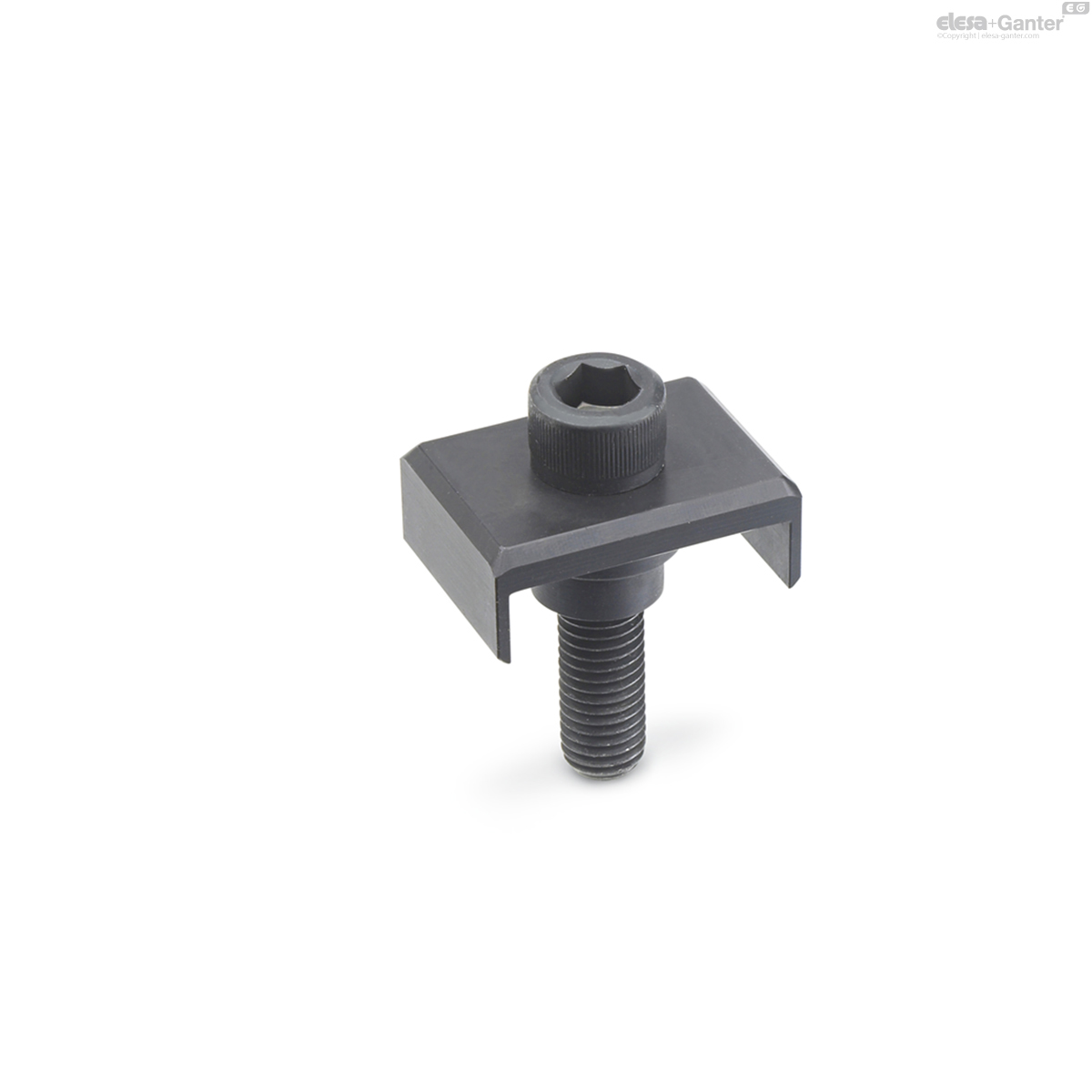

Pull-down plates GN 920.2 allow wedge clamps GN 920.1 to clamp easily with pull-down effect.
The socket cap screw ISO 4762 and the distance sleeve are included.
The information in the operating instruction must be observed during installation, initial operation, and use. It is enclosed with the product and is provided digitally on the product page at elesa-ganter.com.
