920.2-54-32-M12 GN 920.2 Pull-Down Plates

920.2-54-32-M12 GN 920.2 Pull-Down Plates

for Wedge Clamps GN 920.1, Steel
All sizes and variants
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 920.2-54-32-M12
l1
54
l2
32
d1
M 12
a max.
Type GA
Type GL
45.5
a min.
Type GA
Type GL
40
a max. Type RF
45.5
a min.
Type RF
40
b
50
d2 Ø
23
h1 ≈
38
h2
5
l3 max.
11.5
for wedge clamps
GN 920.1 with:
d
M 12
for wedge clamps
GN 920.1 with:
b
50
weight
170

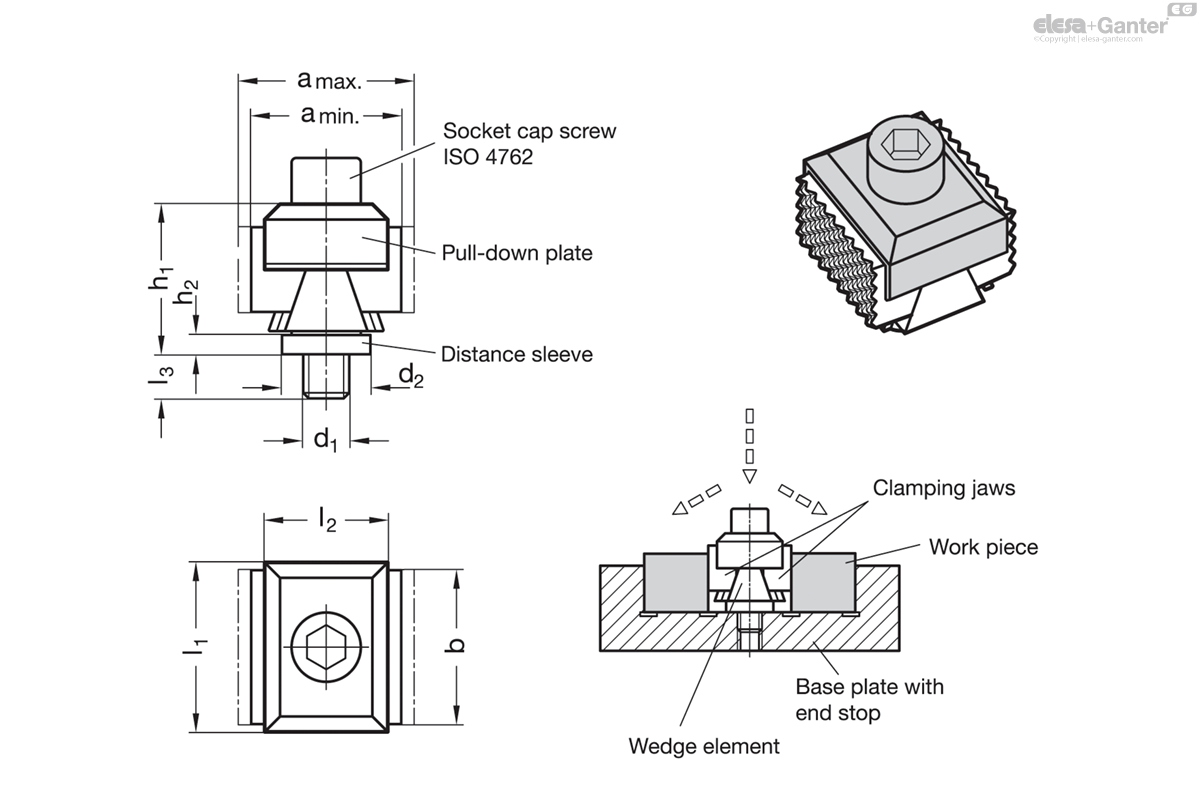

920.2-54-32-M12 drawing

Plate

Steel

Blackened

Socket cap screw ISO 4762

Steel

Distance sleeve

Steel

Pull-down plates GN 920.2 allow wedge clamps GN 920.1 to clamp easily with pull-down effect.

The socket cap screw ISO 4762 and the distance sleeve are included.

The information in the operating instruction must be observed during installation, initial operation, and use. It is enclosed with the product and is provided digitally on the product page at elesa-ganter.com.
