Technical datasheet
GN 736-AControl Handwheels
Without handle
Aluminum
|
Catalogue
|

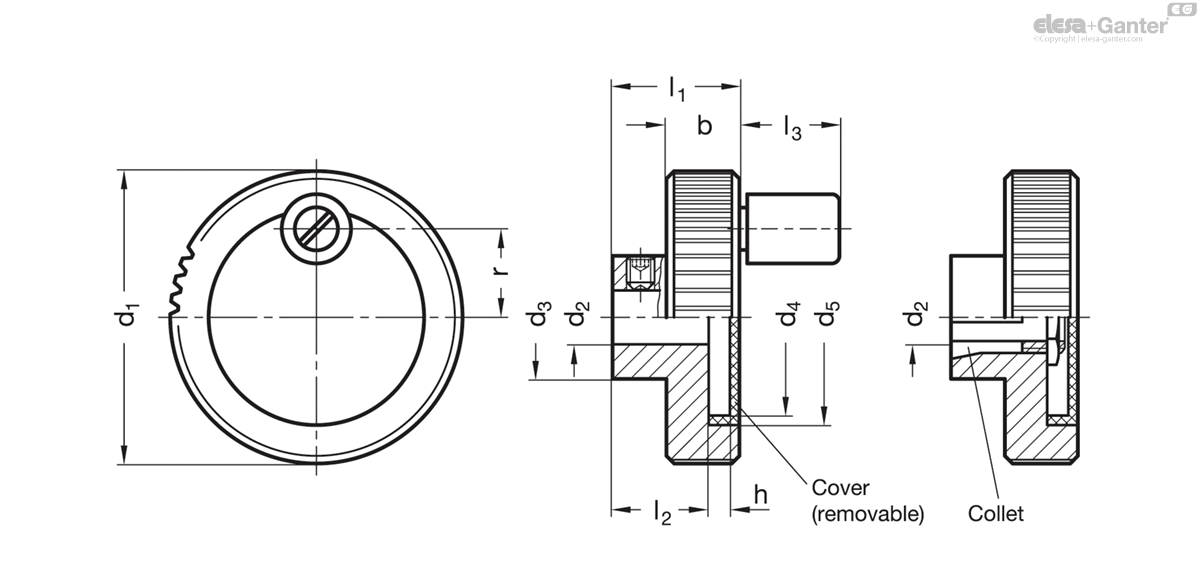

d1
|
d2 H8
Bore |
d3
|
d4
|
d5
|
b -0.5
|
h
|
l1
|
l2
|
l3 ≈
|
r
|
ø
Cylindrical knob |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 736-52-B10-A
|
52
|
10
|
22
|
37
|
39.5
|
13
|
3.8
|
23
|
17
|
19
|
15.5
|
13
|
|
GN 736-52-K10-A
|
52
|
10
|
22
|
37
|
39.5
|
13
|
3.8
|
23
|
17
|
19
|
15.5
|
13
|
|
GN 736-52-Z10-A
|
52
|
10
|
22
|
37
|
39.5
|
13
|
3.8
|
23
|
17
|
19
|
15.5
|
13
|
|
GN 736-62-B10-A
|
62
|
10
|
25
|
47
|
49.5
|
13
|
3.8
|
23
|
17
|
21
|
20.5
|
14
|
|
GN 736-62-K10-A
|
62
|
10
|
25
|
47
|
49.5
|
13
|
3.8
|
23
|
17
|
21
|
20.5
|
14
|
|
GN 736-62-Z10-A
|
62
|
10
|
25
|
47
|
49.5
|
13
|
3.8
|
23
|
17
|
21
|
20.5
|
14
|
Types
Types

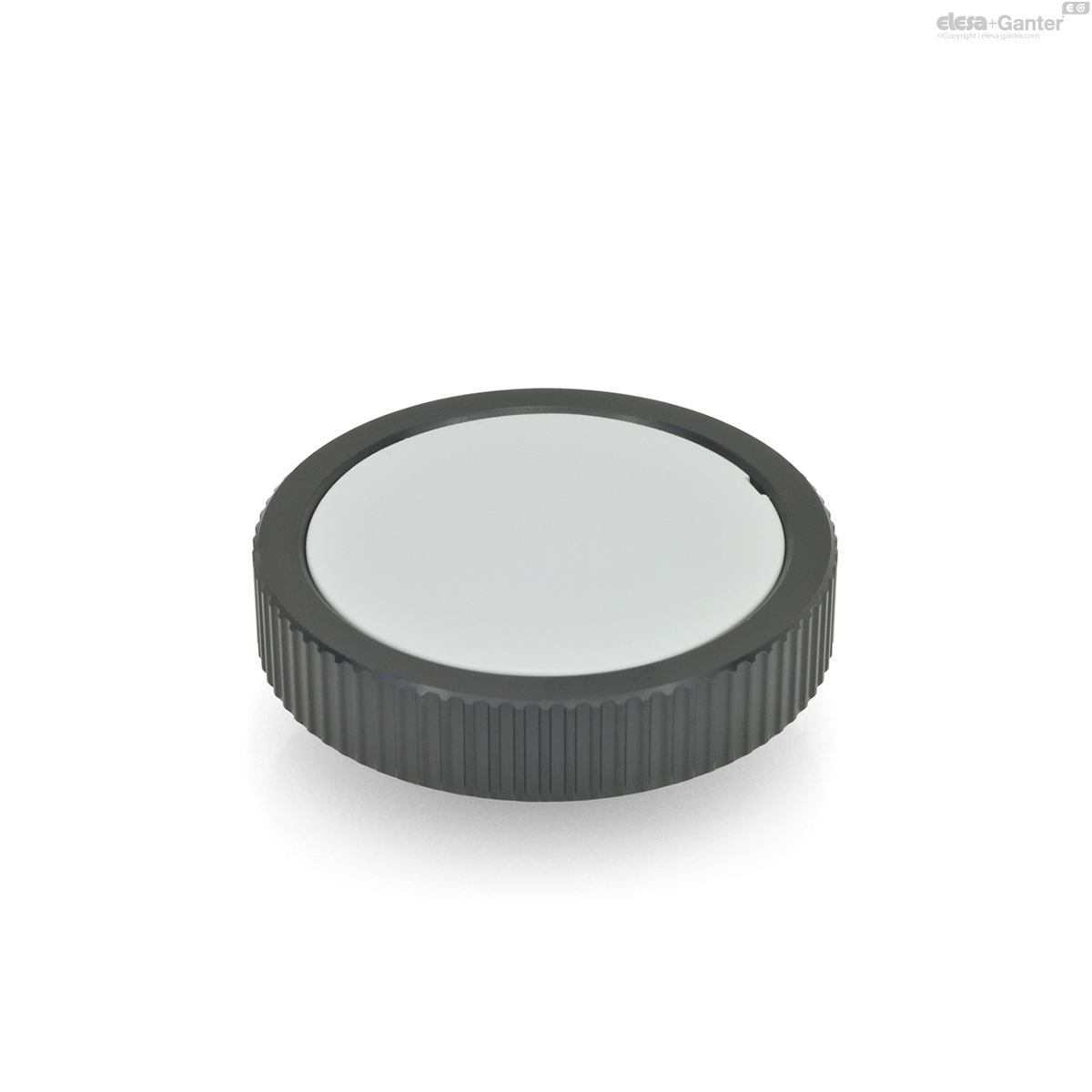

- Type A: Without handle

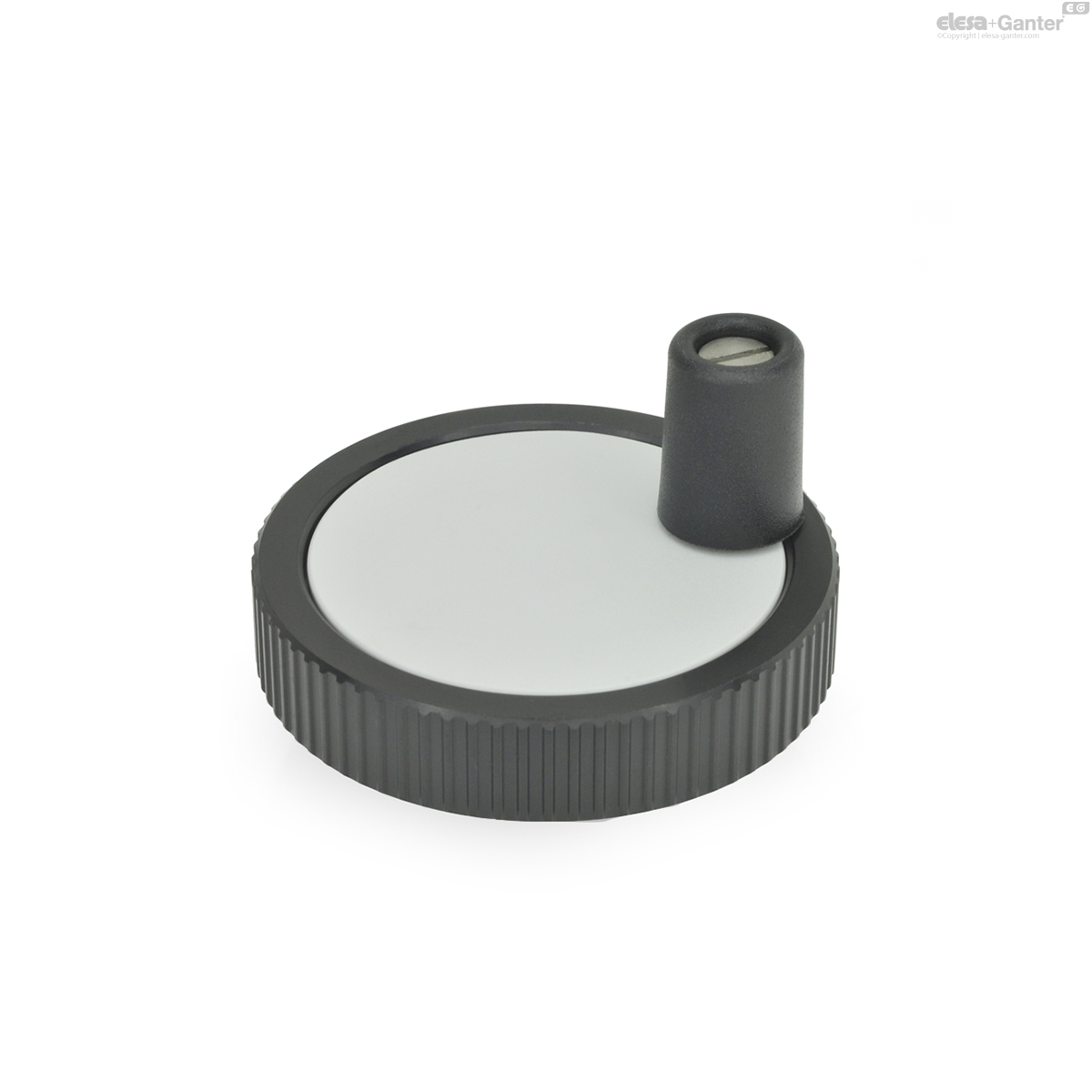

- Type D: With revolving knob
Bore codes
Bore codes
- Version B: Without keyway
- Version K: With keyway DIN 6885-1 P9
- Version Z: With collet
Wheel body
Wheel body
Aluminum
Anodized, black
Cover
Cover
Plastic, light gray
Collet / Hex nut
Collet / Hex nut
Brass
Grub screw DIN 916
Grub screw DIN 916
Stainless steel
with internal hex and serrated point
Revolving cylindrical knob
Revolving cylindrical knob
Plastic, Polyamide (PA)
- Black, matte
- Spindle
- Stainless steel AISI 303
Control handwheels GN 736 are used for setting operations with low torque.
Coarse setting is made by means of the cylindrical knob (fingertip grip) followed by fine setting using the knurled rim of the handwheel.
