GN 7336.8Clamping indexing plungers

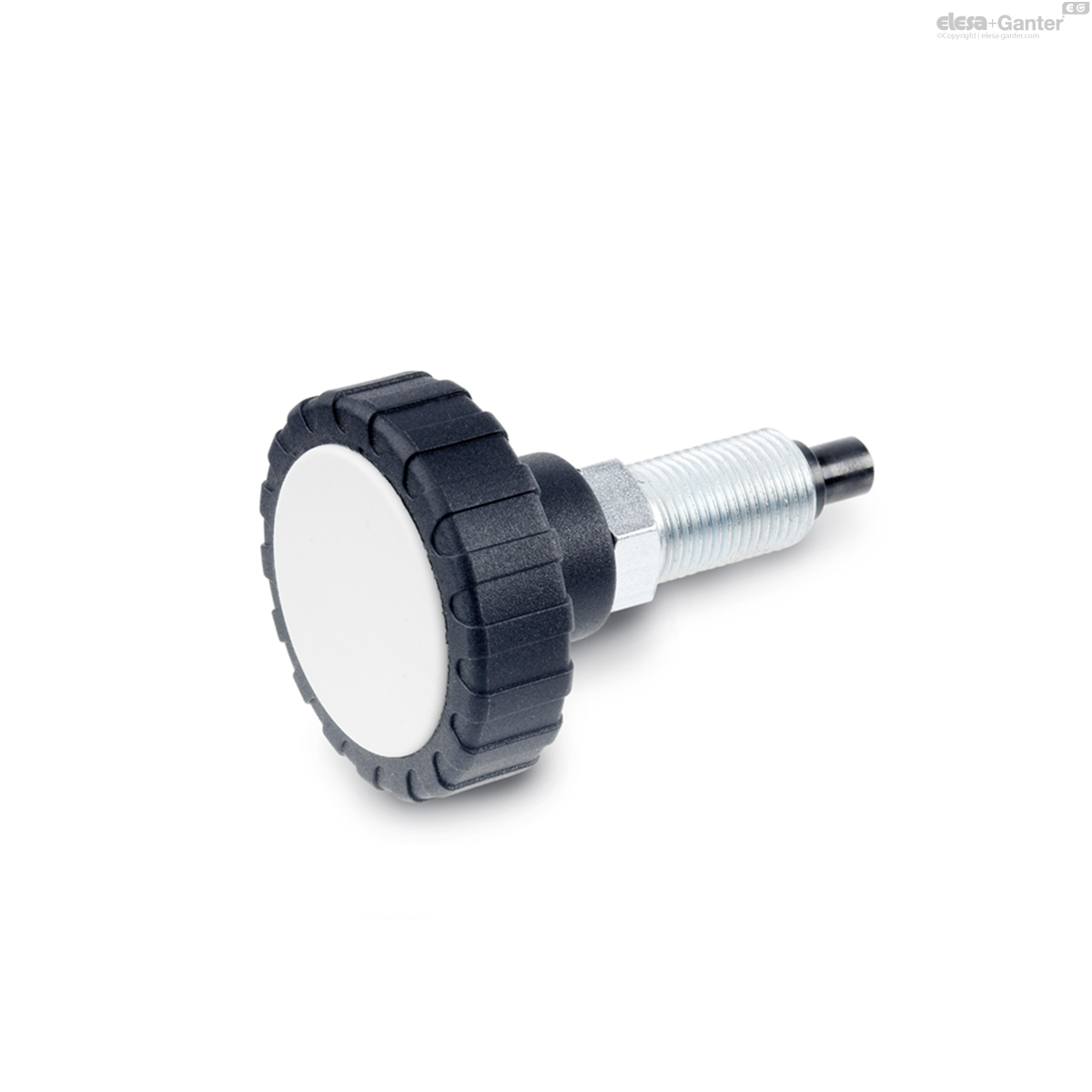

Clamping indexing plungers

with safety function

Technical datasheet

GN 7336.8

Catalogue	d₁	d₂	d₃ Pin -0.02/-0.04 Bore G7	d₄	d₅	l₁	l₂	l₃	l₄ min.	l₅	A/F	Spring load in N ≈ initial

GN 7336.8-42-M16x1,5-6	42	M 16 x 1.5	6	11	19	60	9	34	23	26	19	14
GN 7336.8-42-M16x1,5-8	42	M 16 x 1.5	8	11	19	60	9	34	23	26	19	14
GN 7336.8-53-M16x1,5-6	53	M 16 x 1.5	6	11	24	66	9	34	23	26	19	14
GN 7336.8-53-M16x1,5-8	53	M 16 x 1.5	8	11	24	66	9	34	23	26	19	14

Knurled knob

Plastic (Polyamide PA)

black, matt

Cover

Plastic (Polyamide PA)

light grey, matt

Fixing thread

Steel zinc plated, blue passivated

Plunger pin

Steel nitrided and blackened

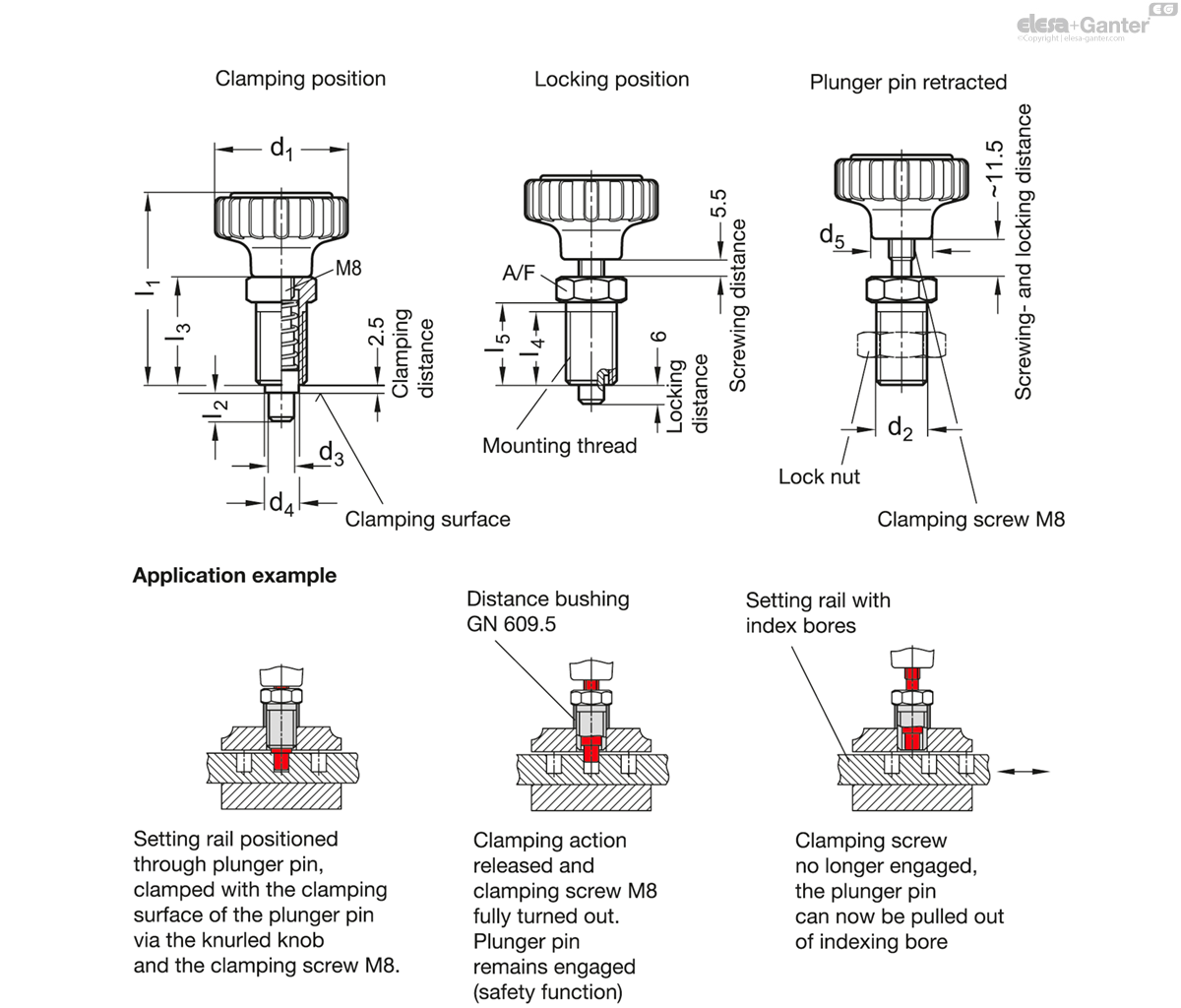

Clamping indexing GN 7336.8 plungers are an advanced development of the GN 7336.7 clamping knobs with indexing plunger.

Like the latter, they are used for positioning, securing and clamping adjusting elements at the same time. This configuration ensures that the indexing pin cannot be pulled from the indexing bore by turning the knurled knob, but only be deliberately pulling the handle (safety function).
