7336.8-53-M16X1,5-8 GN 7336.8 Clamping indexing plungers
with safety function
Eta: 1-2 weeks
Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 7336.8-53-M16x1,5-8

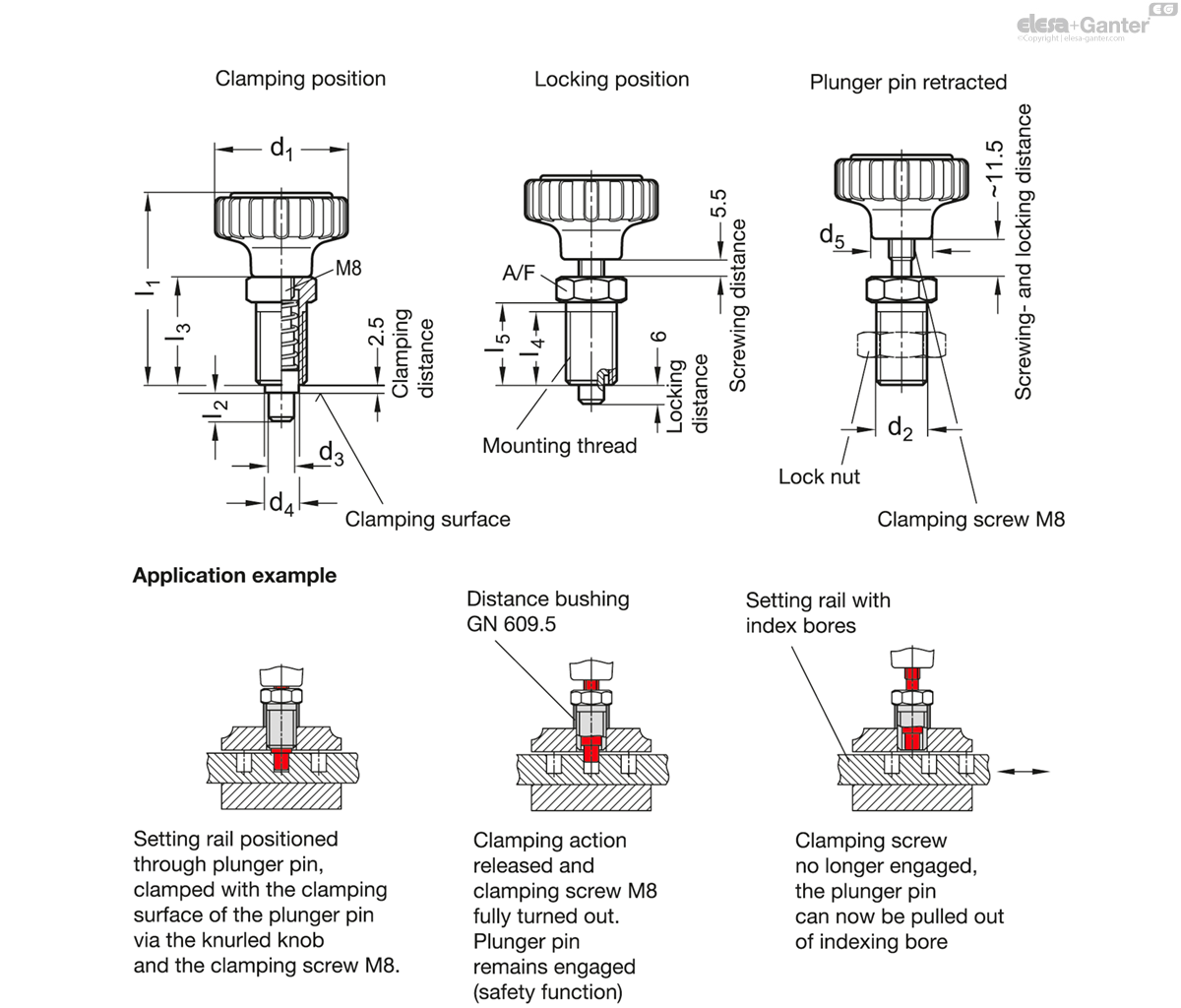

- d1
- 53
- d2
- M 16 x 1.5
- d3 Pin -0.02/-0.04
Bore
G7 - 8
- d4
- 11
- d5
- 24
- l1
- 66
- l2
- 9
- l3
- 34
- l4 min.
- 23
- l5
- 26
- A/F
- 19
- Spring load in N ≈
initial - 14
- Spring load in N ≈
end - 26
- 120
Knurled knob
Plastic (Polyamide PA)
black, matt
Cover
Plastic (Polyamide PA)
light grey, matt
Fixing thread
Steel zinc plated, blue passivated
Plunger pin
Steel nitrided and blackened
Clamping indexing GN 7336.8 plungers are an advanced development of the GN 7336.7 clamping knobs with indexing plunger.
Like the latter, they are used for positioning, securing and clamping adjusting elements at the same time. This configuration ensures that the indexing pin cannot be pulled from the indexing bore by turning the knurled knob, but only be deliberately pulling the handle (safety function).
