Technical datasheet

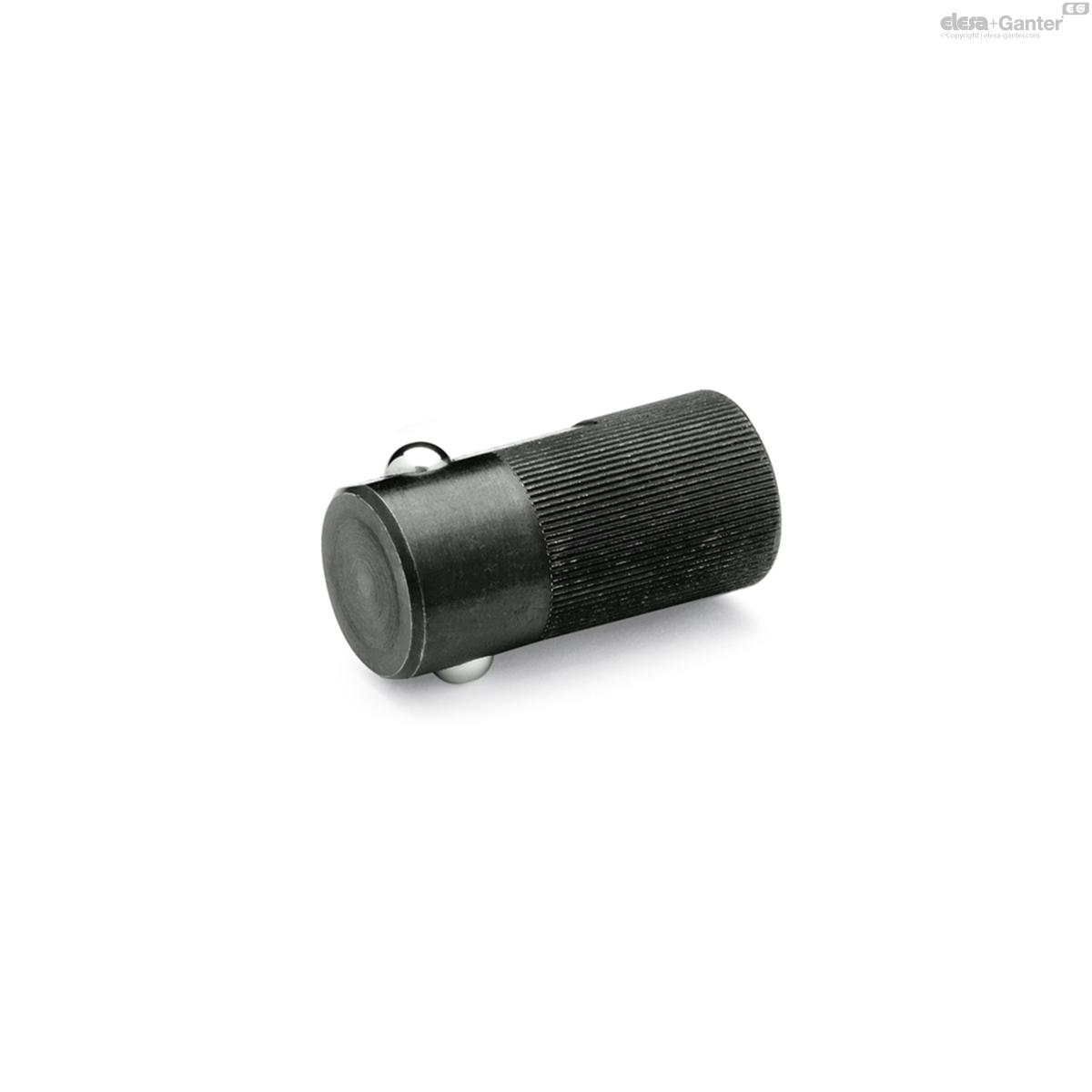

GN 716Side thrust pins
Side thrust pins
Press on type
GN 716
|
Catalogue
|
d1
|
d2
|
b
|
l1
|
l2
|
l3
|
s
|
Spring load
in N ≈ initial |
Spring load
in N ≈ end |
Location bore H8
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 716-8-ENI
|
8
|
3
|
3.2
|
25
|
3.6
|
6
|
0.9
|
2.5
|
6.5
|
8
|
9
|
|
GN 716-10-ENI
|
10
|
4
|
4
|
30
|
4.2
|
7
|
1
|
4.5
|
9
|
10
|
17
|
|
GN 716-12-ENI
|
12
|
5
|
5
|
35
|
4.8
|
9
|
1.5
|
6.5
|
13
|
12
|
29
|
|
GN 716-14-ENI
|
14
|
6.5
|
5.4
|
40
|
5.8
|
10
|
1.8
|
8
|
18
|
14
|
43
|
|
GN 716-8-EKU
|
8
|
3
|
3.2
|
25
|
3.6
|
6
|
0.9
|
2.5
|
6.5
|
8
|
9
|
|
GN 716-10-EKU
|
10
|
4
|
4
|
30
|
4.2
|
7
|
1
|
4.5
|
9
|
10
|
17
|
|
GN 716-12-EKU
|
12
|
5
|
5
|
35
|
4.8
|
9
|
1.5
|
6.5
|
13
|
12
|
29
|
|
GN 716-14-EKU
|
14
|
6.5
|
5.4
|
40
|
5.8
|
10
|
1.8
|
8
|
18
|
14
|
43
|
|
GN 716-10-EST
|
10
|
5.5
|
4.5
|
30
|
7
|
8
|
1
|
50
|
160
|
10
|
9
|
|
GN 716-12-EST
|
12
|
6.5
|
5.5
|
35
|
8
|
9
|
1.5
|
60
|
270
|
12
|
13
|
|
GN 716-14-EST
|
14
|
8
|
6.5
|
40
|
9
|
10
|
2
|
100
|
380
|
14
|
19
|
|
GN 716-16-BST
|
16
|
5.5
|
15
|
35
|
7
|
11
|
1.5
|
36
|
190
|
16
|
20
|
|
GN 716-18-BST
|
18
|
6.5
|
17
|
40
|
8
|
12
|
1.8
|
38
|
270
|
18
|
27
|
|
GN 716-22-BST
|
22
|
8
|
21
|
45
|
9
|
15
|
2.5
|
40
|
410
|
22
|
43
|

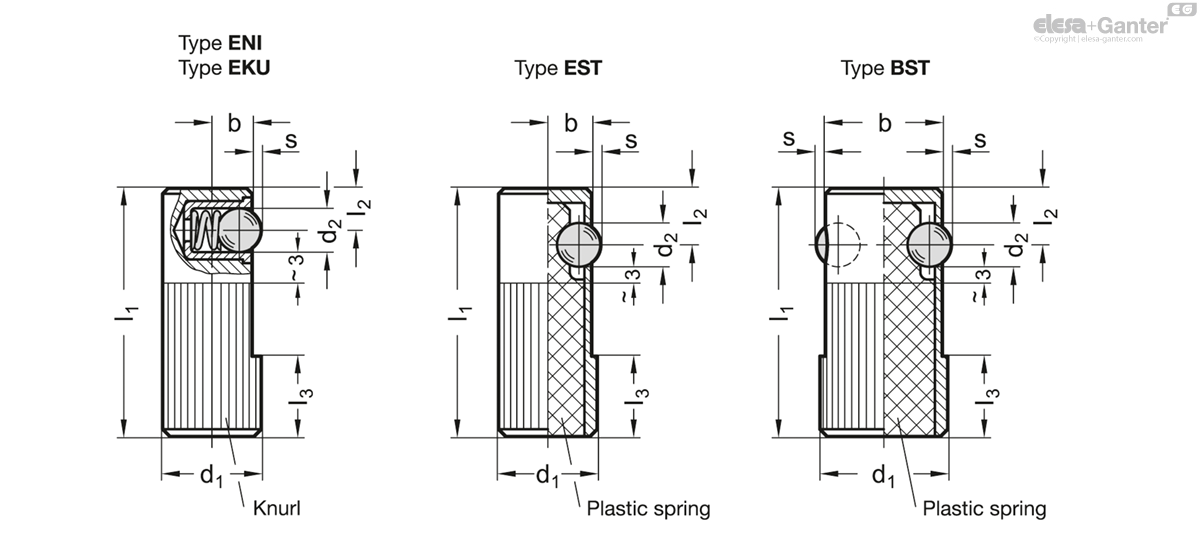

Types
- Type ENI: one-sided, ball Stainless Steel
- Type EKU: one-sided, ball Plastic
- Type EST: one-sided, ball Steel
- Type BST: both-sided, ball Steel
Housing Steel, blackened
Sleeve (for Ball)
- Type ENI / EKU: Plastic
- Type EST / BST: Steel, blackened
Ball
- Type ENI: Stainless Steel
- Type EKU: Plastic
- Type EST / BST: Steel
Spring
- Type ENI / EKU: Stainless Steel
- Type EST / BST: elastic plastic
temperature resistant up to 80 °C
Side thrust pins GN 716 are designed for holding, positioning and locating a workpiece.
They have to pressed into the housing by a least the dimensions l3, so as to ensure a positive hold.
