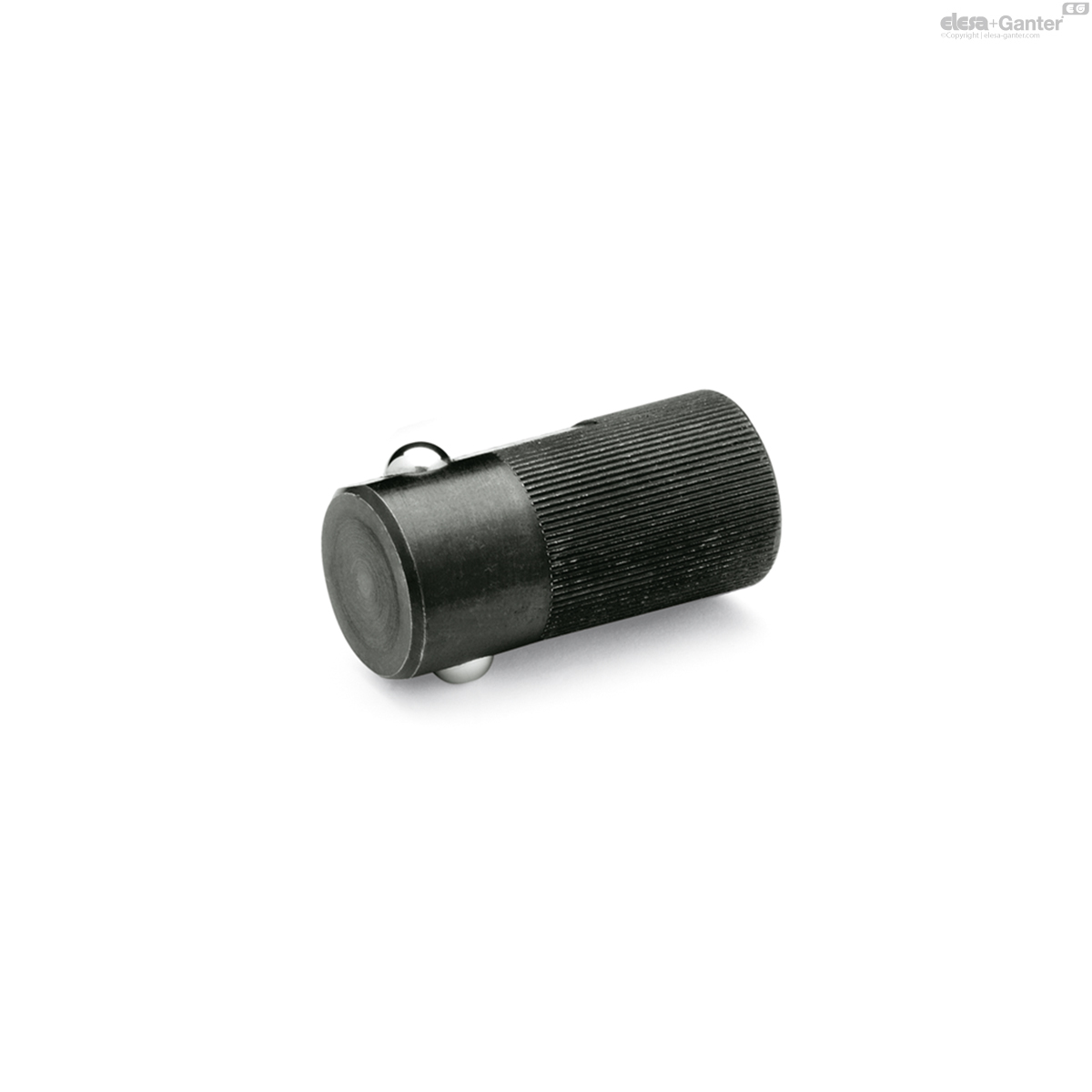

716-14-EKU GN 716 Side thrust pins

716-14-EKU

GN 716 Side thrust pins

Press on type
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 716

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 716-14-EKU
d1
14
d2
6.5
b
5.4
l1
40
l2
5.8
l3
10
s
1.8
Spring load
in N ≈
initial
8
Spring load
in N ≈
end
18
Location bore H8
14
43
716-14-EKU drawing

Types

  • Type ENI: one-sided, ball Stainless Steel
  • Type EKU: one-sided, ball Plastic
  • Type EST: one-sided, ball Steel
  • Type BST: both-sided, ball Steel

Housing Steel, blackened

Sleeve (for Ball)

  • Type ENI / EKU: Plastic
  • Type EST / BST: Steel, blackened

Ball

  • Type ENI: Stainless Steel
  • Type EKU: Plastic
  • Type EST / BST: Steel

Spring

  • Type ENI / EKU: Stainless Steel
  • Type EST / BST: elastic plastic

temperature resistant up to 80 °C

Side thrust pins GN 716 are designed for holding, positioning and locating a workpiece.

They have to pressed into the housing by a least the dimensions l3, so as to ensure a positive hold.
