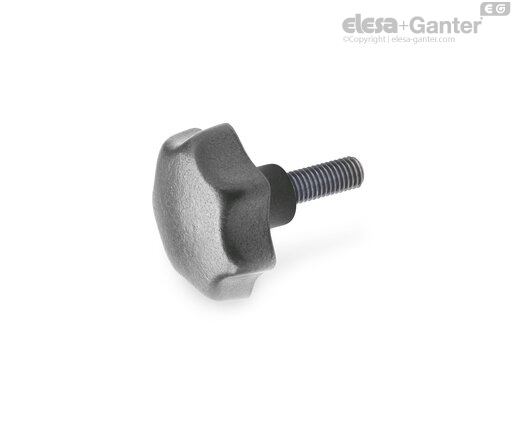

GN 6336.4Star Knobs

Star Knobs

Cast Iron, Threaded Stud Steel

  • Icons/__logo__RoHS__.png
Star Knobs
Star Knobs

GN 6336.4

Catalogue

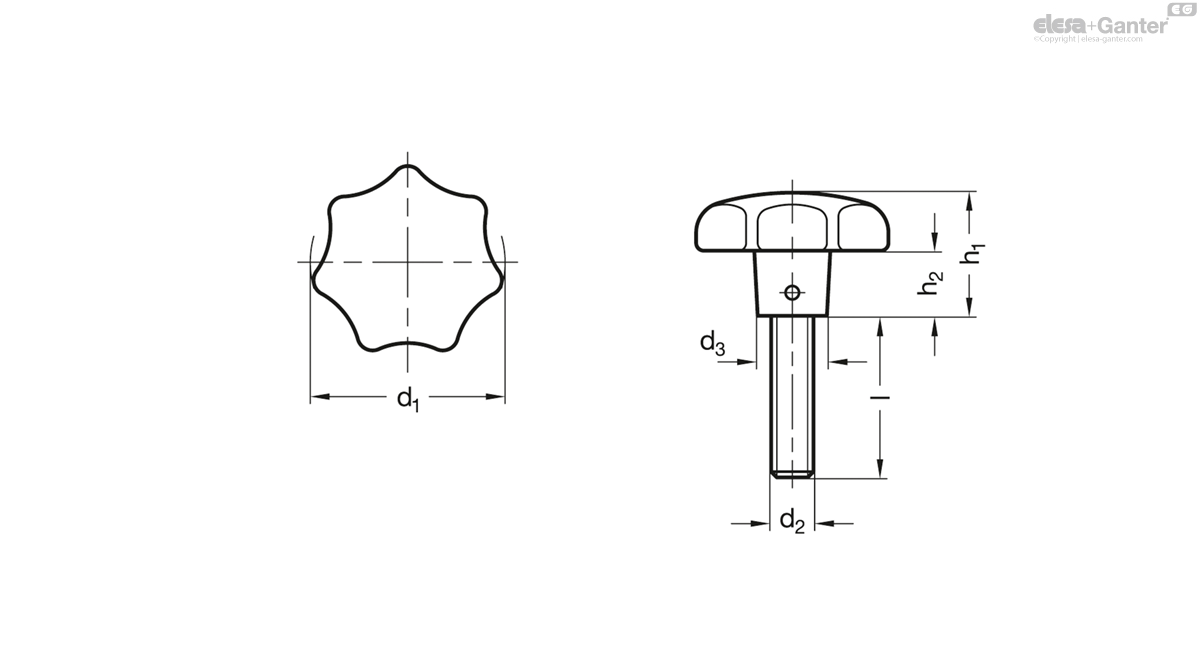

d1
d2
l ≈
d3
h1
h2
32
M 6
16
12
20
9
53
32
M 6
20
12
20
9
54
32
M 6
25
12
20
9
55
32
M 6
30
12
20
9
56
32
M 6
35
12
20
9
57
32
M 6
45
12
20
9
59
40
M 8
16
14
25
12
79
40
M 8
20
14
25
12
81
40
M 8
25
14
25
12
80
40
M 8
30
14
25
12
84
40
M 8
40
14
25
12
87
40
M 8
55
14
25
12
91
50
M 10
25
18
32
15
167
50
M 10
30
18
32
15
169
50
M 10
35
18
32
15
172
50
M 10
45
18
32
15
177
50
M 10
55
18
32
15
182
63
M 12
30
20
40
19
288
63
M 12
35
20
40
19
292
63
M 12
40
20
40
19
295
63
M 12
50
20
40
19
302
63
M 12
60
20
40
19
309
80
M 16
30
25
50
23
618
80
M 16
40
25
50
23
626
80
M 16
50
25
50
23
600
80
M 16
60
25
50
23
600
80
M 16
70
25
50
23
670

Type

Type SG: Star Knobs cast Iron, threaded stud steel

Knob

Cast iron SG

Fettled and tumbled

Threaded stud

Steel, blackened

The threaded stud is screwed in and secured by a cross-dowel.

Related products
Aluminium

DIN 6336-AL

Star knobs Cast iron / Stainless Steel / Aluminium
Cast iron

DIN 6336-GG

Star knobs Cast iron / Stainless Steel / Aluminium
with female thread

GN 5335

Stainless Steel-Star knobs Stainless Steel AISI 303 (A1)
Hand Knobs

GN 6335.4

Hand knobs Cast iron / Threaded bolt, Steel
Aluminum, Matte finish (tumbled)

GN 6335.5-AM

Hand Knobs Knob Cast Iron / Stainless Steel / Aluminum, Threaded Stud Stainless Steel
Brass boss, threaded hole

VC.692-B

Lobe knobs with solid section Technopolymer, easy cleaning
Black-oxide steel boss, plain hole, with cap

VCT-A

Lobe knobs Technopolymer

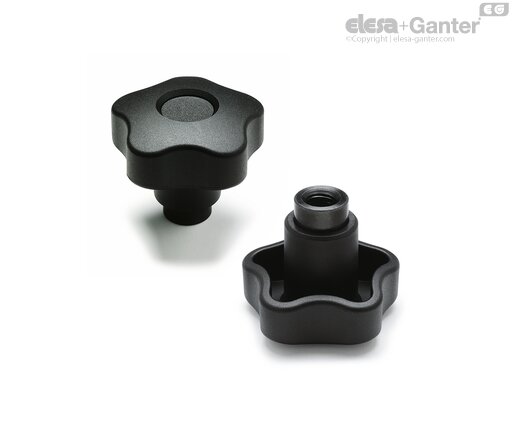

Black-oxide steel threaded hole

VCTS-Z

Safety lobe knobs Technopolymer, push action

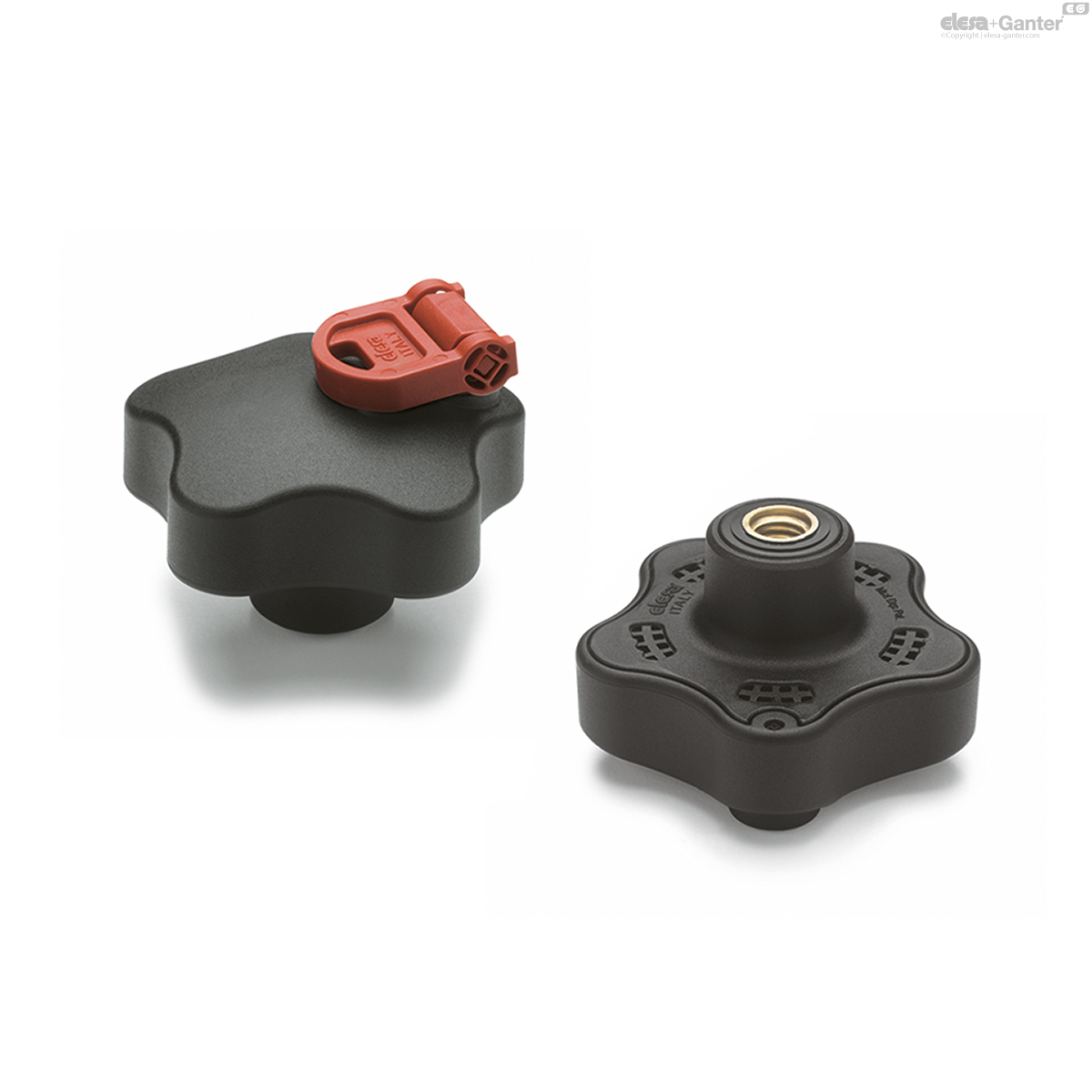

Boss, threaded hole
