6336.4-SG-32-M6-20

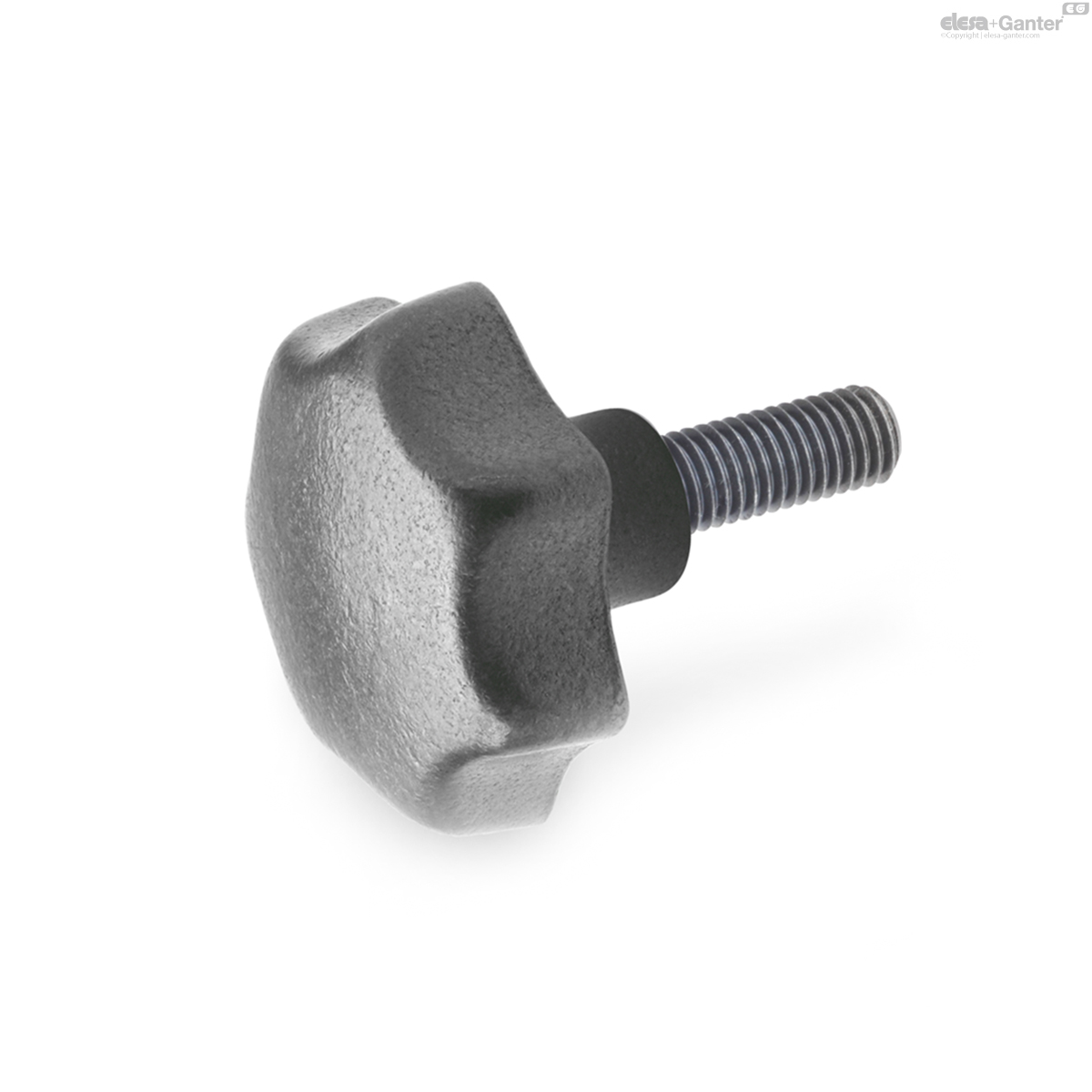

GN 6336.4 Star Knobs
Cast Iron, Threaded Stud Steel
Eta: 1-2 weeks All sizes and variants of GN 6336.4
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 6336.4-SG-32-M6-20
- d1
- 32
- d2
- M 6
- l ≈
- 20
- d3
- 12
- h1
- 20
- h2
- 9
- 54
Type
Type SG: Star Knobs cast Iron, threaded stud steel
Knob
Cast iron SG
Fettled and tumbled
Threaded stud
Steel, blackened
The threaded stud is screwed in and secured by a cross-dowel.
