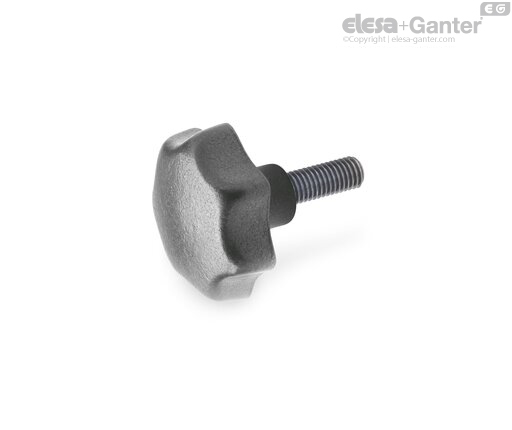

6336.4-SG-40-M8-16 GN 6336.4 Star Knobs

6336.4-SG-40-M8-16

GN 6336.4 Star Knobs

Knob Cast Iron, Threaded Stud Steel
All sizes and variants
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 6336.4-SG-40-M8-16
d1
40
d2
M 8
Length l ≈
16
d3
14
h1
25
h2
12
weight
79
6336.4-SG-40-M8-16 drawing

Knob

Cast iron SG

Fettled and tumbled

Threaded stud

Steel

screwed in and secured by a cross-dowel
