Technical datasheet
GN 52.1Aimants de retenue
Aimants de retenue
en forme de tige, sans alésage, avec / sans tolérance d'ajustement
GN 52.1
|

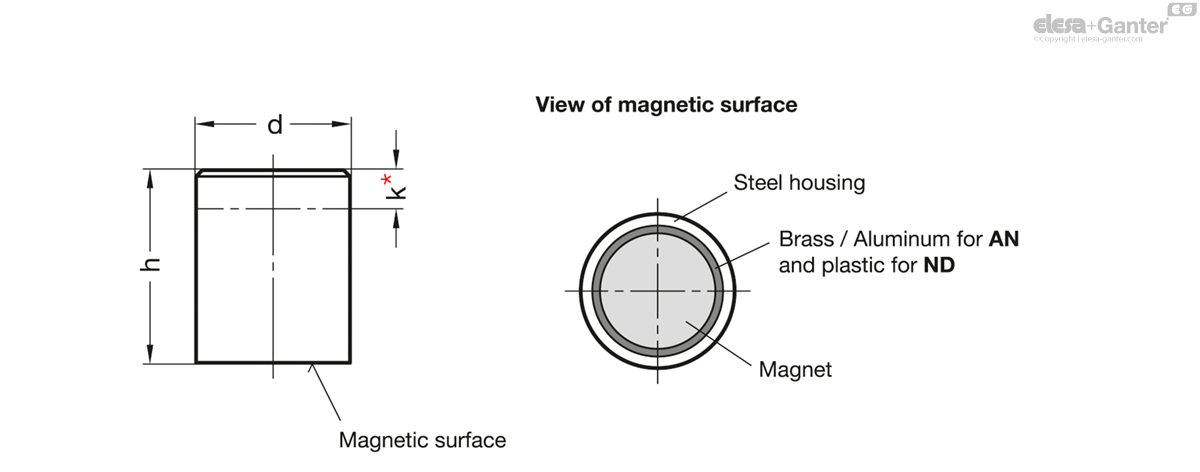

Code
|
d
|
h ±0.2
|
k*
|
Nominal
magnetic forces in N |
|
|
|---|---|---|---|---|---|---|
|
6
|
20
|
12
|
2
|
5
| ||
|
8
|
20
|
11
|
4
|
8
| ||
|
10
|
20
|
10
|
8.5
|
12
| ||
|
13
|
20
|
8
|
12
|
19
| ||
|
16
|
20
|
6
|
20
|
60
| ||
|
20
|
25
|
5
|
40
|
58
| ||
|
25
|
35
|
13
|
60
|
125
| ||
|
32
|
40
|
9
|
160
|
220
| ||
|
40
|
50
|
10
|
240
|
440
| ||
|
50
|
60
|
10
|
400
|
813
| ||
|
63
|
65
|
10
|
660
|
1306
| ||
|
6
|
10
|
2
|
2
|
2
| ||
|
8
|
12
|
3
|
4
|
5
| ||
|
10
|
16
|
6
|
8.5
|
10
| ||
|
13
|
18
|
6
|
12
|
18
| ||
|
16
|
20
|
6
|
20
|
30
| ||
|
20
|
25
|
5
|
40
|
57
| ||
|
25
|
30
|
7
|
60
|
106
| ||
|
32
|
35
|
4
|
160
|
187
| ||
|
40
|
45
|
5
|
240
|
390
| ||
|
50
|
50
|
-
|
400
|
639
| ||
|
63
|
60
|
5
|
660
|
1175
| ||
|
4
|
20
|
15
|
2.5
|
2
| ||
|
5
|
20
|
15
|
4.5
|
4
| ||
|
6
|
20
|
15
|
6
|
5
| ||
|
8
|
20
|
15
|
12
|
8
| ||
|
10
|
20
|
15
|
24
|
12
| ||
|
13
|
20
|
15
|
60
|
21
| ||
|
16
|
20
|
15
|
90
|
31
| ||
|
20
|
25
|
18
|
135
|
61
| ||
|
25
|
35
|
27
|
190
|
133
| ||
|
32
|
40
|
32
|
340
|
249
| ||
|
4
|
10
|
7
|
2.5
|
1
| ||
|
5
|
10
|
6
|
4.5
|
1
| ||
|
6
|
10
|
5
|
6
|
2
| ||
|
8
|
12
|
7
|
12
|
4
| ||
|
10
|
16
|
11
|
24
|
9
| ||
|
13
|
18
|
13
|
60
|
18
| ||
|
16
|
20
|
15
|
90
|
31
| ||
|
20
|
25
|
18
|
135
|
60
| ||
|
25
|
30
|
22
|
190
|
115
| ||
|
32
|
35
|
27
|
340
|
218
|
* k is the maximum dimension by which the retaining magnet can be shorted without losing its properties.
Identification No.
- No. 1: Tolerance d = ±0.1
- No. 2: Tolerance d = h6
Housing
Steel
- Identification No. 1: zinc plated
- Identification No. 2: blank
Materials of the magnet:
AlNiCo AN
Aluminium, nickel, cobalt
temperature resistant up to 450 °C
NdFeB ND
Neodymium, iron, boron
temperature resistant up to 80 °C

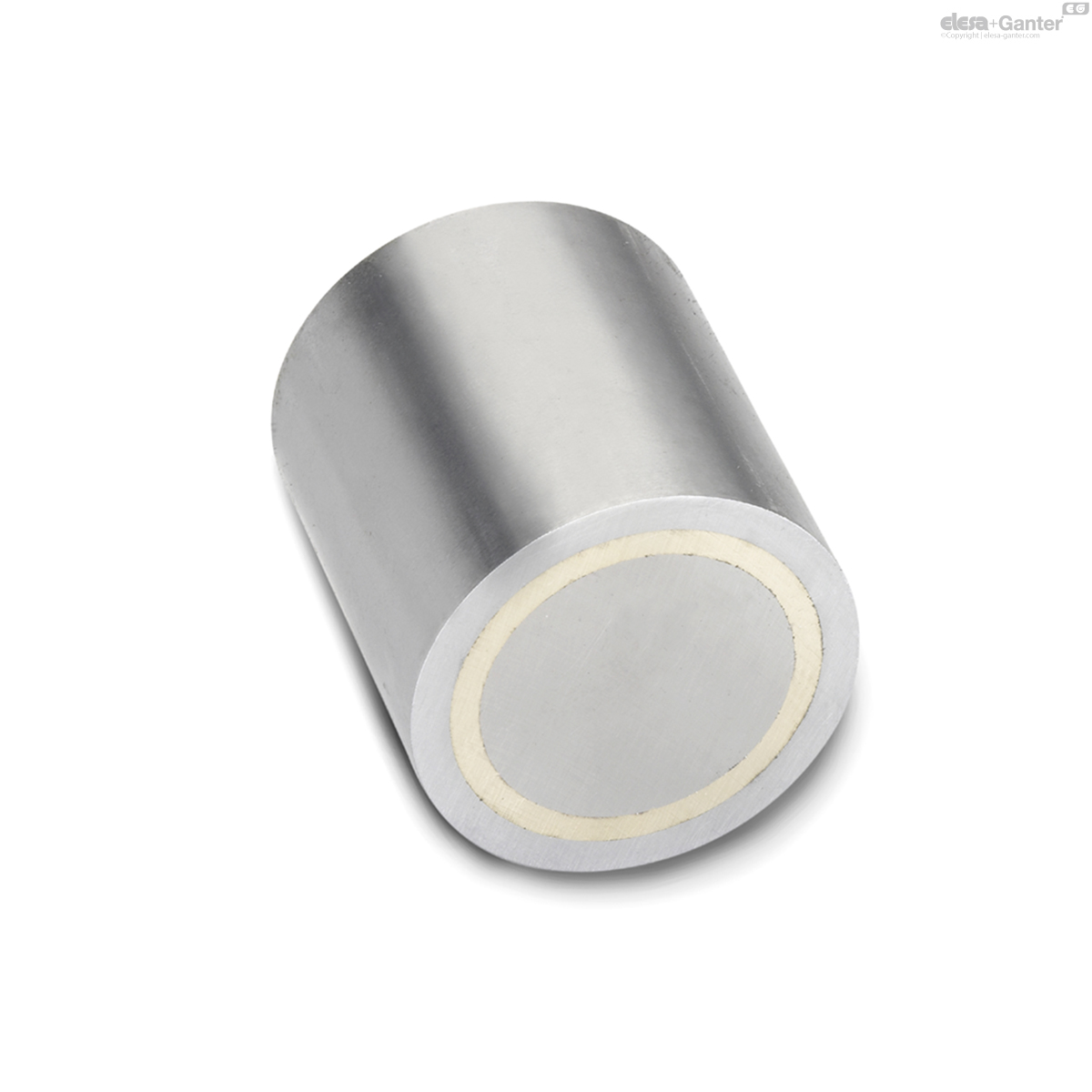

Retaining magnets GN 52.1 are combined with a steel housing and insulation of brass/aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
The retaining magnets are easy to fasten securely by pressing, shrinking or gluing.
