GN 251.6Setting Bolts

Setting Bolts

with Retaining Magnet

  • Icons/__logo__RoHS__.png
Setting Bolts
Setting Bolts

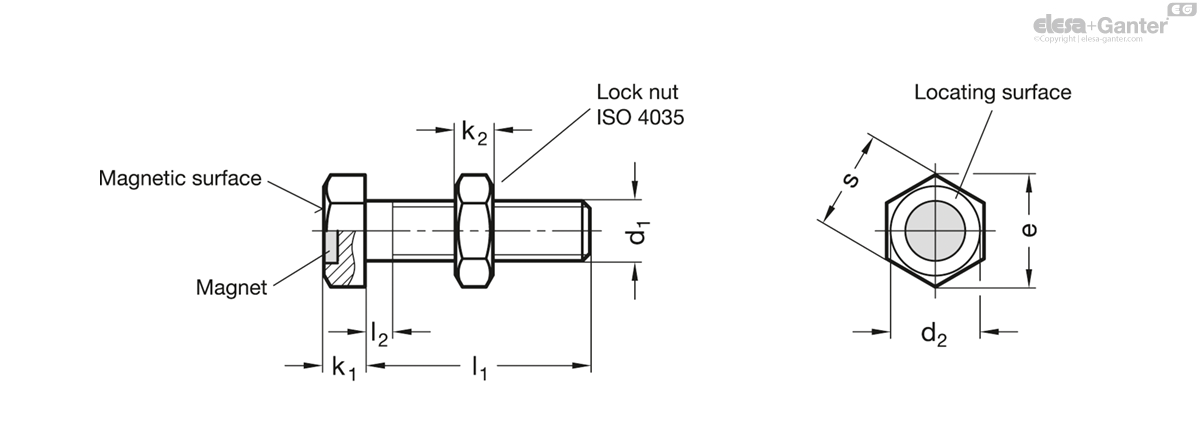

GN 251.6

Catalogue
d1*
l1
d2
e ≈
k1
k2
l2 max.
s
Nominal load in N
M 6
12
10
11
4 - 0.5
3.2
3
10
25
5
M 6
16
10
11
4 - 0.5
3.2
3
10
25
6
M 6
20
10
11
4 - 0.5
3.2
3
10
25
7
M 6
25
10
11
4 - 0.5
3.2
3
10
25
8
M 6
30
10
11
4 - 0.5
3.2
3
10
25
10
M 8
16
13
14.4
5.3 -0.5
4
3.7
13
50
11
M 8
20
13
14.4
5.3 -0.5
4
3.7
13
50
12
M 8
25
13
14.4
5.3 -0.5
4
3.7
13
50
15
M 8
30
13
14.4
5.3 -0.5
4
3.7
13
50
17
M 8
40
13
14.4
5.3 -0.5
4
3.7
13
50
21
M 10
20
17
17.8
6.4 -0.5
5
4.5
17
75
24
M 10
25
17
17.8
6.4 -0.5
5
4.5
17
75
27
M 10
30
17
17.8
6.4 -0.5
5
4.5
17
75
31
M 10
40
17
17.8
6.4 -0.5
5
4.5
17
75
37
M 10
50
17
17.8
6.4 -0.5
5
4.5
17
75
43
M 12
25
19
20
7.5 -1
6
5.2
19
110
40
M 12
30
19
20
7.5 -1
6
5.2
19
110
45
M 12
40
19
20
7.5 -1
6
5.2
19
110
54
M 12
50
19
20
7.5 -1
6
5.2
19
110
62
M 12
60
19
20
7.5 -1
6
5.2
19
110
71
M 16
30
24
26.8
10 -1
8
6
24
145
86
M 16
40
24
26.8
10 -1
8
6
24
145
100
M 16
50
24
26.8
10 -1
8
6
24
145
117
M 16
60
24
26.8
10 -1
8
6
24
145
133
M 16
80
24
26.8
10 -1
8
6
24
145
165
* Thread: nut mobility

Hex head screw

Steel

  • Property class 5.8
  • Zinc plated, blue passivated

Hex nut

Steel

  • Property class 04
  • Zinc plated, blue passivated

Material of the magnet

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

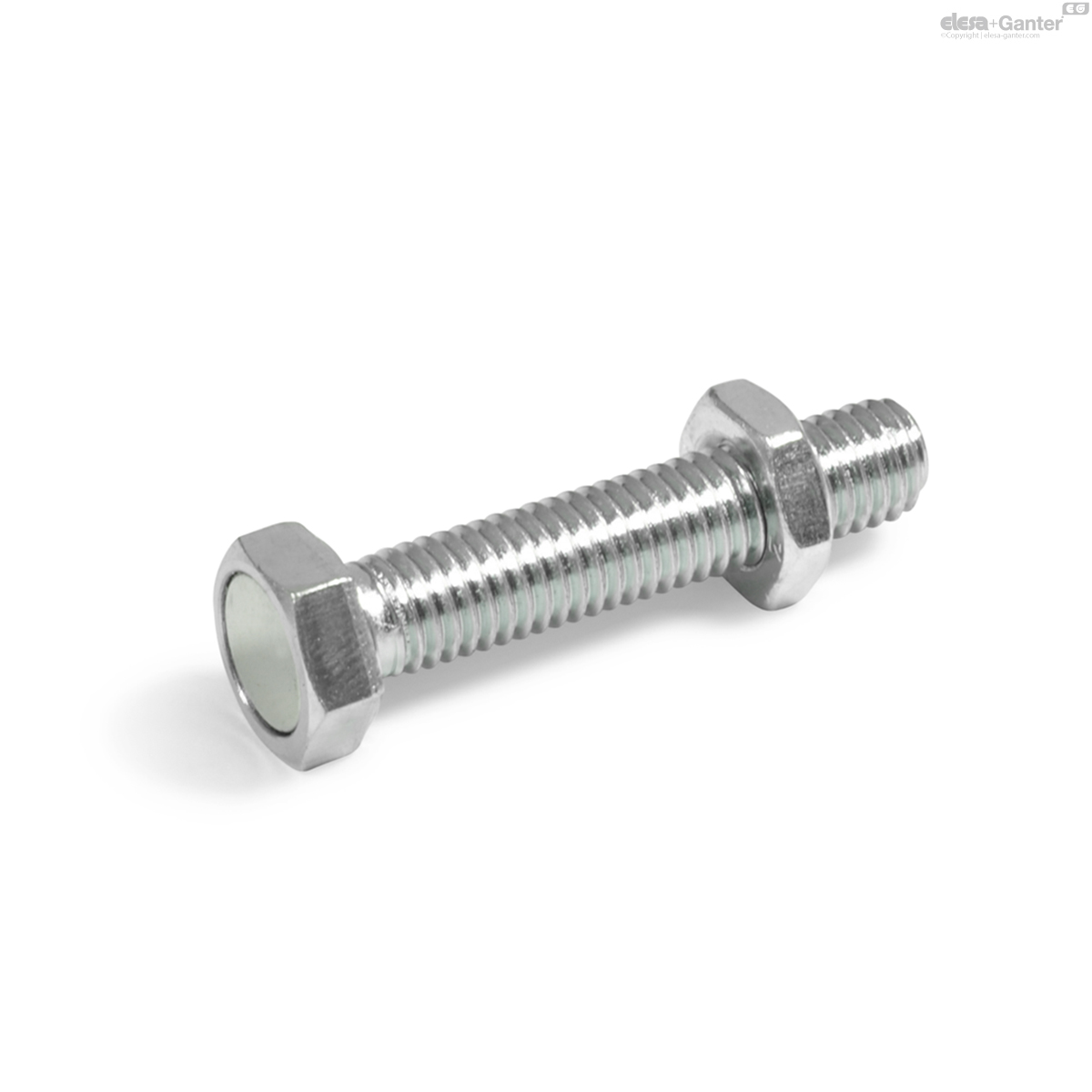

Setting bolts GN 251.6 with retaining magnets combine a magnet with a steel housing in the shape of a hex head screw to create a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

The setting bolts with retaining magnet can be used as workpiece stops that also hold the workpiece in position with the integrated magnet.

The locking nut (included) can be used to secure the stop screw after positioning.
