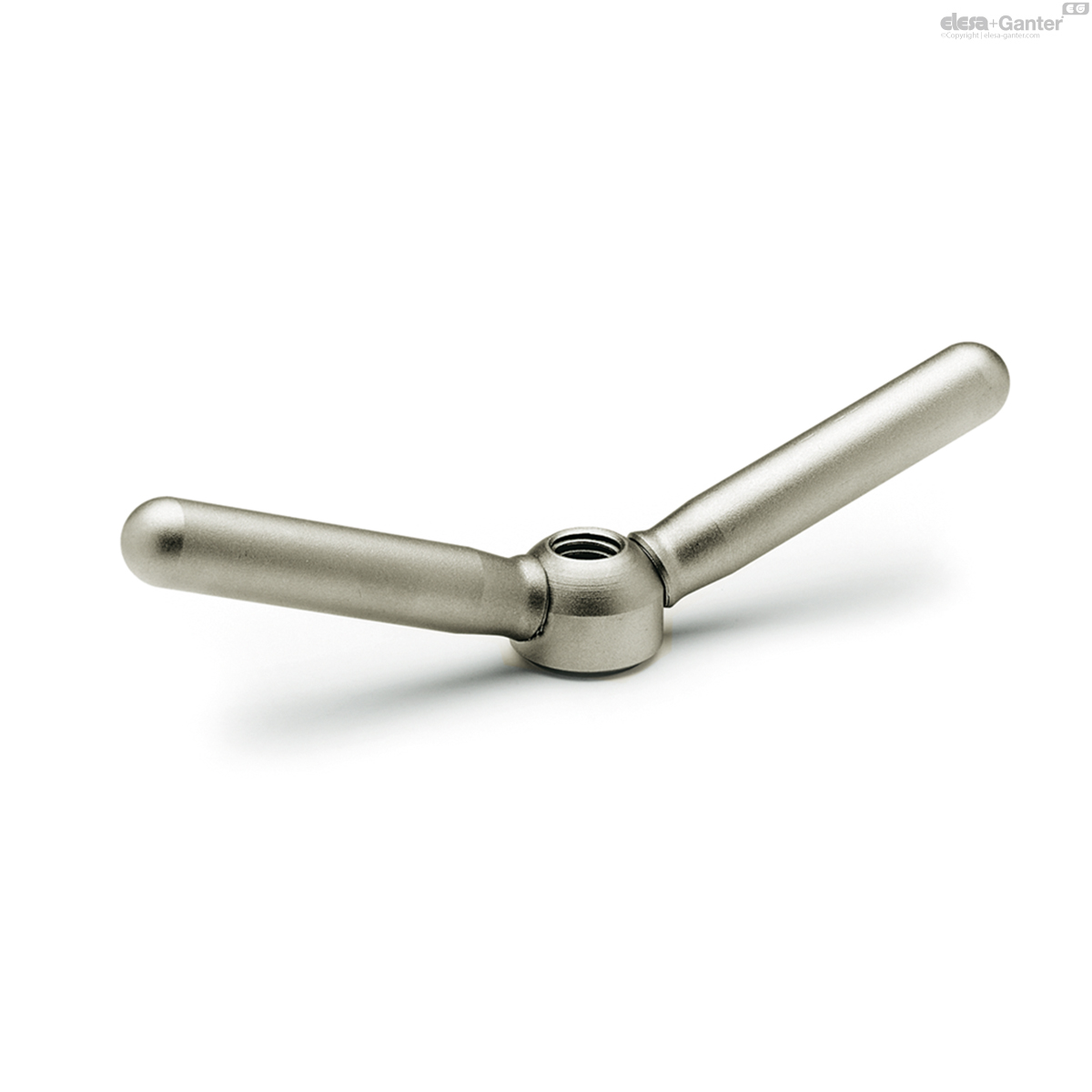

GN 206.1-STClamp Nuts with Double Lever

Steel

Steel / Stainless Steel

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents

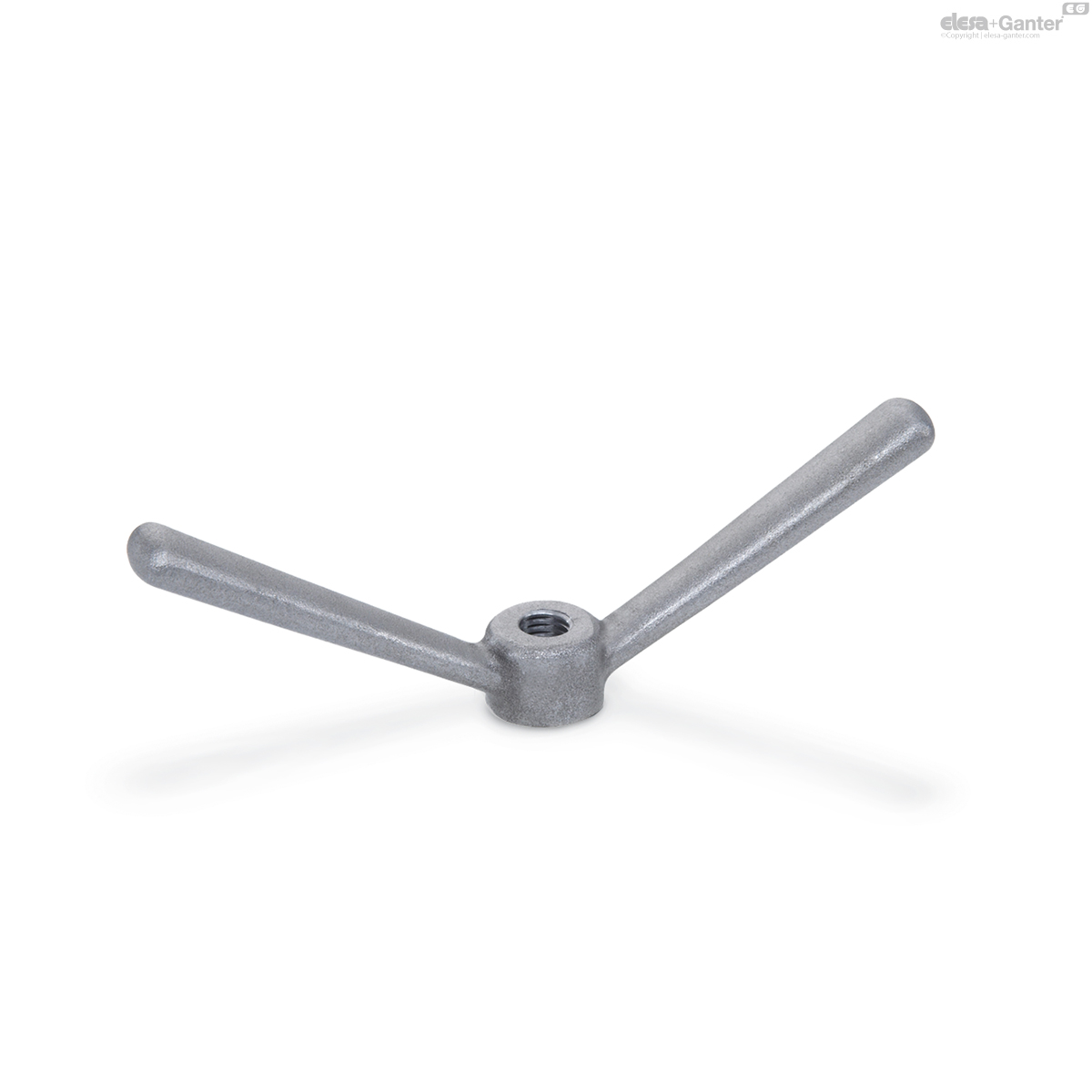

Steel
Steel
Steel
GN 206.1-ST
Steel

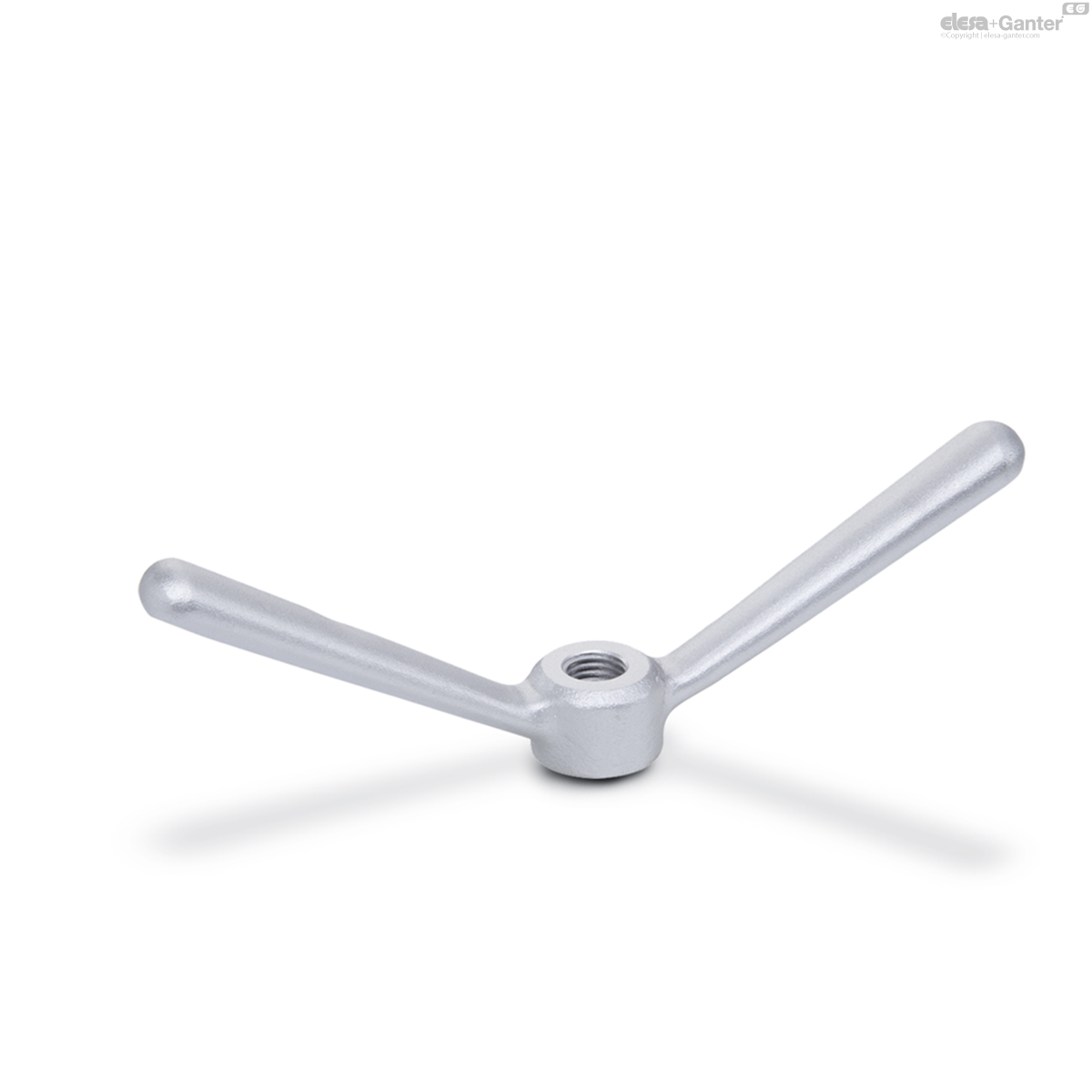

Stainless Steel
GN 206.1-NI
Stainless Steel

GN 206.1-ST

Reset
Catalogue

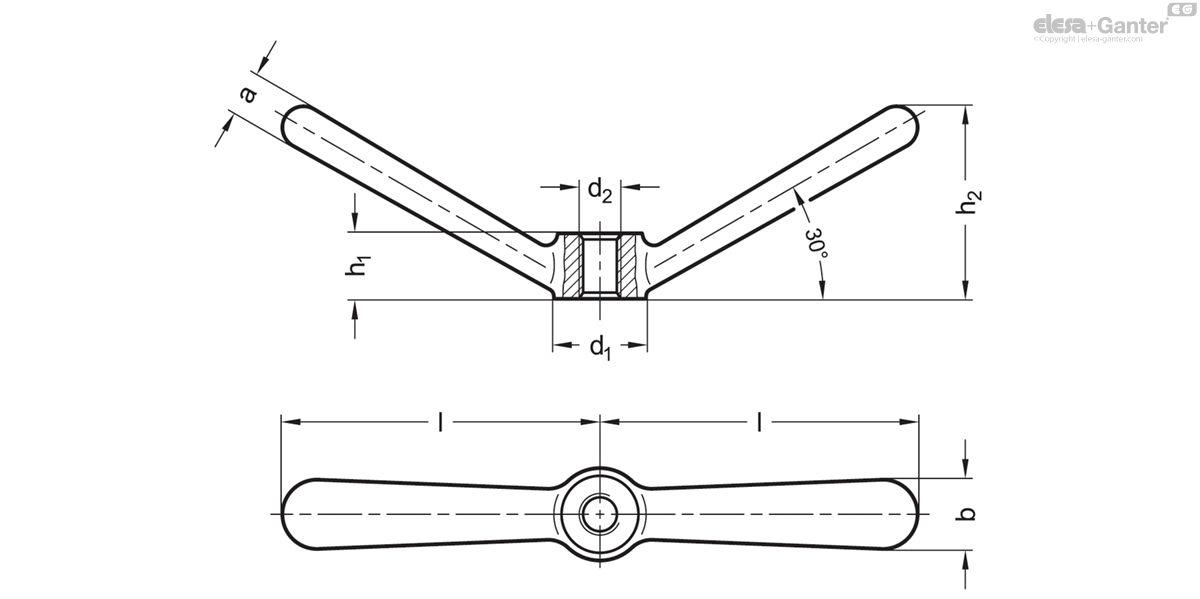

d1
d2
a
b
h1
h2 ≈
l ≈
GN 206.1-16-M8
16
M 8
7
12
12
36
56
54
GN 206.1-20-M10
20
M 10
9
14
14
44.5
70
104
GN 206.1-25-M12
25
M 12
11
18
18
55
87
196
GN 206.1-32-M16
32
M 16
15
22
22
68.5
109
395
GN 206.1-40-M20
40
M 20
18
28
28
87
140
820

Cast iron

  • Fettled
  • Contact faces machined

Stainless steel precision casting AISI CF-8 NI

  • Fettled
  • Contact faces machined
  • Clamp nuts with double lever GN 206.1, powder coated
