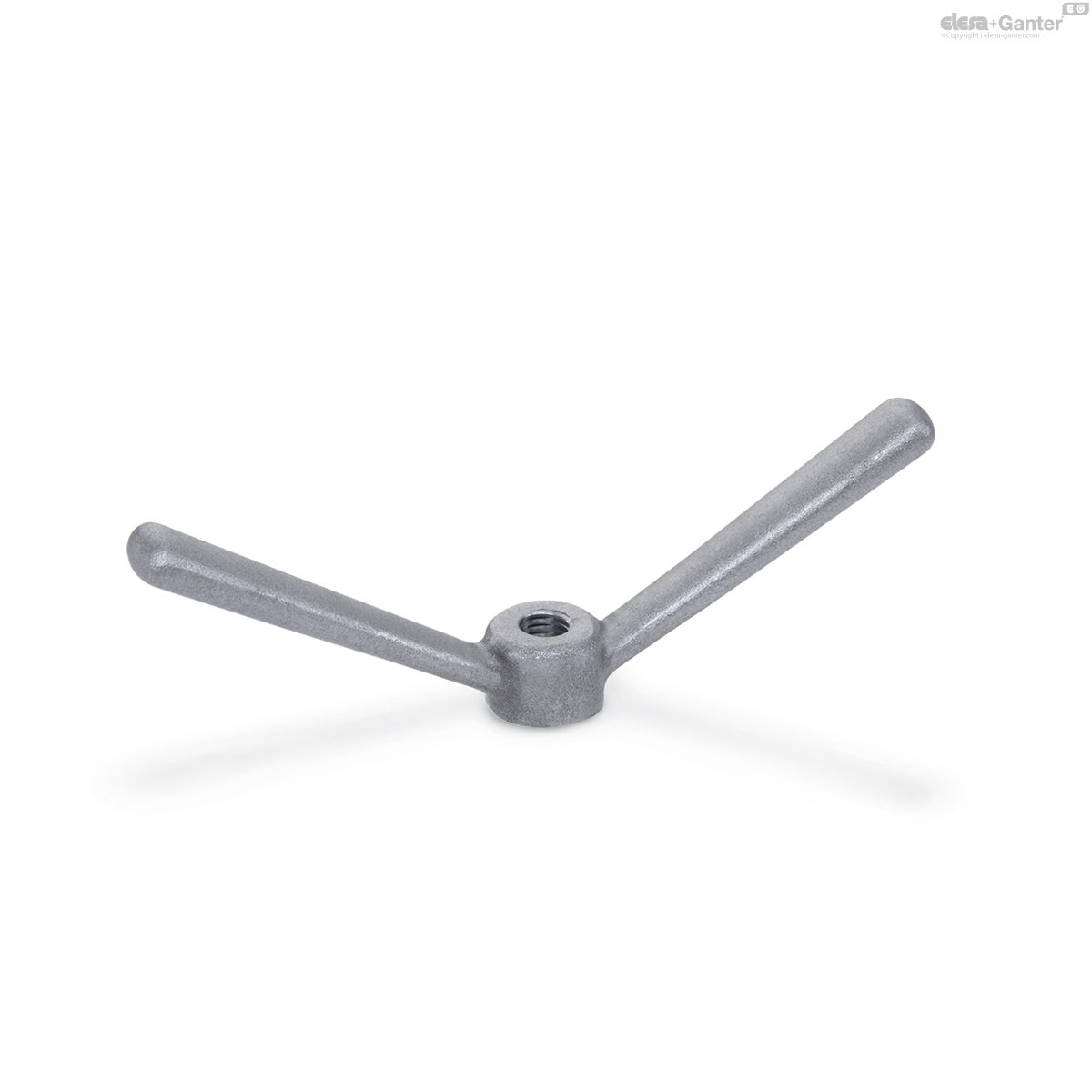

206.1-40 M 20 GN 206.1-ST Steel

206.1-40 M 20

GN 206.1-ST Steel

Steel / Stainless Steel
  • INOX
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 206.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 206.1-40-M20
d1
40
d2
M 20
a
18
b
28
h1
28
h2 ≈
87
l ≈
140
820

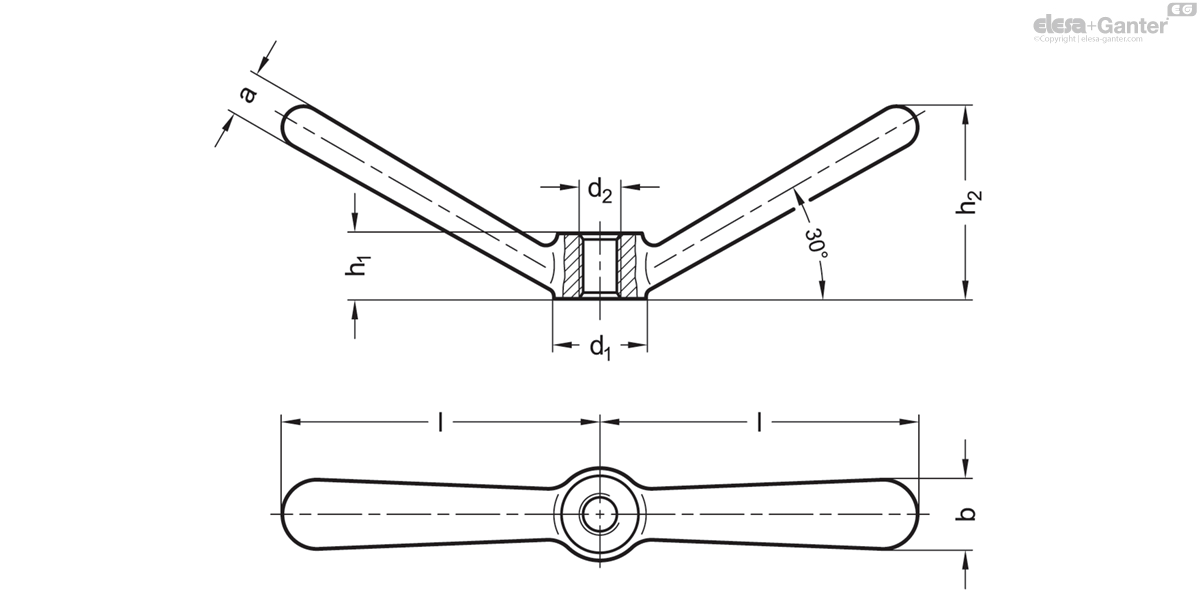

206.1-40 M 20 drawing

Cast iron

  • Fettled
  • Contact faces machined

Stainless steel precision casting AISI CF-8 NI

  • Fettled
  • Contact faces machined
  • Clamp nuts with double lever GN 206.1, powder coated
