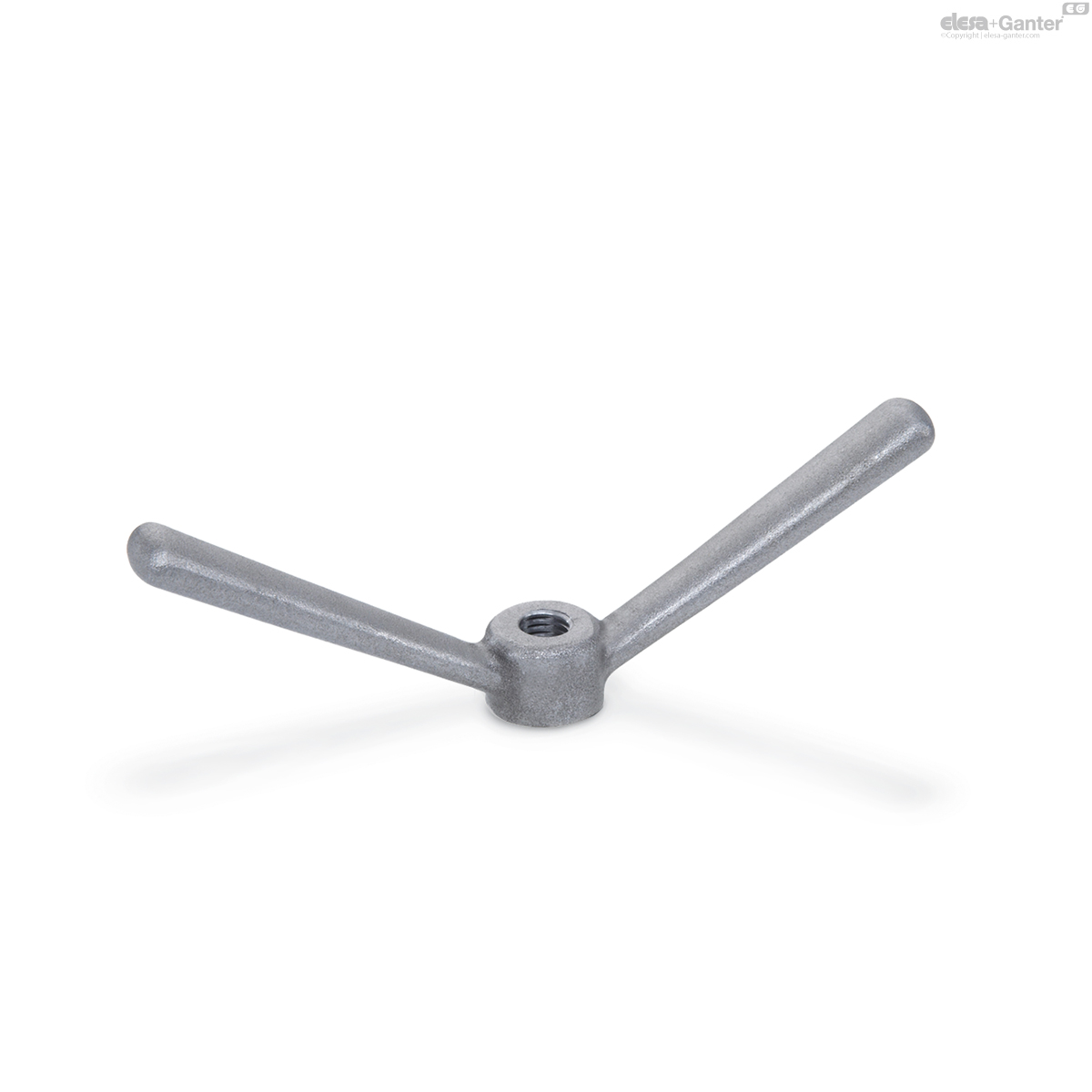

206.1-20 M 10 GN 206.1-ST Steel

206.1-20 M 10

GN 206.1-ST Steel

Steel / Stainless Steel
  • INOX
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 206.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 206.1-20-M10
d1
20
d2
M 10
a
9
b
14
h1
14
h2 ≈
44.5
l ≈
70
104
206.1-20 M 10 drawing

Cast iron

  • Fettled
  • Contact faces machined

Stainless steel precision casting AISI CF-8 NI

  • Fettled
  • Contact faces machined
  • Clamp nuts with double lever GN 206.1, powder coated
