GN 1804.2Slotted locknuts
Slotted locknuts
with thread locking
|
Catalogue
|

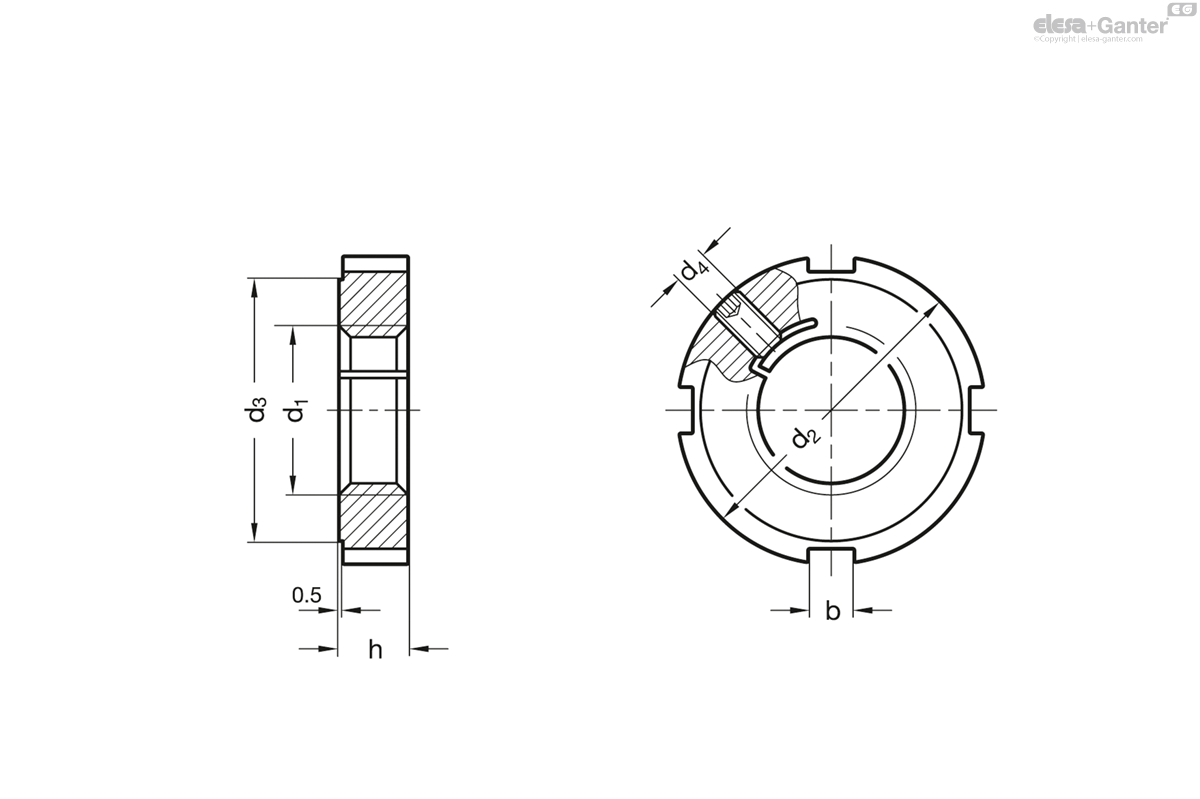

d1
|
d2
|
d3
|
d4
|
b
|
h
|
Code no. for
C-Spanner |
|
|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
GN 1804.2-M12x1,5-ST
|
M12x1.5
|
28
|
23
|
M4
|
5
|
6
|
DIN 1810-A25-28
|
20
|
|
GN 1804.2-M14x1,5-ST
|
M14x1.5
|
30
|
25
|
M4
|
5
|
7
|
DIN 1810-A30-32
|
28
|
|
GN 1804.2-M16x1,5-ST
|
M16x1.5
|
32
|
27
|
M5
|
5
|
7
|
DIN 1810-A30-32
|
30
|
|
GN 1804.2-M18x1,5-ST
|
M18x1.5
|
34
|
28
|
M5
|
6
|
8
|
DIN 1810-A34-36
|
35
|
|
GN 1804.2-M20x1,5-ST
|
M20x1.5
|
36
|
30
|
M5
|
6
|
8
|
DIN 1810-A34-36
|
40
|
|
GN 1804.2-M22x1,5-ST
|
M22x1.5
|
40
|
34
|
M5
|
6
|
9
|
DIN 1810-A40-42
|
56
|
|
GN 1804.2-M24x1,5-ST
|
M24x1.5
|
42
|
36
|
M5
|
6
|
9
|
DIN 1810-A40-42
|
60
|
|
GN 1804.2-M30x1,5-ST
|
M30x1.5
|
50
|
43
|
M5
|
7
|
10
|
DIN 1810-A45-50
|
90
|
|
GN 1804.2-M35x1,5-ST
|
M35x1.5
|
55
|
48
|
M6
|
7
|
11
|
DIN 1810-A52-55
|
113
|
|
GN 1804.2-M40x1,5-ST
|
M40x1.5
|
62
|
54
|
M8
|
8
|
12
|
DIN 1810-A58-62
|
150
|
Nut
Steel ST
- Tensile strength class 5.8
- blackened
Set screw
Steel, blackened

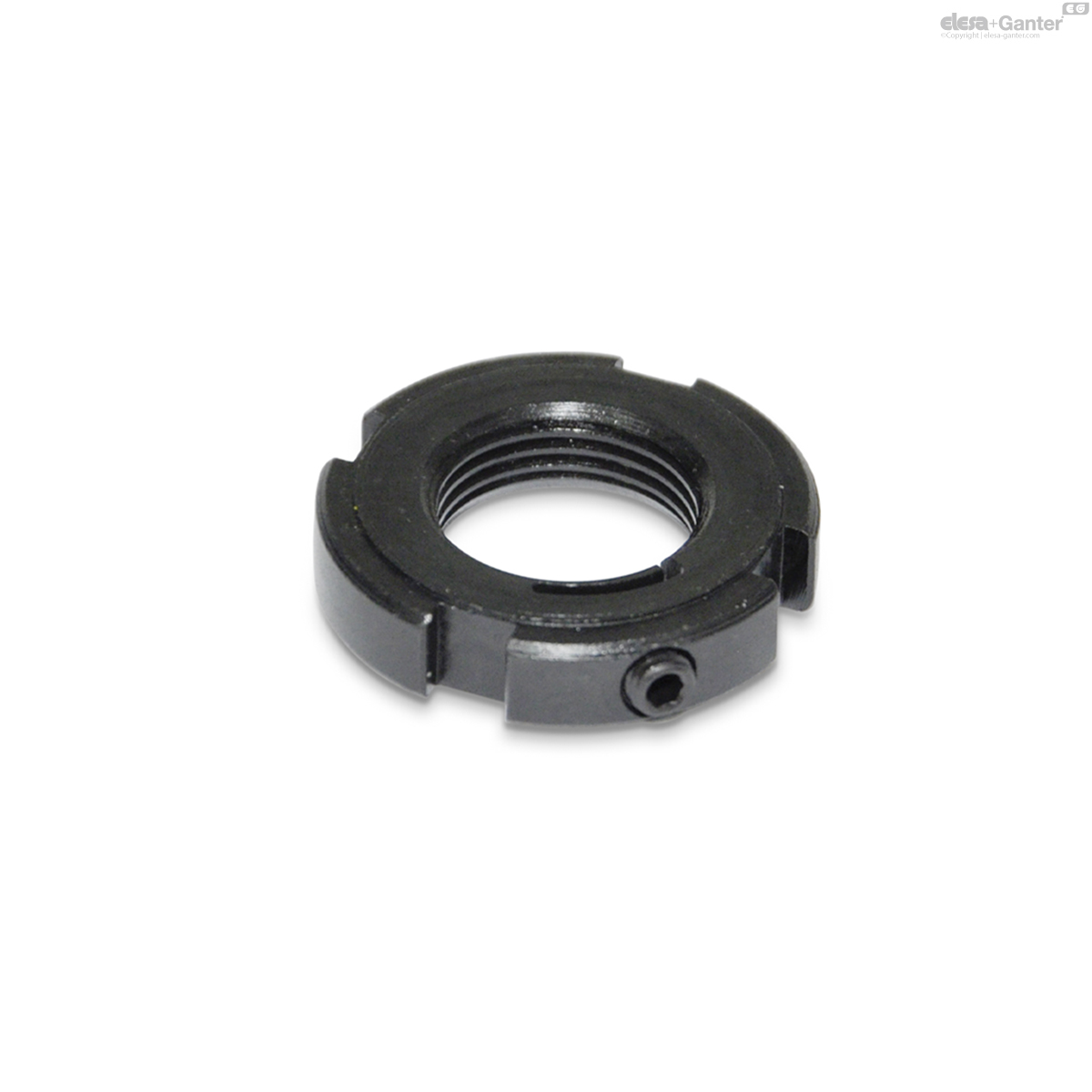

GN 1804.2 slotted locknuts with thread locking can be secured against twisting by twisting off the threaded shaft via a d4 set screw. The thread flanks of the nut ensure damage-free securing and can be used as often as needed.
The d3 offset plane surface is intended as an axial contact surface.
- C-Spanner DIN 1810 (Code no. see table)
