Technical datasheet
DIN 1810C-Spanner

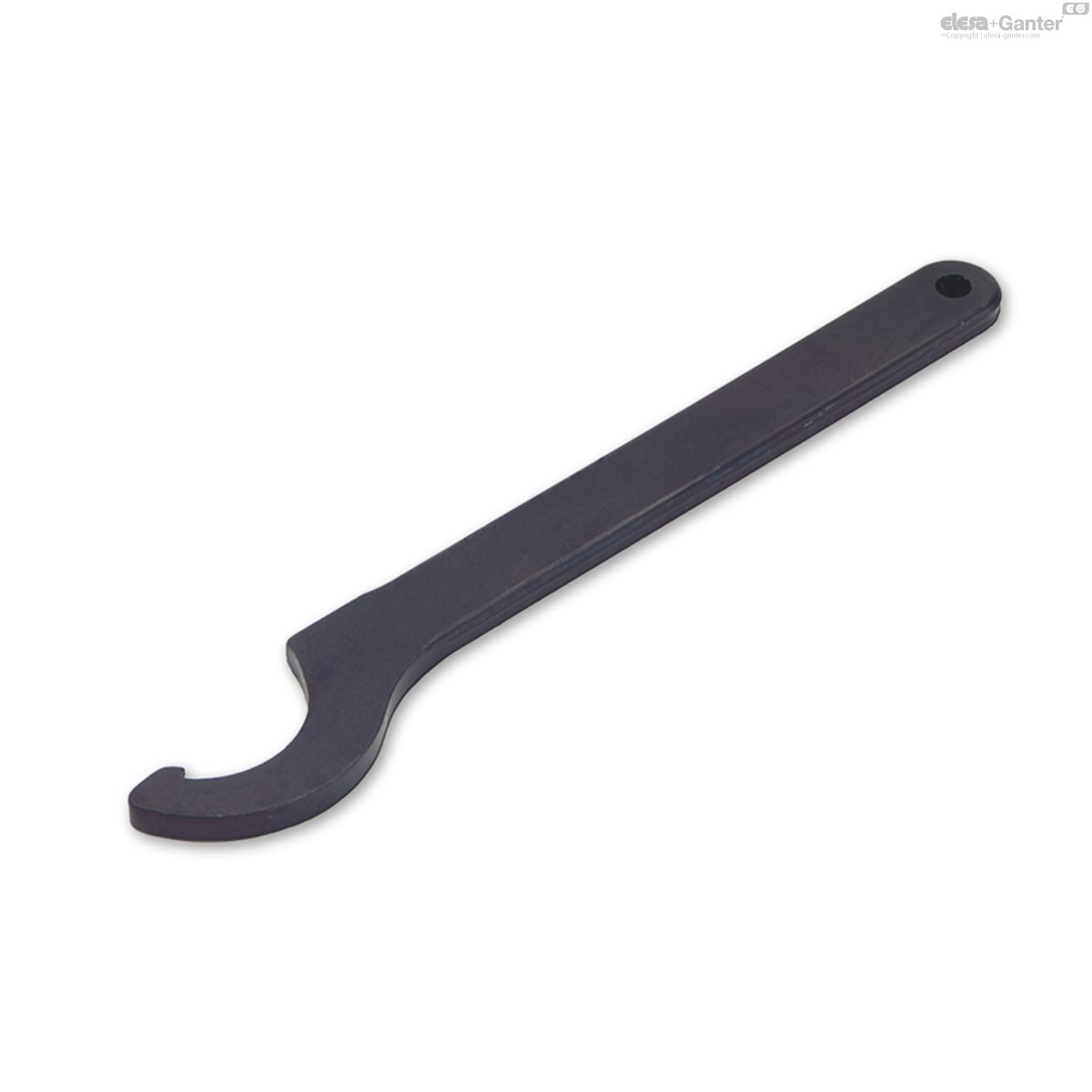

C-Spanner
|
Catalogue
|

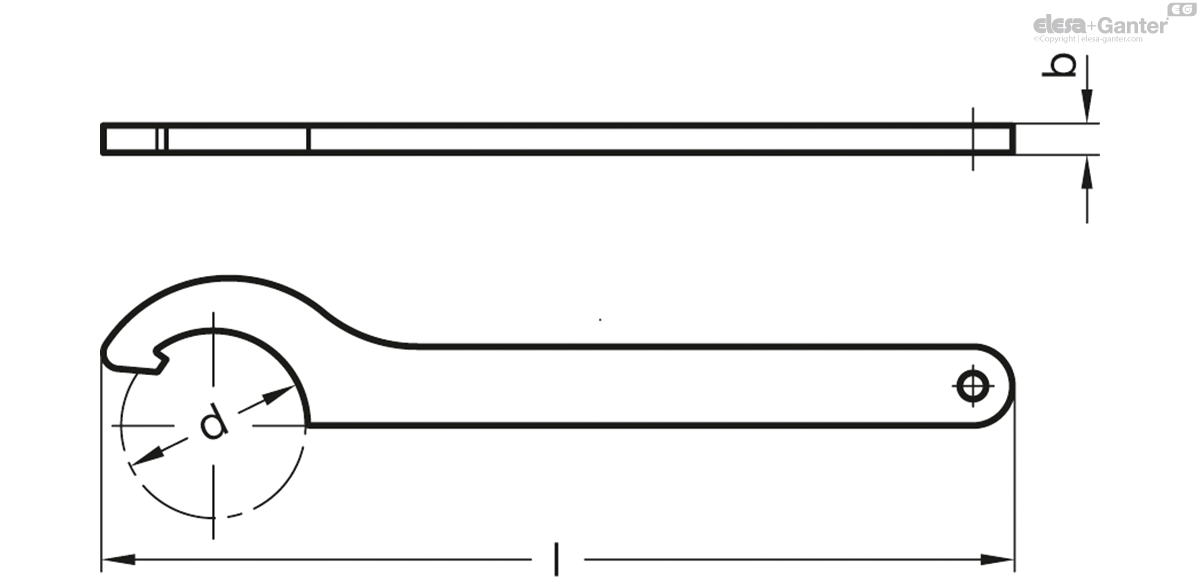

d min.
|
d max.
|
l
|
b
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
DIN 1810-A16-20
|
A 16
|
20
|
110
|
3
|
23
|
|
DIN 1810-A25-28
|
A 25
|
28
|
136
|
4
|
46
|
|
DIN 1810-A30-32
|
A 30
|
32
|
136
|
4
|
49
|
|
DIN 1810-A34-36
|
A 34
|
36
|
170
|
5
|
92
|
|
DIN 1810-A40-42
|
A 40
|
42
|
170
|
5
|
100
|
|
DIN 1810-A45-50
|
A 45
|
50
|
206
|
6
|
161
|
|
DIN 1810-A52-55
|
A 52
|
55
|
206
|
6
|
162
|
|
DIN 1810-A58-62
|
A 58
|
62
|
240
|
7
|
258
|
|
DIN 1810-A65-70
|
A 65
|
70
|
240
|
7
|
261
|
|
DIN 1810-A68-75
|
A 68
|
75
|
240
|
7
|
257
|
|
DIN 1810-A80-90
|
A 80
|
90
|
280
|
8
|
426
|
|
DIN 1810-A95-100
|
A 95
|
100
|
280
|
8
|
388
|
Related products

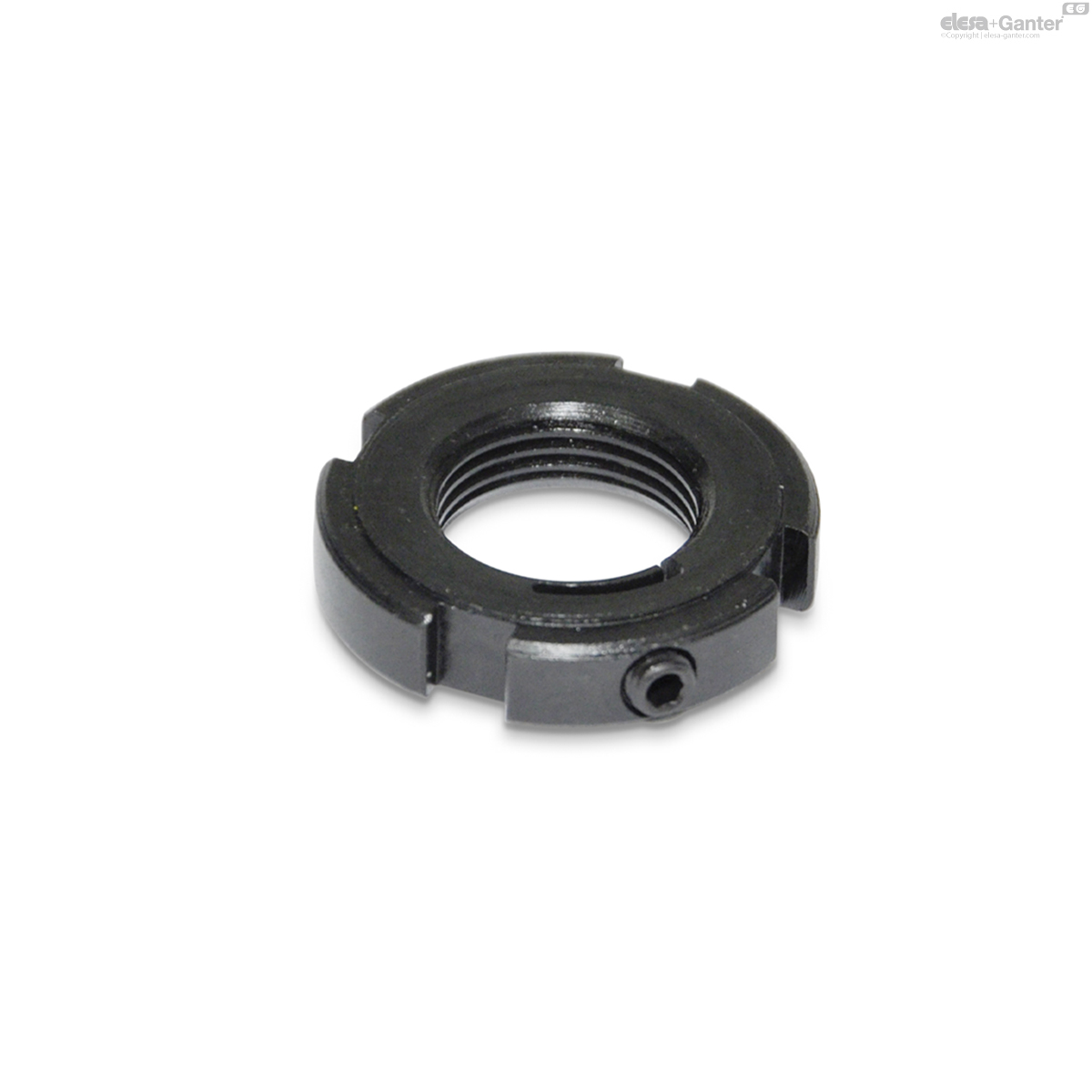

DIN 1804
Slotted locknuts
Steel / Stainless Steel

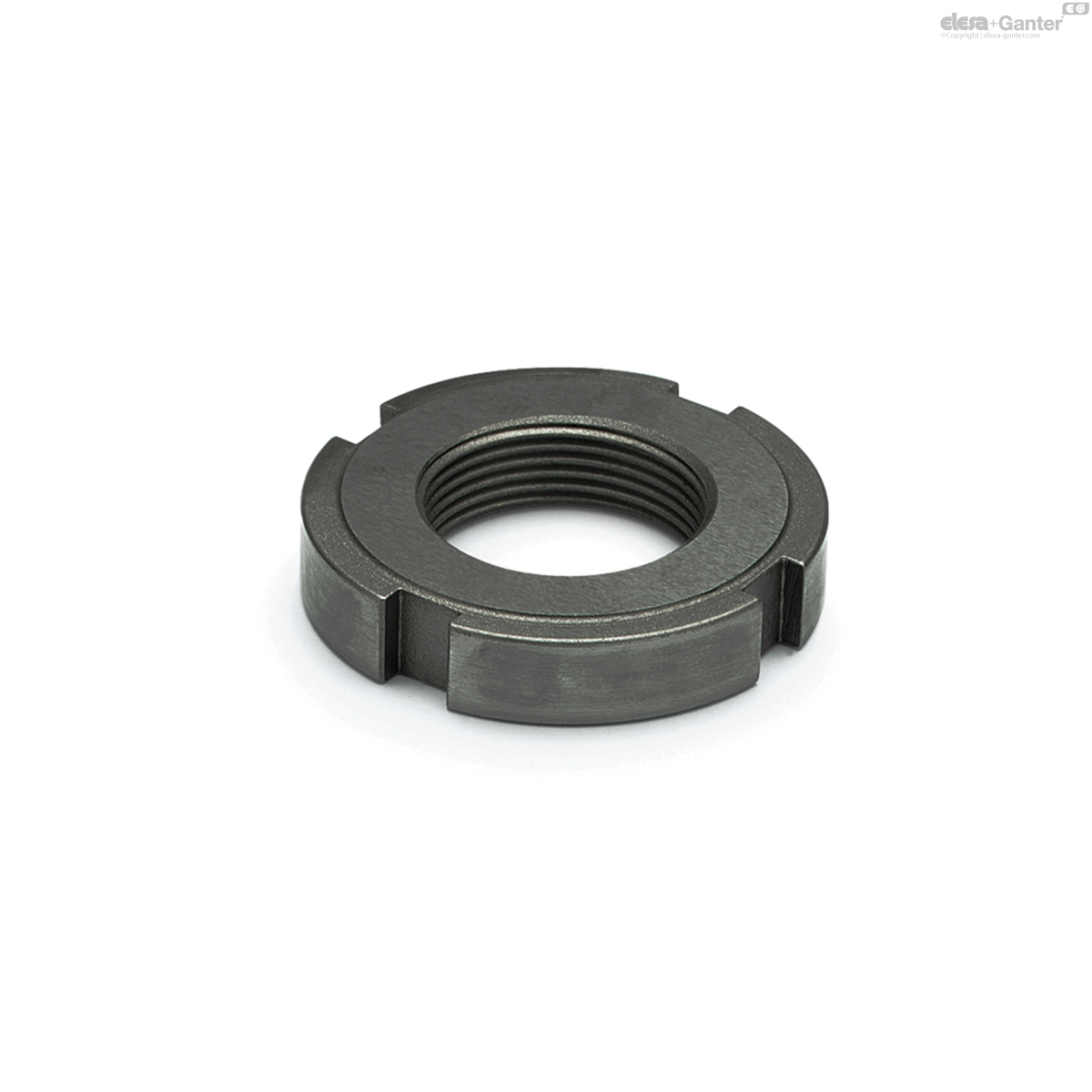

DIN 70852
Slotted locknuts
flat design

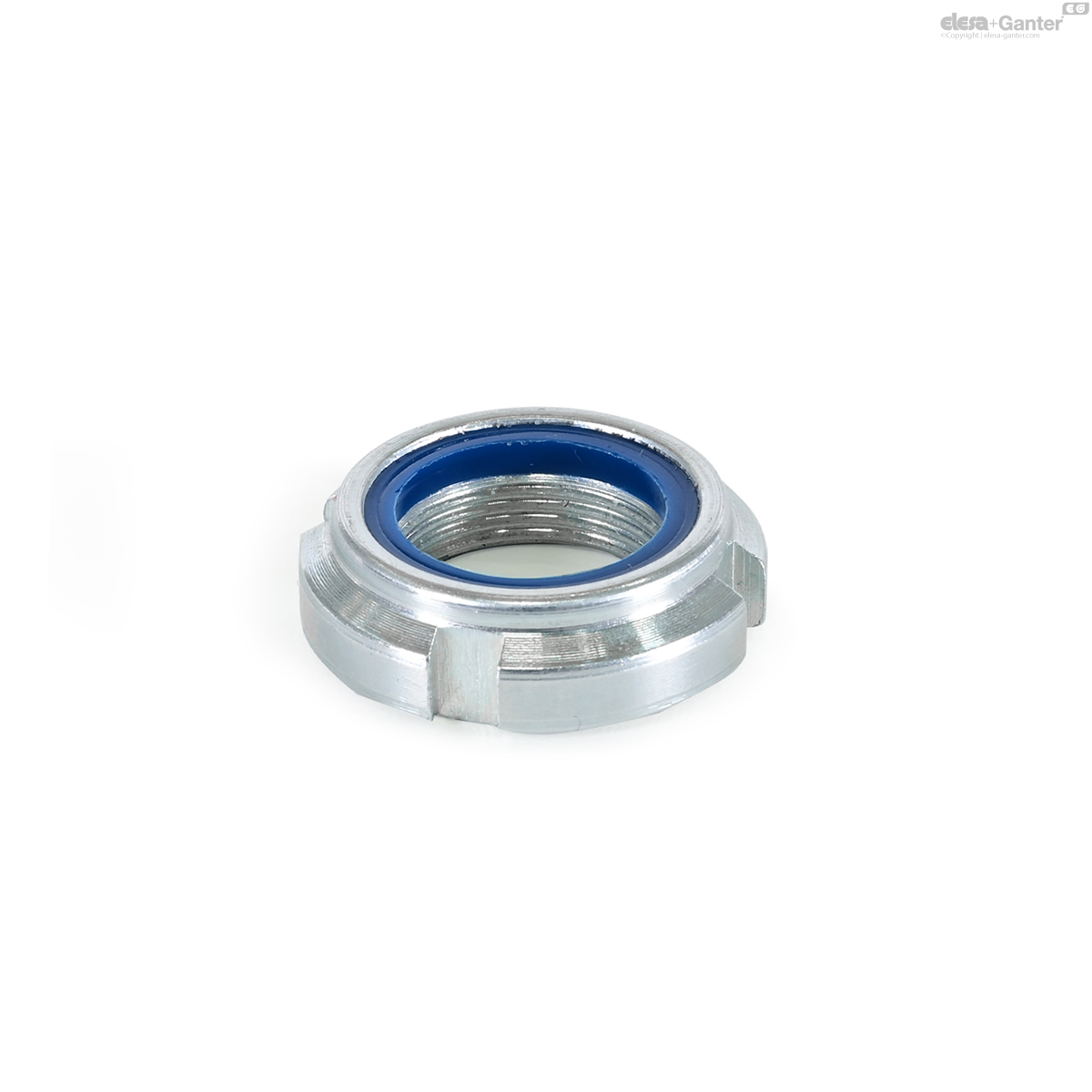

GN 1804.1-ST
