Technical datasheet

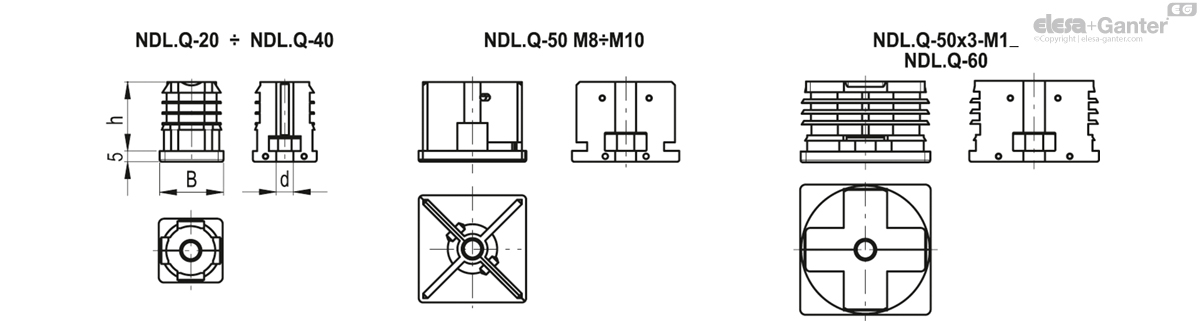

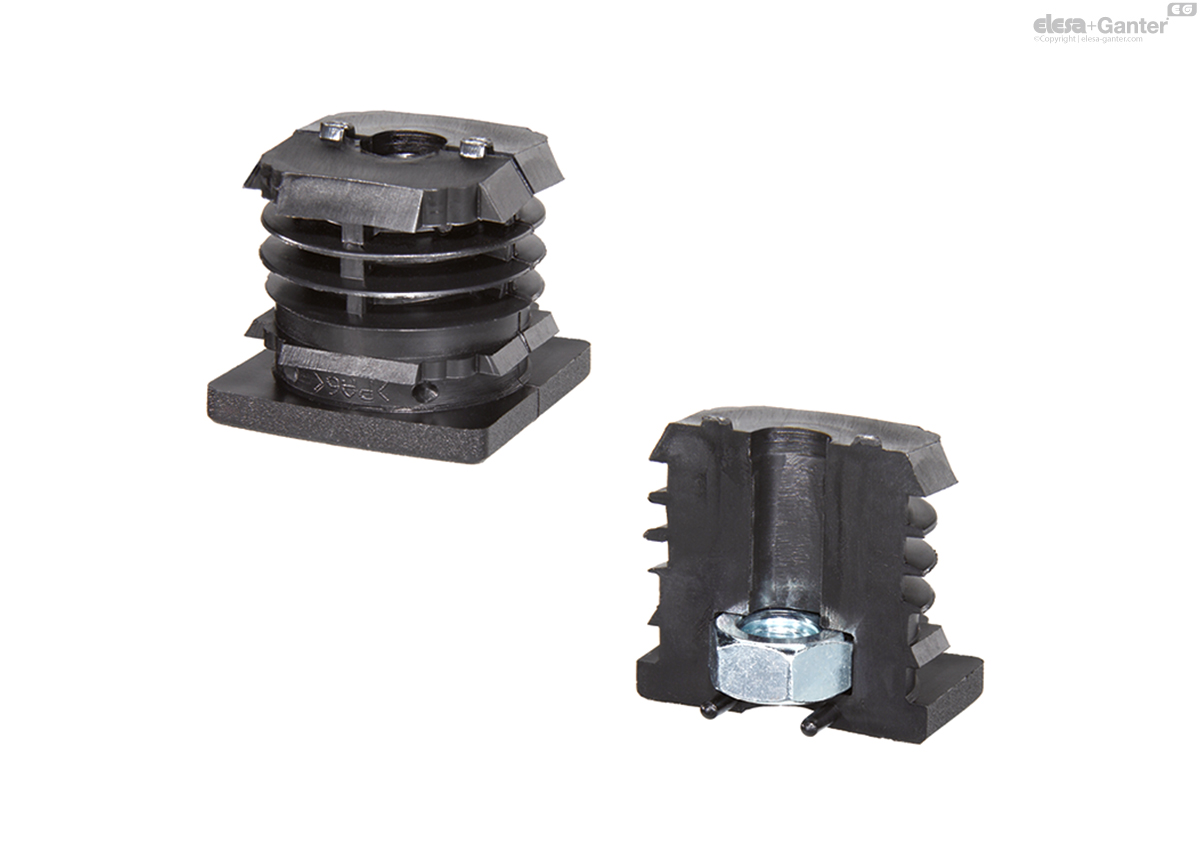

NDL.QEnd-caps for square tubes
End-caps for square tubes
Technopolymer
|
Catalogue
|
Description
|
B
|
d
|
h
|
External tube diameter
|
Internal tube diameter min-max
|
Thickness min-max
|
Max. static load*
[N] |
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
430551
|
NDL.Q-20x1.5-2-M6
|
20
|
M6
|
34
|
20
|
17-16
|
1.5-2
|
3000
|
10
|
|
430553
|
NDL.Q-20x1.5-2-M8
|
20
|
M8
|
34
|
20
|
17-16
|
1.5-2
|
3000
|
12
|
|
430555
|
NDL.Q-20x1.5-2-M10
|
20
|
M10
|
33
|
20
|
17-16
|
1.5-2
|
3000
|
17
|
|
430557
|
NDL.Q-20x2-M8
|
20
|
M8
|
34
|
20
|
16
|
2
|
3000
|
12
|
|
430561
|
NDL.Q-25x1-1.5-M8
|
25
|
M8
|
34
|
25
|
23-22
|
1-1.5
|
3000
|
18
|
|
430563
|
NDL.Q-25x1.5-M10
|
25
|
M10
|
33
|
25
|
22
|
1.5
|
3000
|
21
|
|
430565
|
NDL.Q-25x2-M8
|
25
|
M8
|
34
|
25
|
21
|
2
|
3000
|
17
|
|
430567
|
NDL.Q-25x2-M10
|
25
|
M10
|
34
|
25
|
21
|
2
|
3000
|
21
|
|
430571
|
NDL.Q-30x1.5-2-M8
|
30
|
M8
|
34
|
30
|
27-26
|
1.5-2
|
3000
|
22
|
|
430573
|
NDL.Q-30x1.5-2-M10
|
30
|
M10
|
34
|
30
|
27-26
|
1.5-2
|
3000
|
25
|
|
430575
|
NDL.Q-30x2.5-M10
|
30
|
M10
|
33
|
30
|
25
|
2.5
|
3000
|
25
|
|
430581
|
NDL.Q-35x1-2-M10
|
35
|
M10
|
34
|
35
|
33-31
|
1-2
|
3000
|
30
|
|
430583
|
NDL.Q-35x1.5-M12
|
35
|
M12
|
34
|
35
|
32
|
1.5
|
3000
|
37
|
|
430585
|
NDL.Q-35x1.5-2-M8
|
35
|
M8
|
34
|
35
|
32-31
|
1.5-2
|
3000
|
26
|
|
430587
|
NDL.Q-35x1.5-2-M12
|
35
|
M12
|
34
|
35
|
32-31
|
1.5-2
|
3000
|
36
|
|
430591
|
NDL.Q-40x1.5-2-M8
|
40
|
M8
|
33
|
40
|
37-36
|
1.5-2
|
3000
|
35
|
|
430593
|
NDL.Q-40x1.2-1.5-M10
|
40
|
M10
|
33
|
40
|
37.6-37
|
1.2-1.5
|
3000
|
43
|
|
430595
|
NDL.Q-40x1.5-2-M10
|
40
|
M10
|
33
|
40
|
37-36
|
1.5-2
|
3000
|
43
|
|
430597
|
NDL.Q-40x1.5-2-M12
|
40
|
M12
|
33
|
40
|
37-36
|
1.5-2
|
3000
|
44
|
|
430599
|
NDL.Q-40x1.5-2-M16
|
40
|
M16
|
33
|
40
|
37-36
|
1.5-2
|
3000
|
55
|
|
430601
|
NDL.Q-40x2-M8
|
40
|
M8
|
34
|
40
|
36
|
2
|
3000
|
27
|
|
430603
|
NDL.Q-40x3-M10
|
40
|
M10
|
33
|
40
|
34
|
3
|
3000
|
41
|
|
430611
|
NDL.Q-50x1.5-M10
|
50
|
M10
|
34
|
50
|
47
|
1.5
|
3000
|
42
|
|
430613
|
NDL.Q-50x2-M8
|
50
|
M8
|
34
|
50
|
46
|
2
|
3000
|
37
|
|
430615
|
NDL.Q-50x2-M10
|
50
|
M10
|
32
|
50
|
46
|
2
|
3000
|
44
|
|
430617
|
NDL.Q-50x2.5-M10
|
50
|
M10
|
33
|
50
|
45
|
2.5
|
3000
|
41
|
|
430619
|
NDL.Q-50x3-M12
|
50
|
M12
|
34
|
50
|
44
|
3
|
3000
|
51
|
|
430621
|
NDL.Q-60x1.5-2-M10
|
60
|
M10
|
34
|
60
|
57-56
|
1.5-2
|
3000
|
72
|
|
430623
|
NDL.Q-60x1.5-2-M12
|
60
|
M12
|
34
|
60
|
57-56
|
1.5-2
|
3000
|
74
|
Material
Polyamide based (PA) technopolymer, black colour, matte finish.
Standard execution
DIN 934 zinc-plated steel nut (included in the supply).
Features and applications
The two end-cap parts are connected together by means of two pins which are housed in special counter-seats. A cavity inside the end-cap is provided for housing an hexagonal nut DIN 934.
The assembly can be performed simply by positioning the end-cap inside the tube, with no need of screws or other fasteners.
Special executions on request
End-cap without nut.
