NDL.Q-30x1.5-2-M10 NDL.Q End-caps for square tubes

NDL.Q-30x1.5-2-M10

NDL.Q End-caps for square tubes

Technopolymer
  • Icons/__logo__PA__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of NDL.Q

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
430573
B
30
d
M10
h
34
External tube diameter
30
Internal tube diameter min-max
27-26
Thickness min-max
1.5-2
Max. static load*
[N]
3000
25

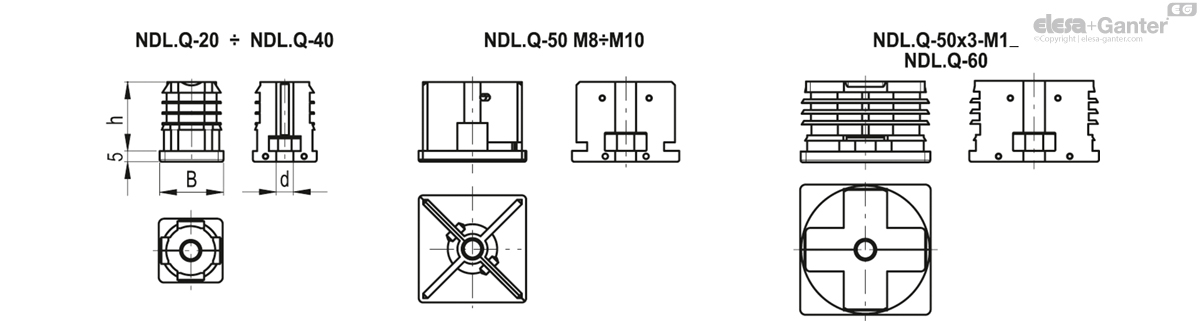

NDL.Q-30x1.5-2-M10 drawing
* The max limit static load is the value above which the load applied to the element may cause some plastic material breakage, under particular conditions of use. Obviously, a factor that takes into consideration the importance and the safet

Material

Polyamide based (PA) technopolymer, black colour, matte finish.

Standard execution

DIN 934 zinc-plated steel nut (included in the supply).

Features and applications

The two end-cap parts are connected together by means of two pins which are housed in special counter-seats. A cavity inside the end-cap is provided for housing an hexagonal nut DIN 934.

The assembly can be performed simply by positioning the end-cap inside the tube, with no need of screws or other fasteners.

Special executions on request

End-cap without nut.
