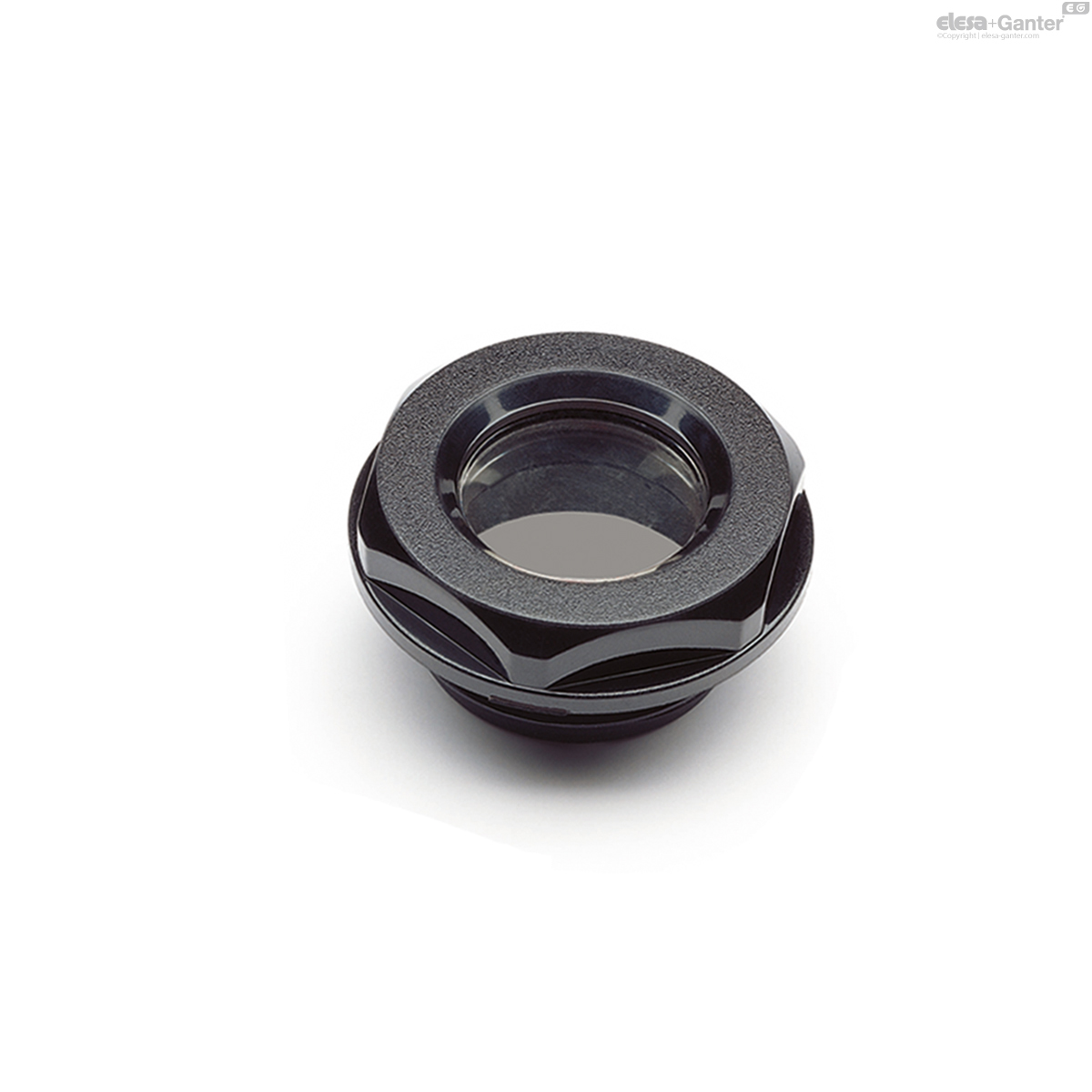

HGFT/SLOil level sight glasses

Without contrast screen

Technopolymer up to 100°C

  • Icons/__logo__PA__.png
  • Icons/__logo__PAT-AR__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png
Without contrast screen
Without contrast screen
Without contrast screen
HGFT/SL
Without contrast screen
With contrast screen
HGFT.
With contrast screen

HGFT/SL

Reset
Catalogue
Description

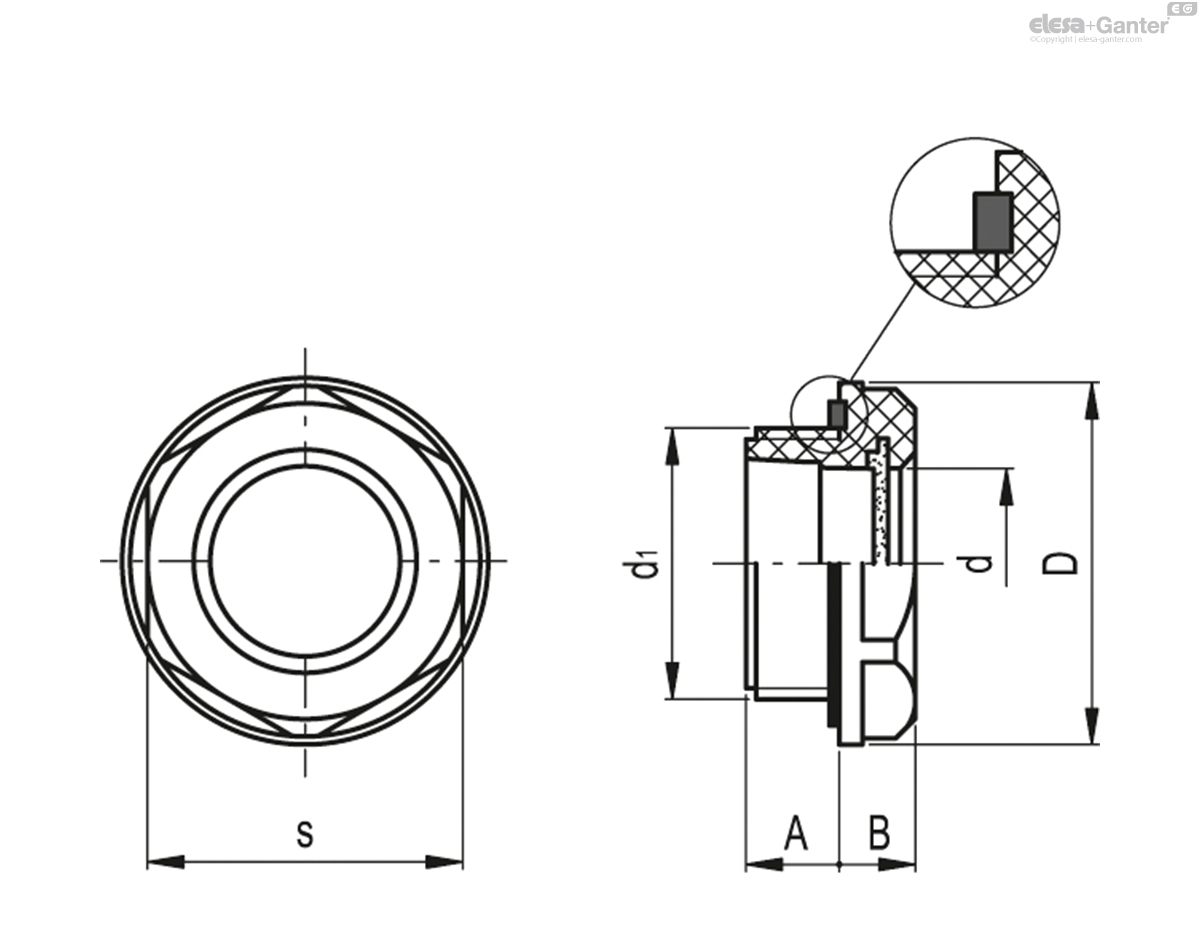

d1
A
B
D
d
s
Tightening torque
[Nm]
14436
HGFT.10/SL-M16x1.5-C9
M16x1.5
8
7.5
25
11
21.5
4÷5
5
14456
HGFT.13/SL-M20x1.5-C9
M20x1.5
10
8.5
28
14
24
5÷6
6
14476
HGFT.16/SL-M26x1.5-C9
M26x1.5
10
8.5
34.5
17.5
31
8÷10
11
14516
HGFT.21/SL-M33x1.5-C9
M33x1.5
11.5
9
42.5
22.5
38
10÷12
15
14446
HGFT.10/SL-3/8-C9
G 3/8
8
7
24
11
22
4÷8
5
14466
HGFT.13/SL-1/2-C9
G 1/2
10
8.5
28
14.5
24
6÷8
6
14486
HGFT.16/SL-3/4-C9
G 3/4
9.5
8.5
35
18
32
8÷10
9
14526
HGFT.21/SL-1-C9
G 1
11
9.5
42.5
23
38
10÷12
14
14546
HGFT.25/SL-1 1/4-C9
G 1 1/4
11
9
50
30
46
12÷15
20
14566
HGFT.40/SL-2-C9
G 2
12
11
66
40
60
12÷15
44
  • Icons/__logo__ELE_OD__.png

Material

Polyamide based (PA) technopolymer, black or red colour, glossy finish (HGFT-SL only black colour).

Window

Transparent polyamide based (PA-T/AR) technopolymer.

Packing ring

NBR synthetic rubber.

Standard executions

  • HGFT.: with matte anodised aluminium star-shaped contrast screen with red central level point.
  • HGFT-SL: without contrast screen.

Maximum continuous working temperature

100°C at 3 bar pressure.

Note

For use with other fluids with special additives, please contact ELESA Sales Department.

Accessories on request

Brass nut type GH. for fitting to reservoirs with wall thickness smaller than 5 mm.
