CWN.32 p-M5x16 CWN-p Zinc-plated steel threaded stud

CWN.32 p-M5x16

CWN-p Zinc-plated steel threaded stud

Technopolymer
  • Icons/__logo__PA__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__g13030__.png
  • Icons/__logo__ELE_OD__.png

Eta: 1-2 weeks All sizes and variants of CWN.

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
8610
D
32
d6g
M5
L
16.5
d1
12
l
16
l2
3.5
b
6
8

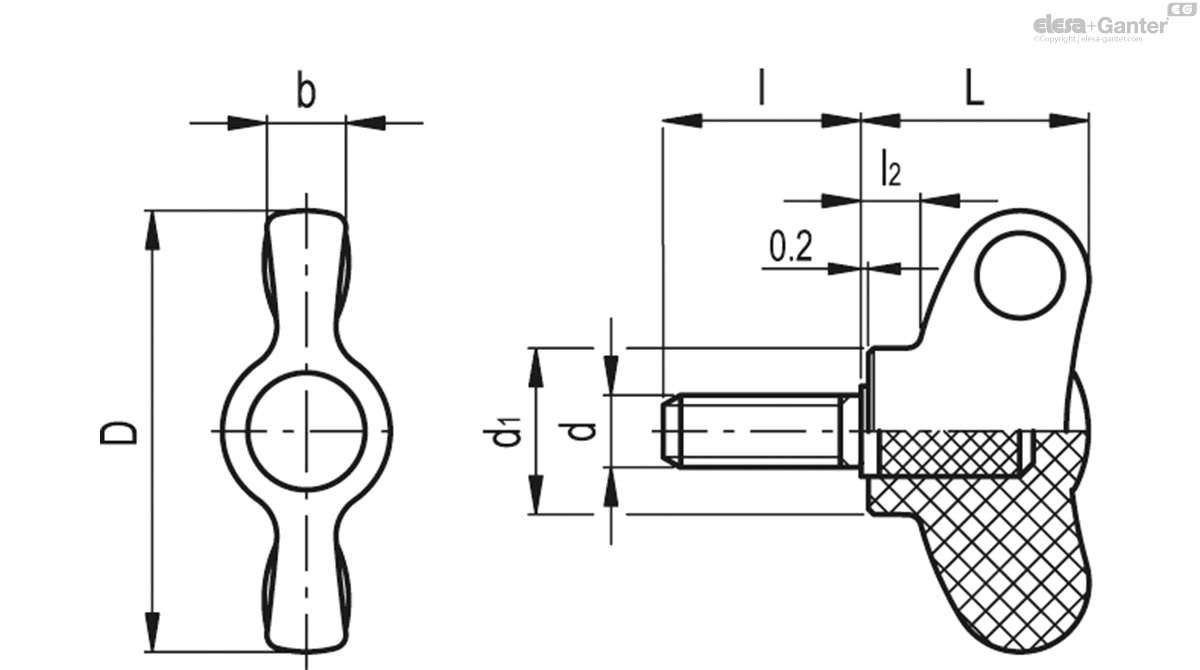

CWN.32 p-M5x16 drawing

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • CWN-B: brass boss, threaded blind hole.
  • CWN-FP: brass boss, threaded pass-through hole.
  • CWN-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

Ergonomy and design

The slightly convex marks on the wings offer a point where the fingers can be positioned.
