409.1-15-M12-B GN 409.1 Positioning elements

409.1-15-M12-B

GN 409.1 Positioning elements

with threaded stud
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 409.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 409.1-15-M12-B
h ±0.01
15
d1
M 12
d2
22
l
14
A/F
22
e
25.2
56

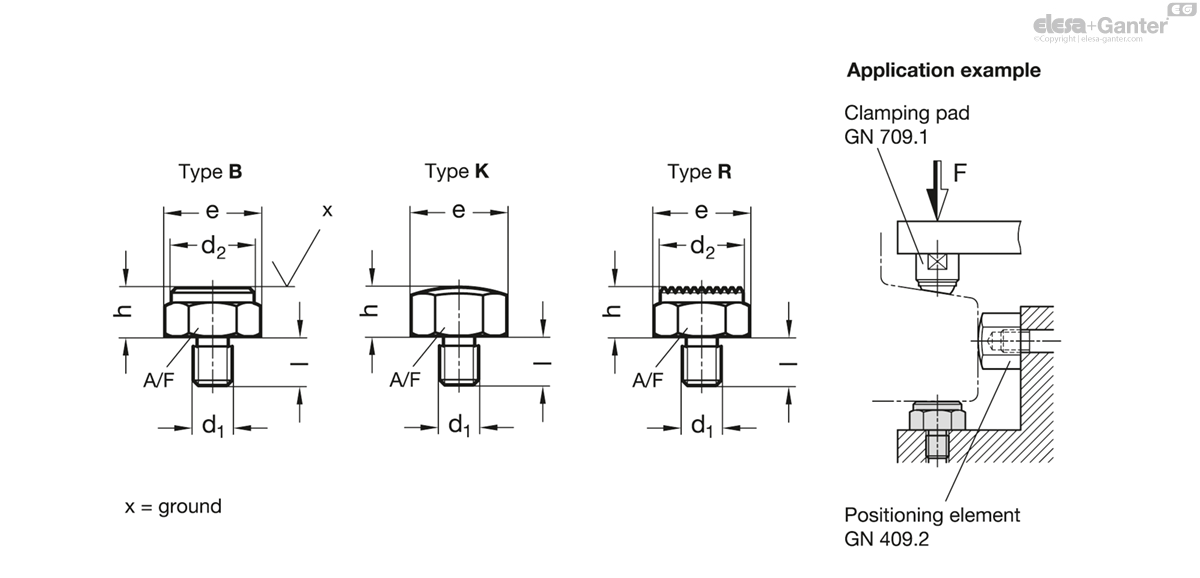

409.1-15-M12-B drawing

Types

  • Type B: Smooth contact face
  • Type K: Spherical contact face
  • Type R: Serrated contact face

Steel

  • case hardened
  • blackened

Positioning elements GN 409.1 with threaded stud are designed for use as locating plungers, stops and thrust blocks.
