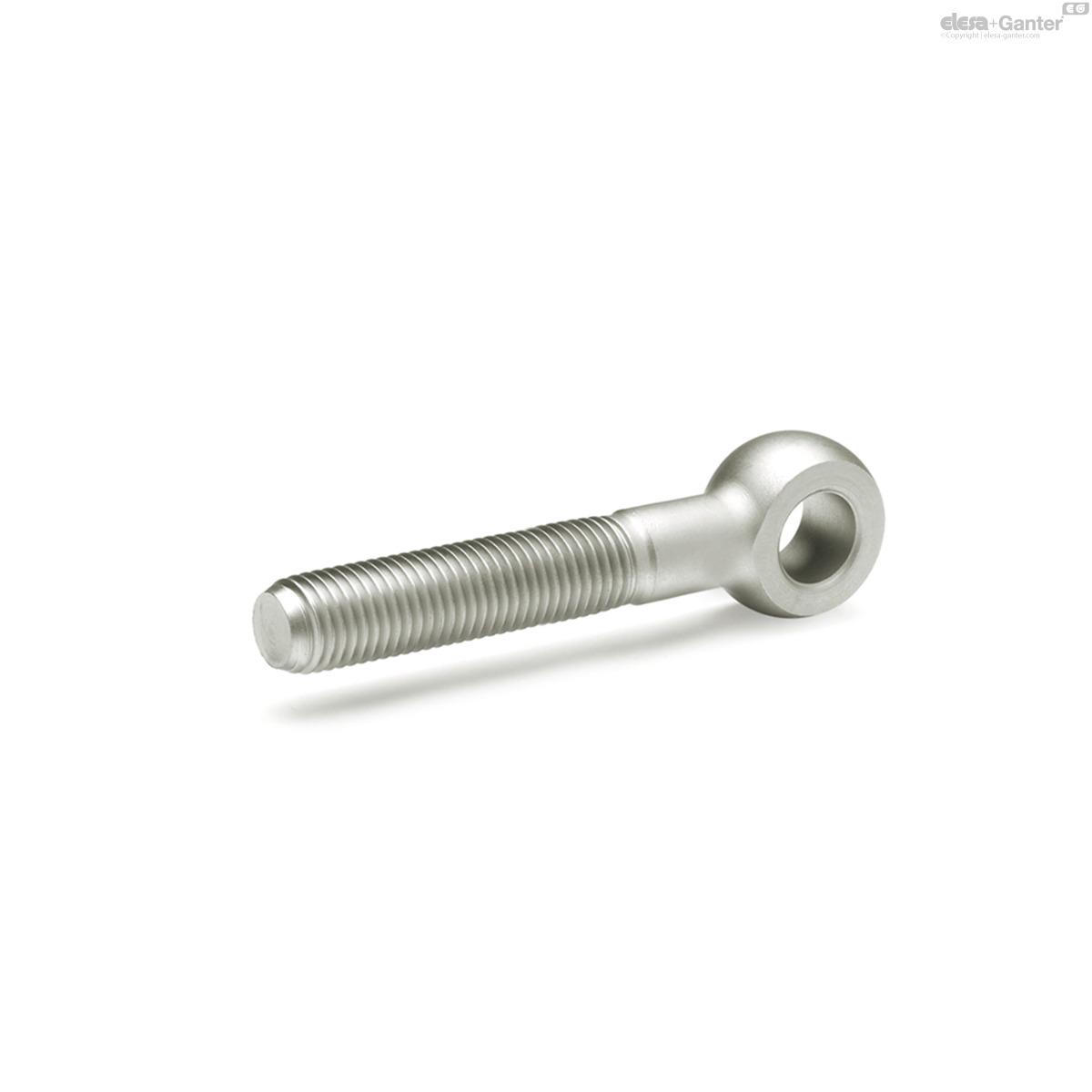

GN 1524-NIAugenschrauben
Edelstahl
Stahl / Edelstahl, mit langem Gewinde
GN 1524-NI
|
Katalog
|

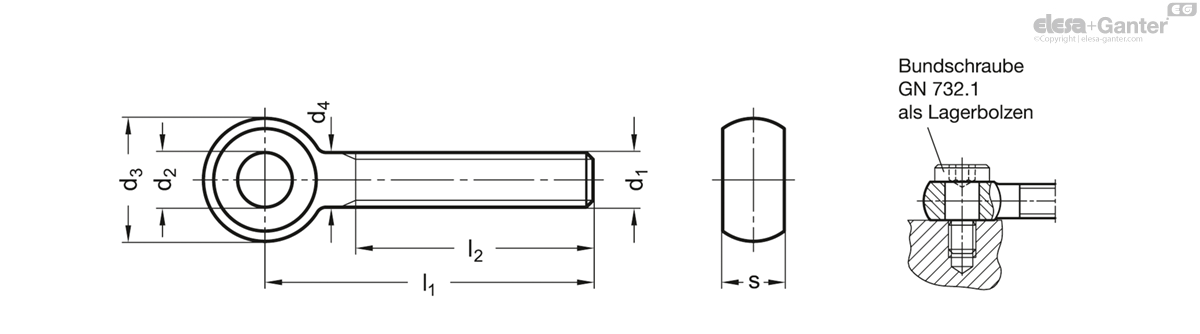

d1
|
l1
|
l2
|
d2 E8
|
d3 -0.4
|
s -0.2
|
d4
|
|
|
|---|---|---|---|---|---|---|---|---|---|
|
M 6
|
50
|
40
|
6
|
12
|
8
|
6
|
10
| ||
|
M 6
|
60
|
40
|
6
|
12
|
8
|
6
|
15
| ||
|
M 6
|
70
|
40
|
6
|
12
|
8
|
6
|
2
| ||
|
M 6
|
80
|
40
|
6
|
12
|
8
|
6
|
20
| ||
|
M 8
|
50
|
40
|
8
|
16
|
10
|
8
|
24
| ||
|
M 8
|
60
|
45
|
8
|
16
|
10
|
8
|
25
| ||
|
M 8
|
70
|
45
|
8
|
16
|
10
|
8
|
30
| ||
|
M 8
|
80
|
45
|
8
|
16
|
10
|
8
|
35
| ||
|
M 8
|
100
|
45
|
8
|
16
|
10
|
8
|
30
| ||
|
M 10
|
50
|
38
|
10
|
20
|
12
|
10
|
35
| ||
|
M 10
|
60
|
46
|
10
|
20
|
12
|
10
|
40
| ||
|
M 10
|
70
|
50
|
10
|
20
|
12
|
10
|
48
| ||
|
M 10
|
80
|
50
|
10
|
20
|
12
|
10
|
55
| ||
|
M 10
|
100
|
50
|
10
|
20
|
12
|
10
|
66
| ||
|
M 10
|
120
|
50
|
10
|
20
|
12
|
10
|
75
| ||
|
M 12
|
50
|
35
|
12
|
25
|
14
|
12
|
60
| ||
|
M 12
|
60
|
42
|
12
|
25
|
14
|
12
|
70
| ||
|
M 12
|
70
|
52
|
12
|
25
|
14
|
12
|
75
| ||
|
M 12
|
80
|
60
|
12
|
25
|
14
|
12
|
85
| ||
|
M 12
|
100
|
60
|
12
|
25
|
14
|
12
|
100
| ||
|
M 12
|
120
|
60
|
12
|
25
|
14
|
12
|
115
| ||
|
M 12
|
130
|
60
|
12
|
25
|
14
|
12
|
125
| ||
|
M 16
|
70
|
49
|
16
|
32
|
18
|
16
|
140
| ||
|
M 16
|
80
|
59
|
16
|
32
|
18
|
16
|
158
| ||
|
M 16
|
100
|
77
|
16
|
32
|
18
|
16
|
180
| ||
|
M 16
|
120
|
80
|
16
|
32
|
18
|
16
|
210
| ||
|
M 16
|
140
|
80
|
16
|
32
|
18
|
16
|
245
| ||
|
M 16
|
160
|
80
|
16
|
32
|
18
|
16
|
270
| ||
|
M 20
|
100
|
75
|
20
|
40
|
22
|
20
|
300
| ||
|
M 20
|
120
|
95
|
20
|
40
|
22
|
20
|
346
| ||
|
M 20
|
140
|
100
|
20
|
40
|
22
|
20
|
390
| ||
|
M 20
|
160
|
100
|
20
|
40
|
22
|
20
|
438
|
