Technical datasheet

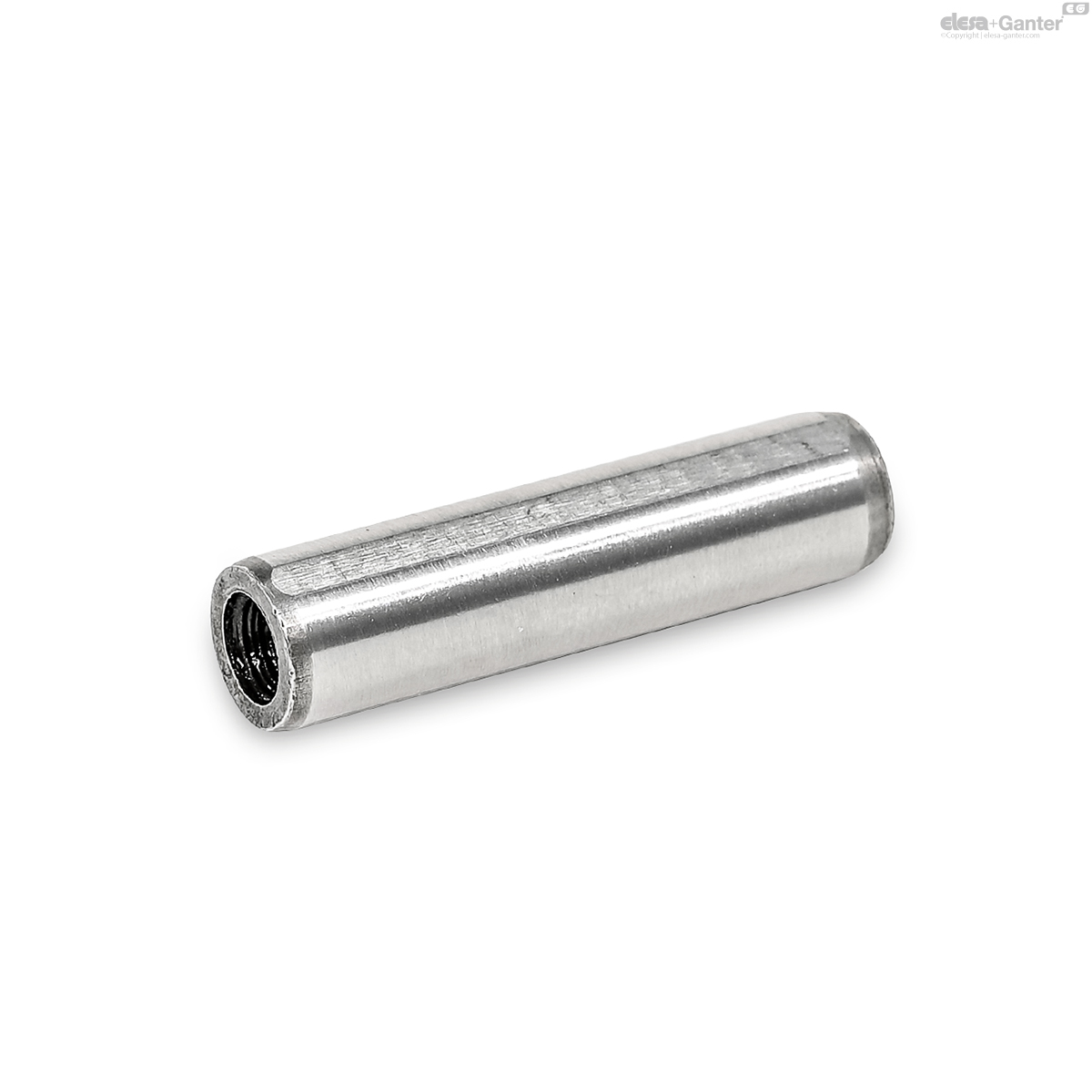

DIN 7979Zylinderstifte
Zylinderstifte
Stahl, mit Innengewinde
DIN 7979
|
Katalog
|

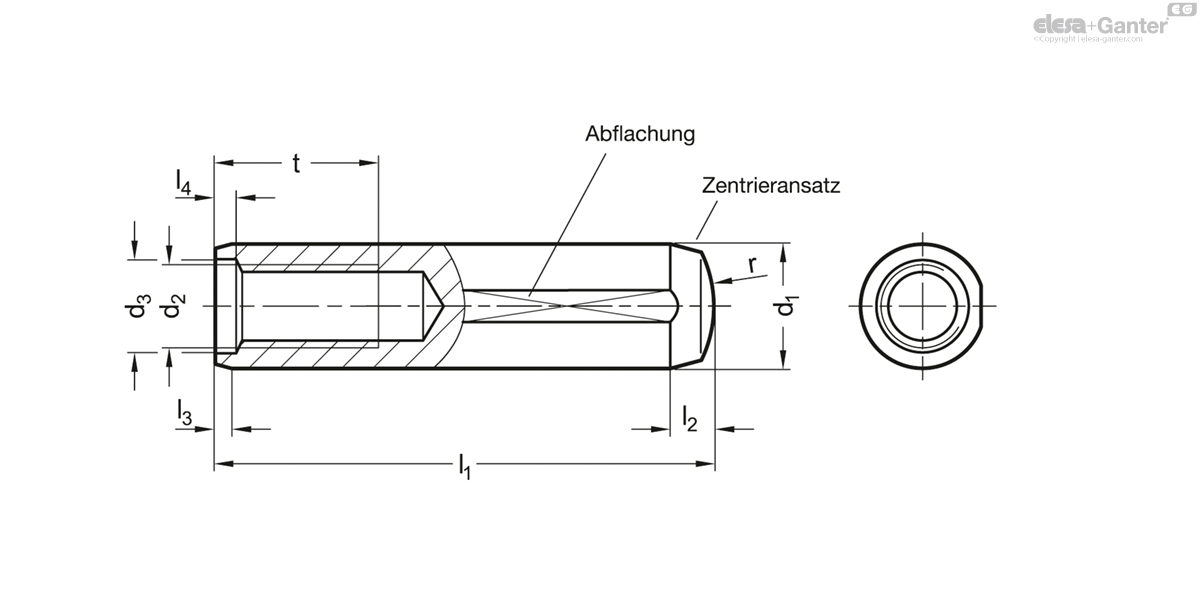

d1 m6
|
l1 js15
|
d2
|
d3
|
l2
|
l3
|
l4
|
r
|
t
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
6
|
20
|
M 4
|
4.3
|
2.1
|
0.8
|
1
|
6
|
6
|
4
| ||
|
6
|
24
|
M 4
|
4.3
|
2.1
|
0.8
|
1
|
6
|
6
|
5
| ||
|
6
|
28
|
M 4
|
4.3
|
2.1
|
0.8
|
1
|
6
|
6
|
6
| ||
|
6
|
32
|
M 4
|
4.3
|
2.1
|
0.8
|
1
|
6
|
6
|
7
| ||
|
6
|
36
|
M 4
|
4.3
|
2.1
|
0.8
|
1
|
6
|
6
|
8
| ||
|
6
|
40
|
M 4
|
4.3
|
2.1
|
0.8
|
1
|
6
|
6
|
9
| ||
|
6
|
45
|
M 4
|
4.3
|
2.1
|
0.8
|
1
|
6
|
6
|
10
| ||
|
6
|
50
|
M 4
|
4.3
|
2.1
|
0.8
|
1
|
6
|
6
|
11
| ||
|
6
|
55
|
M 4
|
4.3
|
2.1
|
0.8
|
1
|
6
|
6
|
12
| ||
|
6
|
60
|
M 4
|
4.3
|
2.1
|
0.8
|
1
|
6
|
6
|
13
| ||
|
8
|
20
|
M 5
|
5.3
|
2.6
|
1
|
1.2
|
8
|
8
|
7
| ||
|
8
|
24
|
M 5
|
5.3
|
2.6
|
1
|
1.2
|
8
|
8
|
8
| ||
|
8
|
28
|
M 5
|
5.3
|
2.6
|
1
|
1.2
|
8
|
8
|
10
| ||
|
8
|
32
|
M 5
|
5.3
|
2.6
|
1
|
1.2
|
8
|
8
|
11
| ||
|
8
|
36
|
M 5
|
5.3
|
2.6
|
1
|
1.2
|
8
|
8
|
13
| ||
|
8
|
40
|
M 5
|
5.3
|
2.6
|
1
|
1.2
|
8
|
8
|
14
| ||
|
8
|
45
|
M 5
|
5.3
|
2.6
|
1
|
1.2
|
8
|
8
|
17
| ||
|
8
|
50
|
M 5
|
5.3
|
2.6
|
1
|
1.2
|
8
|
8
|
19
| ||
|
8
|
55
|
M 5
|
5.3
|
2.6
|
1
|
1.2
|
8
|
8
|
21
| ||
|
8
|
60
|
M 5
|
5.3
|
2.6
|
1
|
1.2
|
8
|
8
|
22
| ||
|
8
|
70
|
M 5
|
5.3
|
2.6
|
1
|
1.2
|
8
|
8
|
27
| ||
|
10
|
20
|
M 6
|
6.4
|
3
|
1.2
|
1.2
|
10
|
10
|
10
| ||
|
10
|
24
|
M 6
|
6.4
|
3
|
1.2
|
1.2
|
10
|
10
|
13
| ||
|
10
|
28
|
M 6
|
6.4
|
3
|
1.2
|
1.2
|
10
|
10
|
15
| ||
|
10
|
32
|
M 6
|
6.4
|
3
|
1.2
|
1.2
|
10
|
10
|
18
| ||
|
10
|
36
|
M 6
|
6.4
|
3
|
1.2
|
1.2
|
10
|
10
|
20
| ||
|
10
|
40
|
M 6
|
6.4
|
3
|
1.2
|
1.2
|
10
|
10
|
23
| ||
|
10
|
45
|
M 6
|
6.4
|
3
|
1.2
|
1.2
|
10
|
10
|
26
| ||
|
10
|
50
|
M 6
|
6.4
|
3
|
1.2
|
1.2
|
10
|
10
|
29
| ||
|
10
|
55
|
M 6
|
6.4
|
3
|
1.2
|
1.2
|
10
|
10
|
32
| ||
|
10
|
60
|
M 6
|
6.4
|
3
|
1.2
|
1.2
|
10
|
10
|
29
| ||
|
10
|
70
|
M 6
|
6.4
|
3
|
1.2
|
1.2
|
10
|
10
|
41
| ||
|
10
|
80
|
M 6
|
6.4
|
3
|
1.2
|
1.2
|
10
|
10
|
47
| ||
|
12
|
24
|
M 6
|
6.4
|
3.8
|
1.6
|
1.2
|
10
|
12
|
19
| ||
|
12
|
28
|
M 6
|
6.4
|
3.8
|
1.6
|
1.2
|
10
|
12
|
20
| ||
|
12
|
32
|
M 6
|
6.4
|
3.8
|
1.6
|
1.2
|
10
|
12
|
24
| ||
|
12
|
36
|
M 6
|
6.4
|
3.8
|
1.6
|
1.2
|
10
|
12
|
27
| ||
|
12
|
40
|
M 6
|
6.4
|
3.8
|
1.6
|
1.2
|
10
|
12
|
31
| ||
|
12
|
45
|
M 6
|
6.4
|
3.8
|
1.6
|
1.2
|
10
|
12
|
36
| ||
|
12
|
50
|
M 6
|
6.4
|
3.8
|
1.6
|
1.2
|
10
|
12
|
40
| ||
|
12
|
55
|
M 6
|
6.4
|
3.8
|
1.6
|
1.2
|
10
|
12
|
47
| ||
|
12
|
60
|
M 6
|
6.4
|
3.8
|
1.6
|
1.2
|
10
|
12
|
50
| ||
|
12
|
70
|
M 6
|
6.4
|
3.8
|
1.6
|
1.2
|
10
|
12
|
60
| ||
|
12
|
80
|
M 6
|
6.4
|
3.8
|
1.6
|
1.2
|
10
|
12
|
69
| ||
|
12
|
100
|
M 6
|
6.4
|
3.8
|
1.6
|
1.2
|
10
|
12
|
87
| ||
|
16
|
32
|
M 8
|
8.4
|
4.7
|
2
|
1.5
|
12
|
16
|
46
| ||
|
16
|
40
|
M 8
|
8.4
|
4.7
|
2
|
1.5
|
12
|
16
|
58
| ||
|
16
|
50
|
M 8
|
8.4
|
4.7
|
2
|
1.5
|
12
|
16
|
74
| ||
|
16
|
60
|
M 8
|
8.4
|
4.7
|
2
|
1.5
|
12
|
16
|
90
| ||
|
16
|
70
|
M 8
|
8.4
|
4.7
|
2
|
1.5
|
12
|
16
|
106
| ||
|
16
|
80
|
M 8
|
8.4
|
4.7
|
2
|
1.5
|
12
|
16
|
121
| ||
|
16
|
100
|
M 8
|
8.4
|
4.7
|
2
|
1.5
|
12
|
16
|
153
| ||
|
16
|
120
|
M 8
|
8.4
|
4.7
|
2
|
1.5
|
12
|
16
|
185
| ||
|
20
|
50
|
M 10
|
10.5
|
6
|
2.5
|
1.5
|
16
|
20
|
113
| ||
|
20
|
60
|
M 10
|
10.5
|
6
|
2.5
|
1.5
|
16
|
20
|
138
| ||
|
20
|
70
|
M 10
|
10.5
|
6
|
2.5
|
1.5
|
16
|
20
|
162
| ||
|
20
|
80
|
M 10
|
10.5
|
6
|
2.5
|
1.5
|
16
|
20
|
187
| ||
|
20
|
100
|
M 10
|
10.5
|
6
|
2.5
|
1.5
|
16
|
20
|
236
| ||
|
20
|
120
|
M 10
|
10.5
|
6
|
2.5
|
1.5
|
16
|
20
|
286
|
Form
Form
- D: gehärtet
Stahl ST
Stahl ST
- gehärtet (HRC 60 ±2)
- Passmaß d1 geschliffen, blank
Zylinderstifte DIN 7979 verbinden, sichern und positionieren Maschinenteile.
Sie werden in Verbindung mit Sacklöchern eingesetzt. Dabei erleichtert der Zentrieransatz das Einpressen. Durch die tangentiale Abflachung kann die verdrängte Luft aus der Bohrung entweichen.
Der Zylinderstift lässt sich über das Innengewinde mithilfe eines Abziehers oder Gleithammers demontieren. Die Schutzsenkung d3 am Gewinde schützt dieses vor Beschädigungen bei der Montage.
Die Abmessungen entsprechen der ISO 8735. In Kombination mit einer Aufnahmebohrung H7 entsteht eine Übergangspassung.
