Technical datasheet

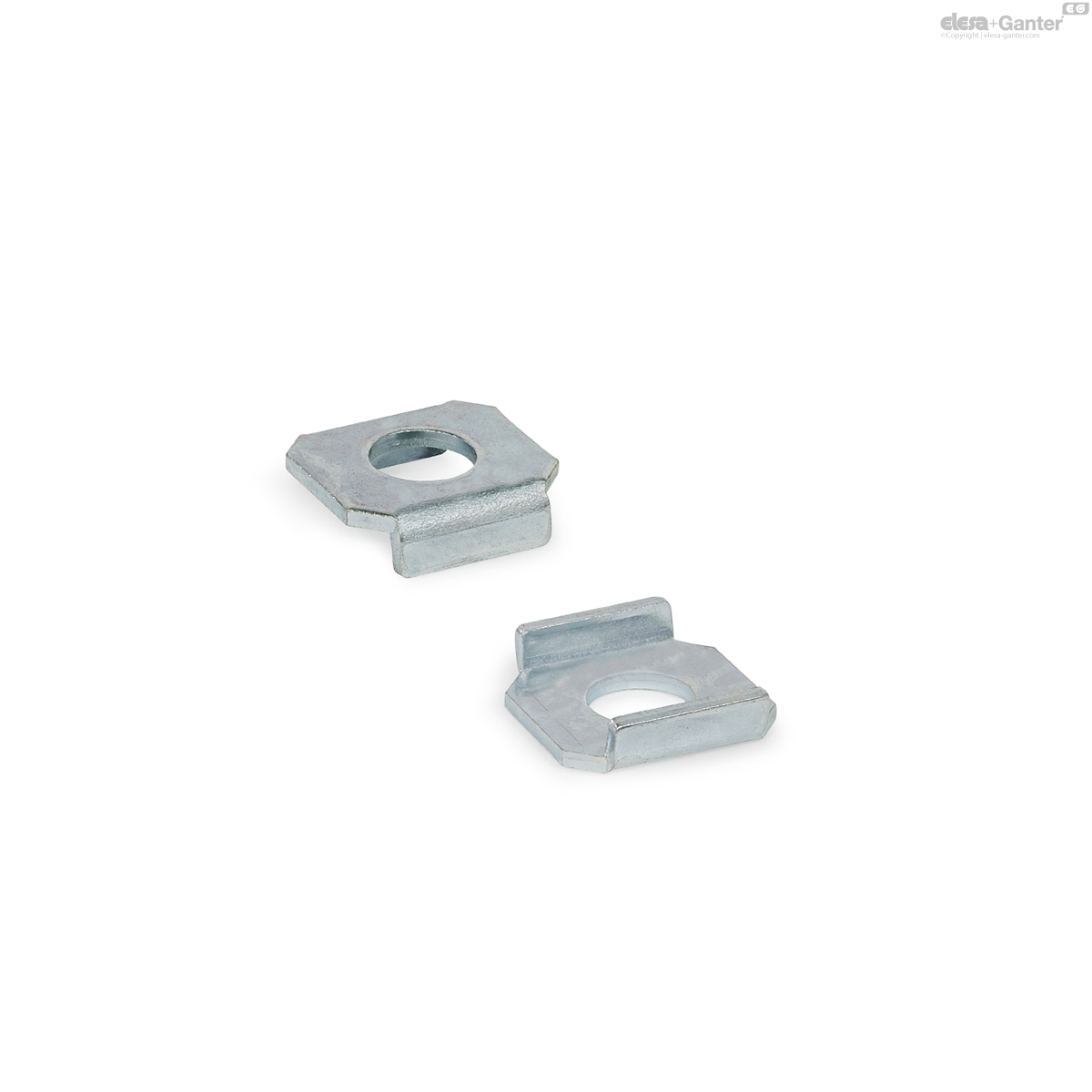

GN 898-STFlanged Washers
Steel
Steel / Stainless Steel, for Toggle Clamps
GN 898-ST
|
Catalogue
|

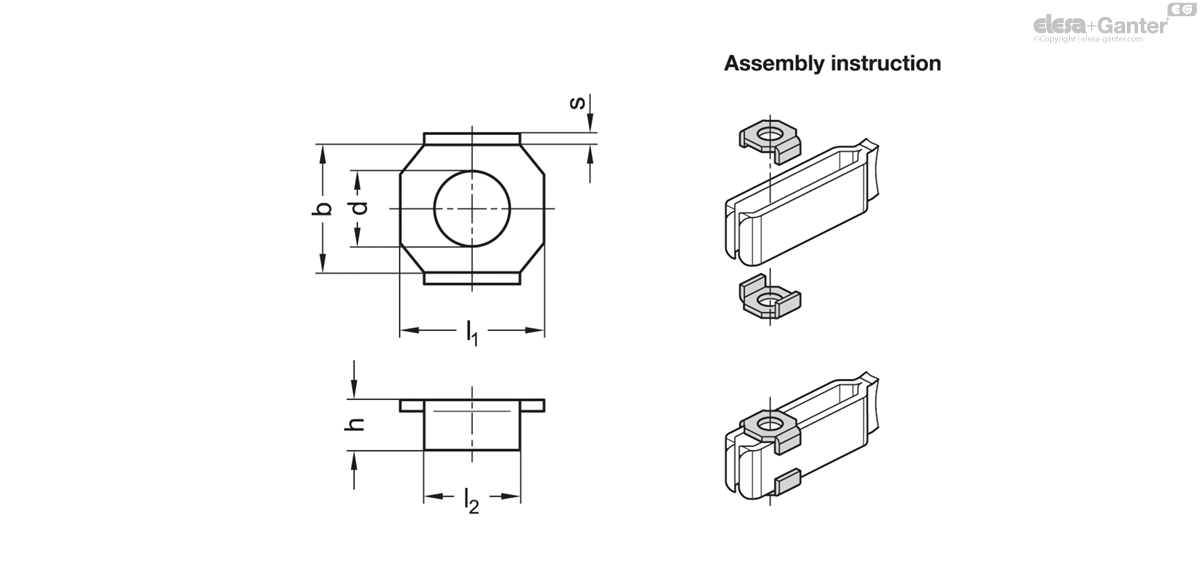

d
Nominal size |
d Actual dimension
|
b
|
h
|
l1
|
l2
|
s
|
For toggle clamps
GN 810 GN 810.1 GN 810.3 GN 810.4 GN 812.1 |
For toggle clamps
GN 812 |
For toggle clamps
GN 820 GN 820.1 GN 820.3 GN 820.4 |
For toggle clamps
GN 820.6 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GN 898-4-ST
|
4
|
4.3
|
7.2
|
2.5
|
9
|
5
|
0.8
|
-
|
-
|
25
|
-
|
1
|
|
GN 898-5-ST
|
5
|
5.5
|
9.8
|
3.5
|
12
|
7.5
|
1
|
75
|
-
|
75
|
80
|
2
|
|
GN 898-6-ST
|
6
|
6.5
|
11.8
|
4.5
|
15
|
9
|
1.2
|
130
|
-
|
130
|
-
|
3
|
|
GN 898-8-ST
|
8
|
8.5
|
15
|
5.5
|
18
|
12.5
|
1.5
|
230
|
200
|
230
|
140
|
4
|
|
GN 898-10-ST
|
10
|
10.5
|
18
|
6
|
23
|
16.5
|
2
|
330
|
300
|
355
|
250
|
7
|
|
GN 898-12-ST
|
12
|
13
|
24
|
7
|
30
|
18
|
2.5
|
430 530
|
-
|
455
|
-
|
14
|
- Steel ST
- Zinc plated, blue passivated

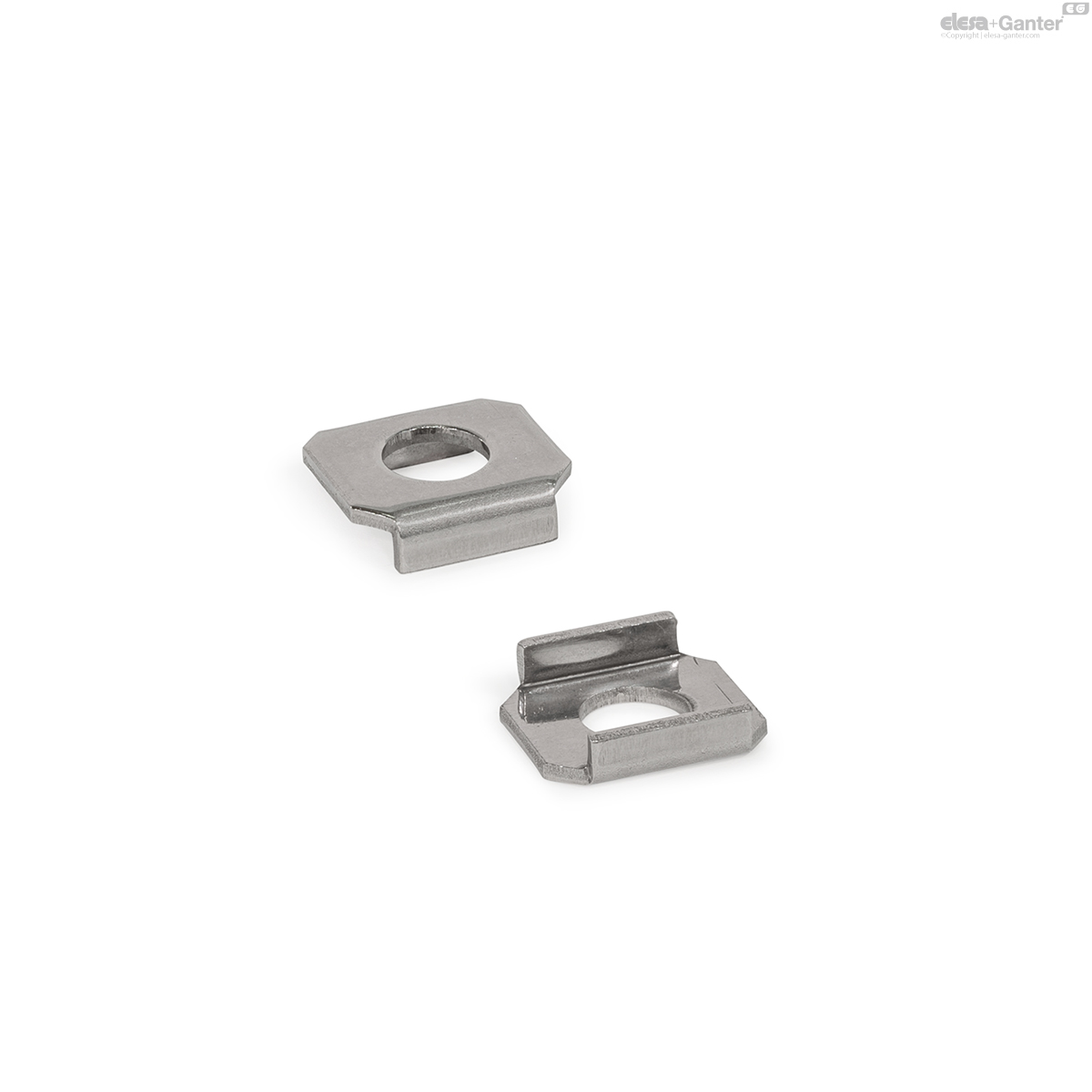

- Stainless steel AISI 304 NI
Flanged washers GN 898 are used to attach and position pressure elements on toggle clamps with open clamping arm. The corresponding toggle clamps are listed in the table.
Related products

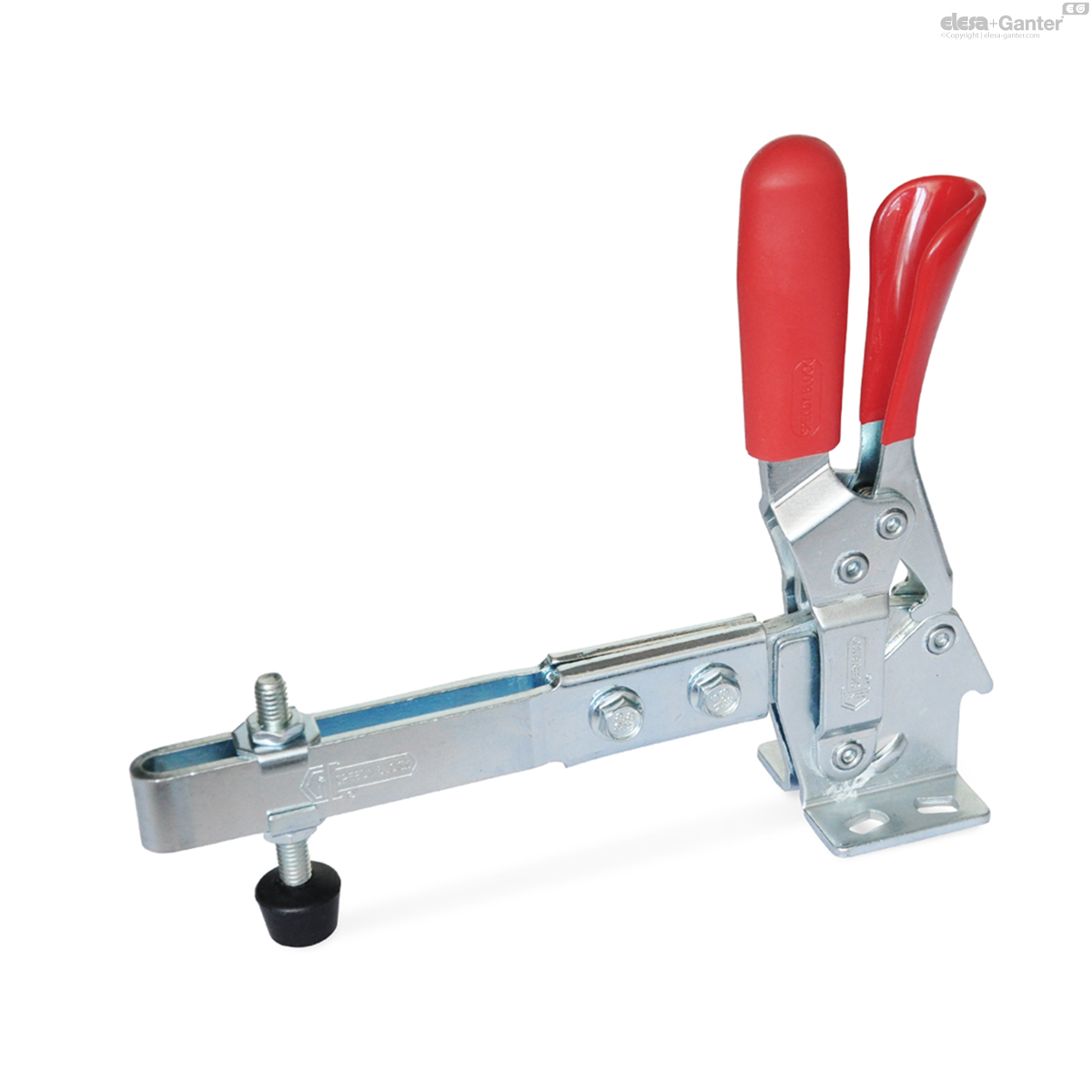

GN 810
Toggle Clamps
Steel / Stainless Steel, Operating Lever Vertical, with Horizontal Mounting Base

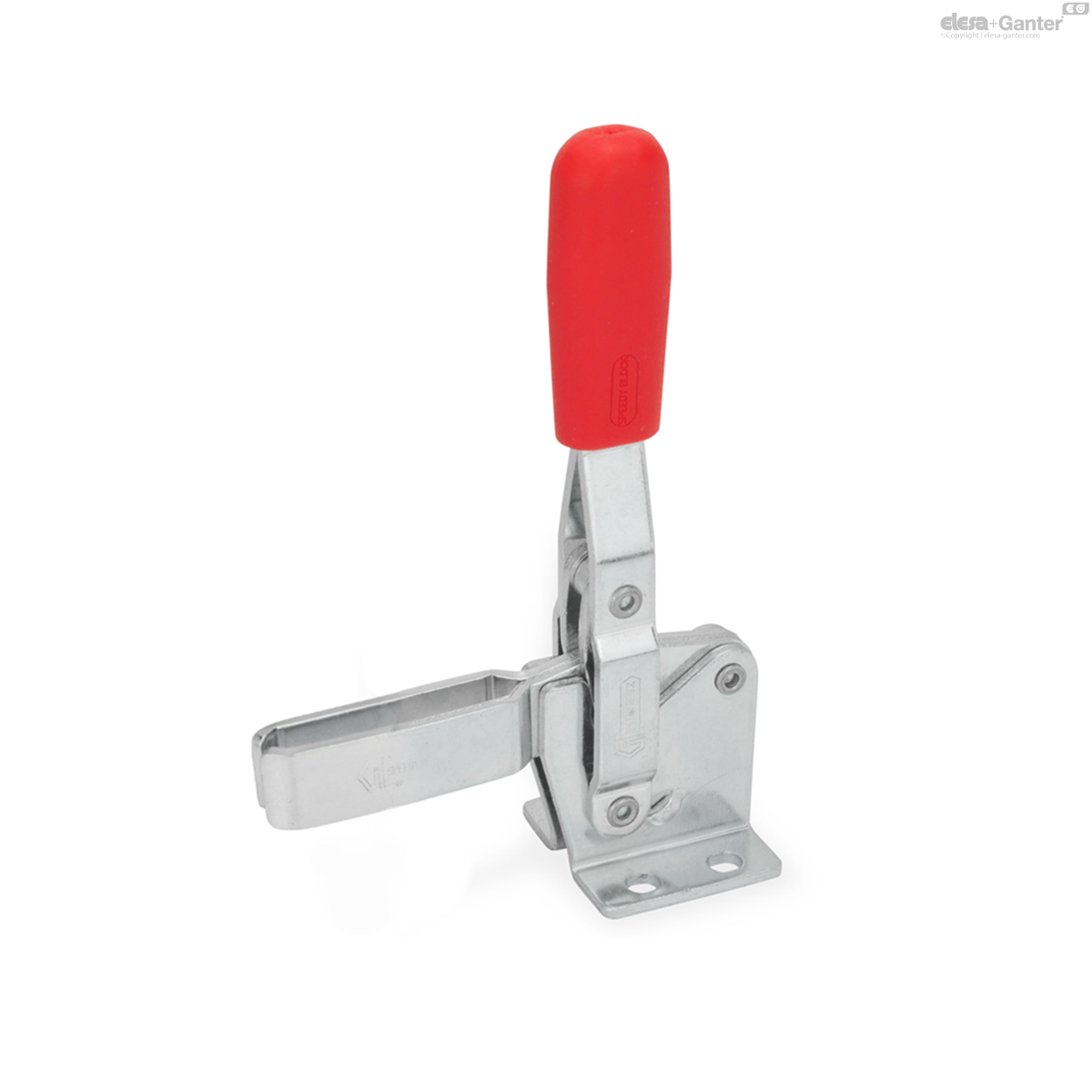

GN 810.1
Vertical acting toggle clamps
Steel / Stainless Steel, with vertical mounting base
GN 810.3
Toggle Clamps
Steel / Stainless Steel|-|,|-|Operating Lever Vertical, with Lock Mechanism, with Horizontal Mounting Base

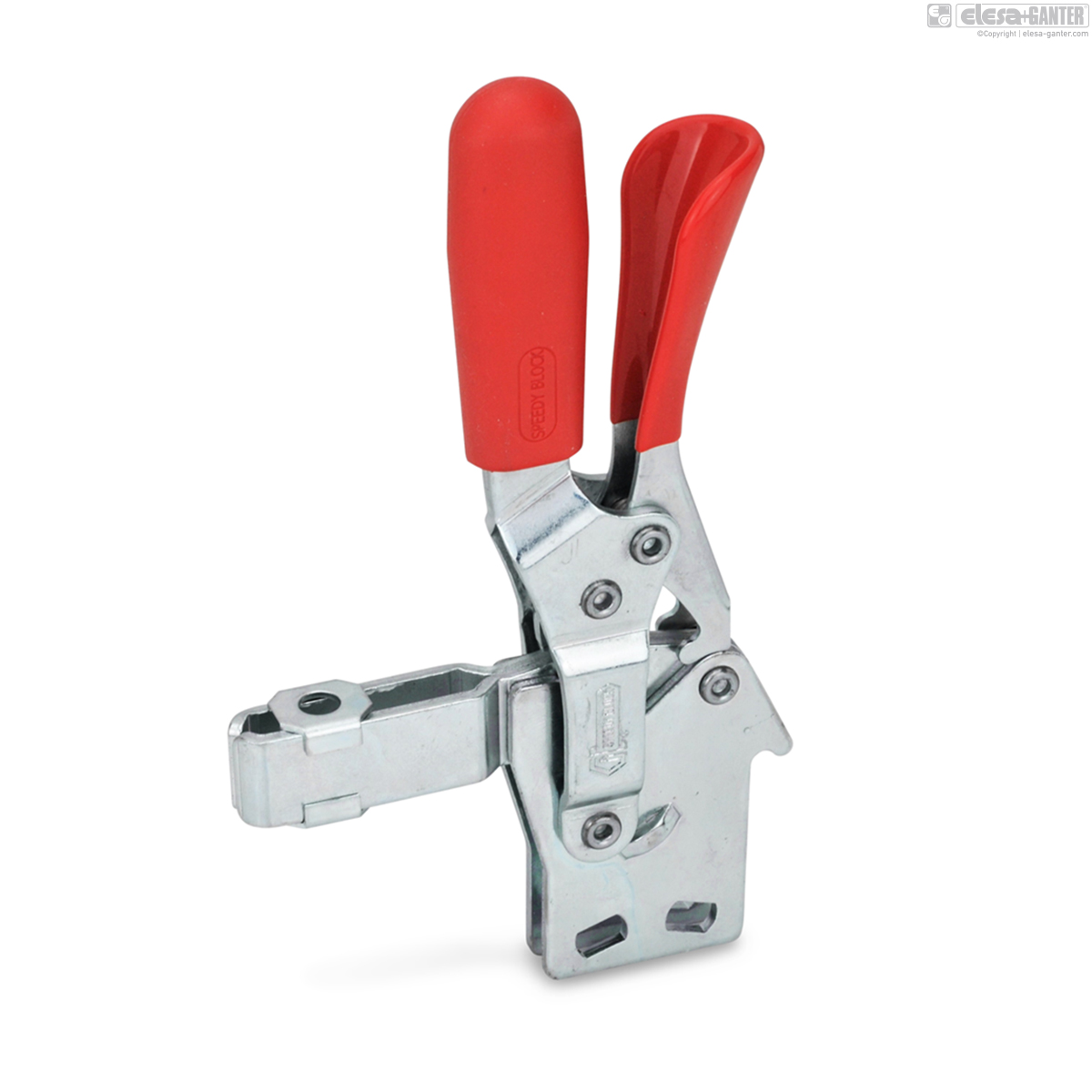

GN 810.4
Toggle Clamps
Operating Lever Vertical, with Lock Mechanism, with Vertical Mounting Base
GN 812
Vertical acting toggle clamps
with dual flanged mounting base

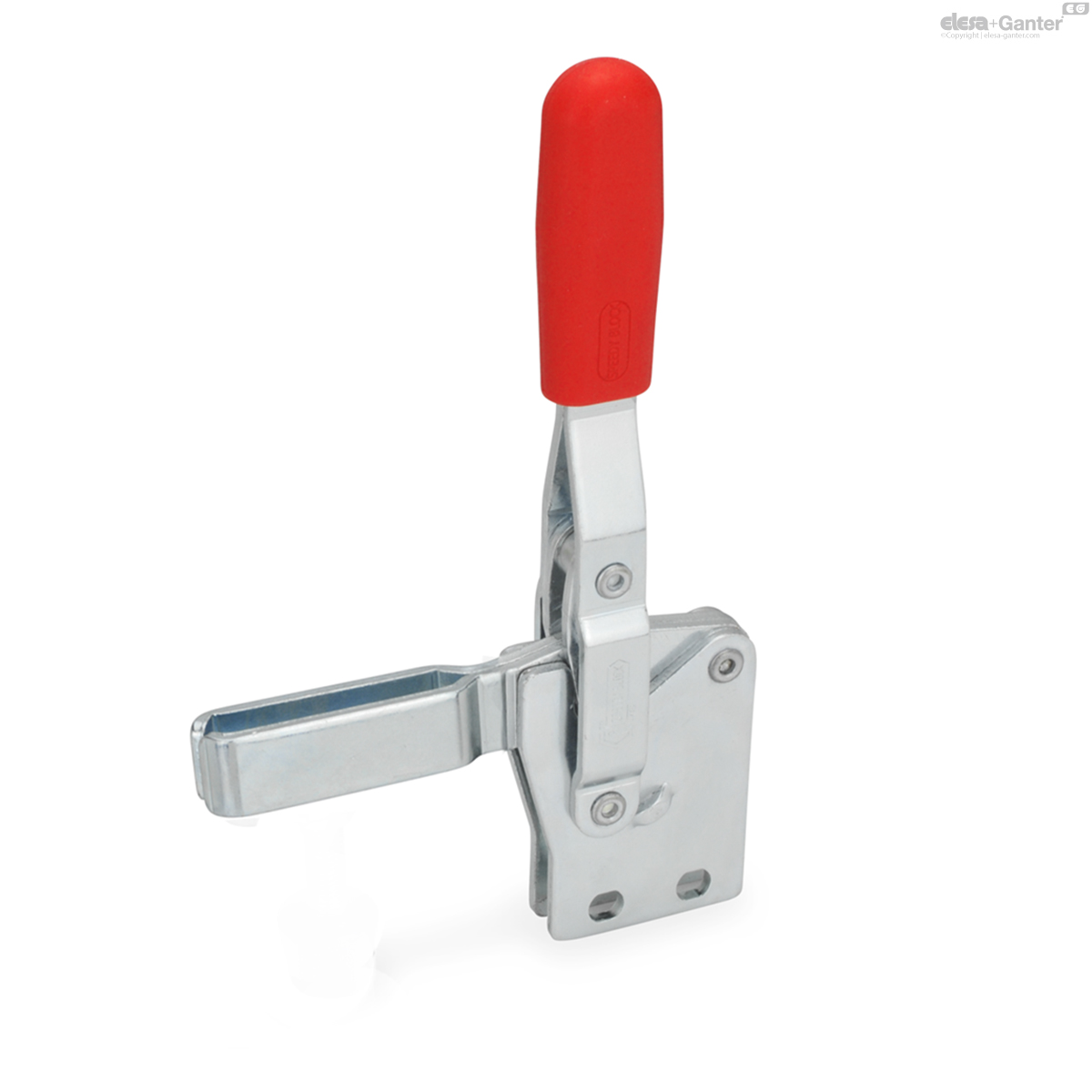

GN 812.1
Toggle Clamps
Operating Lever Vertical, with Dual Flanged Mounting Base
GN 820
Horizontal Acting Toggle Clamps
Steel / Stainless Steel, Operating Lever Horizontal, with Horizontal Mounting Base

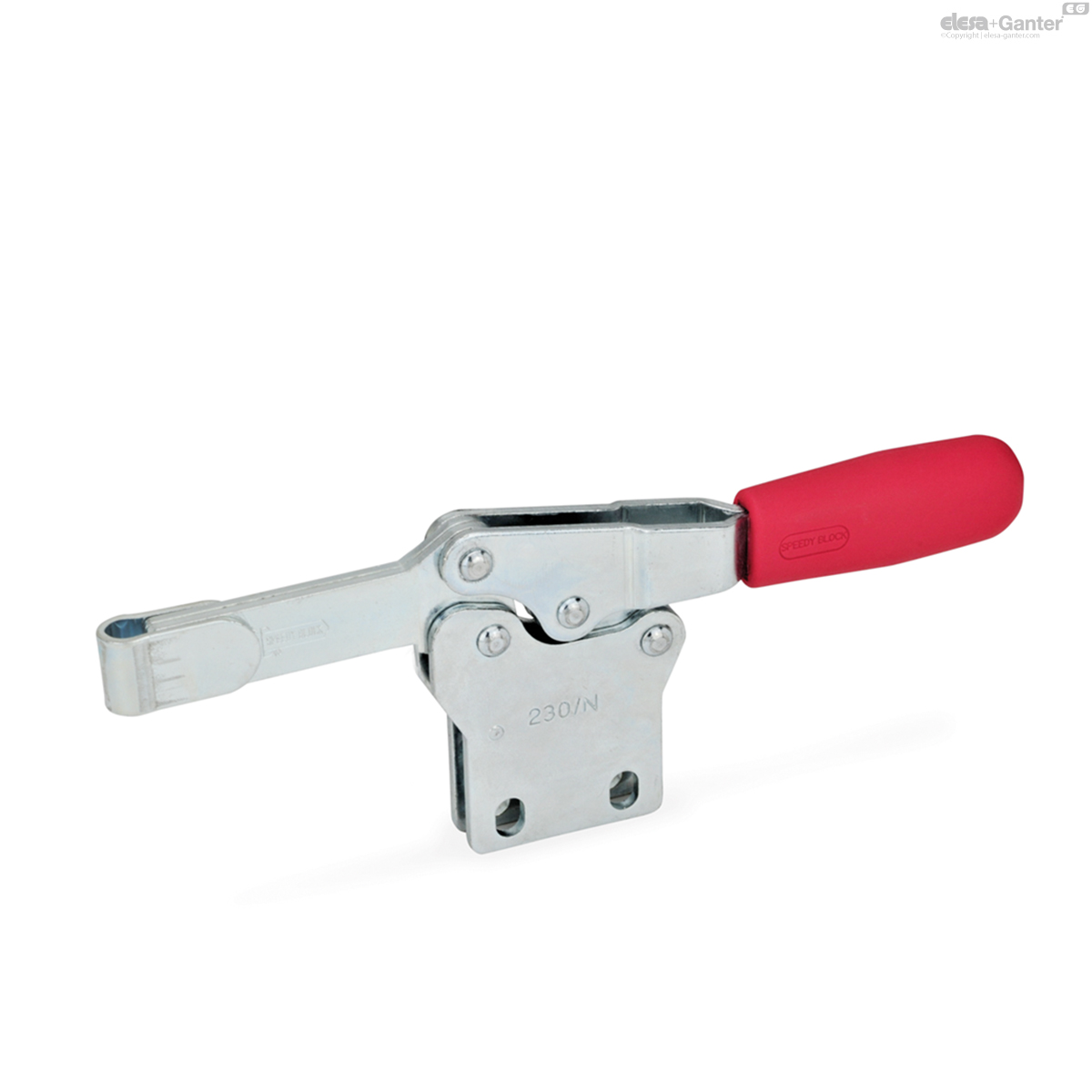

GN 820.1
