Technical datasheet

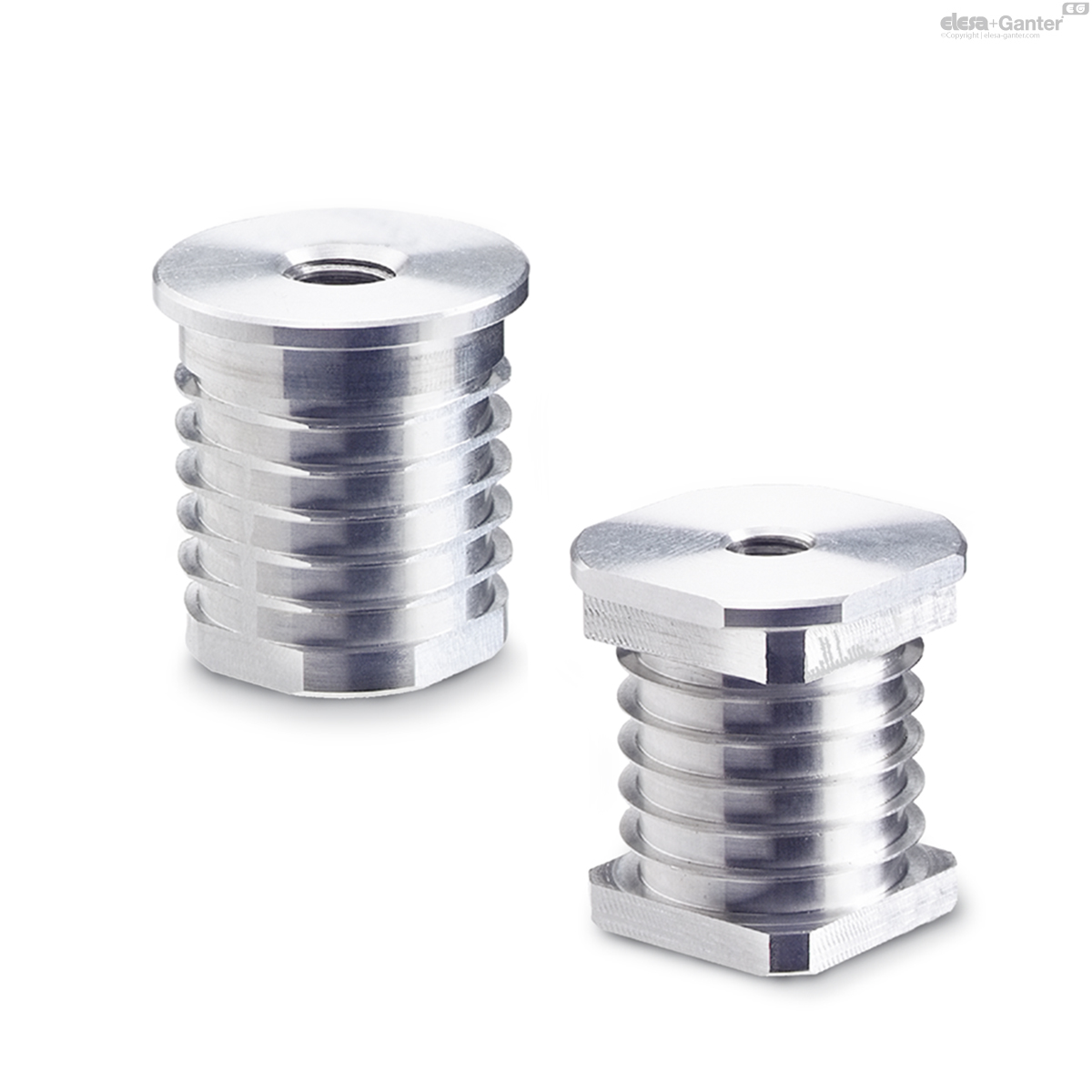

GN 992.5Roestvrijstalen inslagdoppen
Roestvrijstalen inslagdoppen
voor ronde buis en vierkante buis
GN 992.5
|

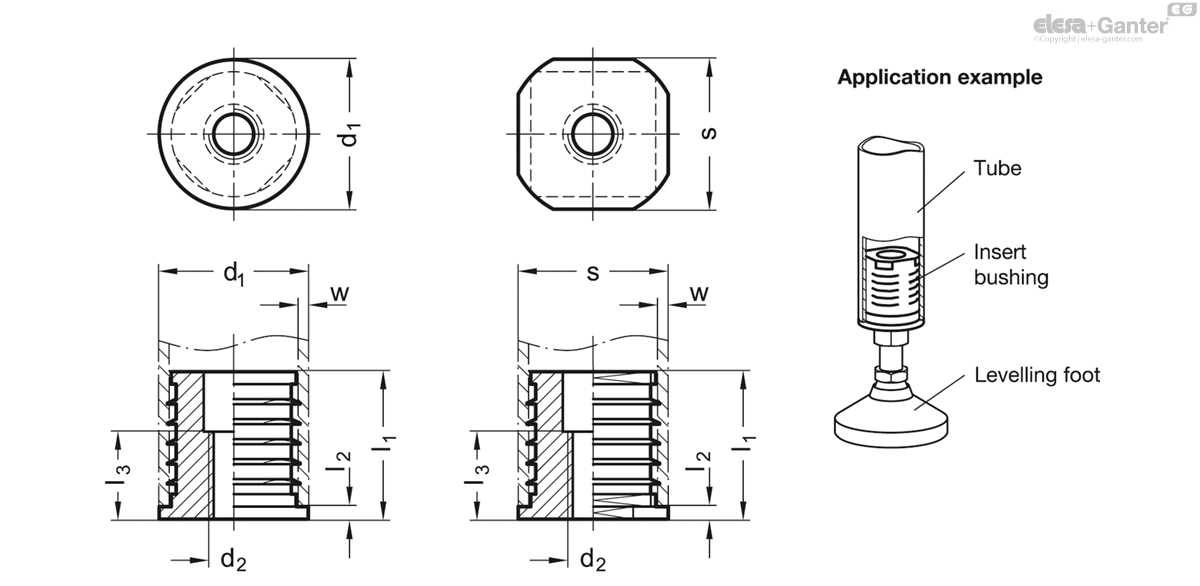

Code
|
d1
|
s
|
d2
|
d3
|
l1
|
l2
|
l3 +0.5
|
w
|
For tube
GN 990 |
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
D 20
|
-
|
M 8
|
16
|
29.5
|
2.5
|
16
|
2
|
D 20
|
29
| ||
|
D 25
|
-
|
M 8
|
21
|
29.5
|
2.5
|
16
|
2
|
D 25
|
53
| ||
|
D 25
|
-
|
M 10
|
21
|
29.5
|
2.5
|
16
|
2
|
D 25
|
51
| ||
|
D 30
|
-
|
M 8
|
26
|
29.5
|
2.5
|
18
|
2
|
D 30
|
94
| ||
|
D 30
|
-
|
M 10
|
26
|
29.5
|
2.5
|
18
|
2
|
D 30
|
90
| ||
|
D 40
|
-
|
M 10
|
34
|
33.5
|
2.5
|
24
|
3
|
D 40
|
186
| ||
|
D 40
|
-
|
M 12
|
34
|
33.5
|
2.5
|
24
|
3
|
D 40
|
180
| ||
|
D 50
|
-
|
M 12
|
44
|
37.5
|
2.5
|
30
|
3
|
D 50
|
350
| ||
|
D 50
|
-
|
M 16
|
44
|
37.5
|
2.5
|
30
|
3
|
D 50
|
330
| ||
|
-
|
V 20
|
M 8
|
-
|
29.5
|
2.5
|
16
|
2
|
V 20
|
32
| ||
|
-
|
V 25
|
M 8
|
-
|
29.5
|
2.5
|
16
|
2
|
V 25
|
61
| ||
|
-
|
V 25
|
M 10
|
-
|
29.5
|
2.5
|
16
|
2
|
V 25
|
58
| ||
|
-
|
V 30
|
M 8
|
-
|
29.5
|
2.5
|
18
|
2
|
V 30
|
106
| ||
|
-
|
V 30
|
M 10
|
-
|
29.5
|
2.5
|
18
|
2
|
V 30
|
103
| ||
|
-
|
V 40
|
M 10
|
-
|
33.5
|
2.5
|
24
|
3
|
V 40
|
216
| ||
|
-
|
V 40
|
M 12
|
-
|
33.5
|
2.5
|
24
|
3
|
V 40
|
211
| ||
|
-
|
V 50
|
M 12
|
-
|
37.5
|
2.5
|
30
|
3
|
V 50
|
420
| ||
|
-
|
V 50
|
M 16
|
-
|
37.5
|
2.5
|
30
|
3
|
V 50
|
390
|
Stainless Steel AISI 303
Drive the Stainless Steel-Insert bushings GN 992.5 in by using a soft-head mallet. Their lamellas bridge a production tolerance of the internal diameter or of the internal square of ±0.5 mm, allowing screws to be mounted in tubes.
The dimensions match those of the construction tubes GN 990 , but checking the tolerance position of the tube is recommended.
