GN 992.5Stainless Steel-Insert bushings
Stainless Steel-Insert bushings
for round tube and square tube
|
Catalogue
|

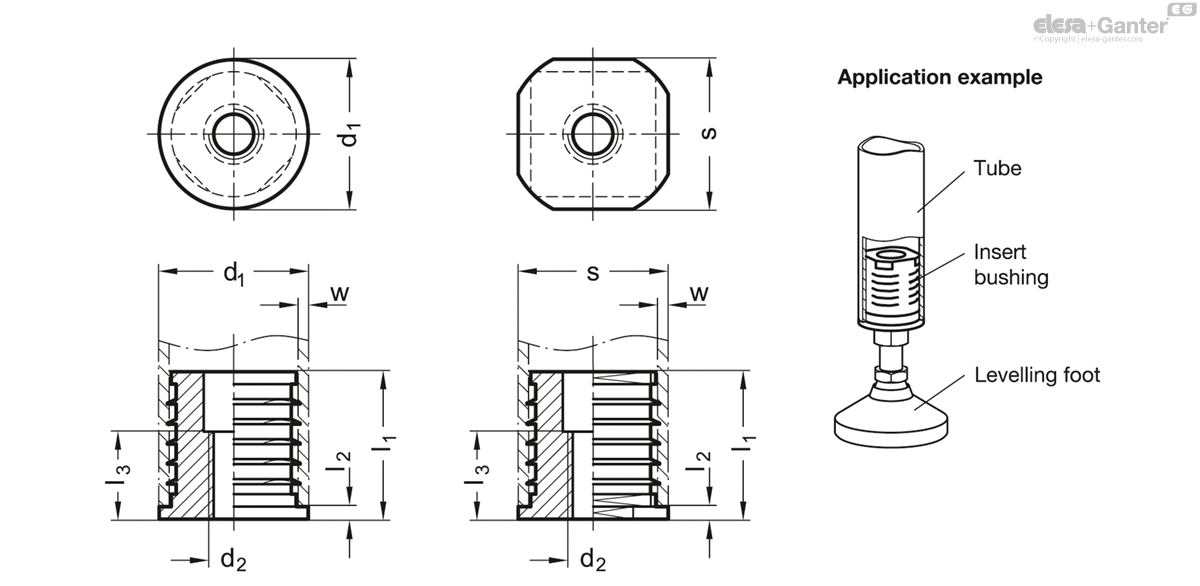

d1
|
s
|
d2
|
d3
|
l1
|
l2
|
l3 +0.5
|
w
|
For tubes GN 990
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 992.5-D20-M8
|
D 20
|
-
|
M 8
|
16
|
29.5
|
2.5
|
16
|
2
|
D 20
|
29
|
|
GN 992.5-D25-M8
|
D 25
|
-
|
M 8
|
21
|
29.5
|
2.5
|
16
|
2
|
D 25
|
53
|
|
GN 992.5-D25-M10
|
D 25
|
-
|
M 10
|
21
|
29.5
|
2.5
|
16
|
2
|
D 25
|
51
|
|
GN 992.5-D30-M8
|
D 30
|
-
|
M 8
|
26
|
29.5
|
2.5
|
18
|
2
|
D 30
|
94
|
|
GN 992.5-D30-M10
|
D 30
|
-
|
M 10
|
26
|
29.5
|
2.5
|
18
|
2
|
D 30
|
90
|
|
GN 992.5-D40-M10
|
D 40
|
-
|
M 10
|
34
|
33.5
|
2.5
|
24
|
3
|
D 40
|
186
|
|
GN 992.5-D40-M12
|
D 40
|
-
|
M 12
|
34
|
33.5
|
2.5
|
24
|
3
|
D 40
|
180
|
|
GN 992.5-D50-M12
|
D 50
|
-
|
M 12
|
44
|
37.5
|
2.5
|
30
|
3
|
D 50
|
350
|
|
GN 992.5-D50-M16
|
D 50
|
-
|
M 16
|
44
|
37.5
|
2.5
|
30
|
3
|
D 50
|
330
|
|
GN 992.5-V20-M8
|
-
|
V 20
|
M 8
|
-
|
29.5
|
2.5
|
16
|
2
|
V 20
|
32
|
|
GN 992.5-V25-M8
|
-
|
V 25
|
M 8
|
-
|
29.5
|
2.5
|
16
|
2
|
V 25
|
61
|
|
GN 992.5-V25-M10
|
-
|
V 25
|
M 10
|
-
|
29.5
|
2.5
|
16
|
2
|
V 25
|
58
|
|
GN 992.5-V30-M8
|
-
|
V 30
|
M 8
|
-
|
29.5
|
2.5
|
18
|
2
|
V 30
|
106
|
|
GN 992.5-V30-M10
|
-
|
V 30
|
M 10
|
-
|
29.5
|
2.5
|
18
|
2
|
V 30
|
103
|
|
GN 992.5-V40-M10
|
-
|
V 40
|
M 10
|
-
|
33.5
|
2.5
|
24
|
3
|
V 40
|
216
|
|
GN 992.5-V40-M12
|
-
|
V 40
|
M 12
|
-
|
33.5
|
2.5
|
24
|
3
|
V 40
|
211
|
|
GN 992.5-V50-M12
|
-
|
V 50
|
M 12
|
-
|
37.5
|
2.5
|
30
|
3
|
V 50
|
420
|
|
GN 992.5-V50-M16
|
-
|
V 50
|
M 16
|
-
|
37.5
|
2.5
|
30
|
3
|
V 50
|
390
|
Stainless Steel AISI 303

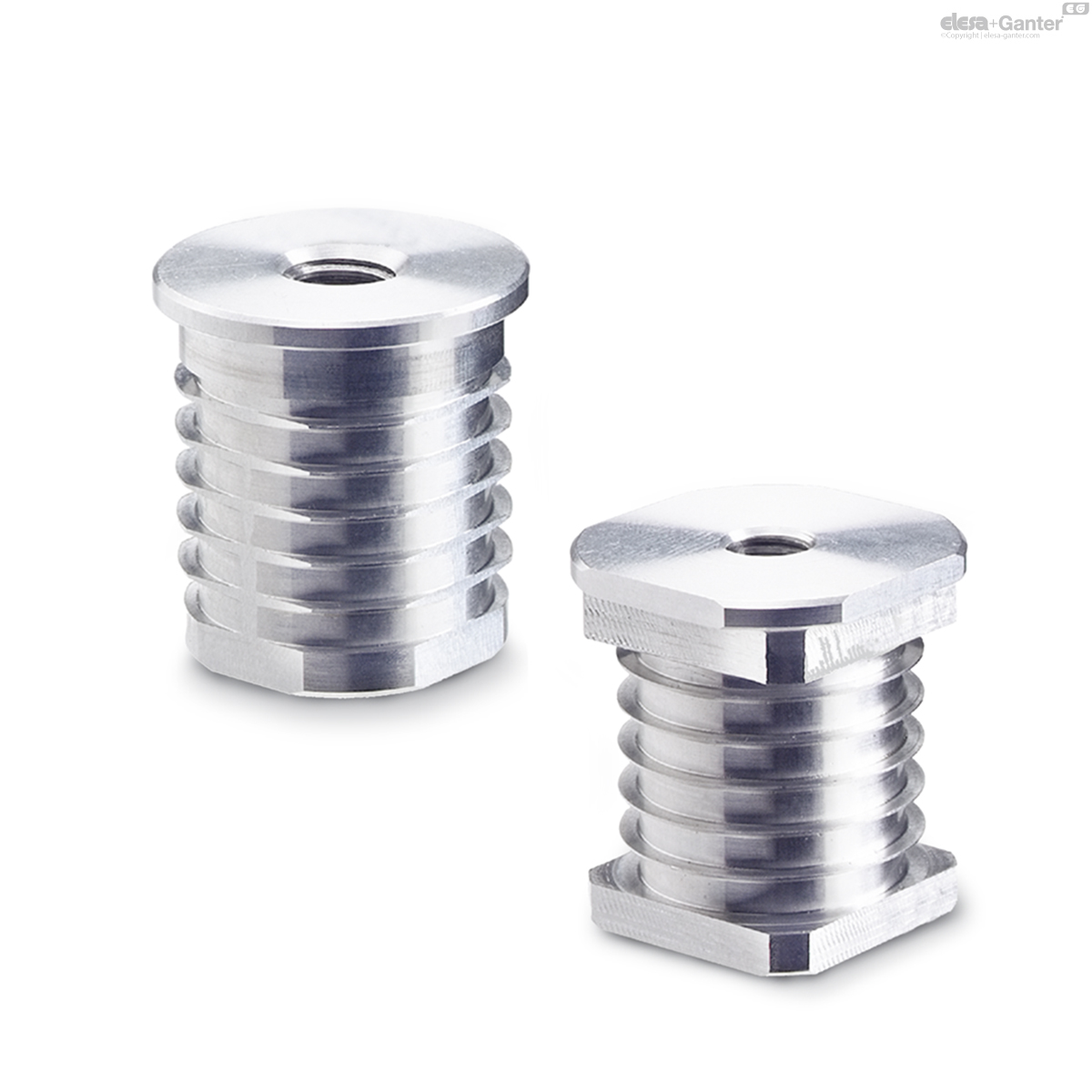

Drive the Stainless Steel-Insert bushings GN 992.5 in by using a soft-head mallet. Their lamellas bridge a production tolerance of the internal diameter or of the internal square of ±0.5 mm, allowing screws to be mounted in tubes.
The dimensions match those of the construction tubes GN 990 , but checking the tolerance position of the tube is recommended.
