Technical datasheet
GN 721-LAIndexeerbouten met vleugel
Vergrendeling naar links
Staal, zonder vergrendelfunctie, met 180° eindaanslag

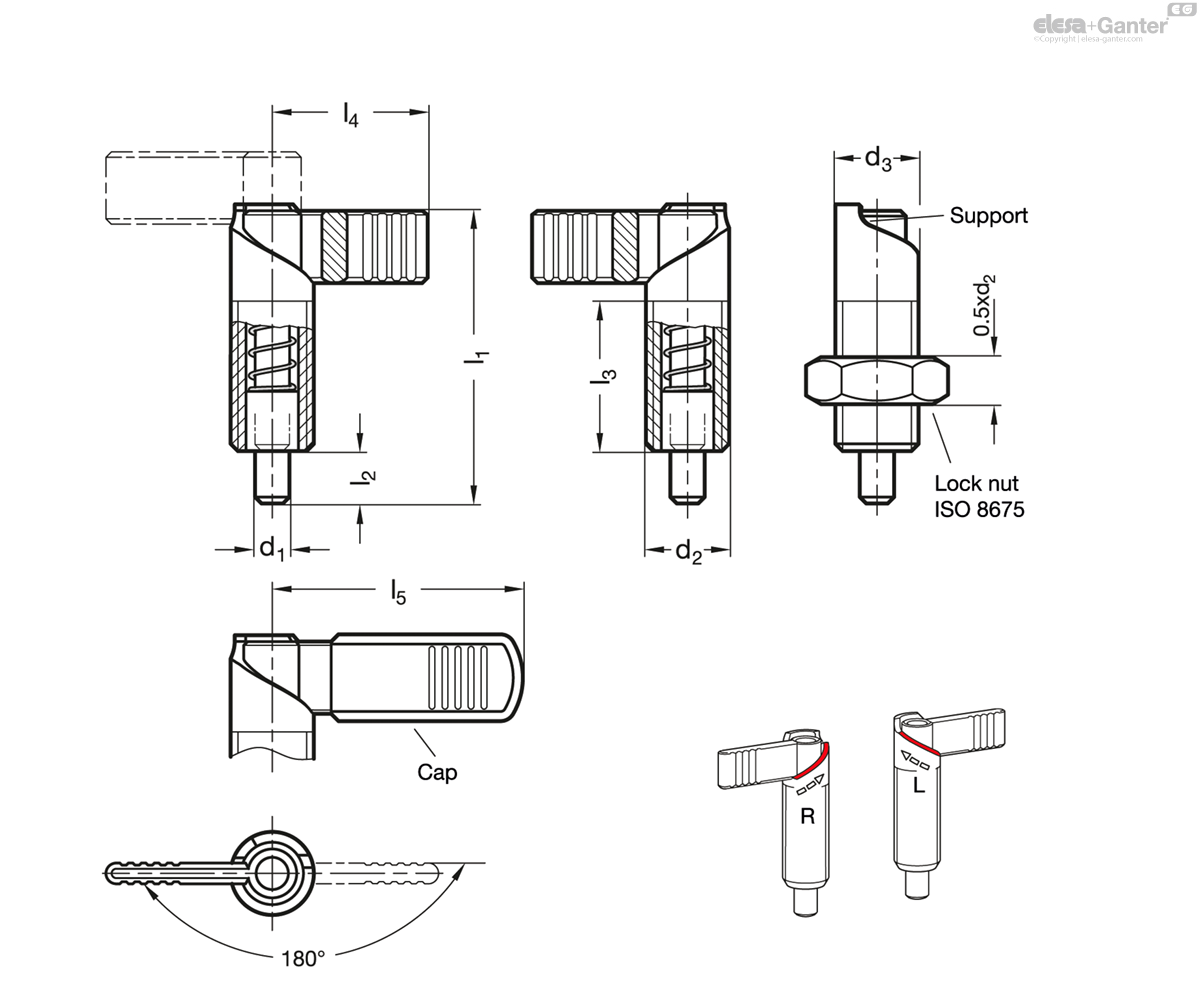

GN 721-LA
|
Code
|
d1 Pin -0.02/-0.05
Bore H7 |
d2
|
d3
|
l1
|
l2
|
l3 +1.5
|
l4
|
l5
|
Spring load
in N ≈ initial |
Spring load
in N ≈ end |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 721-5-M10x1-LA
|
5
|
M 10 x 1
|
10
|
37.5
|
6
|
19
|
21
|
-
|
7
|
20
|
18
|
|
GN 721-6-M12x1,5-LA
|
6
|
M 12 x 1.5
|
12
|
47
|
8
|
26
|
26
|
32
|
8
|
18
|
30
|
|
GN 721-8-M16x1,5-LA
|
8
|
M 16 x 1.5
|
16
|
56
|
10
|
30
|
32
|
42
|
11
|
29
|
65
|
|
GN 721-10-M20x1,5-LA
|
10
|
M 20 x 1.5
|
20
|
69
|
12
|
37
|
37
|
52
|
21
|
57
|
130
|
Types
Types

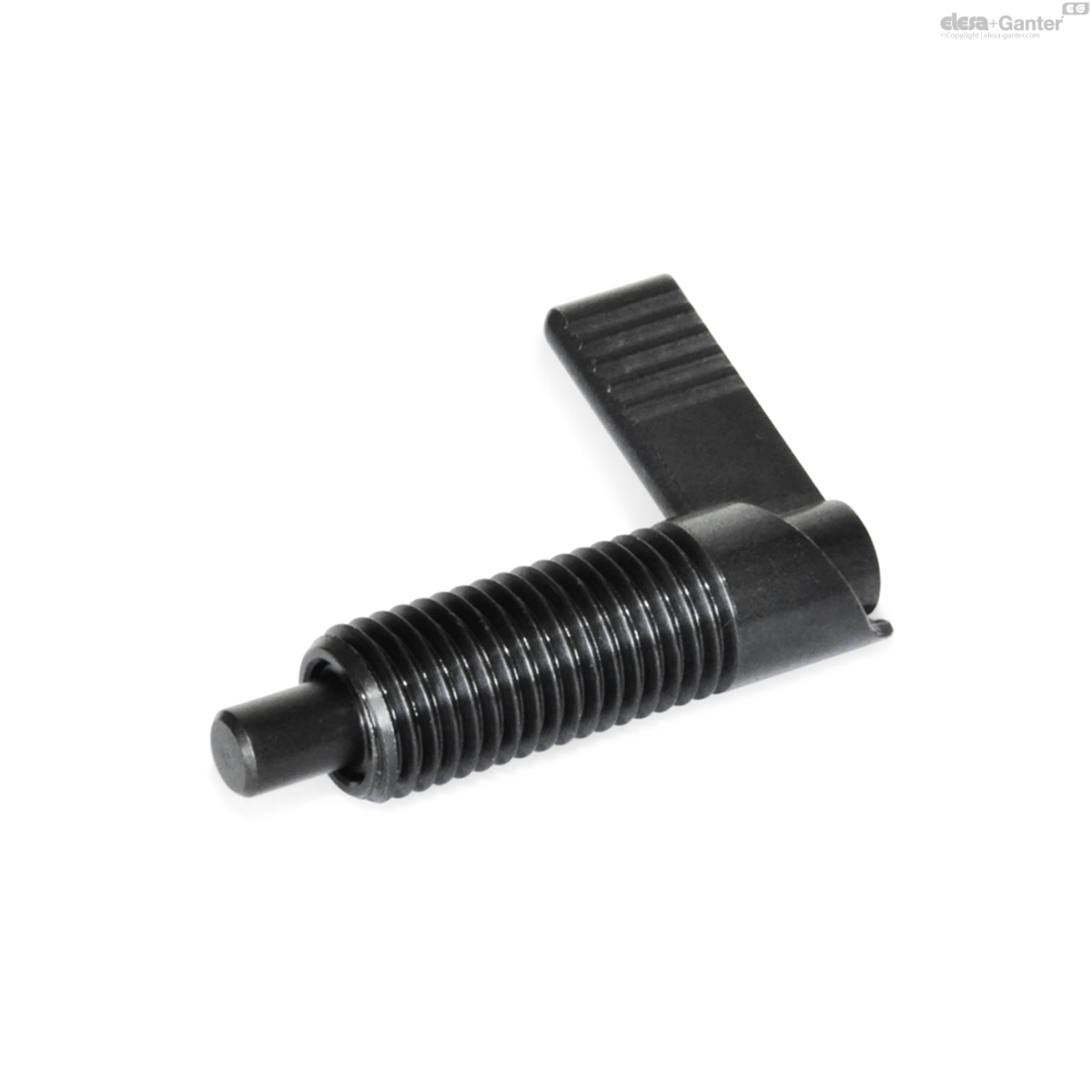

- Type RA: Right-hand lock

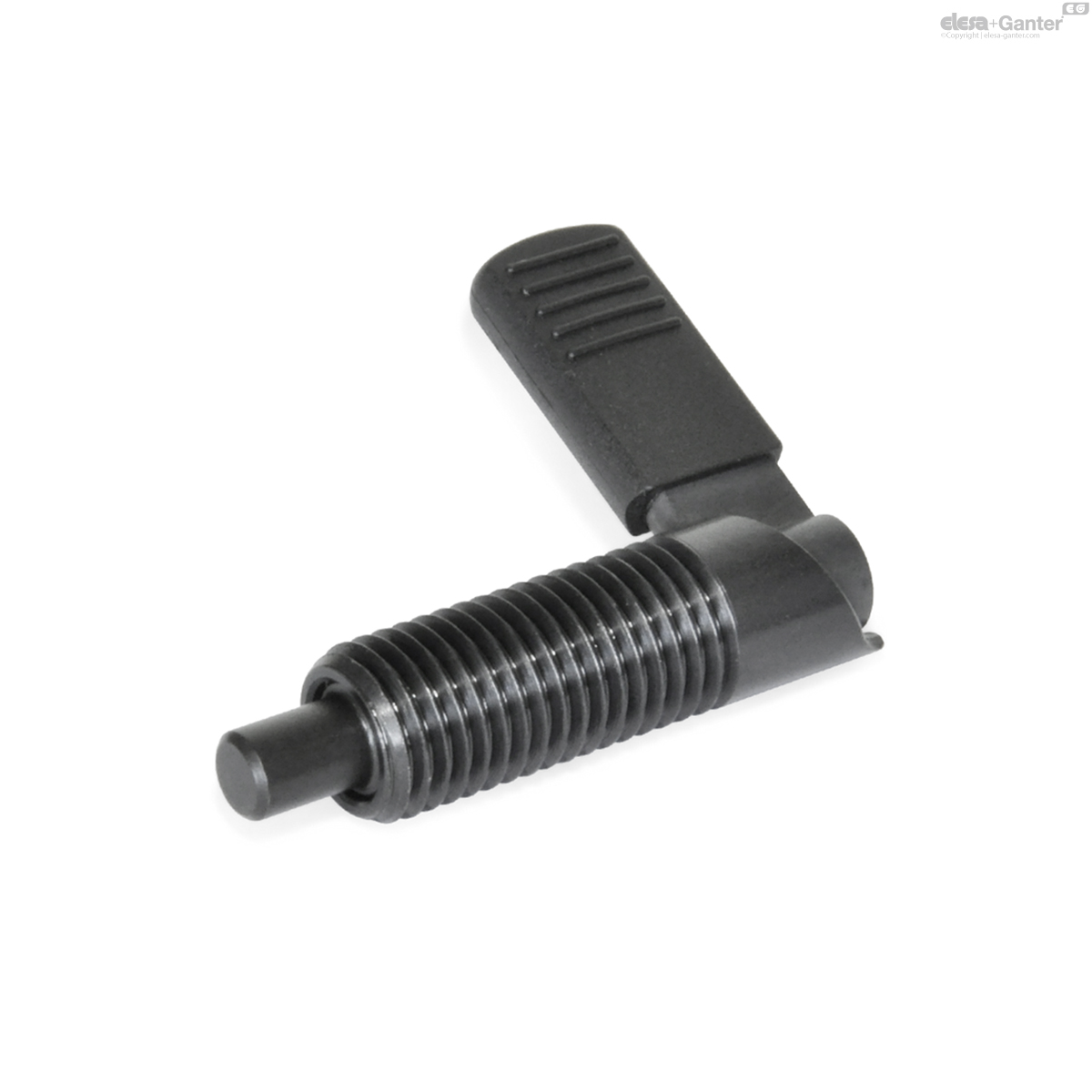

- Type RB: Right-hand lock, with plastic cap

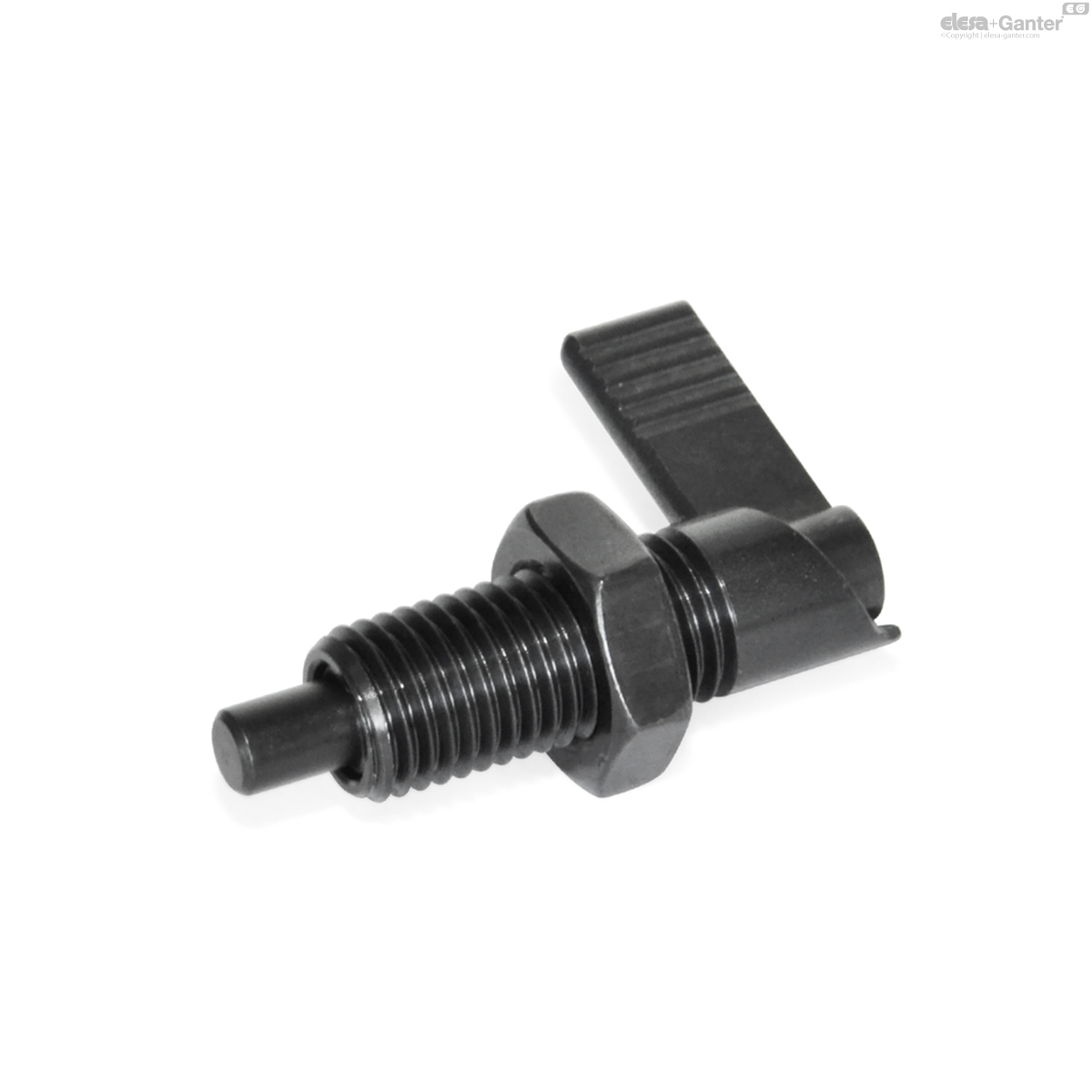

- Type RAK: Right-hand lock, with lock nut

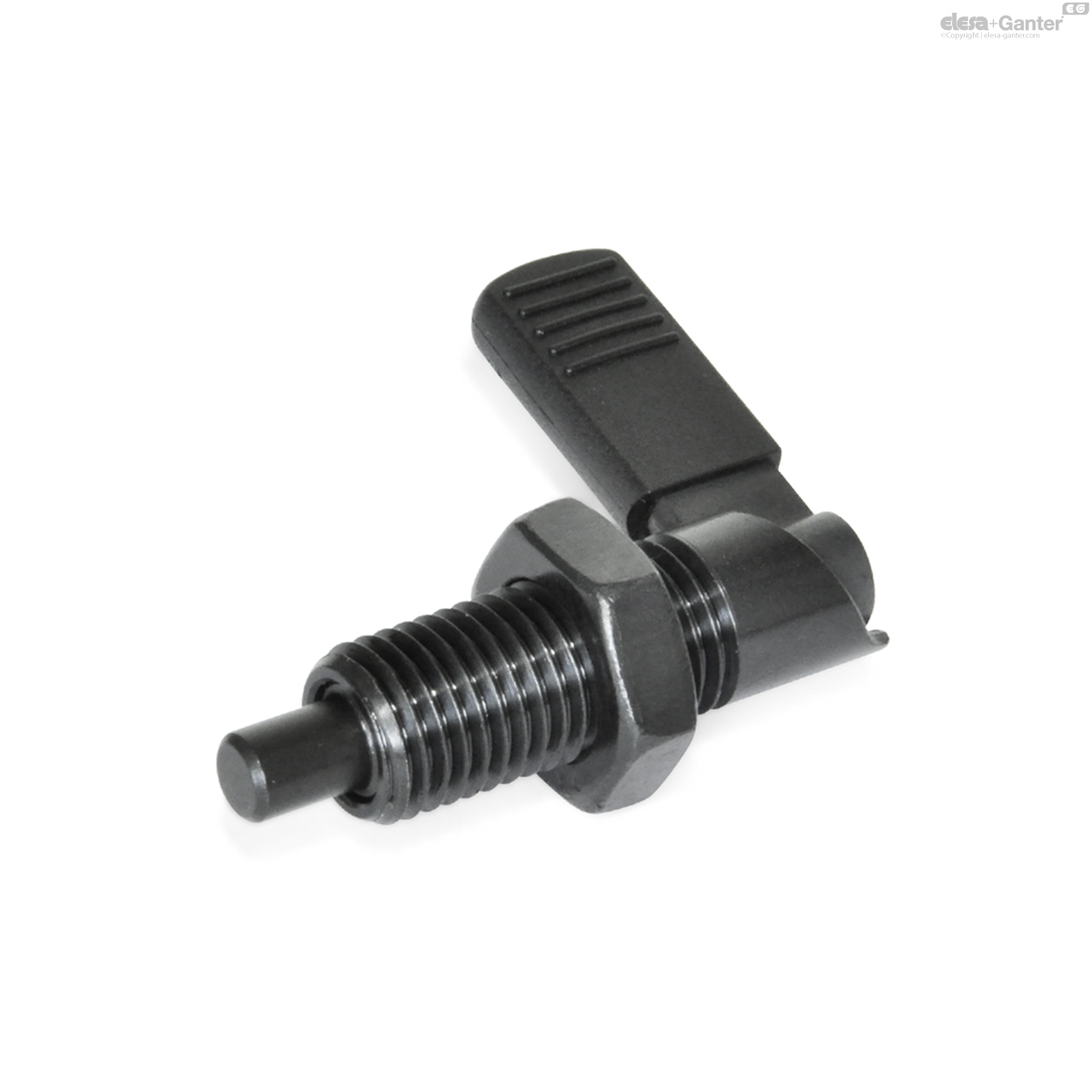

- Type RBK: Right-hand lock, with plastic cap, with lock nut

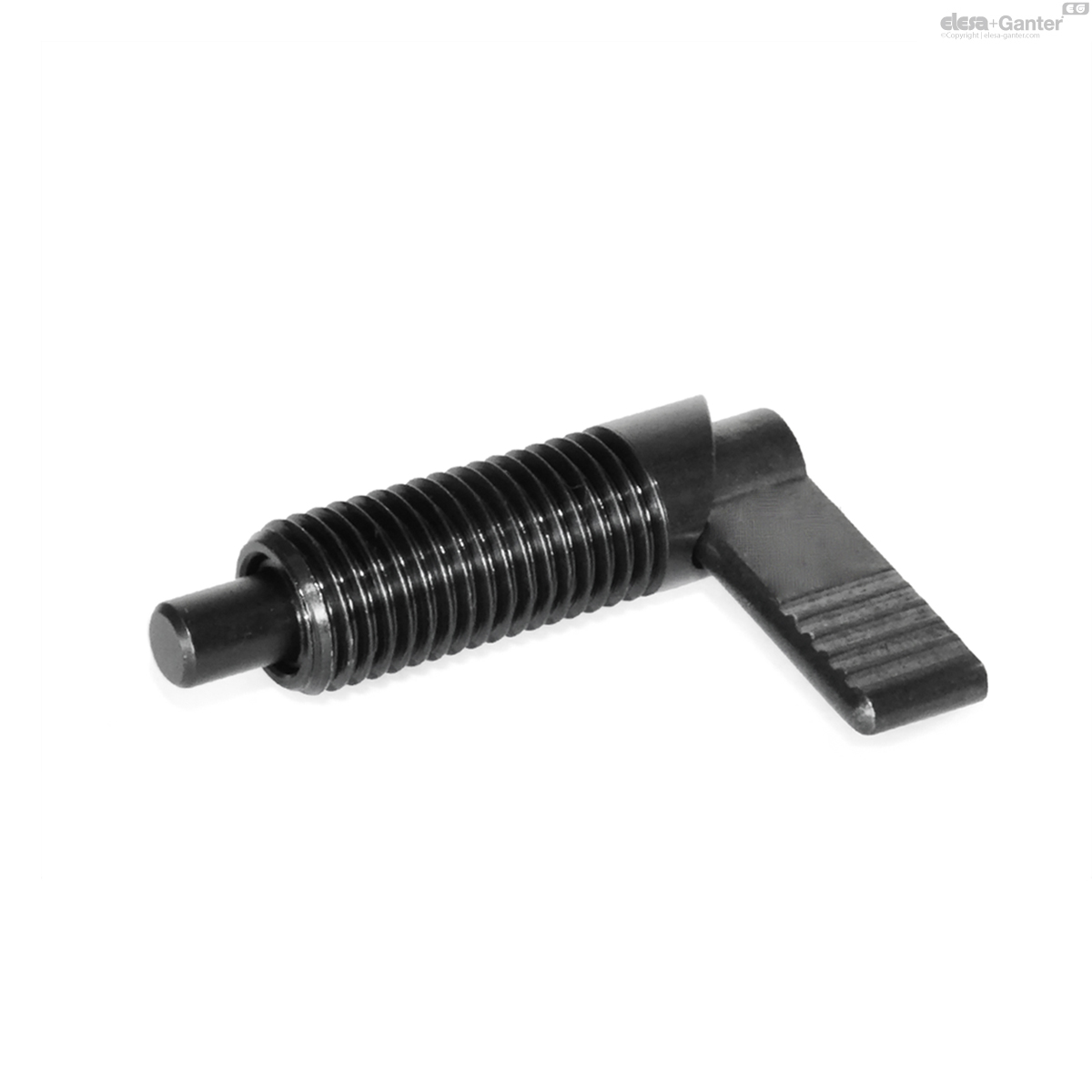

- Type LA: Left-hand lock

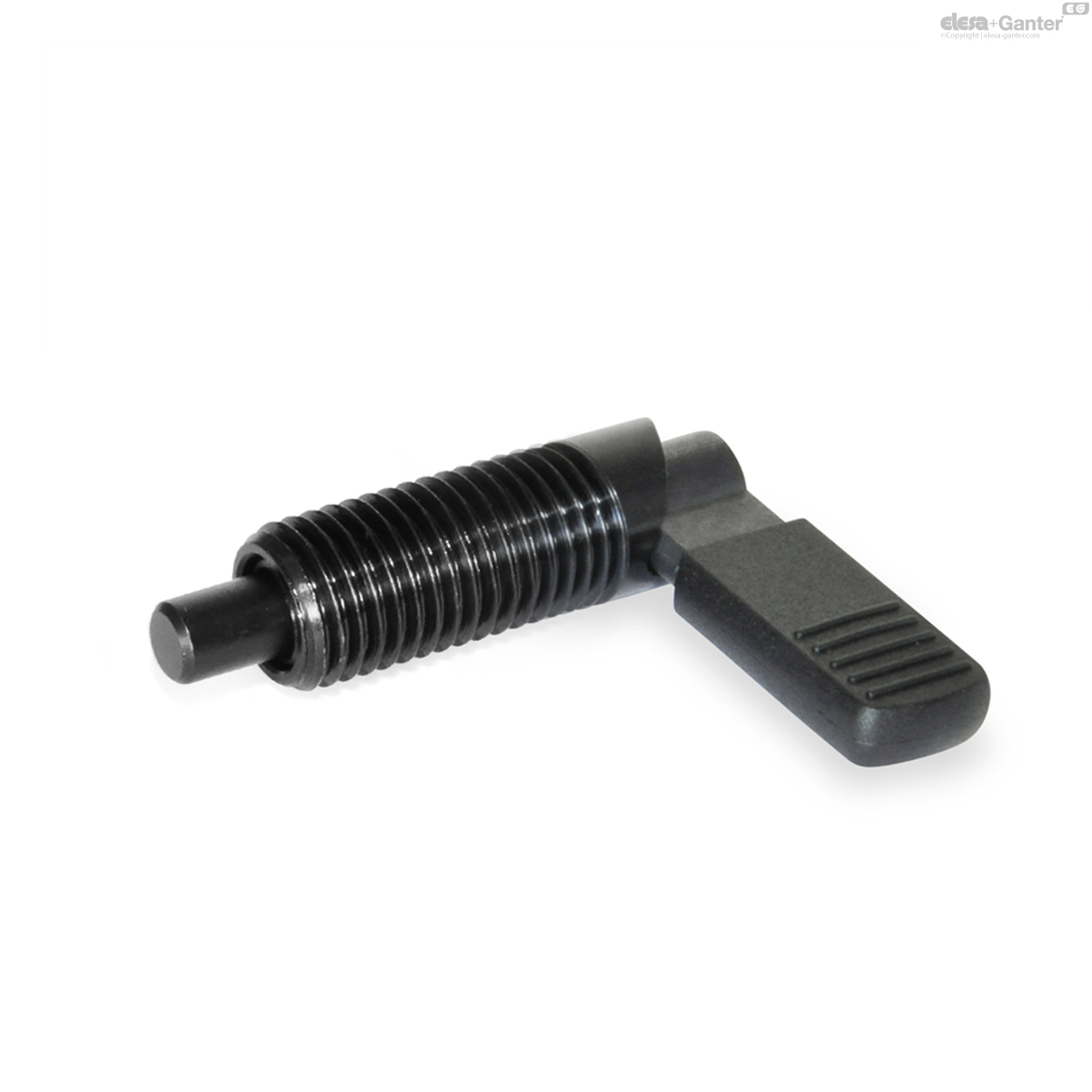

- Type LB: Left-hand lock, with plastic cap

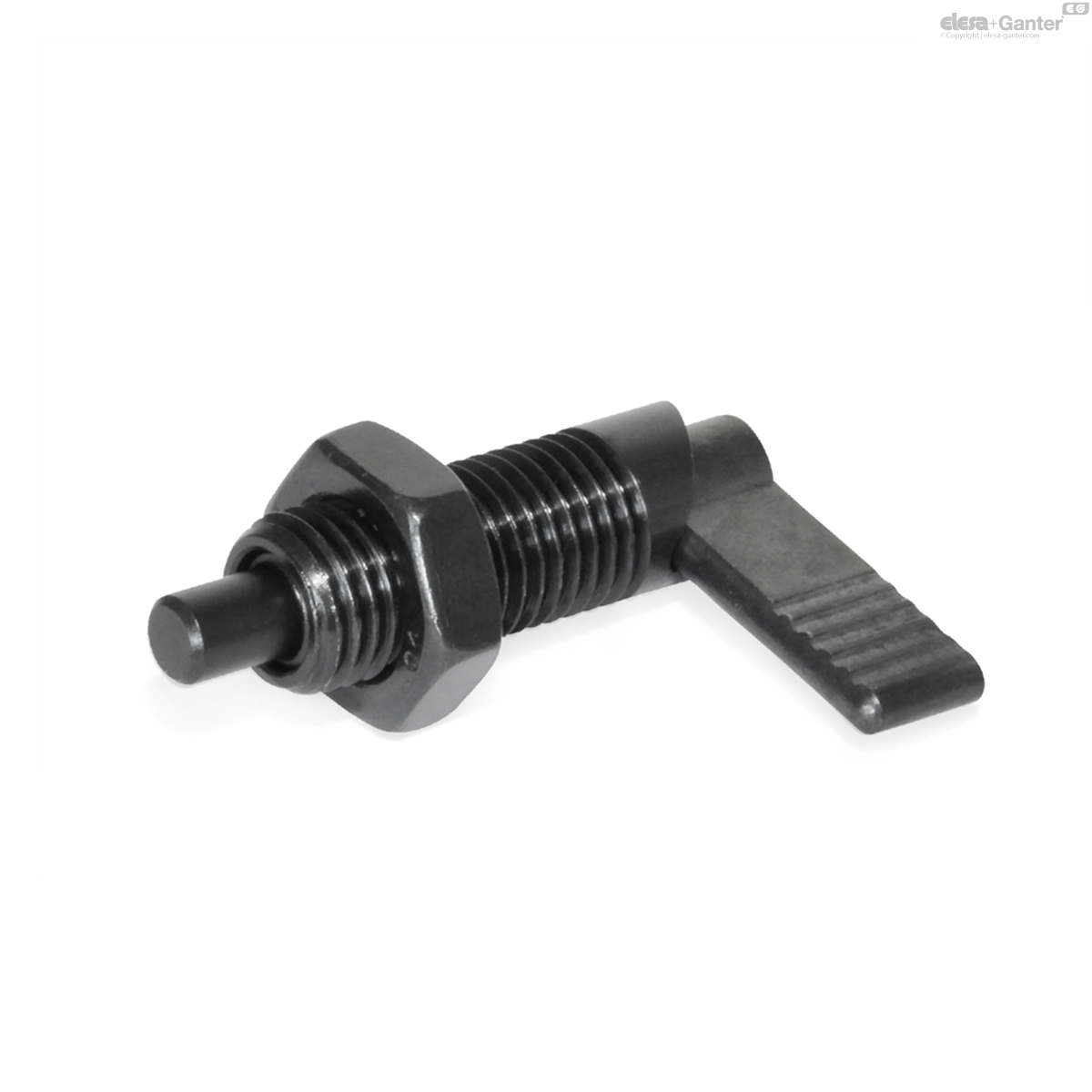

- Type LAK: Left-hand lock, with lock nut

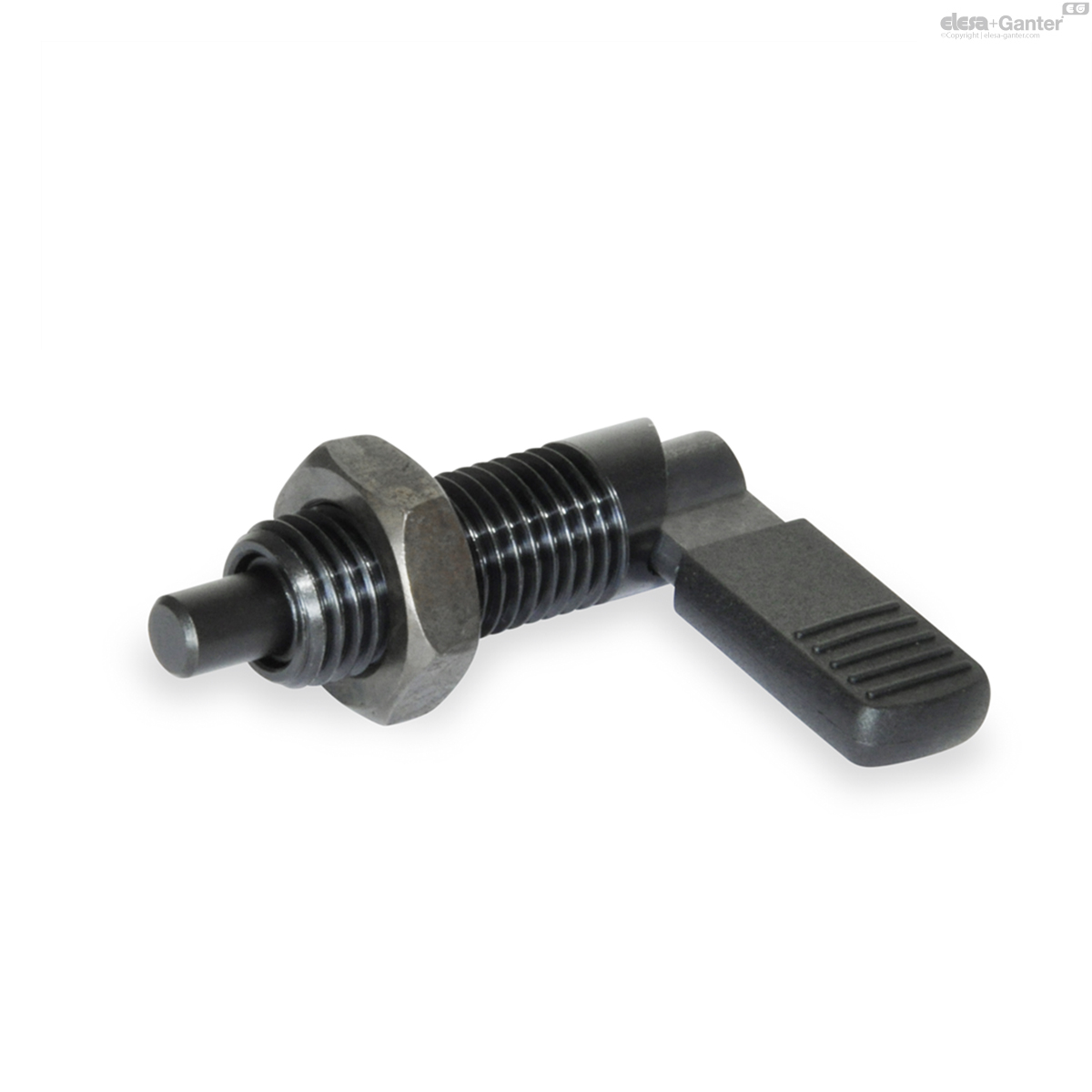

- Type LBK: Left-hand lock, with plastic cap, with lock nut
Guide / Latch arm
Guide / Latch arm
Steel
Blackened
Plunger pin
Plunger pin
Steel
Nitrided
Cap for type RB / RBK / LB / LBK
Cap for type RB / RBK / LB / LBK
Plastic, Polyamide (PA)
Black, matte finish
Pressure spring
Pressure spring
Stainless steel AISI 301
For cam action indexing plungers GN 721 the indexing plunger pin is withdrawn by turning the lock by 180°.
When the cam action indexing plungers are positioned symmetrically, the left or right handed types allow for a practical, i.e. equal, direction setting of the lock.
