GN 706.4-ALHalfgespleten stelringen

Aluminium

Staal/aluminium/roestvrij staal, met verstelbare hendel

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents

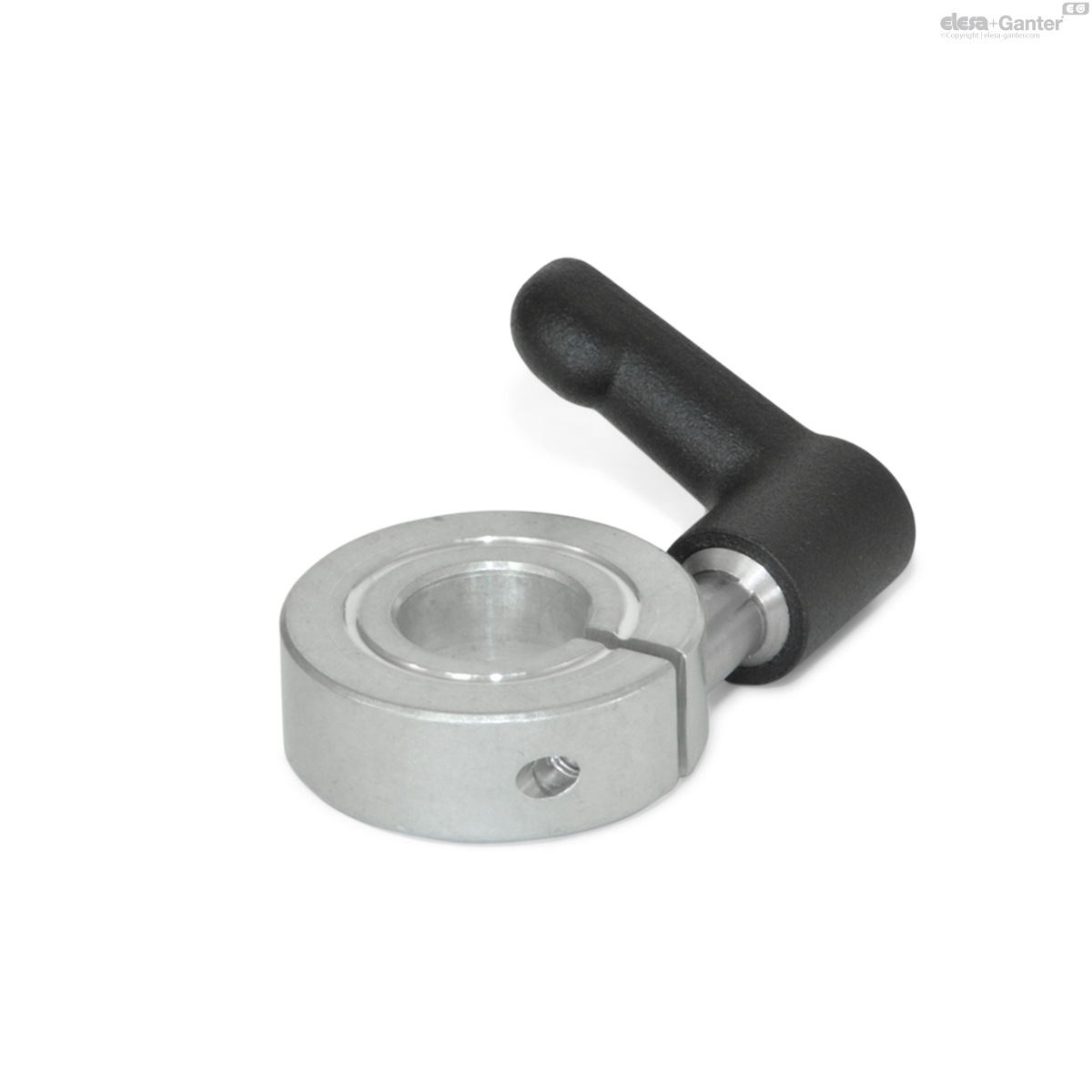

Aluminium
Aluminium
Aluminium
GN 706.4-AL
Aluminium
Staal
GN 706.4-ST
Staal

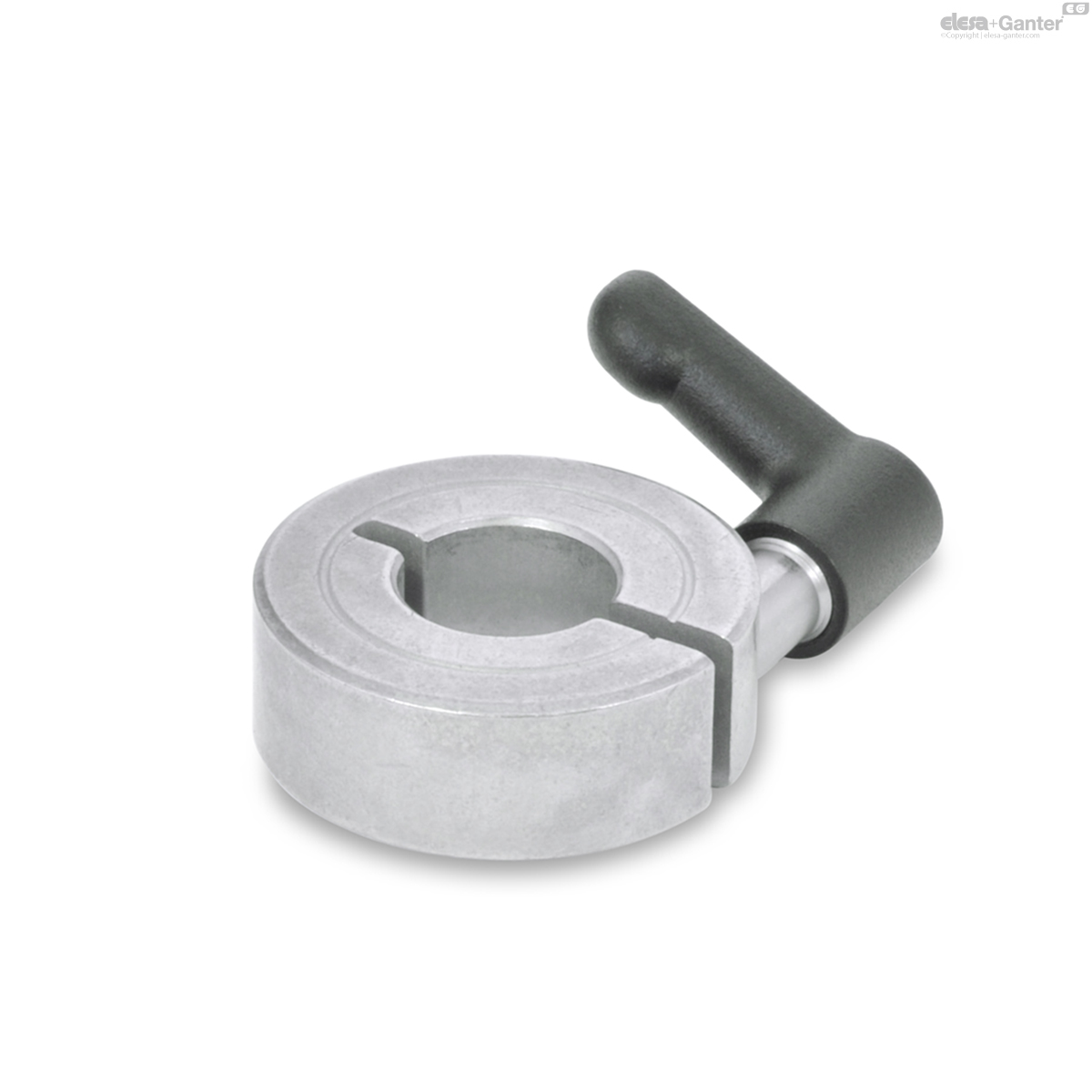

Roestvrij staal
GN 706.4-NI
Roestvrij staal

GN 706.4-AL

Reset

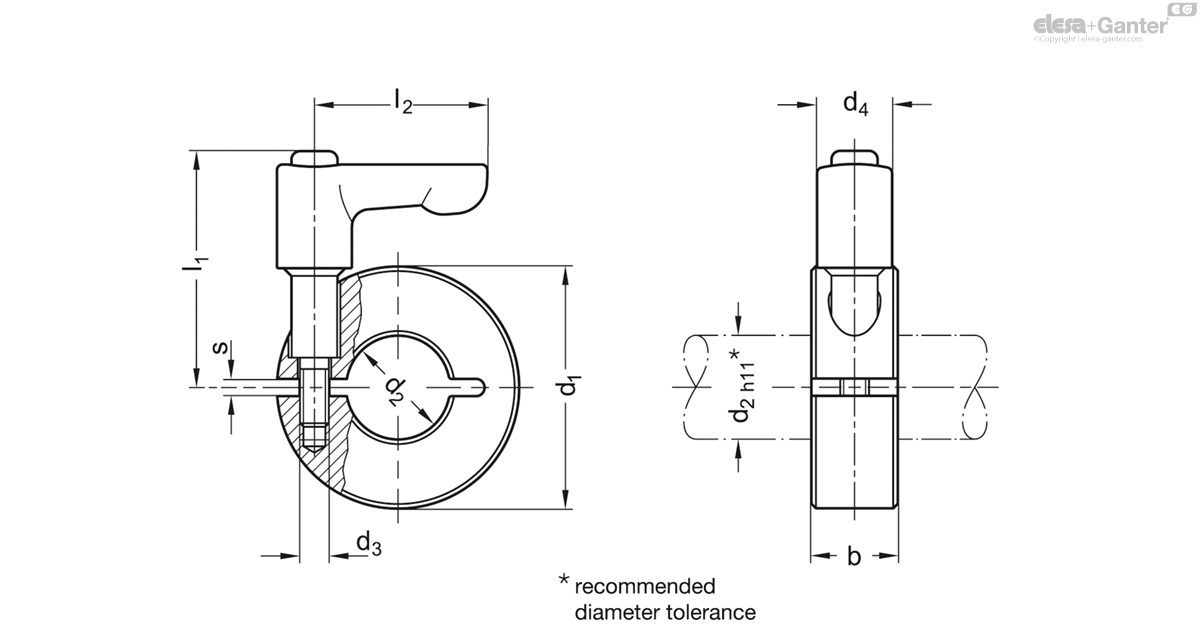

Code
d1
d2 H10
b ±0.2
d3
d4
l1
l2
s
GN 706.4-20-B6-AL
20
B 6
9
M 3
10.5
29.5
22
2.1
20
GN 706.4-22-B8-AL
22
B 8
9
M 3
10.5
29.5
22
2.1
21
GN 706.4-26-B10-AL
26
B 10
11
M 4
10.5
37
30
2.1
28
GN 706.4-30-B12-AL
30
B 12
11
M 4
13
31
22
2.1
44
GN 706.4-32-B14-AL
32
B 14
11
M 4
13
37
30
2.1
100
GN 706.4-36-B15-AL
36
B 15
13
M 5
13
38.5
30
2.1
63
GN 706.4-36-B16-AL
36
B 16
13
M 5
13
38.5
30
2.1
20
GN 706.4-42-B18-AL
42
B 18
15
M 5
13
41
30
3
80
GN 706.4-42-B20-AL
42
B 20
15
M 5
13
41
30
3
60
GN 706.4-48-B22-AL
48
B 22
15
M 5
13
43
45
3
98
GN 706.4-48-B25-AL
48
B 25
15
M 5
13
43
45
3
96
GN 706.4-55-B28-AL
55
B 28
15
M 6
13
45
45
3
116
GN 706.4-55-B30-AL
55
B 30
15
M 6
13
45
45
3
100
GN 706.4-60-B32-AL
60
B 32
15
M 6
13
46.5
45
4
127
GN 706.4-60-B35-AL
60
B 35
15
M 6
13
46.5
45
4
120
GN 706.4-65-B40-AL
65
B 40
15
M 6
13
47.5
45
4
130
null

Shaft Collar

  • Steel ST
  • Sintered
  • Black oxidized with vapor
  • Aluminum AL
  • Turned, tumbled
  • Stainless steel AISI 316L NI
  • Sintered

Adjustable hand lever

Zinc die casting

  • Powder coated
  • Black RAL 9005, textured finish
  • Screw insert / Retaining screw
  • Stainless steel AISI 303

Semi-split shaft collars GN 706.4 can safely and simply be clamped by reducing the slot height by using an adjustable hand lever and thus they act, for instance, like an end stop.

This version offers great advantages especially for applications that demand new positions of the shaft collar.

The thread d3 for sizes d1 = 32 and 36 is designed as a through hole; for sizes d1 = 42 and larger, it is designed as blind hole.
