GN 5339.5Roestvast driekantknoppen

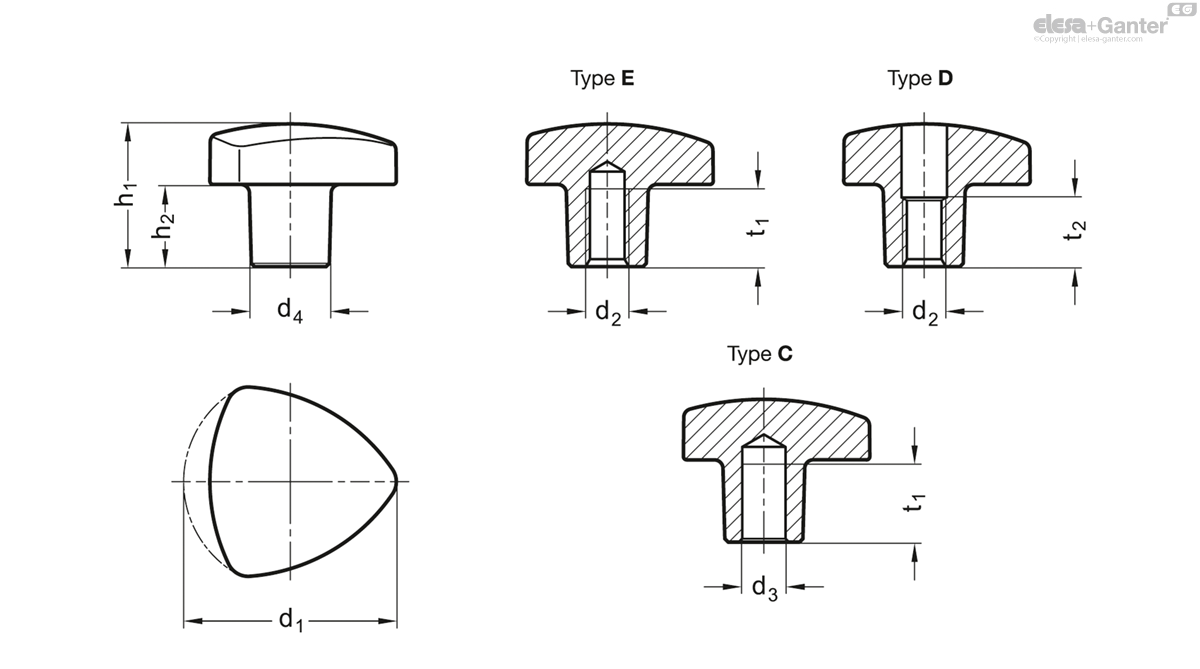

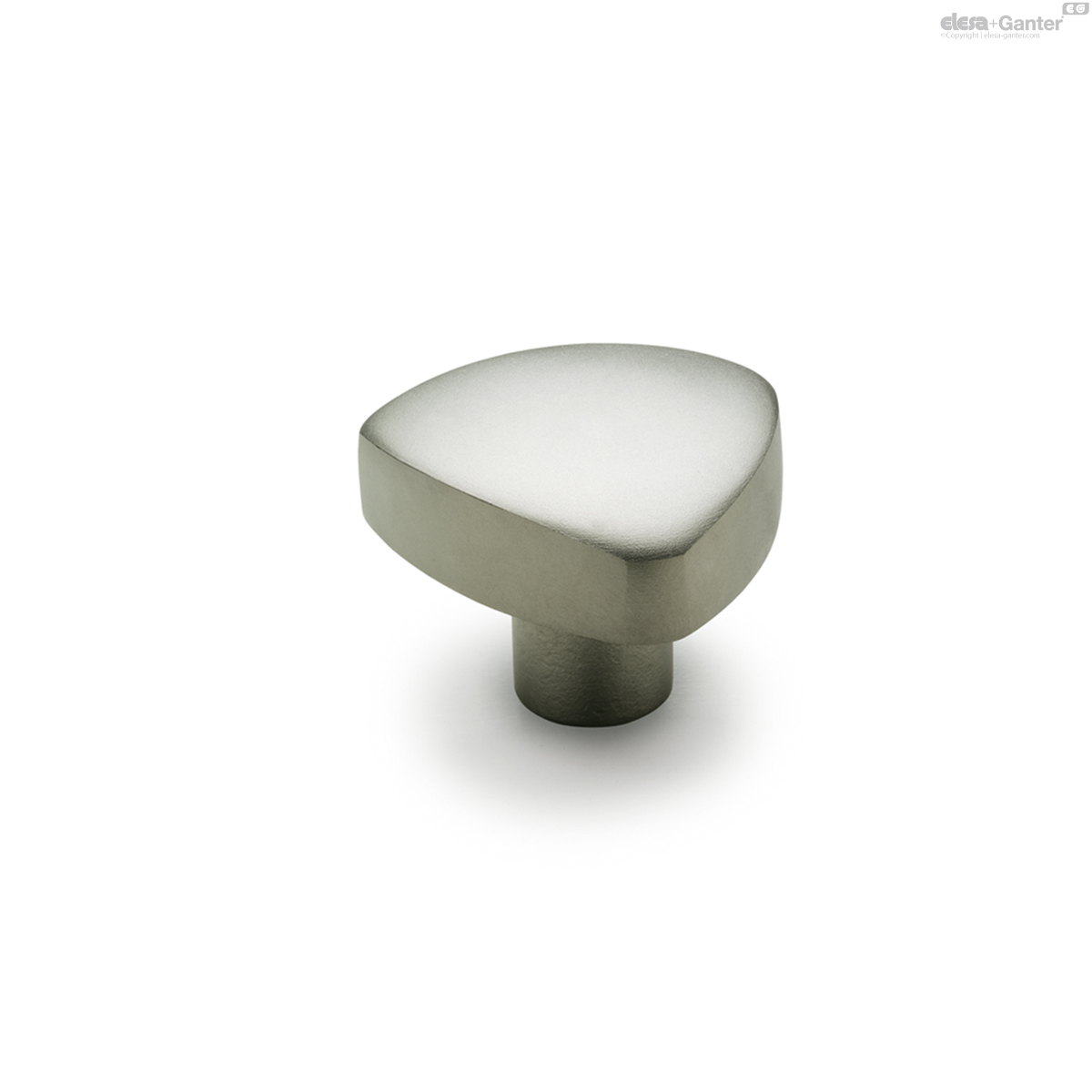

Driekantknoppen
GN 5339.5
|
Code
|
d1
|
d2
|
d3 H7
|
d4
|
h1 ≈
|
h2 ≈
|
t1 min.
|
t2
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
32
|
-
|
B 6
|
12
|
21
|
12
|
12
|
-
|
43
| ||
|
40
|
-
|
B 8
|
14
|
26
|
14
|
15
|
-
|
88
| ||
|
50
|
-
|
B 10
|
18
|
33
|
19
|
18
|
-
|
148
| ||
|
60
|
-
|
B 12
|
20
|
41
|
23
|
22
|
-
|
287
| ||
|
32
|
M 6
|
-
|
12
|
21
|
12
|
-
|
10
|
39
| ||
|
32
|
M 6
|
-
|
12
|
21
|
12
|
-
|
10
|
40
| ||
|
40
|
M 8
|
-
|
14
|
26
|
14
|
-
|
13
|
83
| ||
|
40
|
M 8
|
-
|
14
|
26
|
14
|
-
|
13
|
81
| ||
|
50
|
M 10
|
-
|
18
|
33
|
19
|
-
|
16
|
240
| ||
|
50
|
M 10
|
-
|
18
|
33
|
19
|
-
|
16
|
140
| ||
|
60
|
M 12
|
-
|
20
|
41
|
23
|
-
|
20
|
270
| ||
|
60
|
M 12
|
-
|
20
|
41
|
23
|
-
|
20
|
275
| ||
|
32
|
M 5
|
-
|
12
|
21
|
12
|
10
|
-
|
60
| ||
|
32
|
M 5
|
-
|
12
|
21
|
12
|
10
|
-
|
76
| ||
|
32
|
M 6
|
-
|
12
|
21
|
12
|
12
|
-
|
82
| ||
|
32
|
M 6
|
-
|
12
|
21
|
12
|
12
|
-
|
48
| ||
|
40
|
M 6
|
-
|
14
|
26
|
13
|
12
|
-
|
87
| ||
|
40
|
M 6
|
-
|
14
|
26
|
13
|
12
|
-
|
92
| ||
|
40
|
M 8
|
-
|
14
|
26
|
14
|
15
|
-
|
86
| ||
|
40
|
M 8
|
-
|
14
|
26
|
14
|
15
|
-
|
100
| ||
|
50
|
M 8
|
-
|
18
|
32
|
18
|
15
|
-
|
152
| ||
|
50
|
M 8
|
-
|
18
|
32
|
18
|
15
|
-
|
160
| ||
|
50
|
M 10
|
-
|
18
|
33
|
19
|
18
|
-
|
140
| ||
|
50
|
M 10
|
-
|
18
|
33
|
19
|
18
|
-
|
151
| ||
|
60
|
M 10
|
-
|
20
|
41
|
23
|
18
|
-
|
300
| ||
|
60
|
M 10
|
-
|
20
|
41
|
23
|
18
|
-
|
295
| ||
|
60
|
M 12
|
-
|
20
|
41
|
23
|
22
|
-
|
280
| ||
|
60
|
M 12
|
-
|
20
|
41
|
23
|
22
|
-
|
296
|
Types
- Type E: with threaded blind bore
- Type D: with threaded through bore
- Type C: with plain blind bore H7
Stainless Steel precision casting
- AISI CF-8
- matt shot-blasted MT
- highly polished PL (only type D and E)
Stainless Steel-Triangular knobs GN 5339.5 have been specially designed for use on machinery in the food industry.
The smooth and enclosed areas as well as the corner radii comply with the requirements of hygiene standards.
Original ELESA-Design, manufactured in metal version under permission of ELESA s.p.a.
