GN 5335RVS sterknoppen

met binnendraad

AISI 303

Technical datasheet

GN 5335

Reset

Code	d₁	d₂	d₃ H7	d₄	h₁	h₂	t₁ min.	t₂

GN 5335-40-A	40	-	-	18	30.5	15	-	-	140
GN 5335-50-A	50	-	-	21	34	17	-	-	220
GN 5335-60-A	60	-	-	25	39	18	-	-	388
GN 5335-40-B8-C	40	-	B 8	18	30.5	15	15	-	131
GN 5335-50-B10-C	50	-	B 10	21	34	17	18	-	205
GN 5335-60-B12-C	60	-	B 12	25	39	18	22	-	380
GN 5335-40-M6-D	40	M 6	-	18	30.5	15	-	13	132
GN 5335-40-M8-D	40	M 8	-	18	30.5	15	-	13	130
GN 5335-50-M8-D	50	M 8	-	21	34	17	-	16	225
GN 5335-50-M10-D	50	M 10	-	21	34	17	-	16	205
GN 5335-60-M10-D	60	M 10	-	25	39	18	-	20	400
GN 5335-60-M12-D	60	M 12	-	25	39	18	-	20	366
GN 5335-40-M6-E	40	M 6	-	18	30.5	15	12	-	135
GN 5335-40-M8-E	40	M 8	-	18	30.5	15	15	-	131
GN 5335-50-M8-E	50	M 8	-	21	34	17	15	-	225
GN 5335-50-M10-E	50	M 10	-	21	34	17	18	-	230
GN 5335-60-M10-E	60	M 10	-	25	39	18	18	-	400
GN 5335-60-M12-E	60	M 12	-	25	39	18	22	-	400
GN 5335-40-M6-D-PL	40	M 6	-	18	30.5	15	-	13	160
GN 5335-40-M8-D-PL	40	M 8	-	18	30.5	15	-	13	130
GN 5335-50-M8-D-PL	50	M 8	-	21	34	17	-	16	222
GN 5335-50-M10-D-PL	50	M 10	-	21	34	17	-	16	220
GN 5335-60-M10-D-PL	60	M 10	-	25	39	18	-	20	360
GN 5335-60-M12-D-PL	60	M 12	-	25	39	18	-	20	366
GN 5335-40-M6-E-PL	40	M 6	-	18	30.5	15	12	-	152
GN 5335-40-M8-E-PL	40	M 8	-	18	30.5	15	15	-	140
GN 5335-50-M8-E-PL	50	M 8	-	21	34	17	15	-	239
GN 5335-50-M10-E-PL	50	M 10	-	21	34	17	18	-	208
GN 5335-60-M10-E-PL	60	M 10	-	25	39	18	18	-	373
GN 5335-60-M12-E-PL	60	M 12	-	25	39	18	22	-	390

Version with female thread:

Types

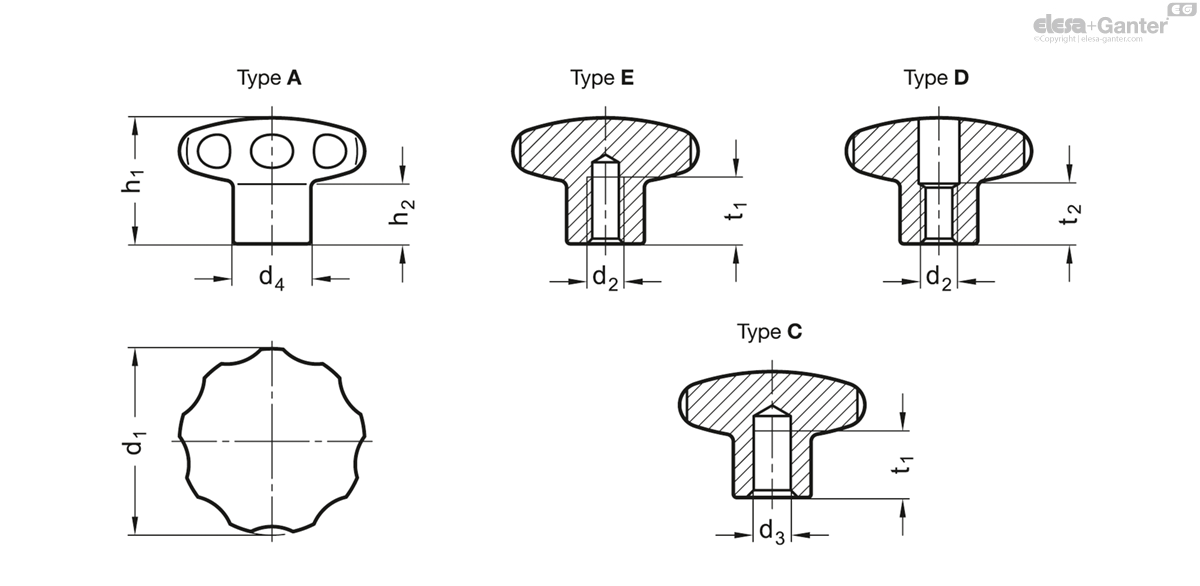

Type A: without bore

Type E: with threaded blind bore

Type D: with threaded through bore

Type C: with plain blind bore H7

Stainless Steel AISI 303

matt shot-blasted

highly polished PL (only type D and E)

Version with threaded bolt:

Stainless Steel AISI 303

matt shot-blasted

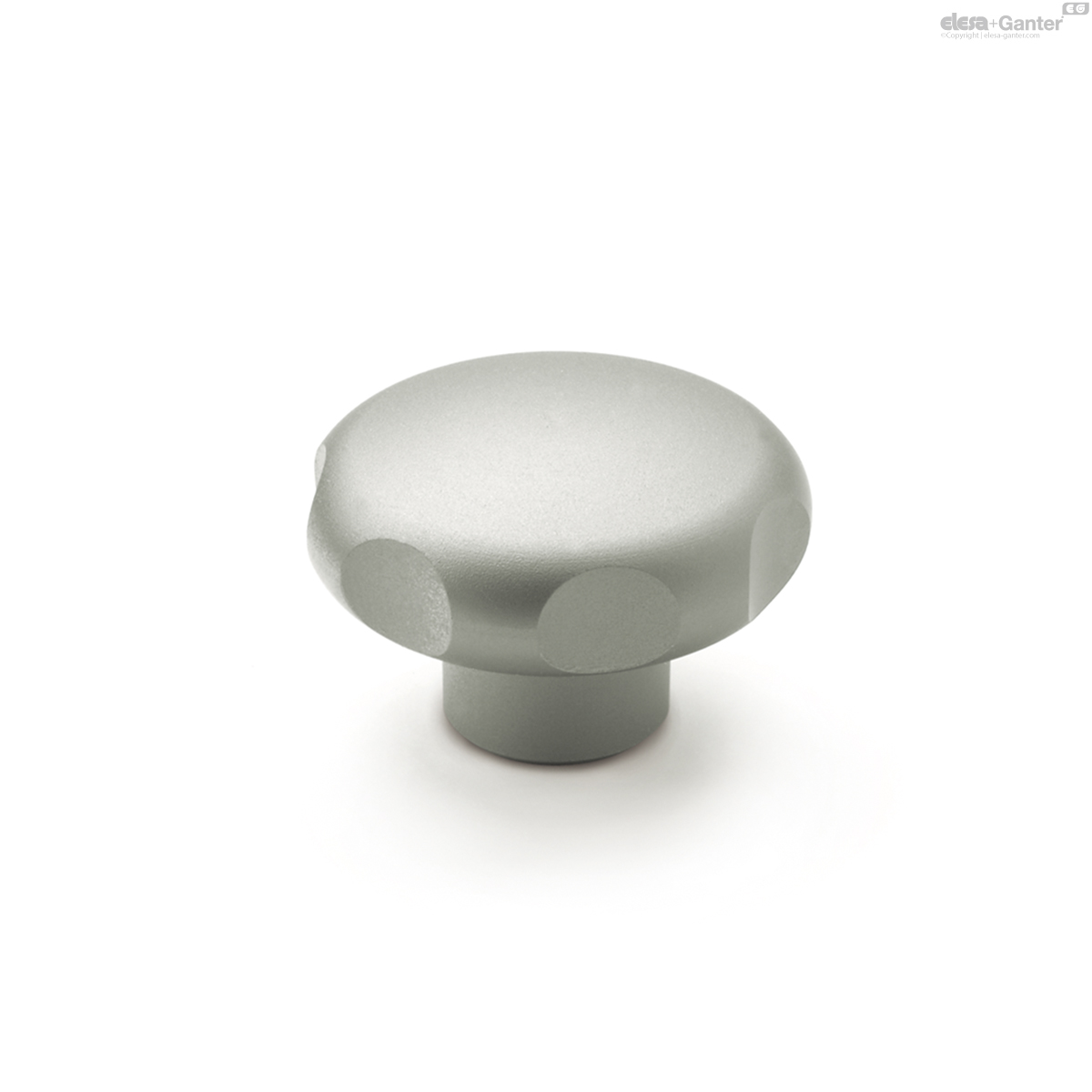

Stainless Steel-Star knobs GN 5335 are a special development intended for the food processing machinery industry. The smooth and enclosed areas as well as the large corner radii comply with the requirements of hygiene standards.
