Technical datasheet
GN 5335Boutons étoile en inox imperdables + goujon fileté

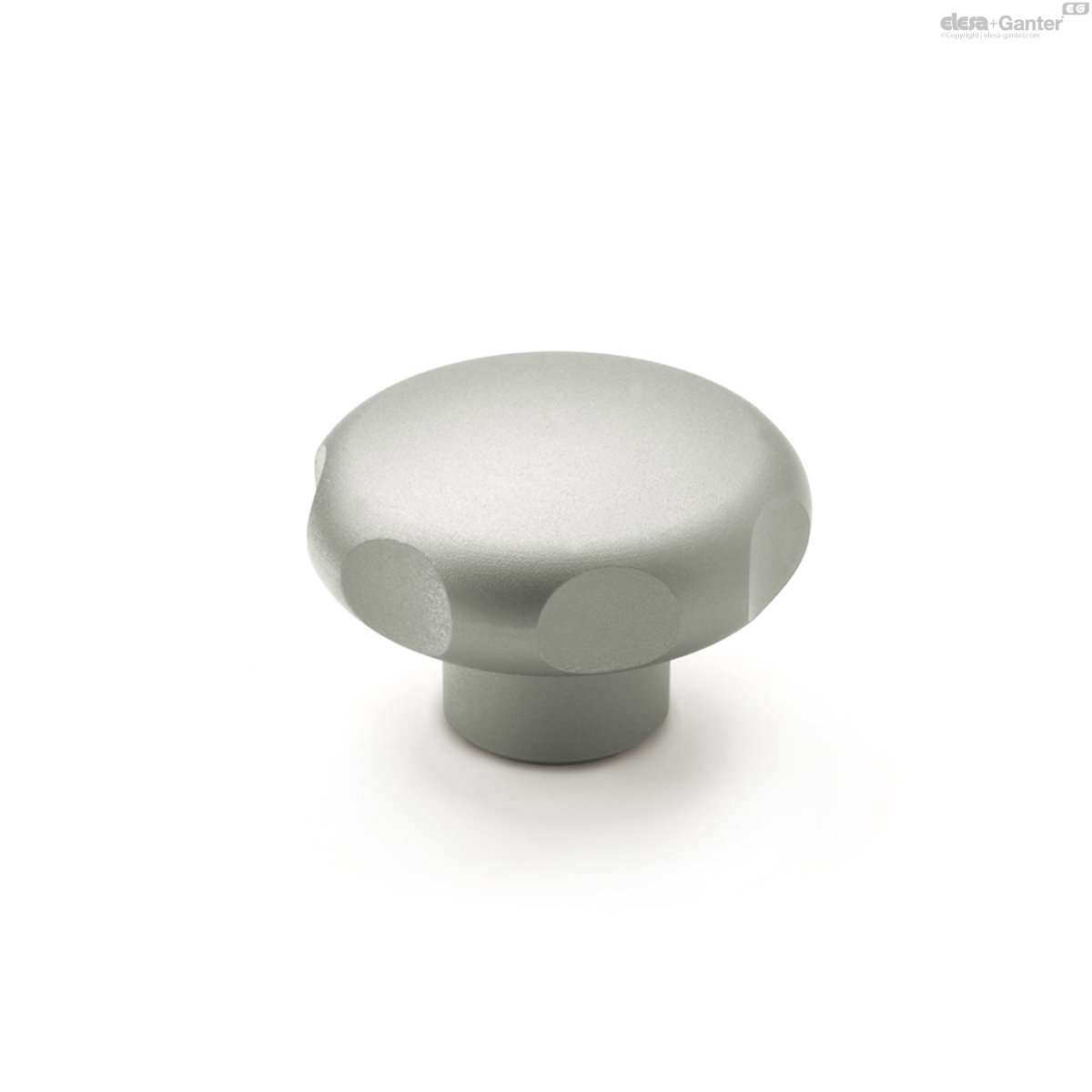

avec filetage femelle
Acier inoxydable AISI 303 (A1)
|
Code
|
d1
|
d2
|
d3 H7
|
d4
|
h1
|
h2
|
t1 min.
|
t2
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
GN 5335-40-A
|
40
|
-
|
-
|
18
|
30.5
|
15
|
-
|
-
|
140
|
|
GN 5335-50-A
|
50
|
-
|
-
|
21
|
34
|
17
|
-
|
-
|
220
|
|
GN 5335-60-A
|
60
|
-
|
-
|
25
|
39
|
18
|
-
|
-
|
388
|
|
GN 5335-40-B8-C
|
40
|
-
|
B 8
|
18
|
30.5
|
15
|
15
|
-
|
131
|
|
GN 5335-50-B10-C
|
50
|
-
|
B 10
|
21
|
34
|
17
|
18
|
-
|
205
|
|
GN 5335-60-B12-C
|
60
|
-
|
B 12
|
25
|
39
|
18
|
22
|
-
|
380
|
|
GN 5335-40-M6-D
|
40
|
M 6
|
-
|
18
|
30.5
|
15
|
-
|
13
|
132
|
|
GN 5335-40-M8-D
|
40
|
M 8
|
-
|
18
|
30.5
|
15
|
-
|
13
|
130
|
|
GN 5335-50-M8-D
|
50
|
M 8
|
-
|
21
|
34
|
17
|
-
|
16
|
225
|
|
GN 5335-50-M10-D
|
50
|
M 10
|
-
|
21
|
34
|
17
|
-
|
16
|
205
|
|
GN 5335-60-M10-D
|
60
|
M 10
|
-
|
25
|
39
|
18
|
-
|
20
|
400
|
|
GN 5335-60-M12-D
|
60
|
M 12
|
-
|
25
|
39
|
18
|
-
|
20
|
366
|
|
GN 5335-40-M6-E
|
40
|
M 6
|
-
|
18
|
30.5
|
15
|
12
|
-
|
135
|
|
GN 5335-40-M8-E
|
40
|
M 8
|
-
|
18
|
30.5
|
15
|
15
|
-
|
131
|
|
GN 5335-50-M8-E
|
50
|
M 8
|
-
|
21
|
34
|
17
|
15
|
-
|
225
|
|
GN 5335-50-M10-E
|
50
|
M 10
|
-
|
21
|
34
|
17
|
18
|
-
|
230
|
|
GN 5335-60-M10-E
|
60
|
M 10
|
-
|
25
|
39
|
18
|
18
|
-
|
400
|
|
GN 5335-60-M12-E
|
60
|
M 12
|
-
|
25
|
39
|
18
|
22
|
-
|
400
|
|
GN 5335-40-M6-D-PL
|
40
|
M 6
|
-
|
18
|
30.5
|
15
|
-
|
13
|
160
|
|
GN 5335-40-M8-D-PL
|
40
|
M 8
|
-
|
18
|
30.5
|
15
|
-
|
13
|
130
|
|
GN 5335-50-M8-D-PL
|
50
|
M 8
|
-
|
21
|
34
|
17
|
-
|
16
|
222
|
|
GN 5335-50-M10-D-PL
|
50
|
M 10
|
-
|
21
|
34
|
17
|
-
|
16
|
220
|
|
GN 5335-60-M10-D-PL
|
60
|
M 10
|
-
|
25
|
39
|
18
|
-
|
20
|
360
|
|
GN 5335-60-M12-D-PL
|
60
|
M 12
|
-
|
25
|
39
|
18
|
-
|
20
|
366
|
|
GN 5335-40-M6-E-PL
|
40
|
M 6
|
-
|
18
|
30.5
|
15
|
12
|
-
|
152
|
|
GN 5335-40-M8-E-PL
|
40
|
M 8
|
-
|
18
|
30.5
|
15
|
15
|
-
|
140
|
|
GN 5335-50-M8-E-PL
|
50
|
M 8
|
-
|
21
|
34
|
17
|
15
|
-
|
239
|
|
GN 5335-50-M10-E-PL
|
50
|
M 10
|
-
|
21
|
34
|
17
|
18
|
-
|
208
|
|
GN 5335-60-M10-E-PL
|
60
|
M 10
|
-
|
25
|
39
|
18
|
18
|
-
|
373
|
|
GN 5335-60-M12-E-PL
|
60
|
M 12
|
-
|
25
|
39
|
18
|
22
|
-
|
390
|

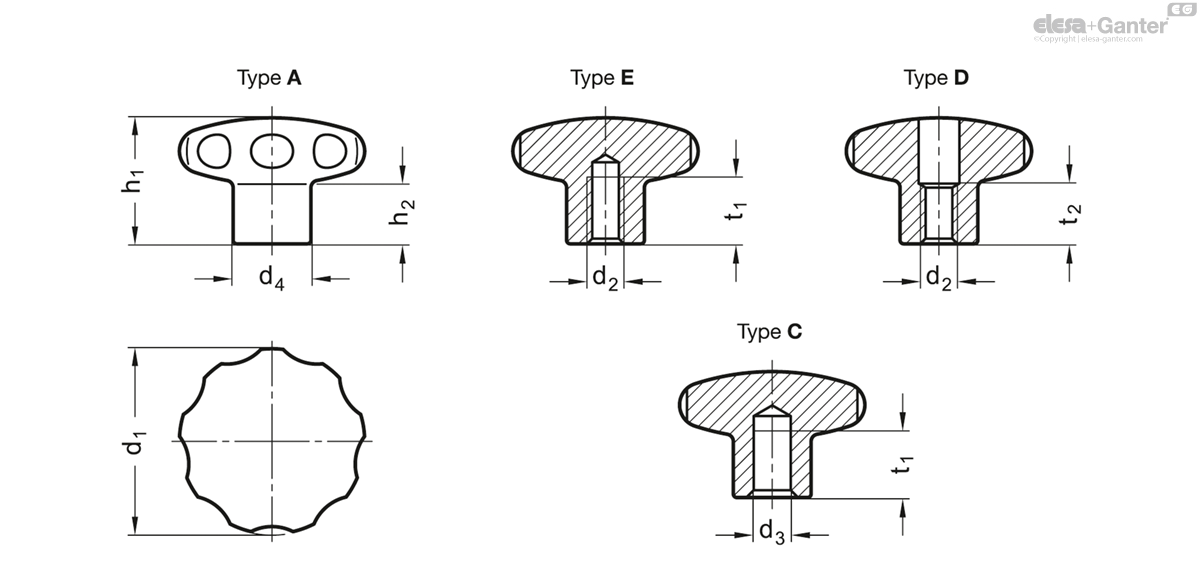

Version with female thread:
Types
- Type A: without bore
- Type E: with threaded blind bore
- Type D: with threaded through bore
- Type C: with plain blind bore H7
Stainless Steel AISI 303
- matt shot-blasted
- highly polished PL (only type D and E)

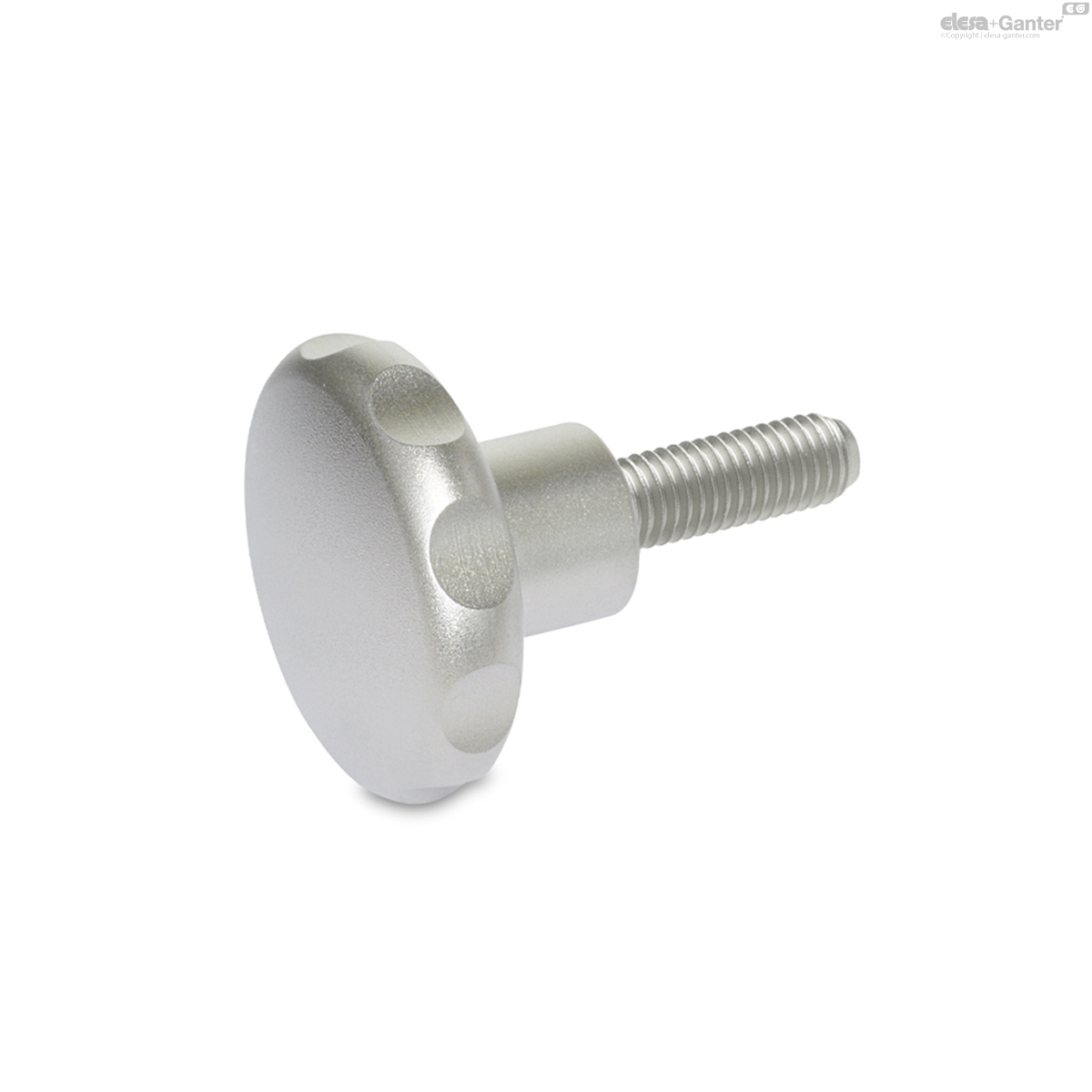

Version with threaded bolt:
Stainless Steel AISI 303
- matt shot-blasted
Stainless Steel-Star knobs GN 5335 are a special development intended for the food processing machinery industry. The smooth and enclosed areas as well as the large corner radii comply with the requirements of hygiene standards.
