Technical datasheet
GN 50.25Magneten in RVS
Magneten in RVS
Schijfvormig,met binnendraad
GN 50.25
|

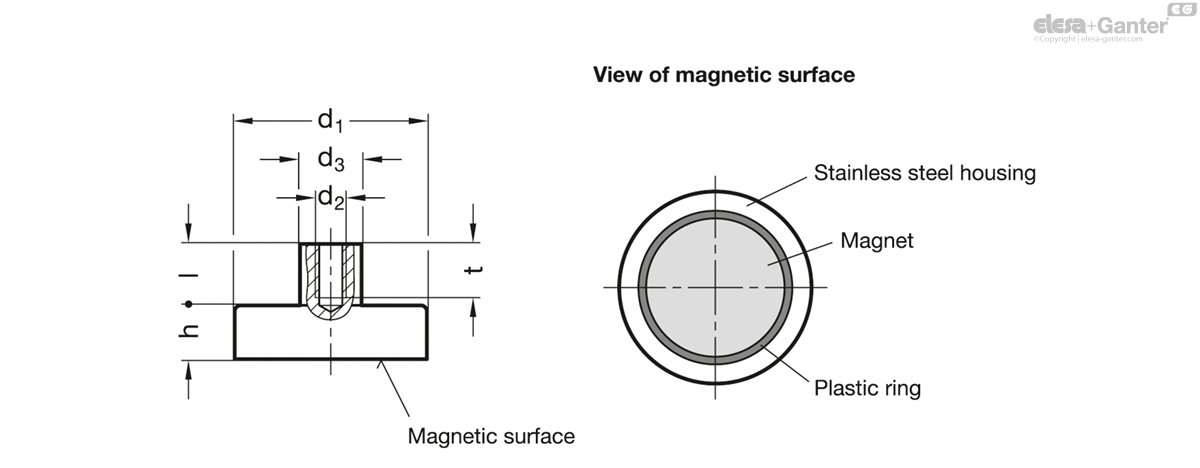

Code
|
d1
|
d2
|
d3
|
h
|
l
|
t
|
Nominal adhesive forces in N
|
|
|
|---|---|---|---|---|---|---|---|---|---|
|
25 ±0.1
|
M 5
|
8
|
7 +0.3/-0.1
|
9
|
8.25
|
32
|
21
| ||
|
32 ±0.1
|
M 5
|
8
|
7 +0.3/-0.1
|
9
|
9
|
64
|
31
| ||
|
40 +0.2/-0.1
|
M 5
|
8
|
8 +0.3/-0.1
|
8.5
|
9
|
100
|
56
| ||
|
50 +0.2/-0.1
|
M 5
|
8
|
10 +0.4/-0.1
|
8.5
|
9
|
175
|
105
| ||
|
63 +0.3/-0.1
|
M 5
|
8
|
14 +0.5/-0.1
|
8
|
9
|
280
|
228
|
Housing / threaded bushing
Stainless Steel
Material of the magnet:
Hard ferrite HF
temperature resistant up to 220 °C
Stainless Steel-Retaining magnets GN 50.25 are a shielded magnetic system.
Owing to the lower magnetic conductivity of the stainless steel housing, the adhesive forces are lower than in steel.
