Technical datasheet

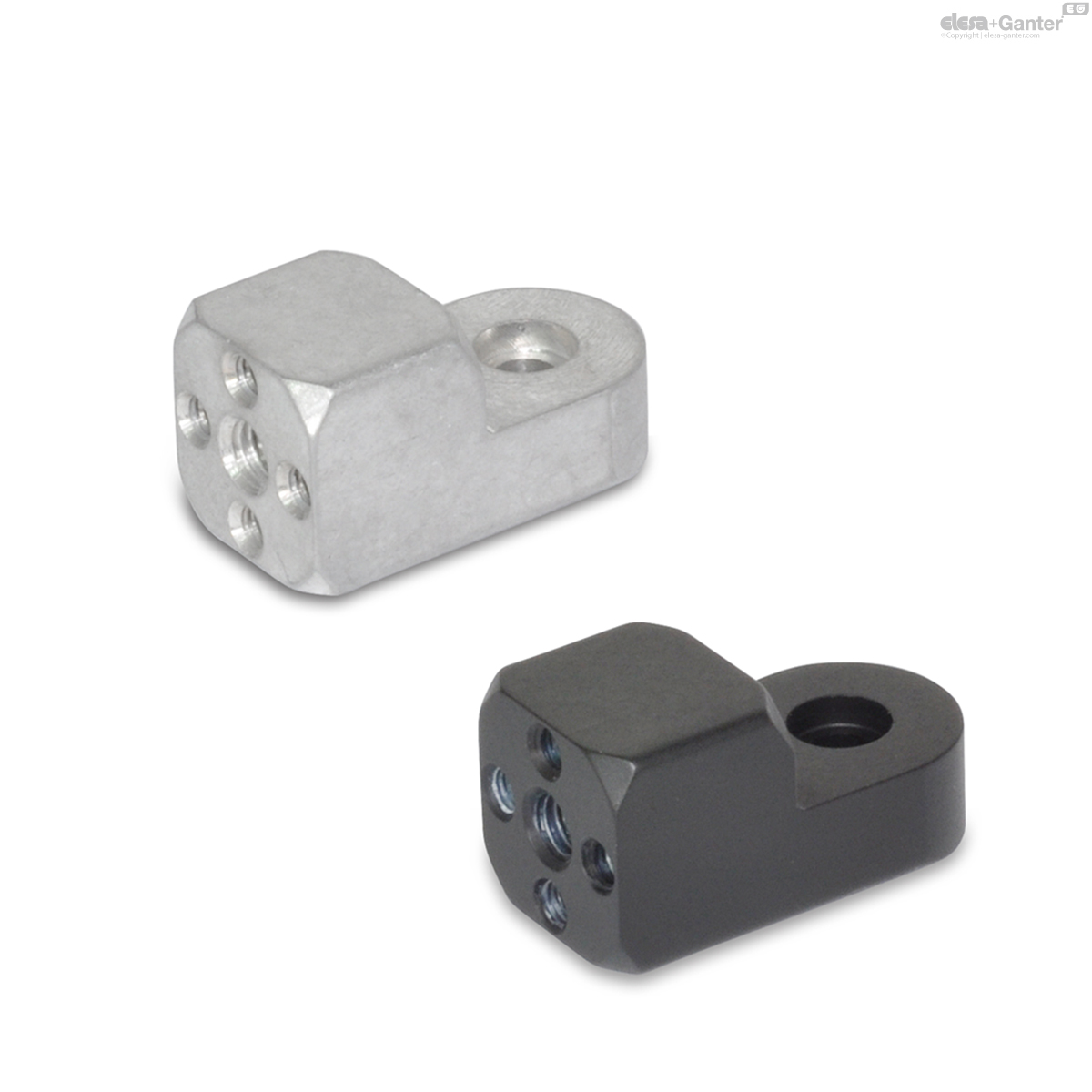

GN 484Instelbare verbindingsstukken
Instelbare verbindingsstukken
Aluminium
|

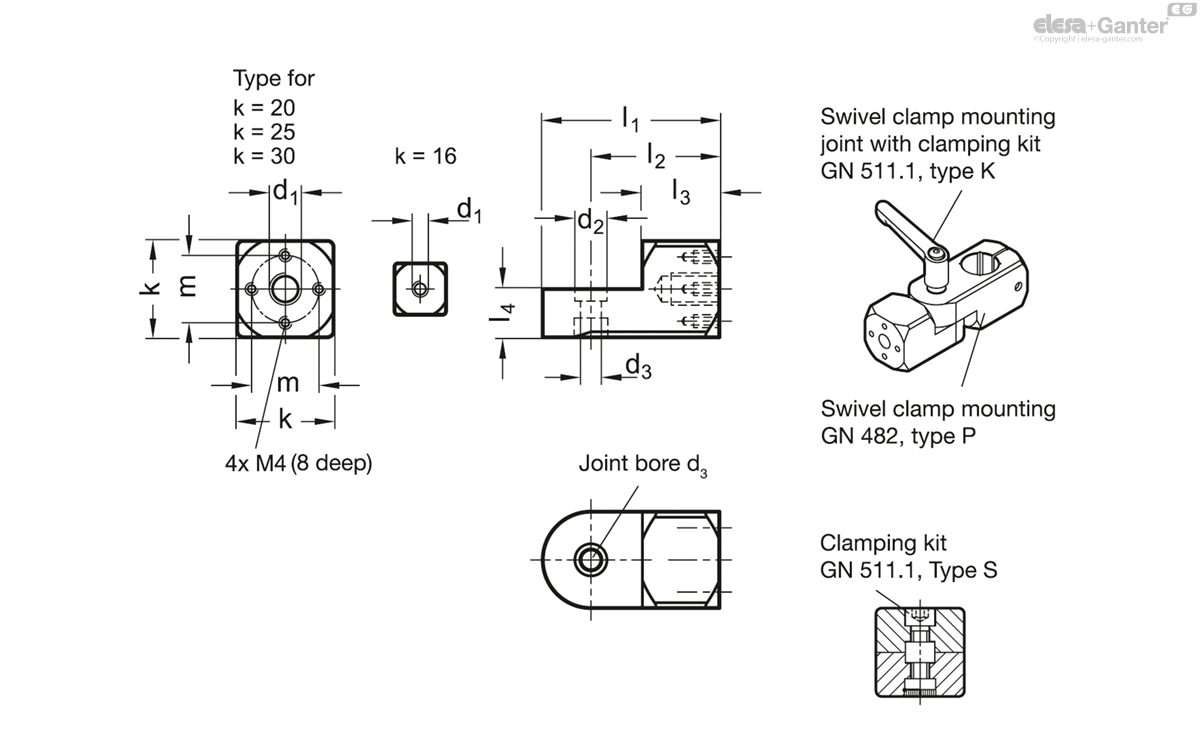

Code
|
d1
|
k
|
d2
|
d3
|
l1
|
l2
|
l3
|
l4
|
m
|
Clamping kit for d3 Type S
|
Clamping kit for d3 Type K
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 484-M5-16-ELS
|
M 5
|
16
|
7
|
4.5
|
30
|
22
|
13
|
8
|
-
|
GN 511.1-M4-16-S
|
GN 511.1-M4-16-K
|
13
|
|
GN 484-M5-16-MT
|
M 5
|
16
|
7
|
4.5
|
30
|
22
|
13
|
8
|
-
|
GN 511.1-M4-16-S
|
GN 511.1-M4-16-K
|
13
|
|
GN 484-M6-16-ELS
|
M 6
|
16
|
7
|
4.5
|
30
|
22
|
13
|
8
|
-
|
GN 511.1-M4-16-S
|
GN 511.1-M4-16-K
|
12
|
|
GN 484-M6-16-MT
|
M 6
|
16
|
7
|
4.5
|
30
|
22
|
13
|
8
|
-
|
GN 511.1-M4-16-S
|
GN 511.1-M4-16-K
|
12
|
|
GN 484-M8-16-ELS
|
M 8
|
16
|
7
|
4.5
|
30
|
22
|
13
|
8
|
-
|
GN 511.1-M4-16-S
|
GN 511.1-M4-16-K
|
12
|
|
GN 484-M8-16-MT
|
M 8
|
16
|
7
|
4.5
|
30
|
22
|
13
|
8
|
-
|
GN 511.1-M4-16-S
|
GN 511.1-M4-16-K
|
12
|
|
GN 484-M6-20-ELS
|
M 6
|
20
|
8.5
|
5.5
|
38
|
28
|
17
|
10
|
14
|
GN 511.1-M5-20-S
|
GN 511.1-M5-20-K
|
24
|
|
GN 484-M6-20-MT
|
M 6
|
20
|
8.5
|
5.5
|
38
|
28
|
17
|
10
|
14
|
GN 511.1-M5-20-S
|
GN 511.1-M5-20-K
|
24
|
|
GN 484-M8-20-ELS
|
M 8
|
20
|
8.5
|
5.5
|
38
|
28
|
17
|
10
|
14
|
GN 511.1-M5-20-S
|
GN 511.1-M5-20-K
|
24
|
|
GN 484-M8-20-MT
|
M 8
|
20
|
8.5
|
5.5
|
38
|
28
|
17
|
10
|
14
|
GN 511.1-M5-20-S
|
GN 511.1-M5-20-K
|
24
|
|
GN 484-M8-25-MT
|
M 8
|
25
|
10
|
6.5
|
46
|
33.5
|
20
|
12.5
|
17
|
GN 511.1-M6-25-S
|
GN 511.1-M6-25-K
|
46
|
|
GN 484-M8-25-ELS
|
M 8
|
25
|
10
|
6.5
|
46
|
33.5
|
20
|
12.5
|
17
|
GN 511.1-M6-25-S
|
GN 511.1-M6-25-K
|
46
|
|
GN 484-M10-25-MT
|
M 10
|
25
|
10
|
6.5
|
46
|
33.5
|
20
|
12.5
|
17
|
GN 511.1-M6-25-S
|
GN 511.1-M6-25-K
|
45
|
|
GN 484-M10-25-ELS
|
M 10
|
25
|
10
|
6.5
|
46
|
33.5
|
20
|
12.5
|
17
|
GN 511.1-M6-25-S
|
GN 511.1-M6-25-K
|
45
|
|
GN 484-M8-30-MT
|
M 8
|
30
|
10
|
6.5
|
55
|
40
|
24
|
15
|
20
|
GN 511.1-M6-30-S
|
GN 511.1-M6-30-K
|
84
|
|
GN 484-M8-30-ELS
|
M 8
|
30
|
10
|
6.5
|
55
|
40
|
24
|
15
|
20
|
GN 511.1-M6-30-S
|
GN 511.1-M6-30-K
|
84
|
|
GN 484-M10-30-ELS
|
M 10
|
30
|
10
|
6.5
|
55
|
40
|
24
|
15
|
20
|
GN 511.1-M6-30-S
|
GN 511.1-M6-30-K
|
82
|
|
GN 484-M10-30-MT
|
M 10
|
30
|
10
|
6.5
|
55
|
40
|
24
|
15
|
20
|
GN 511.1-M6-30-S
|
GN 511.1-M6-30-K
|
82
|
|
GN 484-M12-30-ELS
|
M 12
|
30
|
10
|
6.5
|
55
|
40
|
24
|
15
|
20
|
GN 511.1-M6-30-S
|
GN 511.1-M6-30-K
|
80
|
|
GN 484-M12-30-MT
|
M 12
|
30
|
10
|
6.5
|
55
|
40
|
24
|
15
|
20
|
GN 511.1-M6-30-S
|
GN 511.1-M6-30-K
|
80
|
Aluminium
- matt, slide ground MT
- anodized black ELS
Attachment clamp mountings GN 484 are primarily designed for mounting sensor holders GN 479 and retaining plate GN 479.1 . They are fitted with a central thread and for the size with k = 20 and higher, an additional bore template 4 x M4.
Using swivel clamp mountings GN 482 and T-Swivel clamp mountings GN 483 with the same k dimensions, attachment clamp mountings GN 484 are easily combined into articulated swivel clamp mounting joints. Clamping kits GN 511.1 with screw, type S and adjustable hand lever, type K are available for this purpose (description see table of dimensions).
