Technical datasheet
GN 483Draaibare T-klemverbindingen
Draaibare T-klemverbindingen
Aluminium
GN 483
|

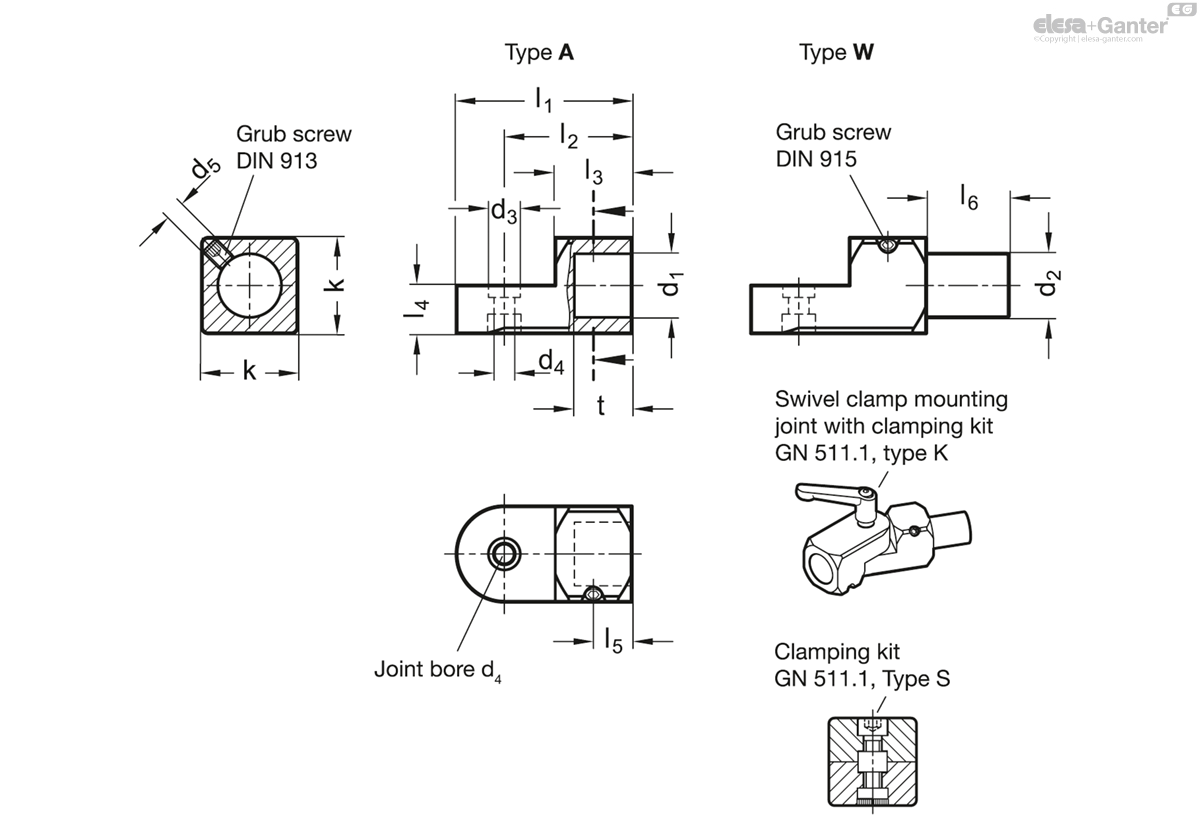

Code
|
d1
|
d2
|
k
|
d3
|
d4
|
d5
|
l1
|
l2
|
l3
|
l4
|
l5
|
l6
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B 8
|
-
|
16
|
7
|
4.5
|
M 4
|
30
|
22
|
13
|
8
|
5.5
|
16
| ||
|
B 8
|
-
|
16
|
7
|
4.5
|
M 4
|
30
|
22
|
13
|
8
|
5.5
|
16
| ||
|
B 10
|
-
|
20
|
8.5
|
5.5
|
M 5
|
38
|
28
|
17
|
10
|
7
|
17
| ||
|
B 10
|
-
|
20
|
8.5
|
5.5
|
M 5
|
38
|
28
|
17
|
10
|
7
|
17
| ||
|
B 12
|
-
|
20
|
8.5
|
5.5
|
M 5
|
38
|
28
|
17
|
10
|
8
|
19
| ||
|
B 12
|
-
|
20
|
8.5
|
5.5
|
M 5
|
38
|
28
|
17
|
10
|
8
|
19
| ||
|
B 15
|
-
|
25
|
10
|
6.5
|
M 6
|
46
|
33.5
|
20
|
12.5
|
10
|
21
| ||
|
B 15
|
-
|
25
|
10
|
6.5
|
M 6
|
46
|
33.5
|
20
|
12.5
|
10
|
21
| ||
|
B 16
|
-
|
25
|
10
|
6.5
|
M 6
|
46
|
33.5
|
20
|
12.5
|
11
|
24
| ||
|
B 16
|
-
|
25
|
10
|
6.5
|
M 6
|
46
|
33.5
|
20
|
12.5
|
11
|
24
| ||
|
B 20
|
-
|
30
|
10
|
6.5
|
M 6
|
55
|
40
|
24
|
15
|
12
|
26
| ||
|
B 20
|
-
|
30
|
10
|
6.5
|
M 6
|
55
|
40
|
24
|
15
|
12
|
26
| ||
|
-
|
8
|
16
|
7
|
4.5
|
M 4
|
30
|
22
|
13
|
8
|
5.5
|
16
| ||
|
-
|
8
|
16
|
7
|
4.5
|
M 4
|
30
|
22
|
13
|
8
|
5.5
|
16
| ||
|
-
|
10
|
20
|
8.5
|
5.5
|
M 5
|
38
|
28
|
17
|
10
|
7
|
17
| ||
|
-
|
10
|
20
|
8.5
|
5.5
|
M 5
|
38
|
28
|
17
|
10
|
7
|
17
| ||
|
-
|
12
|
20
|
8.5
|
5.5
|
M 5
|
38
|
28
|
17
|
10
|
8
|
19
| ||
|
-
|
12
|
20
|
8.5
|
5.5
|
M 5
|
38
|
28
|
17
|
10
|
8
|
19
| ||
|
-
|
15
|
25
|
10
|
6.5
|
M 6
|
46
|
33.5
|
20
|
12.5
|
10
|
21
| ||
|
-
|
15
|
25
|
10
|
6.5
|
M 6
|
46
|
33.5
|
20
|
12.5
|
10
|
21
| ||
|
-
|
16
|
25
|
10
|
6.5
|
M 6
|
46
|
33.5
|
20
|
12.5
|
11
|
24
| ||
|
-
|
16
|
25
|
10
|
6.5
|
M 6
|
46
|
33.5
|
20
|
12.5
|
11
|
24
| ||
|
-
|
20
|
30
|
10
|
6.5
|
M 6
|
55
|
40
|
24
|
15
|
12
|
26
| ||
|
-
|
20
|
30
|
10
|
6.5
|
M 6
|
55
|
40
|
24
|
15
|
12
|
26
|

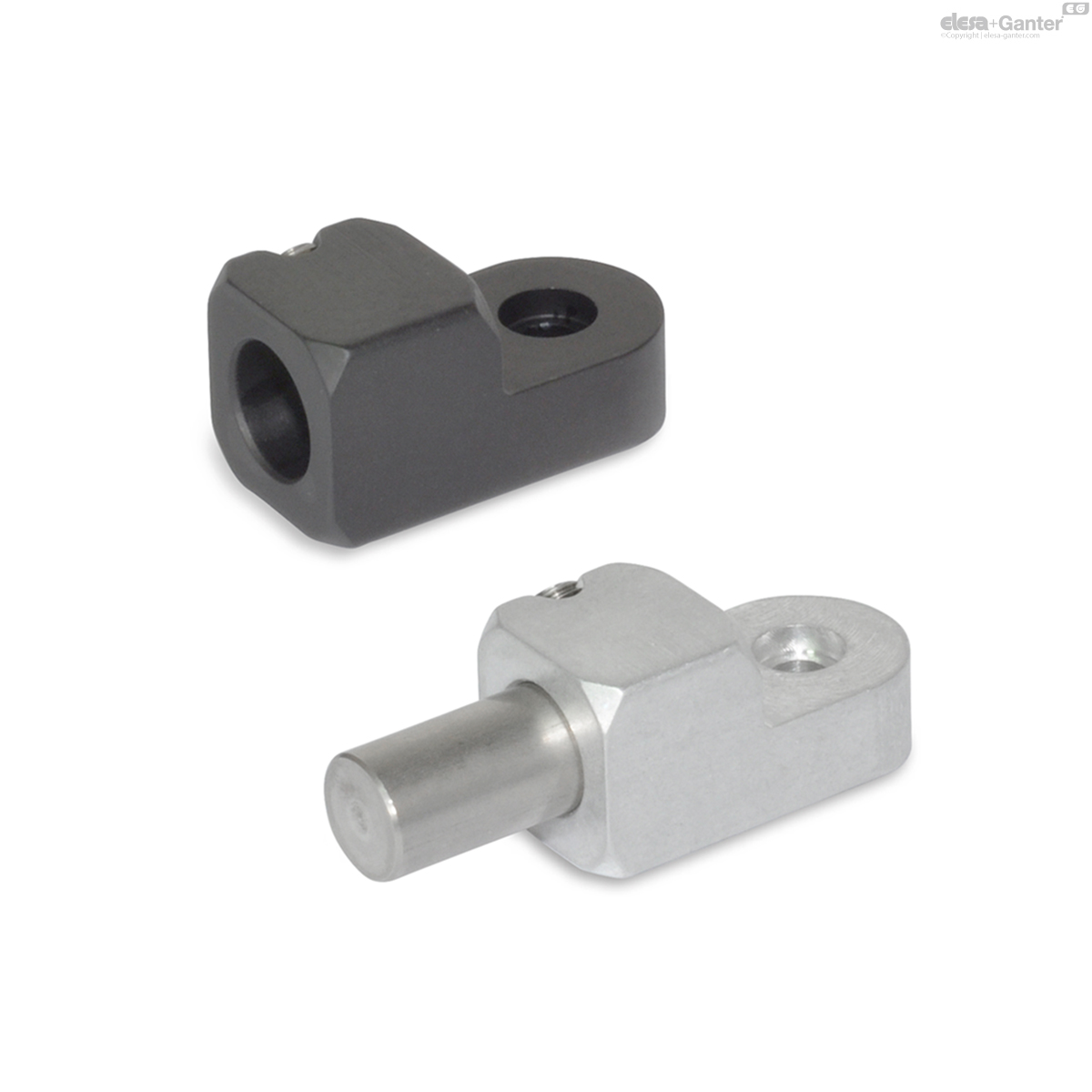

Types
- Type A: with bore
- Type W: with bolt
Aluminium
- matt, slide ground MT
- anodized black ELS
Bolt (Type W)
Steel zinc-plated, blue passivated
Grub screw DIN 913 (Type A)
Stainless Steel AISI 304
Grub screw DIN 915 (Type W)
Stainless Steel AISI 304

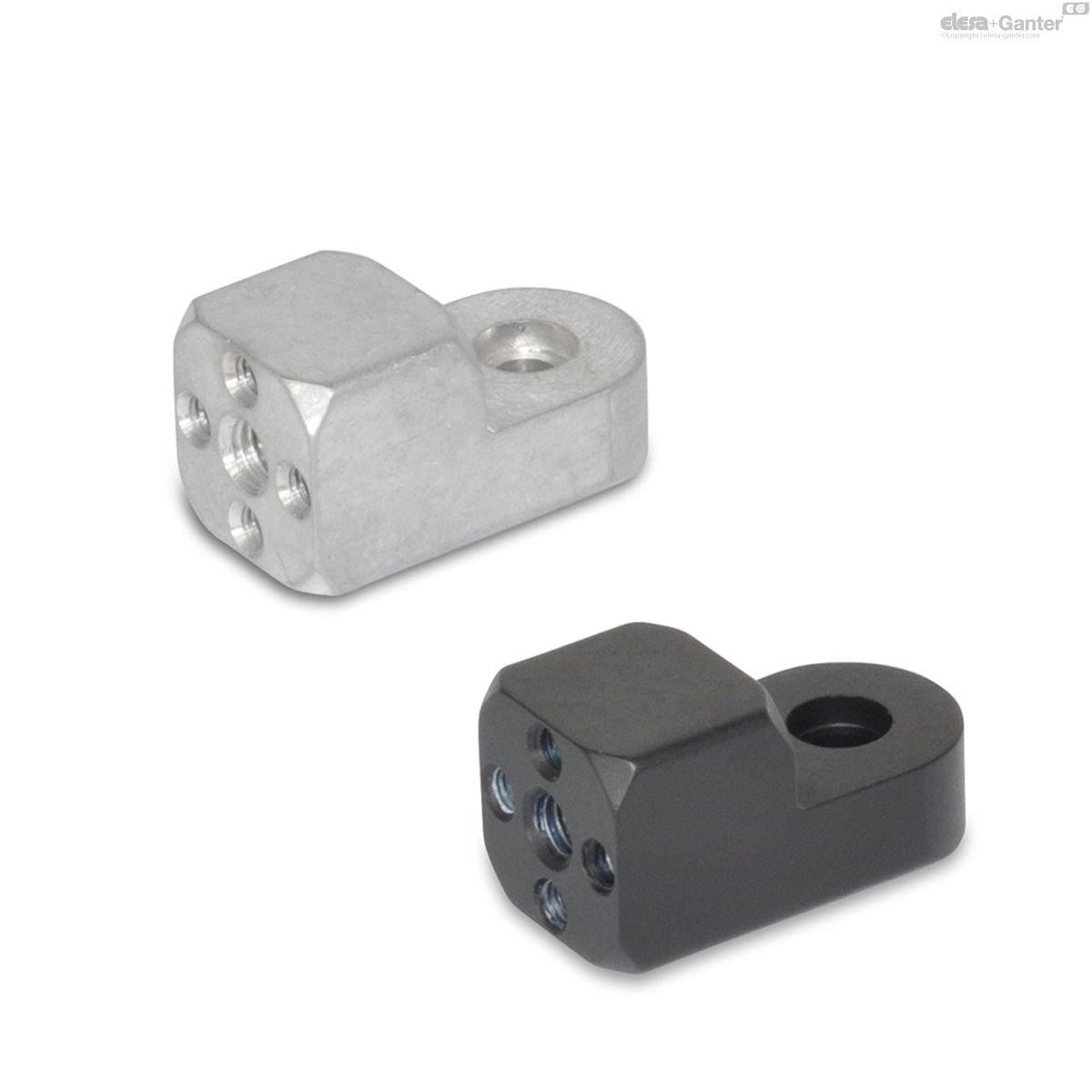

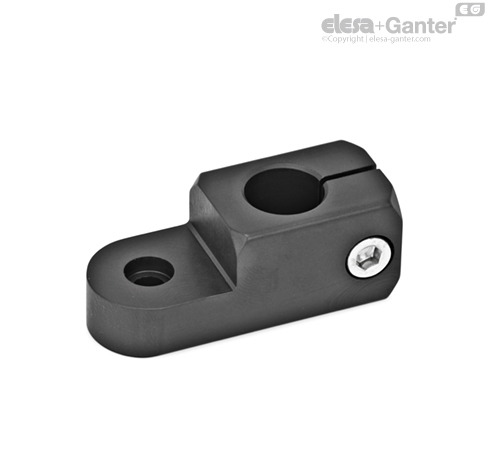

T-Swivel clamp mountings GN 483 can be combined with swivel clamp mountings GN 482 and attachment clamp mountings GN 484 with the same k dimensions into articulated swivel clamp mounting joints. Clamping kits GN 511.1 with screw, type S and adjustable hand lever, type K are available for this purpose (description see table of dimensions).
